| Model number | IPC-205Z V1.0 | |

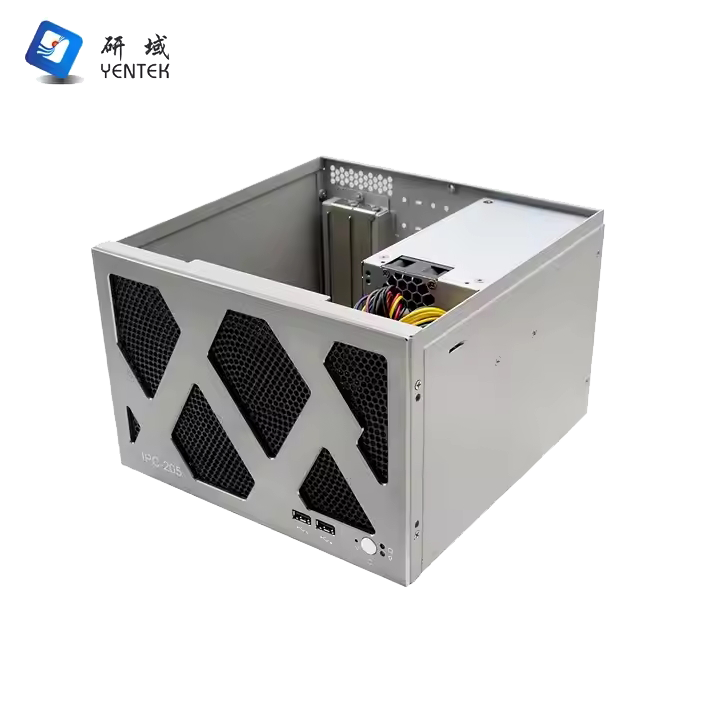

| Chassis | Material/Structure | Active cooling structure, galvanized steel material |
| Colour | Industrial control milky white | |

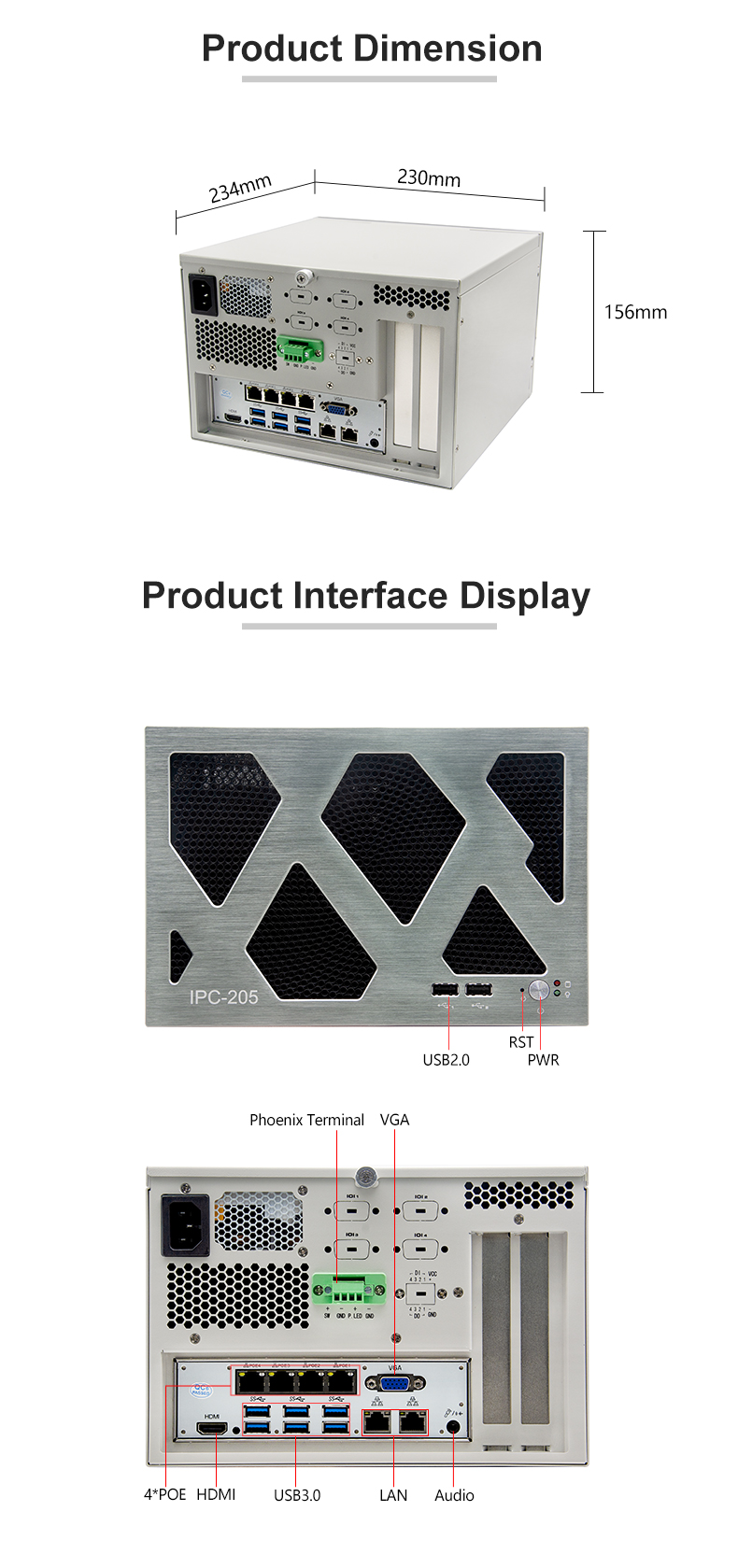

| Dimensions | 230mm*234mm*156mm | |
| Weight (bare weight) | KG | |
| Install | Desktop /4U rack type | |

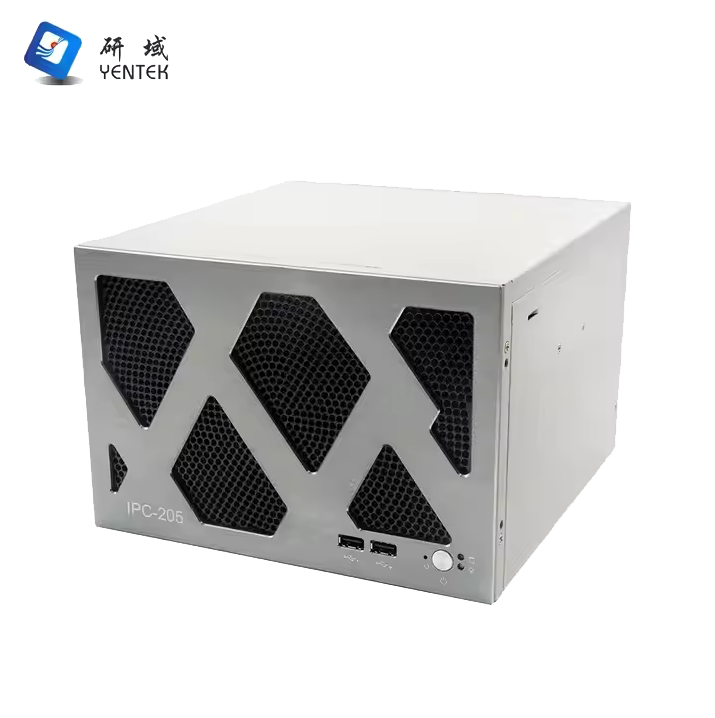

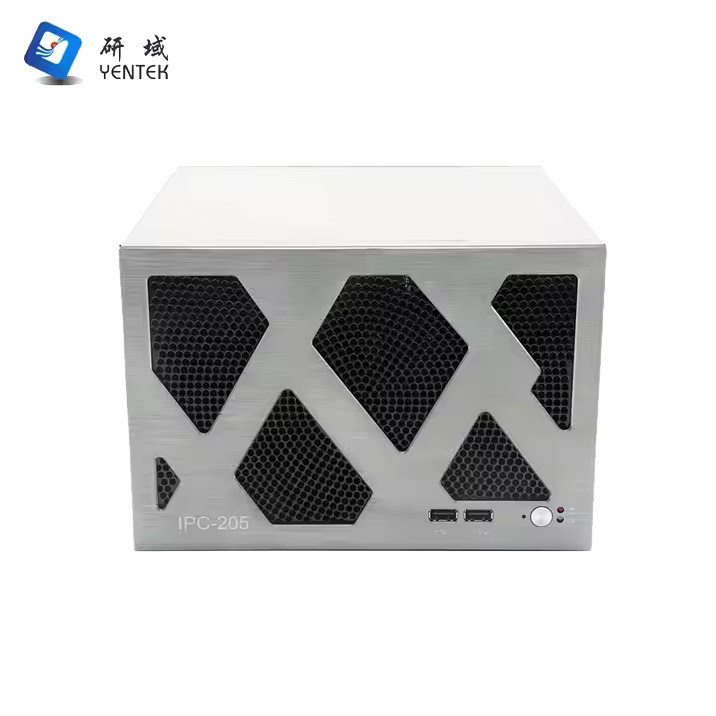

| Front panel interface | Switch | 1* Power switch, 1* reset key |
| LED | 1* Power indicator, 1* hard disk indicator | |
| USB | 2 * USB2.0 | |

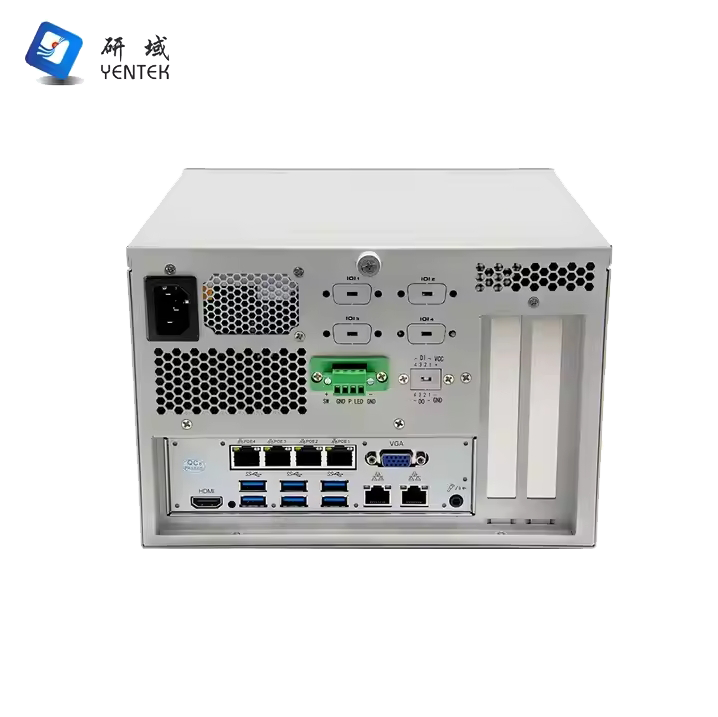

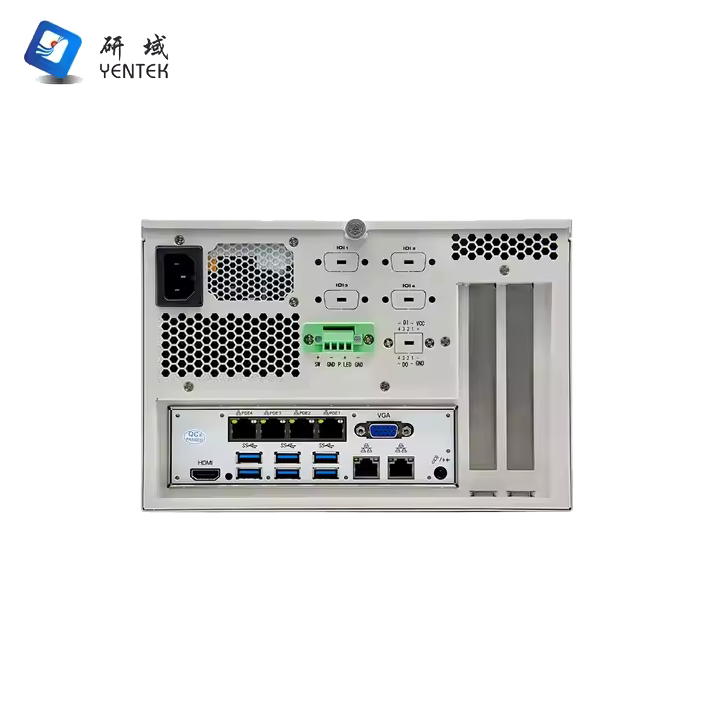

| Rear panel interface | Display interface | 1*VGA, 1*HDMI1*VGA, 1*HDMI |
| USB | 3*USB2.0, 8*USB3.0 | |
| COM | 2*RS232/485/422 DB9 COM, 4*RS232 DB9 serial port can be added | |
| LAN | 2*RJ45 | |
| PS/2 | 1*PS/2 keyboard and mouse interface | |
| Audio frequency | 1*Line out(green), 1*MIC(red) | |
| Phoenix terminal | 1*4P Phoenix terminal (including power signal, power indicator signal) | |
| GPIO | 4 in 4 out (Optional, not supported on some motherboards) | |
| Store | SATA | 1 x 3.5-inch hard disk or 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| Extend | PCIE | 1*PCIE X16 |

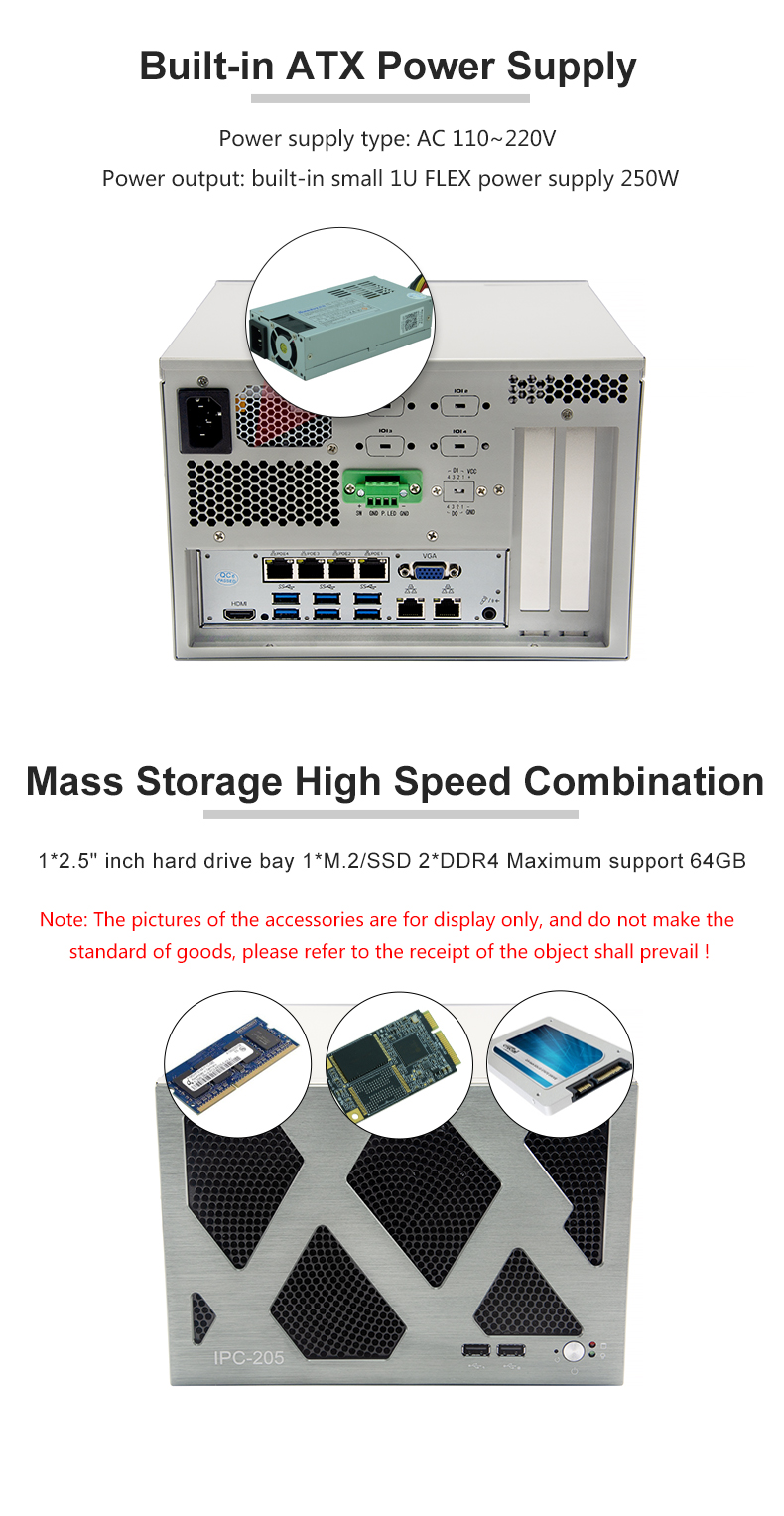

| Power demand | Power supply type | Built-in small 1U FLEX power supply |
| Voltage input | AC 110-220V | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | IO Board | PCIE | LAN | COM | HDMI | VGA | USB2.0 | USB3.0 | Power |
| 1 | IPC-205Z V1.0(B75M1) | LGA1155 | B75M1 | 1*DDR3 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
| 2 | IPC-205Z V1.0(B75R1) | LGA1155 | B75M1 | 1*DDR3 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
| 3 | IPC-205Z V1.0(Q85M1) | LGA1150 | Q85M1 | 1*DDR3 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 6 | 2 | 1U |
| 4 | IPC-205Z V1.0(Q85R1) | LGA1150 | Q85M1 | 1*DDR3 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 6 | 2 | 1U |
| 5 | IPC-205Z V1.0(Q250M1) | LGA1151 | Q250M1 | 2*DDR4 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
| 6 | IPC-205Z V1.0(H510M1) | LGA1200 | H510M1 | 2*SODDR4 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
| 7 | IPC-205Z V1.0(H510R1) | LGA1200 | H510R1 | 2*SODDR4 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
| 8 | IPC-205Z V1.0(H610M1) | LGA1200 | H610M1 | 2*SODDR4 | IPC505-SW | X16 | 2 | 6 | 1 | 1 | 4 | 4 | 1U |
