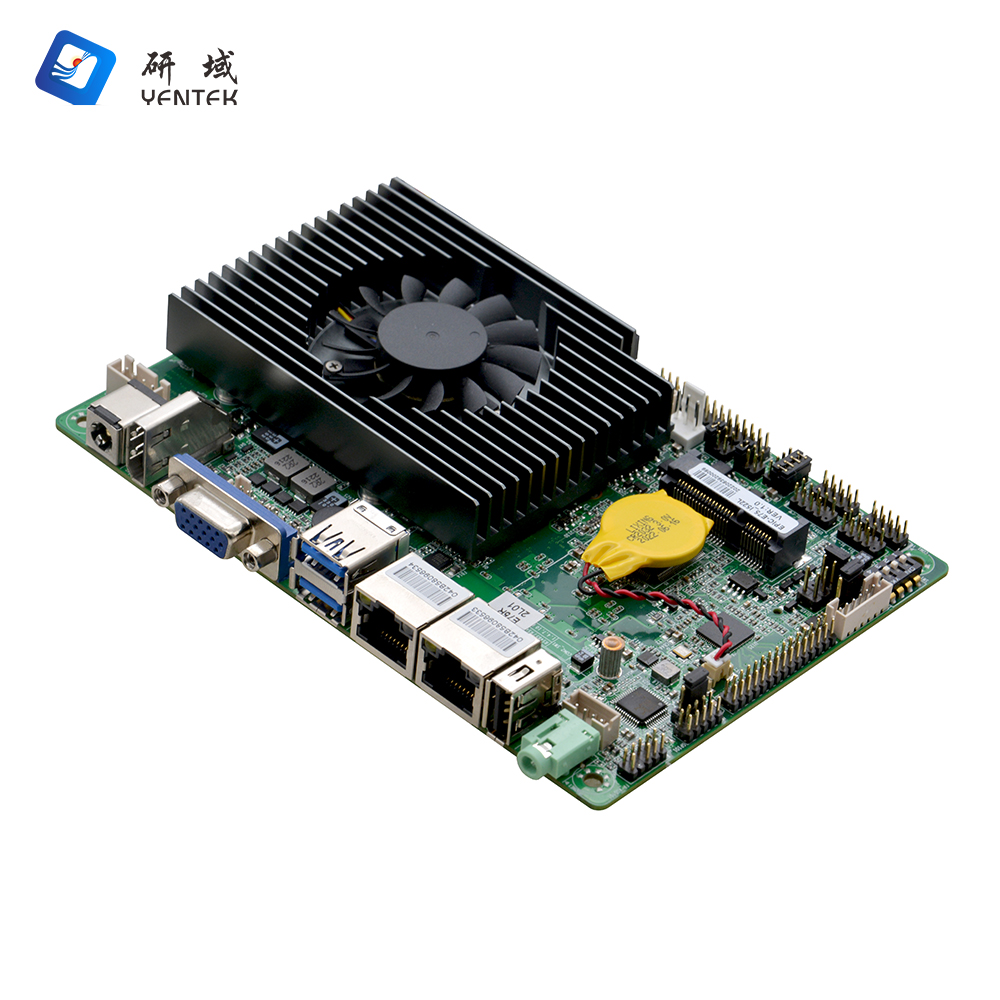

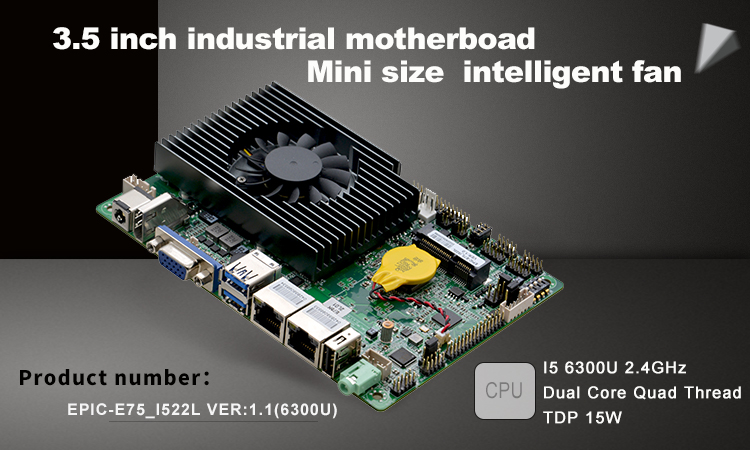

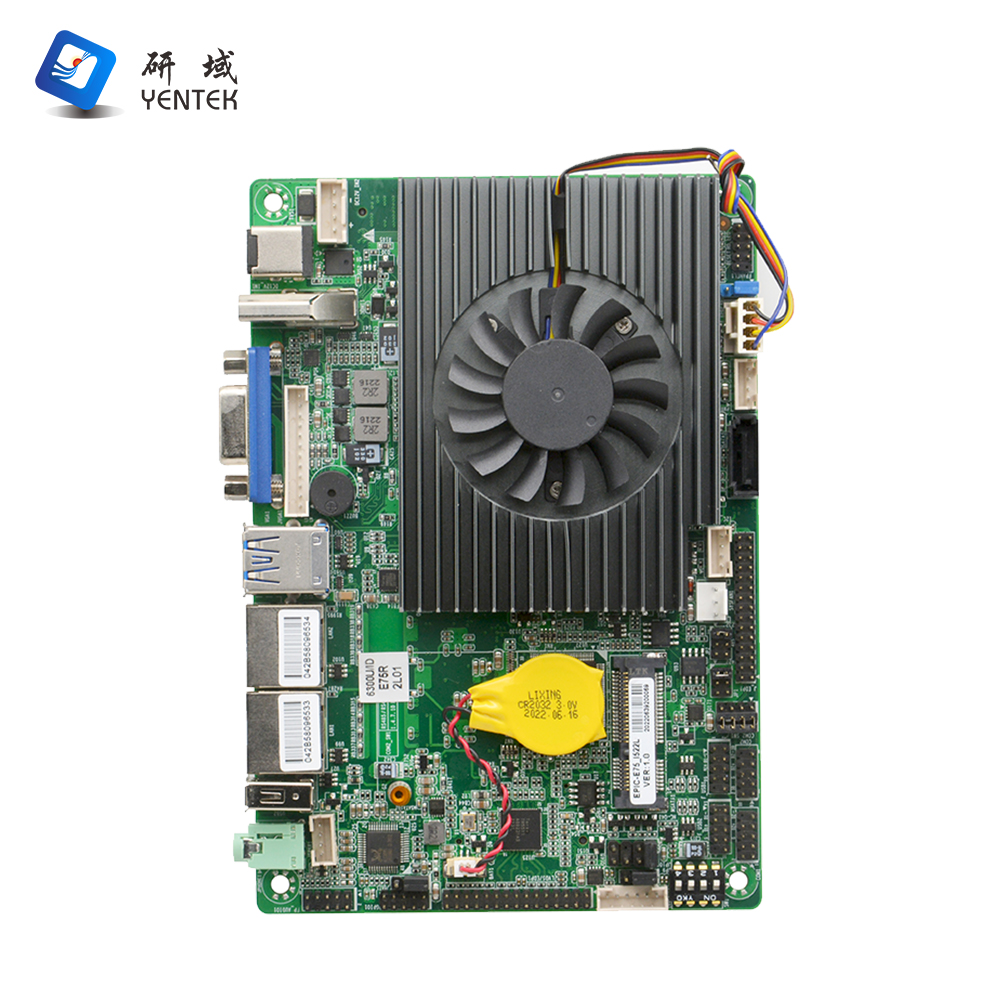

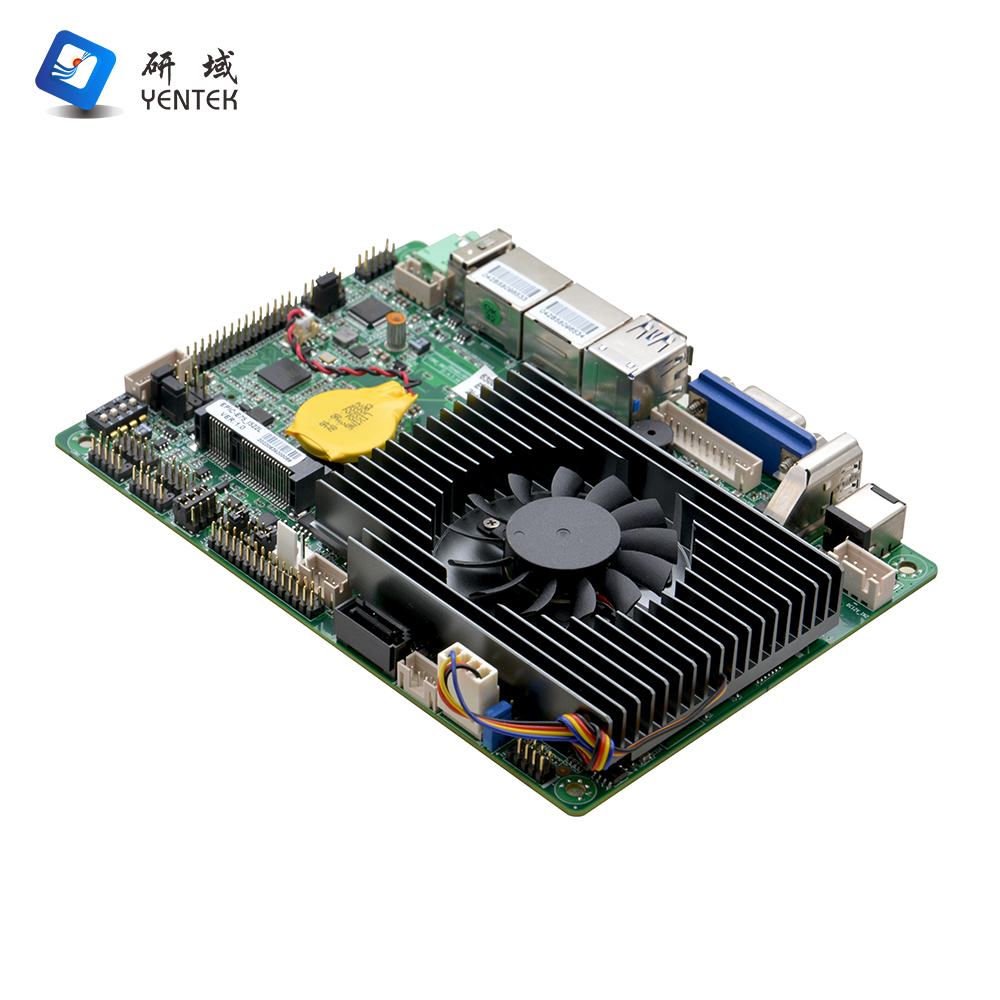

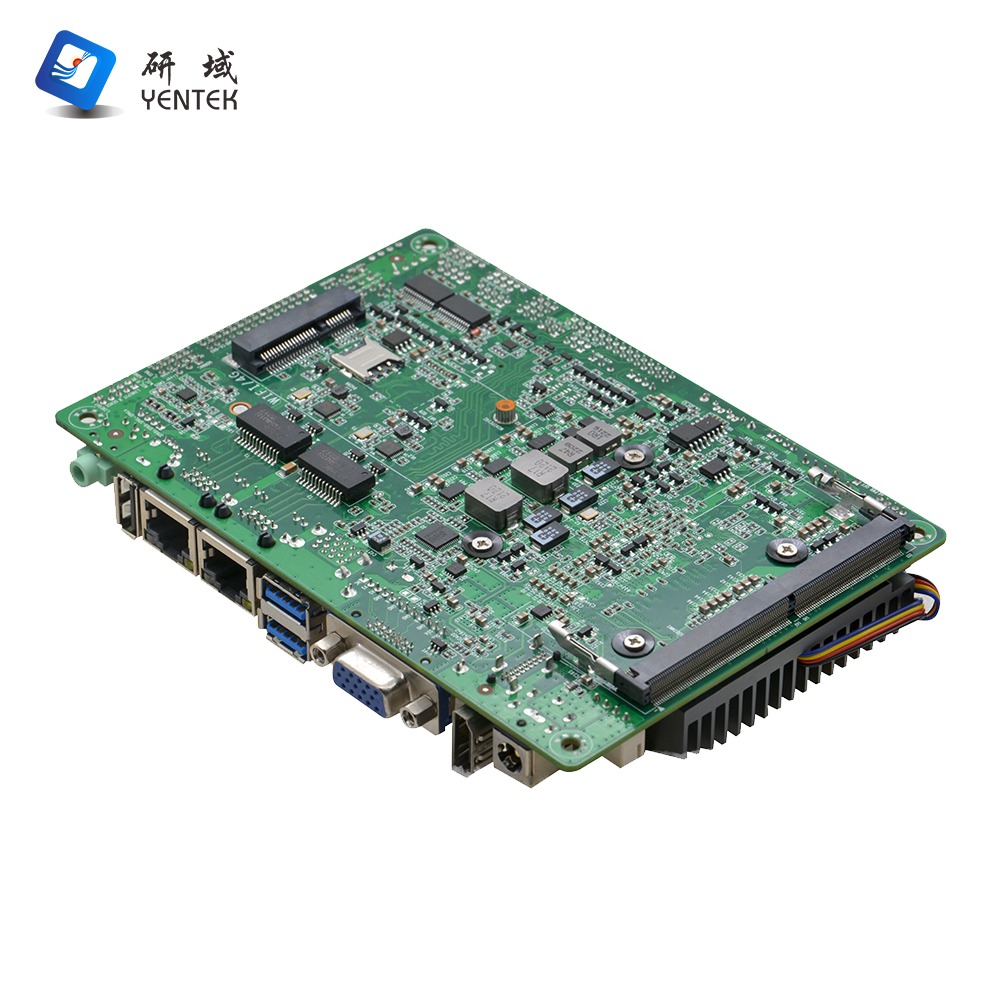

| Product model | EPIC-E75_I522L VER:1.0(6300U) |

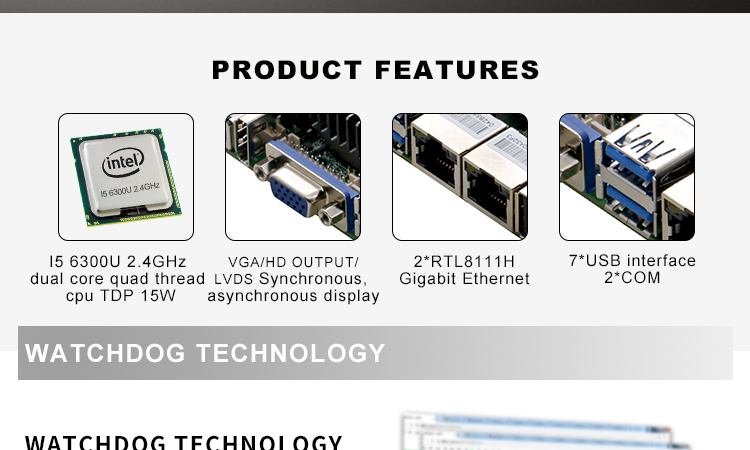

| Processor | Integrated Intel® I5-6300U 2.4GHz dual-core quad-thread processor, TDP15W |
| Compatible with Intel® Skylake-U Celeron/PentiumI3/I5/I7 28W low power processors | |
| Chipset | SOC |
| Internal memory | 1*SODIMM slot for supporting DDR4 2133MHz memory and a maximum of 32GB |
| Display | Integrated Intel® HD Graphics 520 supports DirectX 12 OpenGL 4.5 and 4K |
| 1*VGA,1* HD OUTPUT interface,1*LVDS interface, support dual channel 24Bit or EDP | |
| Note:LVDS and EDP are optional | |
| Network | 2* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| Deposit | 1* 7pin SATA3.0 slot, transmission rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Tone frequency | Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with Line-out support. Power amplifier |
| The amplifier supports 4Ω/3W dual channels | |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |

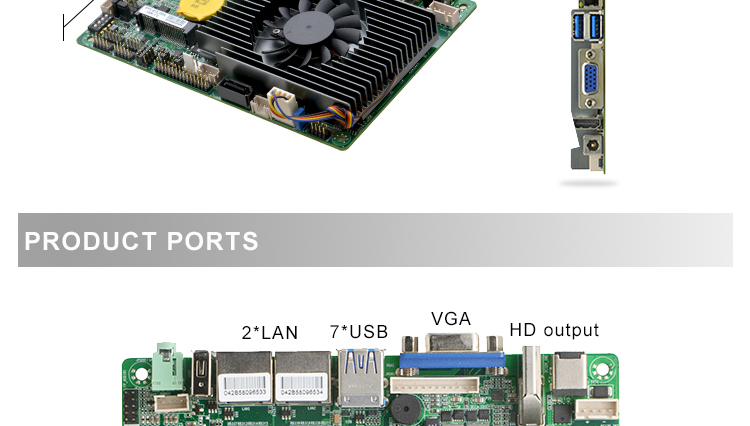

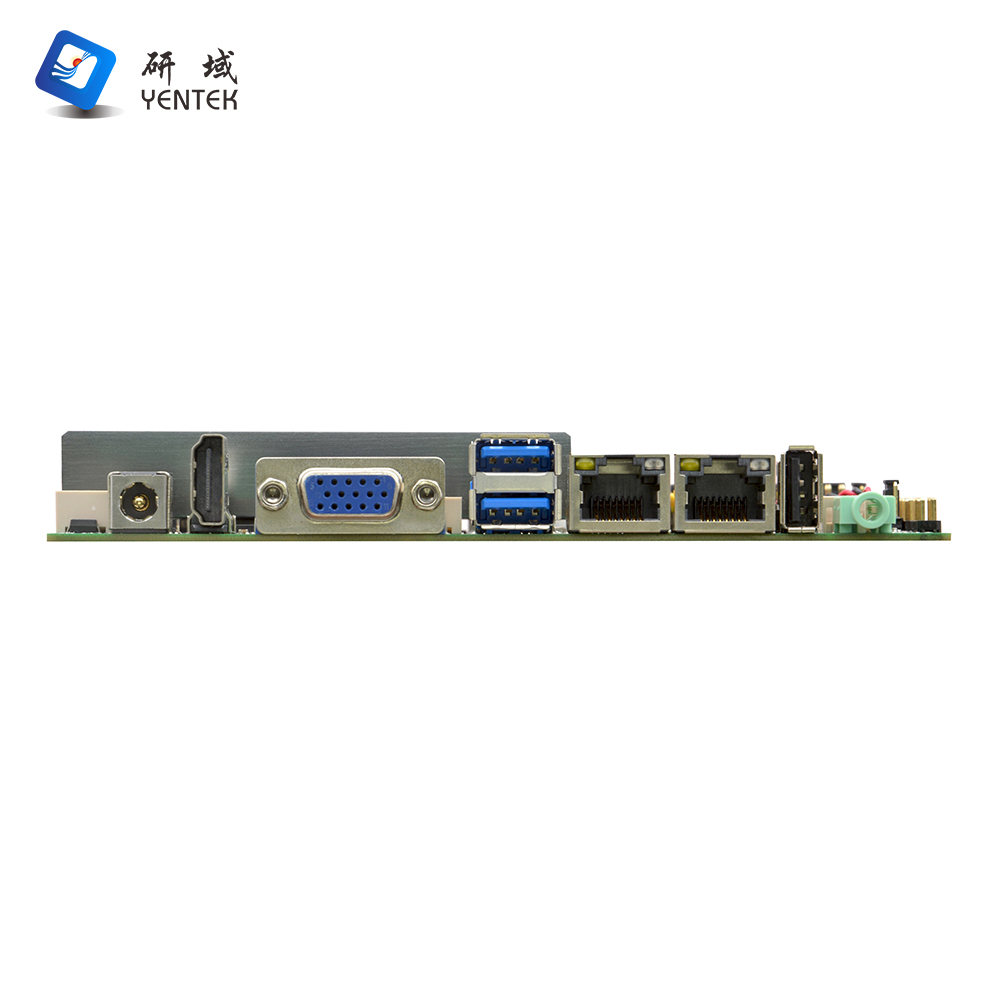

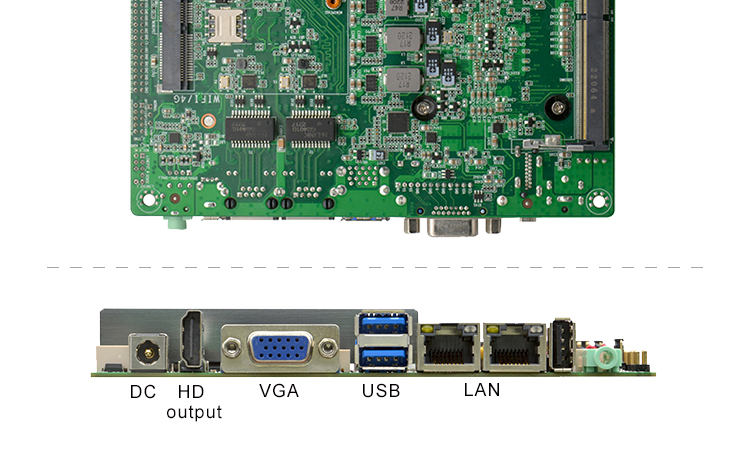

| I/O ports on the backplane | 1* DC 12V power input port |
| 1* HD OUTPUT port | |
| 1 x VGA port | |
| 2* USB3.0 port | |
| 1* USB2.0 interface | |
| 2* RJ45 Gigabit network interface | |
| 1* Line-out (green) | |
| Built-in I/O interface | 1* 4pin DC power interface, support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT | |
| 1* EDP interface, 2*15pin, and LVDS interface is one of two options, default LVDS | |
1* screen backlight power supply interface 1*6pin | |
| 2* RS232 serial interface, where COM1 supports 9pin live function,COM2 can support RS485 function | |
4* USB2.0 interface 2*5pin | |
| 1* front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* hard drive power port 1*4pin | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | 1*4pin CPU intelligent fan interface,1*3pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |

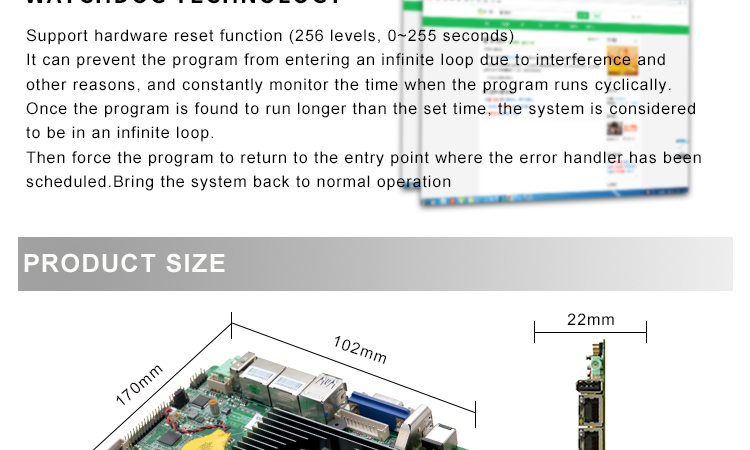

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 148mm x 102mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | EPIC-E75_I522L VER:1.0(6300U) | I5-6300U | 2.4G | 1*SODDR4 | 1 | 1 | 2ch*24bit | / | 2*211AT | 7 | 2 | COM2 | DC 12V |
