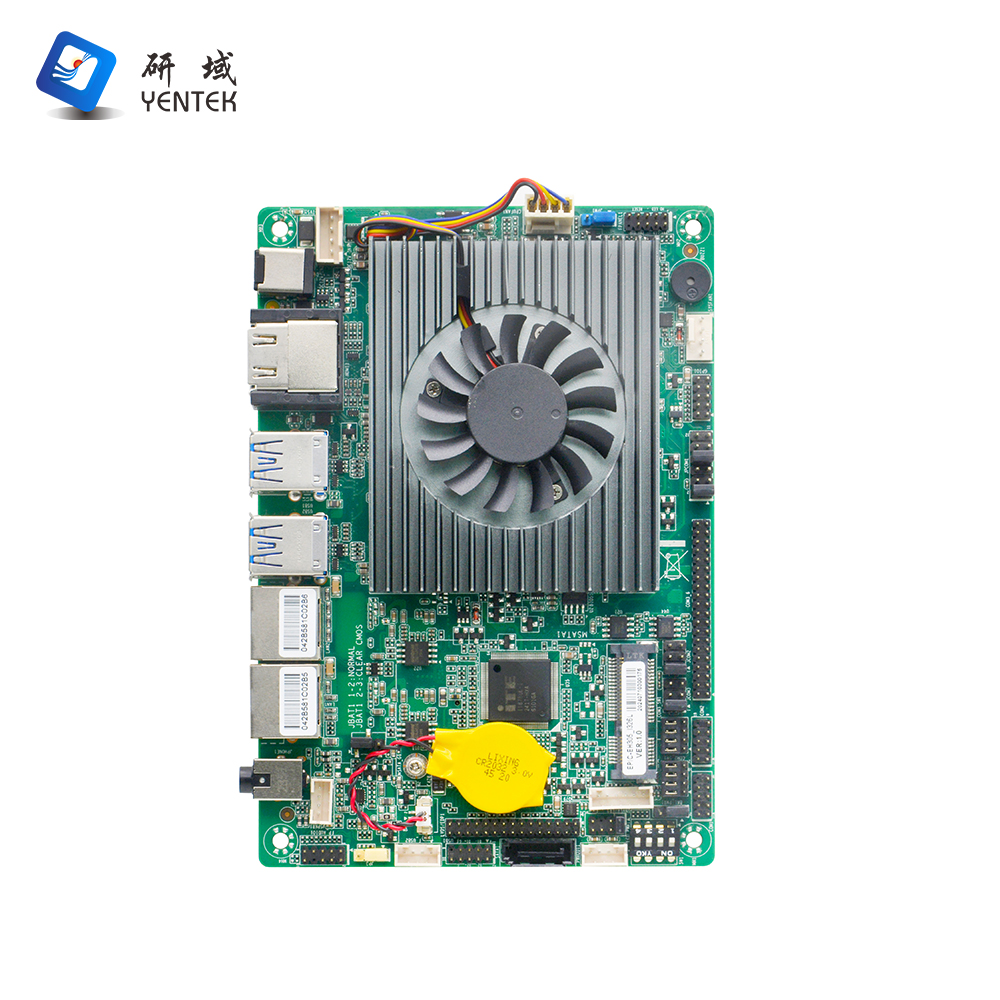

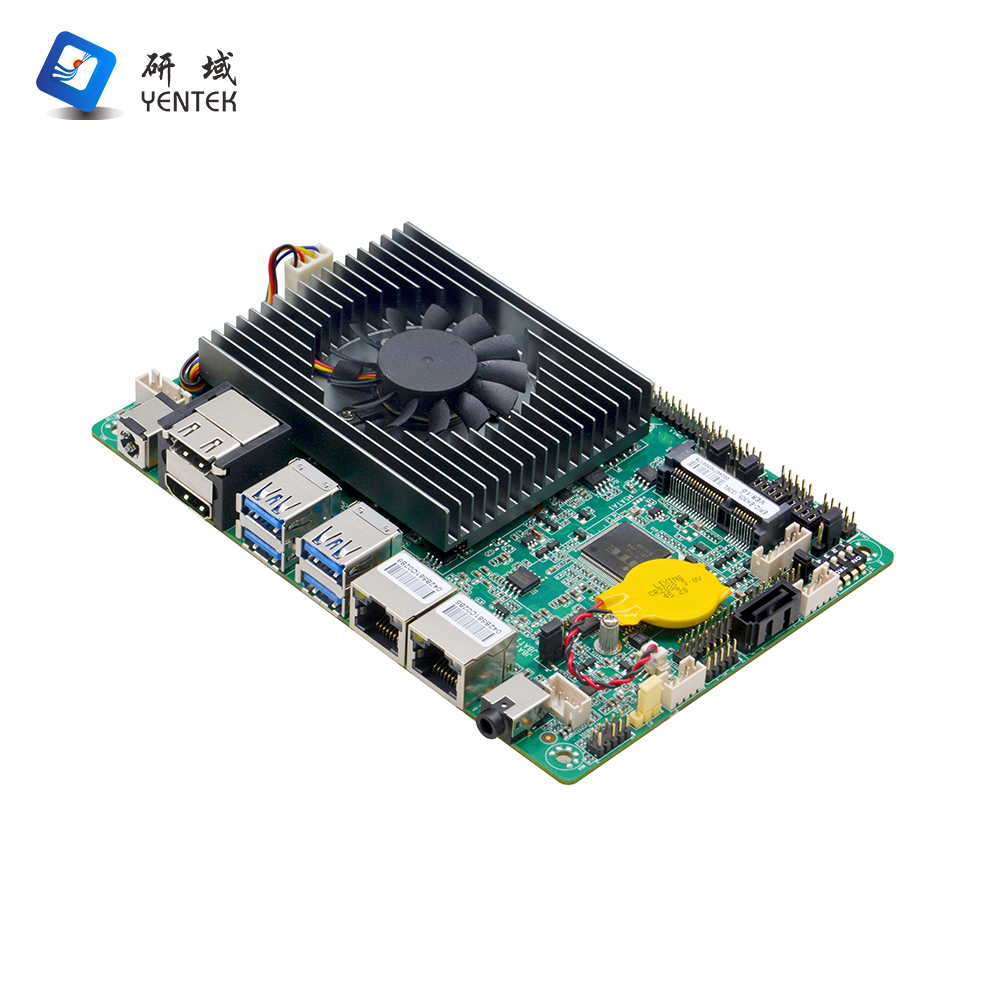

EPIC-EH305_N126L

Processor

Integrated Intel® Alder Lake-N N100 3.4GHz Quad-Core,   Quad-Thread Processor, TDP 6W

Compatible with   the full range of Intel® Alder Lake-N CPUs for flexible customer selection

Chipset

SOC

Memory

1* SODIMM   slot, support single-channel 3200MHz DDR4 memory, maximum support 16GB

Display

Integrated Intel® UHD Graphics core graphics card, support for   DirectX 12.1, OpenGL4.6

2*HDMI1.4 interface, 1*LVDS interface

Note: LVDS and EDP interfaces share the   same row of pins, through the jumpers to select

Network

2*   I226V Gigabit LAN card, support Wake-on-LAN and PXE function.

Storage

1* 7pin SATA3.0 hard drive   interface, transfer rate up to 6Gbps

1* MSATA slot, support SSD,   SSD transfer rate up to 6Gbps

Audio

Onboard   ALC897 7.1+2-channel hi-fi audio controller, support MIC/Line-out. amplifier

Amplifier   recommended to use 4Ω 3W speakers

Expansion   Slots

1*   M.2 slot, support M.2 2230 WIFI/Bluetooth module

Backplane   I/O Ports

2*   HDMI1.4 display interface

4* USB3.0 interface,

2* RJ45 Gigabit network   interface

1* Two and one audio interface,   support Line-out, MICK

Built-in   I/O Ports

1* DC power supply interface,   1*4pin support 12V power input and output

1* LVDS interface, 2*15pin,   support dual-channel 24BIT, and EDP for the common row of pins, through the   jump risk selection

1* Screen backlight power   supply interface 1*6pin

2* USB2.0 interface, 2*5pin

1* USB2.0 interface 1*4pin

6* RS232 serial interface,   COM1/2 support the 9th pin with power function, COM2/COM3 support RS485/422   function.

1* HDD power supply interface   1*4pin

1* Front Audio Interface   2*5pin

1* Power amplifier interface   1*4pin

1* Front Panel Function   Button and Indicator Interface 2*5pin

Fan   Interface

1*4pin CPU smart fan   interface, 1*4pin system fan interface

GPIO

Support   4-way input/output GPIO

BIOS

256Mb   Flash ROM

Watchdog

Support   hardware reset function (256 levels, 0~255 seconds)

Operating   System

Windows   10/Windows 11/Linux

Power   Supply Type

DC   12V power supply

Operating   Temperature

-10℃～60℃

Storage   Temperature

-20℃～70℃

Working   Humidity

5%-95%   relative humidity, non-condensing

Dimension

148mm   x 102mm

1

EPIC-EH305_N126L VER:1.0(N100)

N100

3.4G

1*SODDR4

/

2

1

/

2*226V

7

6

COM2/3

DC12V

2

EPIC-EH305_I326L VER:1.0(N305)

N305

3.8G

1*SODDR4

/

2

1

/

2*226V

7

6

COM2/3

DC12V
