3.5 inch Board

EPIC-N31

See 1 sizes
FEATURES
More
Product description

Product modelEPIC-N31 VER:1.2(J3710)
Processor

Intel®J3710/1.6GHz quad core quad thread processor, TDP 6.5W

ChipsetIntel® Braswelll SOC
Internal memory

1* DDR3L SODIMM memory slot, support single channel 1600/1333MHz DDR3L/1.35V memory, max up to 8GB

Display
Intel®HD Graphics
1*VGA,1*HDMI,1*LVDS ( support dual channel 24BIT)
Supports VGA;HDMI;LVDS synchronous / asynchronous display
LAN2*Intel I210AT Gigabit Ethernet, support Wake On LAN , PXE function
AudioOnboard ALC662 6 channel high fidelity audio controller, support MIC/Line-out. amplifier
Power amplifier suggest use 2Ω5W speaker
Expansion slot1*Mini-PCIE slot, support WIFI , 3G module
1*MSATA slot, SSD solid-state hard disk support , transfer rate up to 6Gbps
Storage1*7pin SATA3.0 HDD port, transfer rate up to 6Gbps.

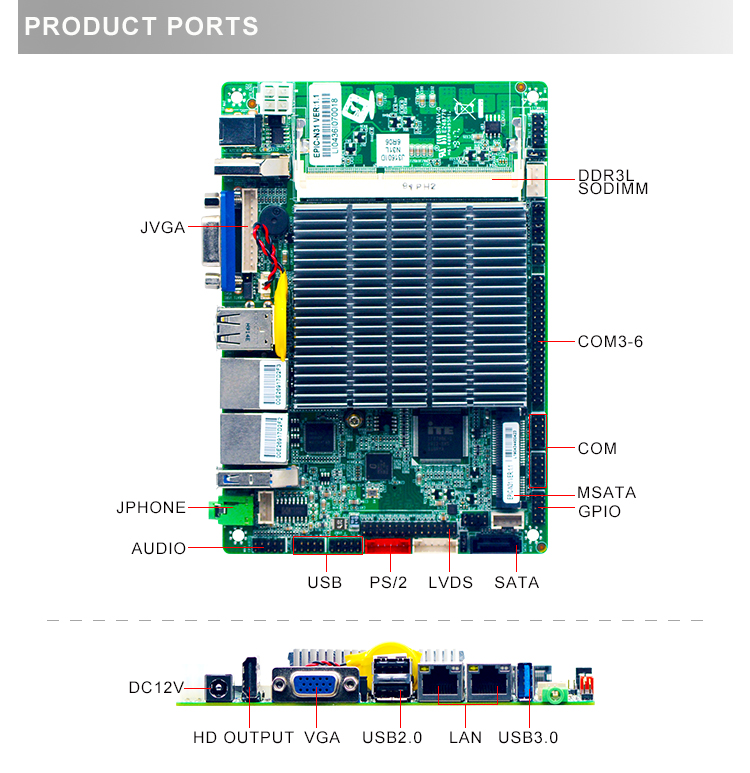

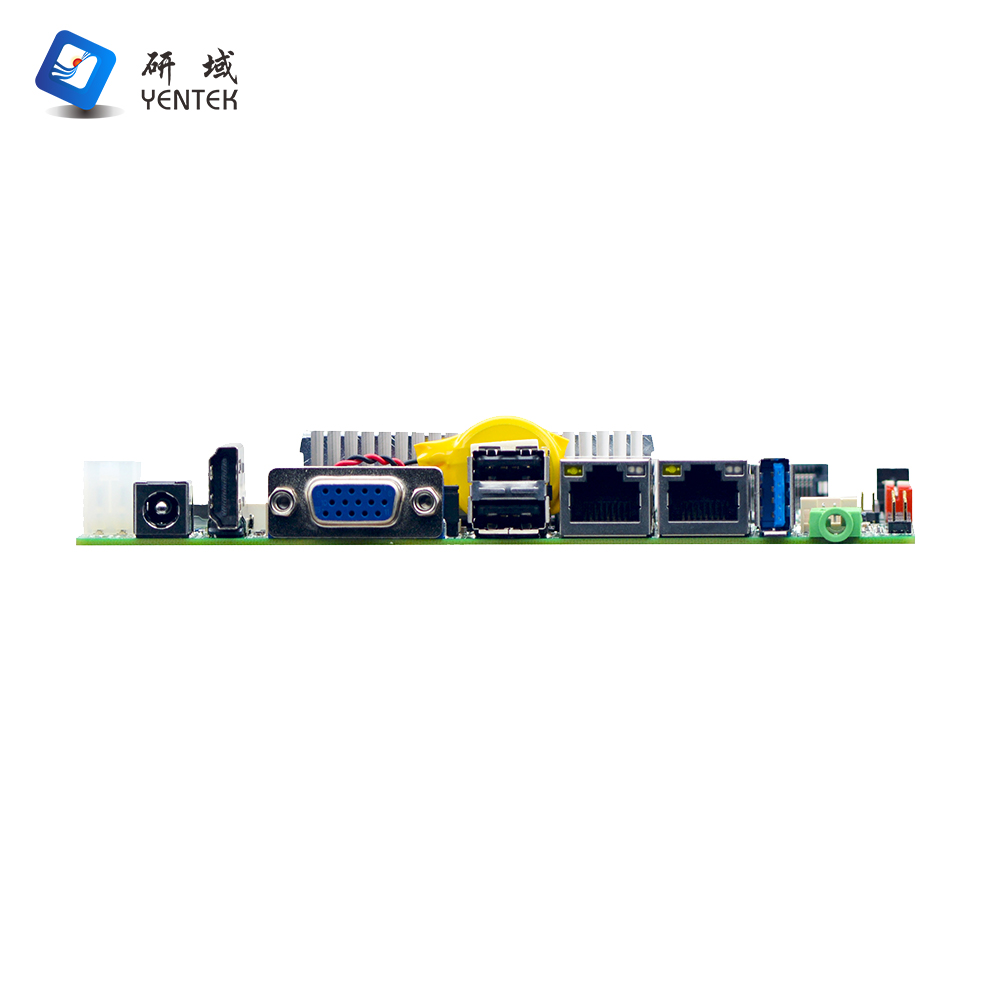

Rear I/O port

1* DC 12V power supply

1* HDMI
1* VGA
2* RJ-45 Gigabit Ethernet
2* USB2.0，1*USB3.0
1* Line out (green)
Internal I/O port1* 4Pin power interface（12V Input and Output Power Interface ）
4* USB 2.0, 2*5Pin
1* JVGA, 1*12Pin
1* PS/2 Keyboard and mouse interface (red), 1*6Pin

6* RS232 COM port, COM2 support RS485/RS422 function

1* Pre-audio interface,2*5pin

1* Pre-amplifier,1*4Pin

1* LVDS, 2*15pin, support dual channel 24bit( dual 8)
1* LVDS backlight power supply interface, 1*6pin
1* Front panel switch button and indicator interface,2*5Pin
1* Hard Disk Power Supply Interface ,1*4pin
1* SIM
Fan interfaceFanless cooling, reserved 1*4pin CPU fan connector
GPIOSupports four input/output GPIO
BIOS64Mb Flash ROM

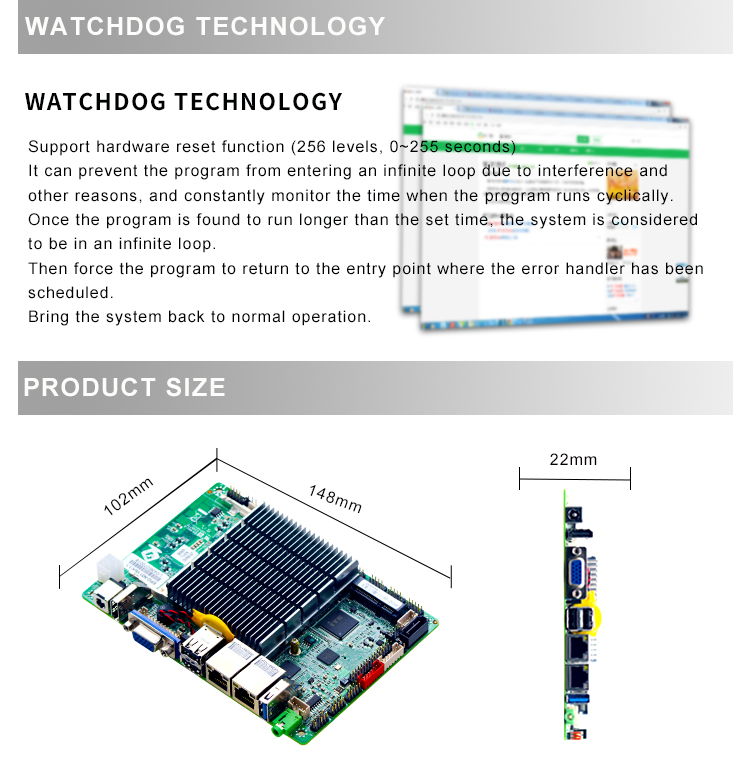

Guard dogSupport hardware reset function (256 level, 0~255 seconds)
Operating systemWindows 7/Windows 10/Linux
Power supply typeDC 12V power supply
Operating temperature-10℃ to 60℃
Storage temperature-20℃ to 70℃
Working humidity5%-95% relative humidity, no condensation
Dimension148mm x 102mm

Order Information

NO.ModelProcessorFrequencyMemoryVGAHDMILVDSEDPLANUSBCOMRS485/422Power
1EPIC-N31 VER:1.2J37101.61*SODDR3L112*24BIT/2*210AT76COM2DC 12V
