EPIC-EH120_I526L

Processor

Integrated   Intel® Alder Lake 12th Core I5-1235U 10-core 12-thread processor with 15W TDP

Compatible   with Intel® Alder Lake-U/Raptor Lake-U 12th/13th Celeron/I3/I5/I7 Processors

Chipset

SOC

Memory

1* DDR4   SODIMM memory slot, supports 3200MHz memory up to 64GB

Display

Integrated Intel® Iris® Xe Graphics core   graphics card, support DirectX12.1, OpenGL4.6, support for 4K display

2*HDMI1.4 interface, 1*LVDS interface

Note: LVDS and EDP interfaces share the   same row of pins, selectable through the jumpers.

Network

2* I210AT Gigabit LAN card, support   Wake-on-LAN and PXE function.

Storage

1* 7pin SATA3.0 hard drive interface, transfer rate up to 6Gbps

1* M.2 slot, support for M.2 2280 NVME PCIE X4 SSDs

Audio

Onboard ALC897 7.1+2-channel hi-fi audio   controller, support MIC/Line-out. amplifier

Amplifier recommended to use 4Ω 3W speakers

Expansion Slots

1* M.2 slot, support M.2 Key E 2230   WIFI/Bluetooth module

1* M.2 slot, support M.2 Key B 3042/3052   4G/5G

Backplane I/O Ports

2* HDMI1.4 Display Interface

4* USB3.0 interface

2* RJ45 Gigabit network interface

1* 2 and 1 audio interface, support Line-out, MICK

Built-in I/O Ports

1* DC power supply interface, 1*4pin support 12V power input and   output

1* LVDS interface, 2*15pin, support dual-channel 24BIT, and EDP   for the common row of pins, through the jump risk selection

1* Screen backlight power supply interface 1*6pin

4* USB2.0 interface, 2*5pin

6* RS232 serial interface, COM2/COM3 support RS485/422 function

1* HDD power supply interface 1*4pin

1* Front Audio Interface 2*5pin

1* Power amplifier interface 1*4pin

1* Front panel function button and indicator interface 2*5pin

1* TPM Pin 2*6pin

Fan Interface

1*4pin CPU smart fan interface, 1*4pin system fan interface

GPIO

Support 4 input/output GPIO

BIOS

256Mb Flash ROM

Watchdog

Support hardware reset function (256   levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

DC 12V power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

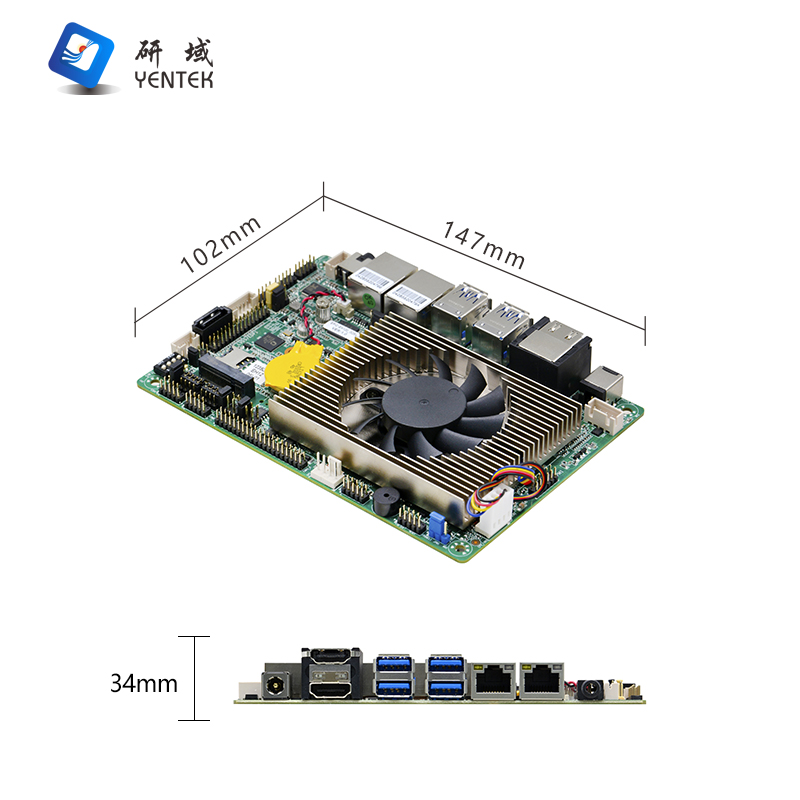

Dimension

148mm x 102mm

1

EPIC-EH120_I526L   VER:0.1(1235U)

 1235U

4.4G

1*SODDR4

2

2ch*24BIT

1

2*I210AT

8

6

COM2/3

DC12V
