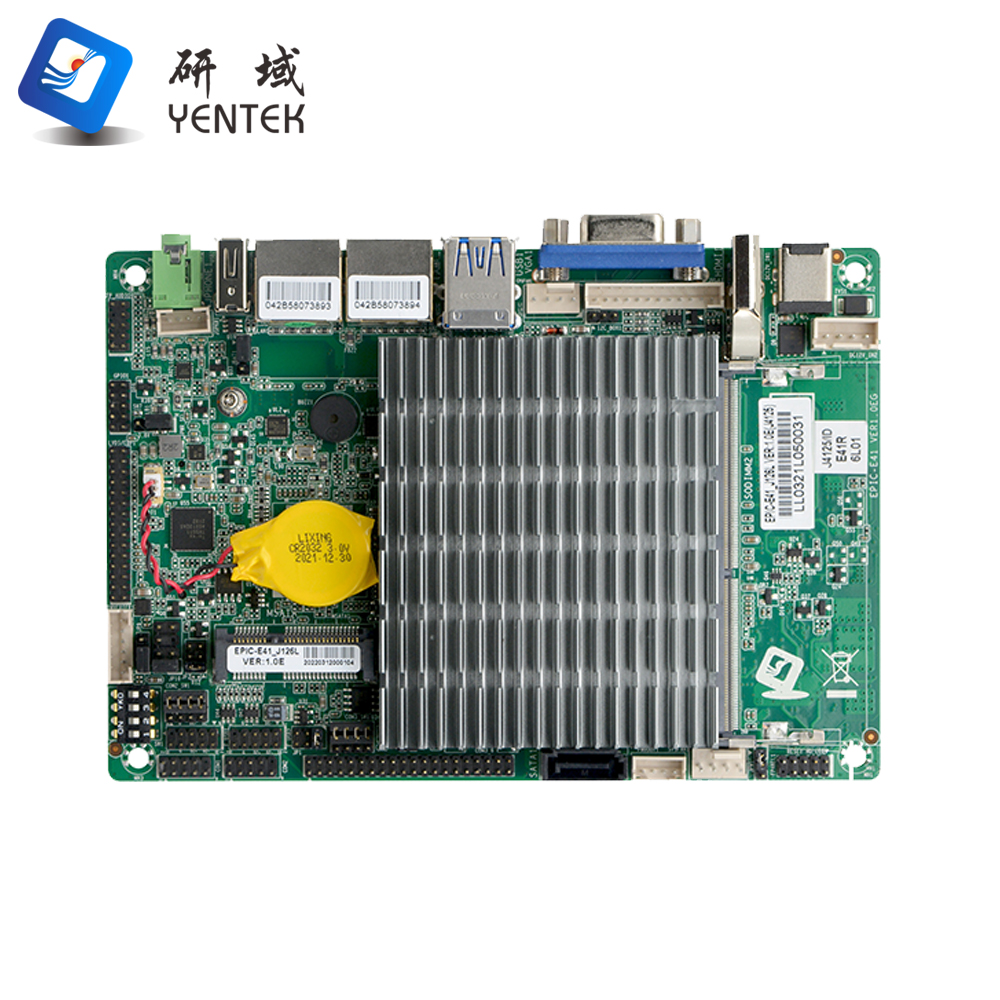

| Product model | EPIC-E41_J126L VER:1.1E |
| Processor | Onboard Intel®Celeron J4125 2.0GHz quad Core 4-thread processor, TDP 10W
Compatible with Intel® Gemini Lake series CPU |
| Chipset | SOC |
| Memory | 1* SODIMM slot, support single channel 2400MHz DDR4 memory, up to 8GB |
Display
| Integrate Intel® UHD Graphics 600 |
| 1*VGA,1*HDMI port,1*LVDS port |
| Network | 2* RTL8111H Gigabit network card, support Wake on LAN, PXE function |
| Storage | 1* 7pin SATA3.0 hard disk port, the transfer rate up to 3Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission rate up to 3Gbps |
| Audio | Integrated ALC662 6 channel high-fidelity audio controller, supporting MIC, Line_out, power amplifier |
| Support power amplifier 2Ω5W speaker |
| Expansion Slot | 1* Mini-PCIE slot,support WIFI/4G module |

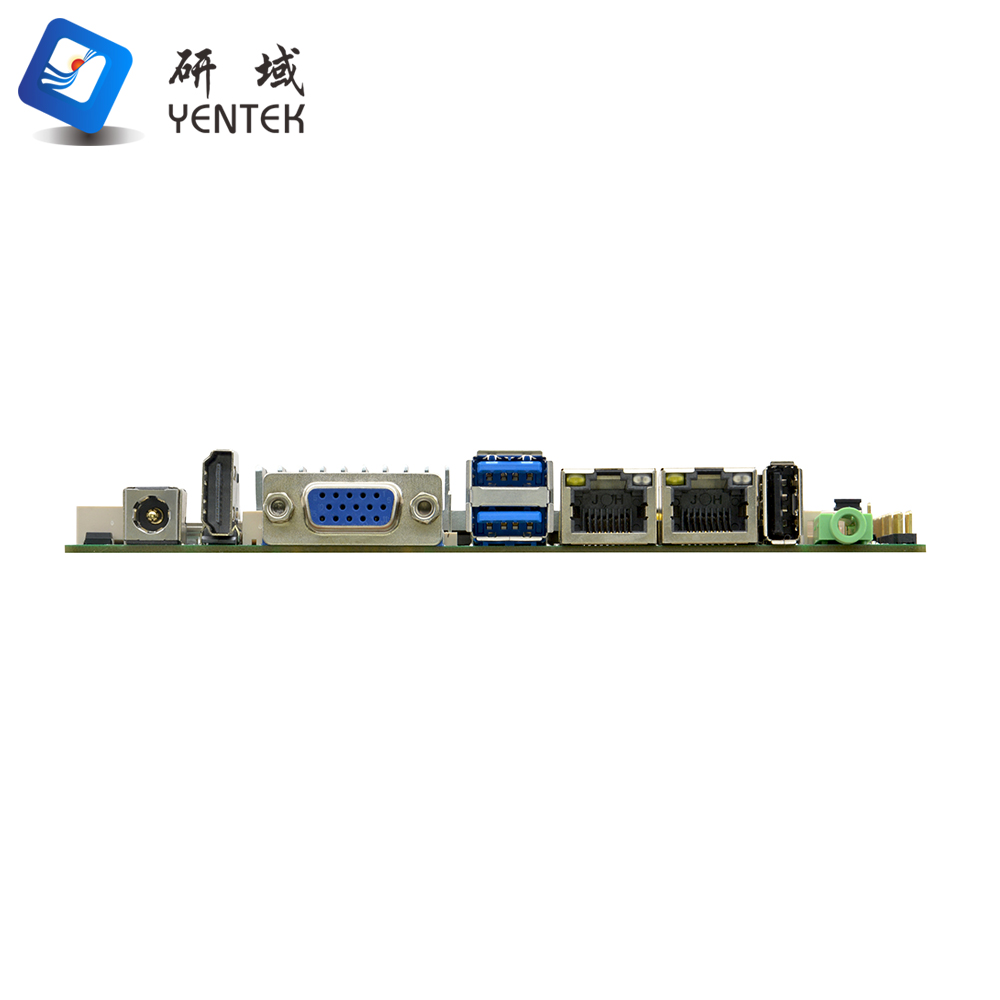

| Rear I/O Port | 1* DC12V power interface, support 12V power input |
| 1*VGA interface |
| 1*HDMI interface |
| 2*USB3.0 interface,1*USB2.0 interface |
| 2* RJ45 Gigabit network interface |
| 1* Line-out (green) |
Built-in I/O interface
| 1* DC power adaptor,1*4pin support 12V power input/output |
| 1* JVGA interface 1*12pin (same signal as DB15) |
| 1* LVDS interface 2*15pin, support dual channel 24bit |
| 1* Screen brightness adjustment interface 1*6pin |
4* USB2.0 interface, 2*5pin |
| 6* RS232 serial interface,COM2/3 support RS485/422 function |
1* Hard disk power supply interface 1*4pin |
| 1* Front audio interface 2*5pin |
| 1* power amplifier interface 1*4pin |
| 1* SIM card connector |
| 1* Front panel switch button and indicator light interface 2*5Pin |
| Fan Connector | Fanless cooling, reserved 1*4pin CPU intelligent fan interface, 1*4pin system fan interface |
| GPIO | Support 4-in 4-out GPIO function |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 148mm x 102mm |
