Fiber Ethernet Adapter

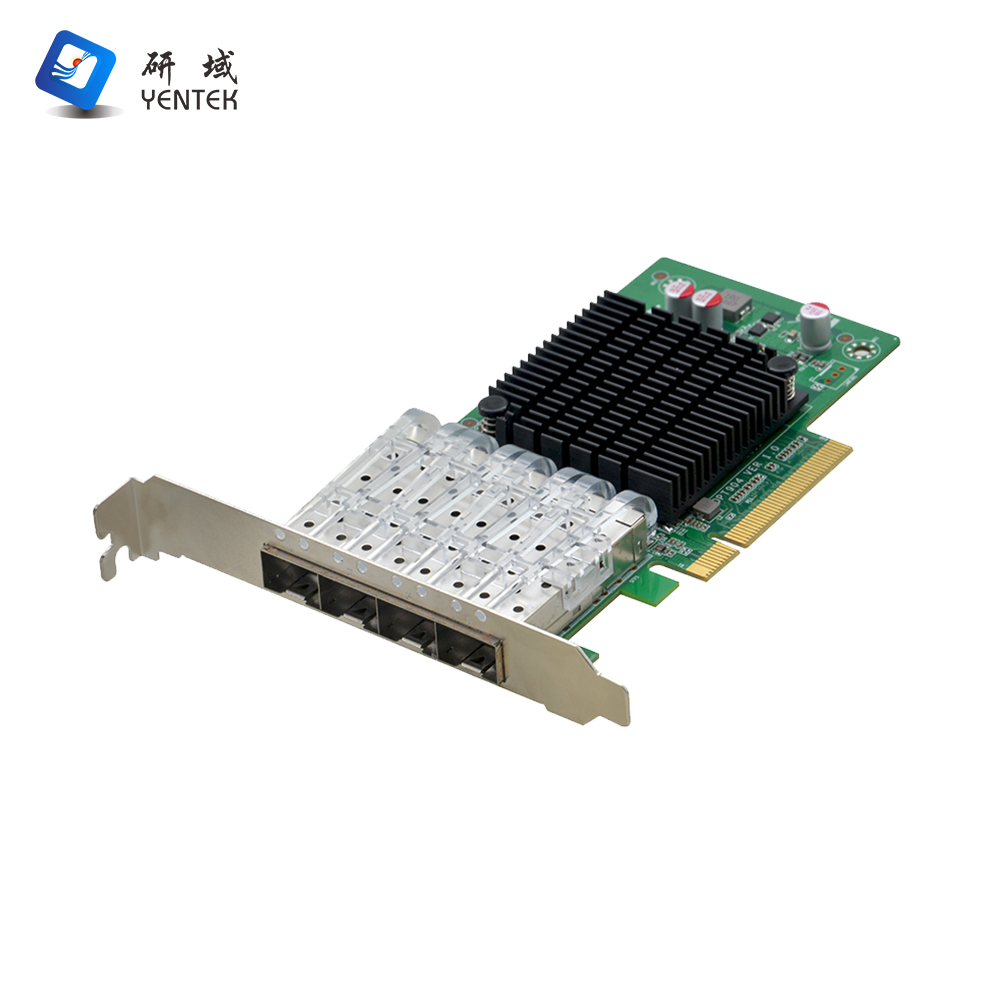

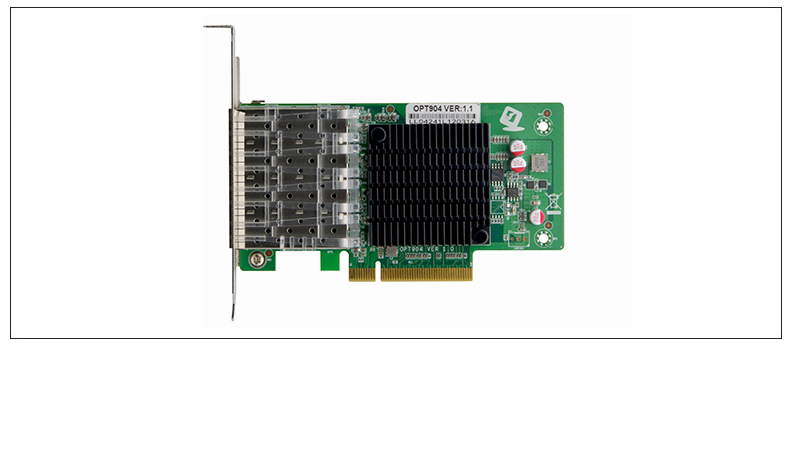

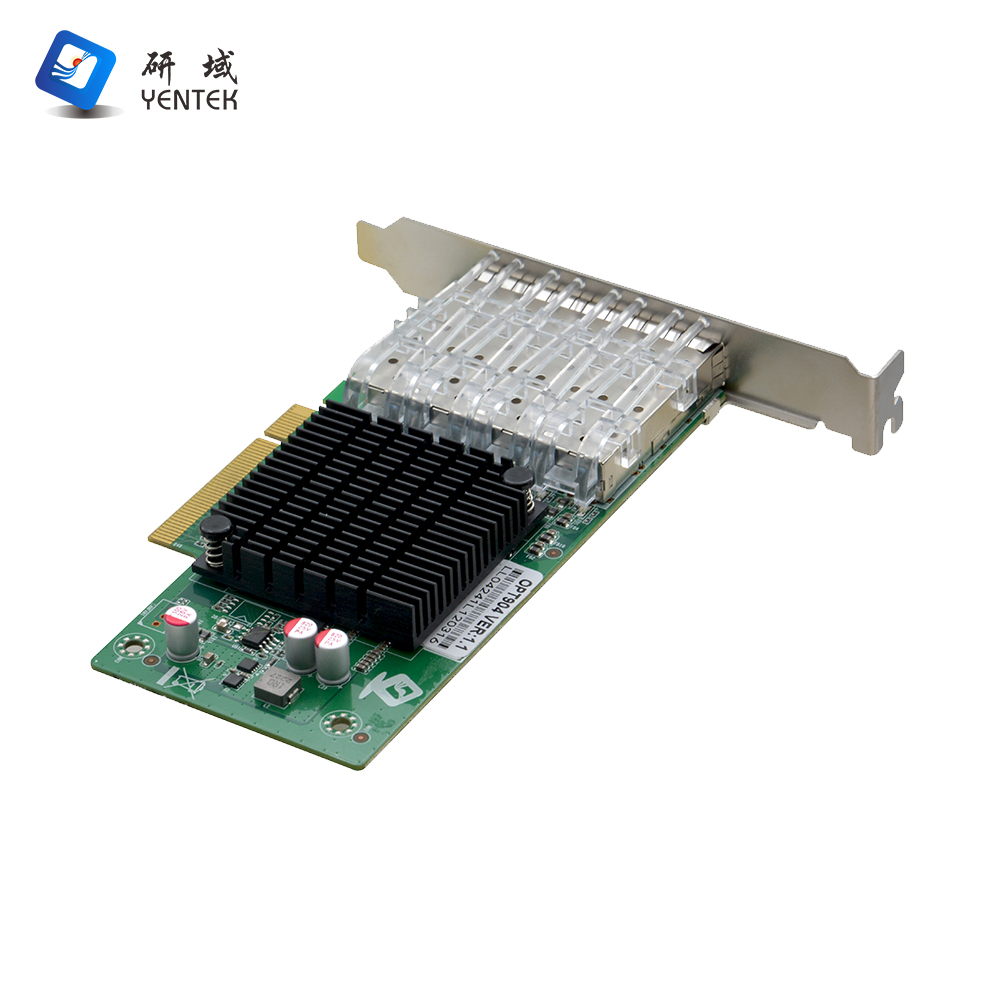

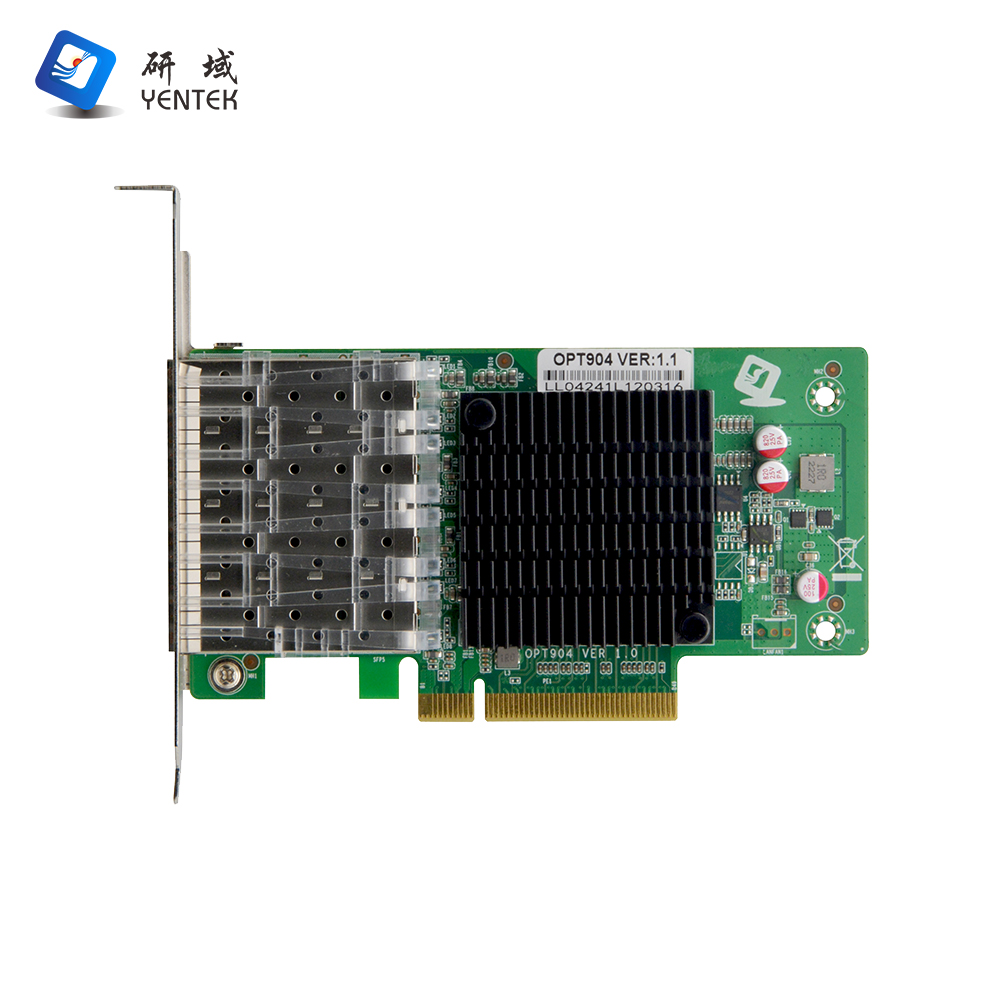

OPT904

See 1 sizes
FEATURES

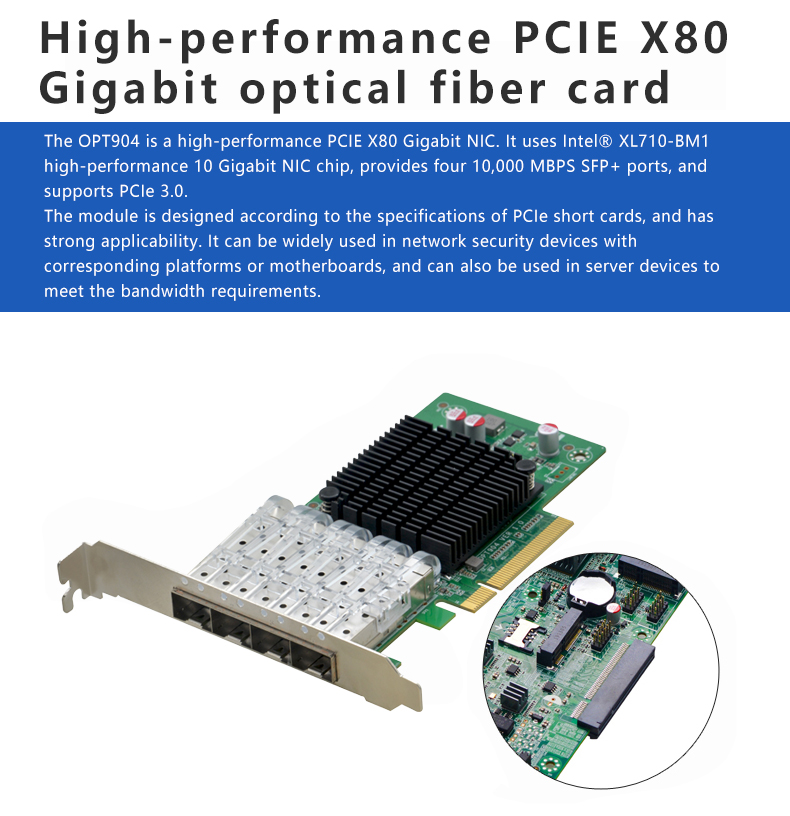

OPT804 is a high-performance PCIE 8X 10G network card, using Intel® XL710-BM1 high-performance 10G network card chip provides 4 10000Mbps SFP+ interfaces and supports PCIe 3.0.
This module is designed in accordance with PCIe short card specifications and has strong applicability. It can be widely used in network security equipment with corresponding platforms or motherboards, and can also be used in server equipment to meet bandwidth requirements.

More

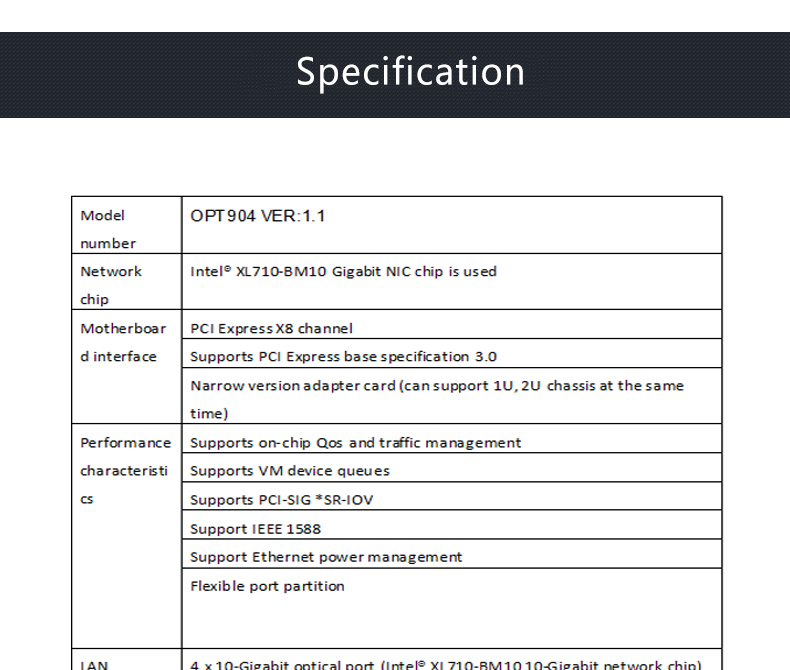

Product description

Product modelOPT904 VER:1.1
Network chip

Intel® XL710-BM10 Gigabit NIC chip is used

Motherboard interface
PCI Express X8 channel

Support for PCI Express base specification 3.0

Narrow version adapter card (can support 1U, 2U chassis at the same time)
Performance characteristics
Supports on-chip Qos and traffic management
Supports VM device queues
Supports PCI-SIG *SR-IOV
Support IEEE 1588
Flexible port partition

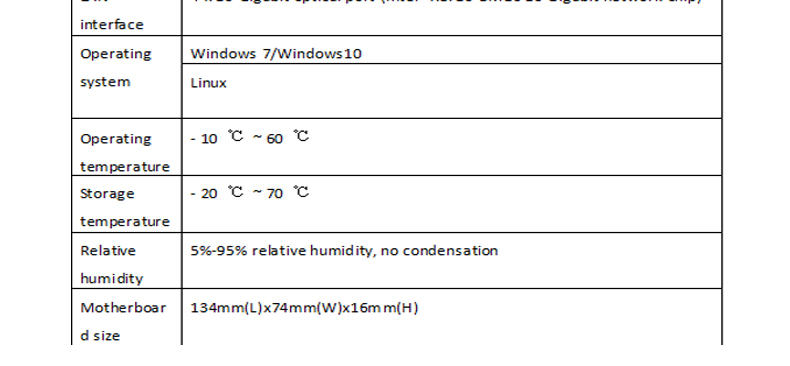

LAN interface4 x 10-Gigabit optical port (Intel® XL710-BM10 10-Gigabit network chip)
Operating systemWindows 7/Windows10
Linux
Operating temperature-10℃ to 60℃
Storage temperature-20℃ to 70℃
Working humidity5%-95% relative humidity, no condensation
Motherboard size134mm(L)x74mm(W)x16mm(H)
