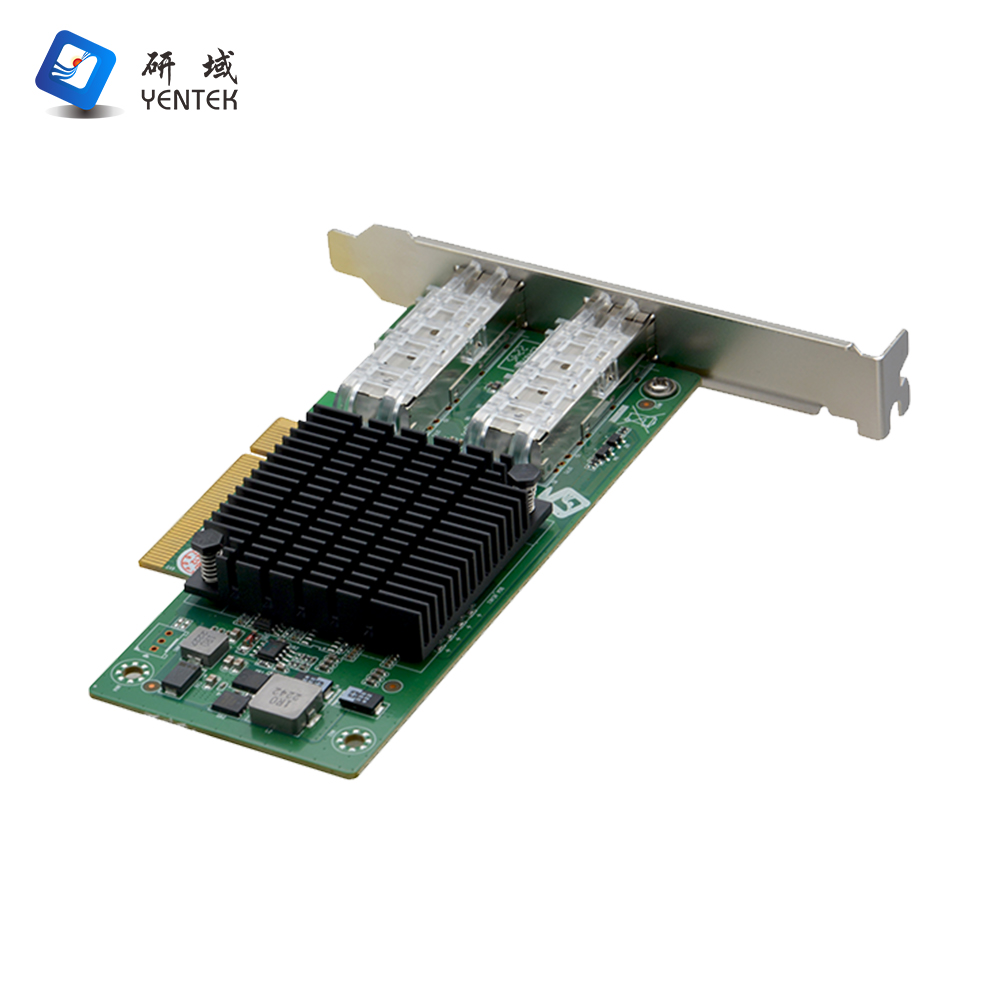

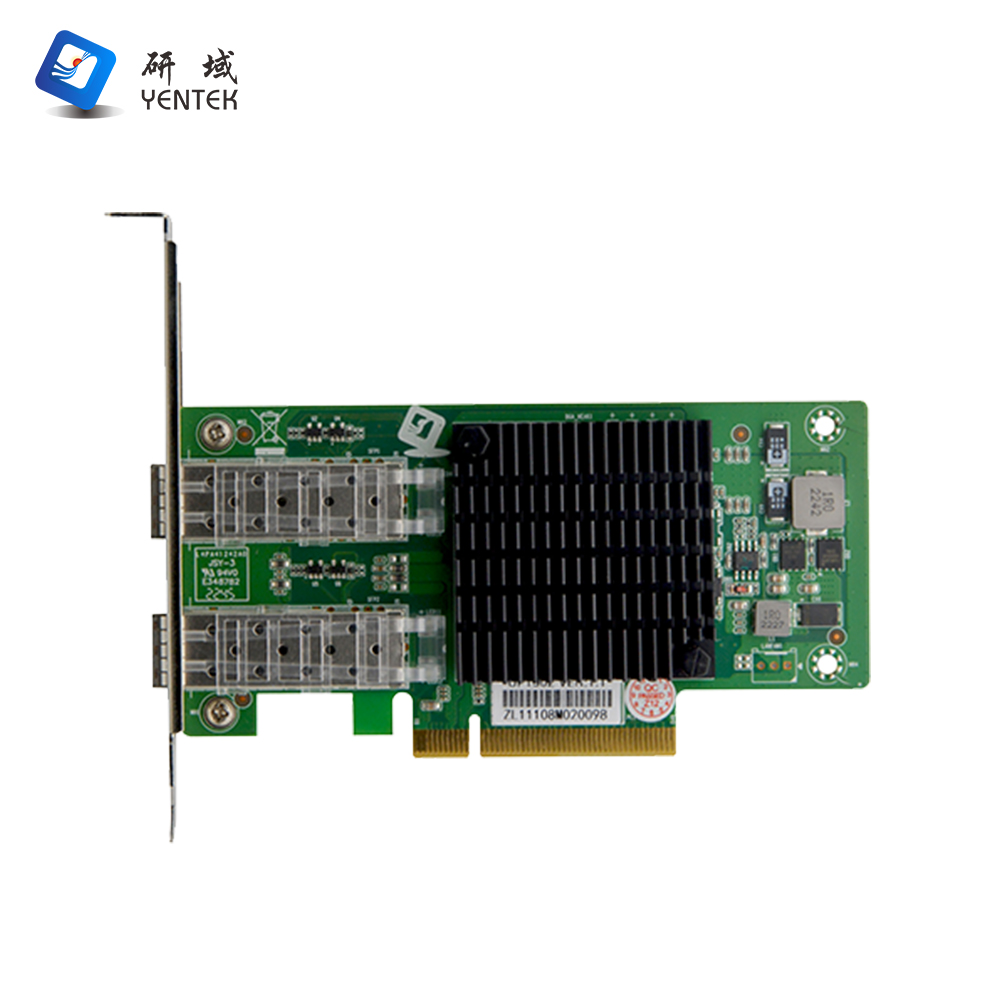

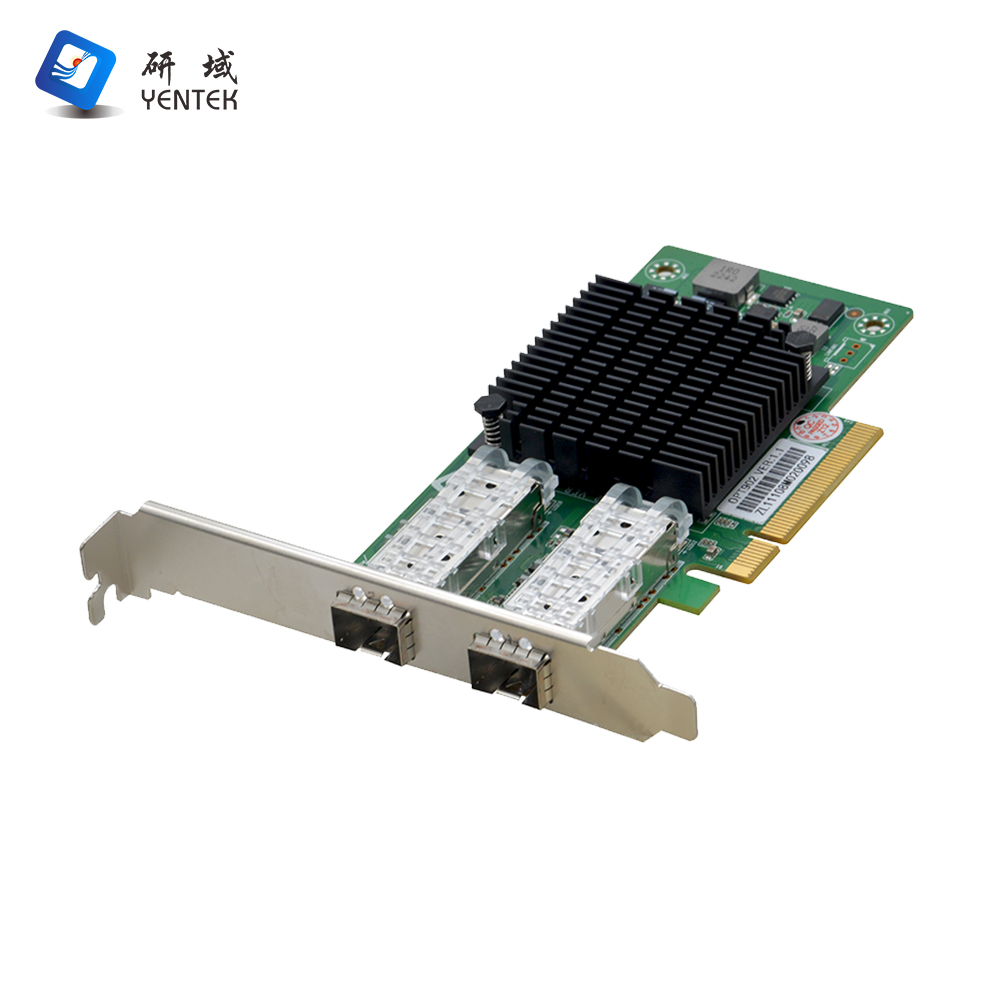

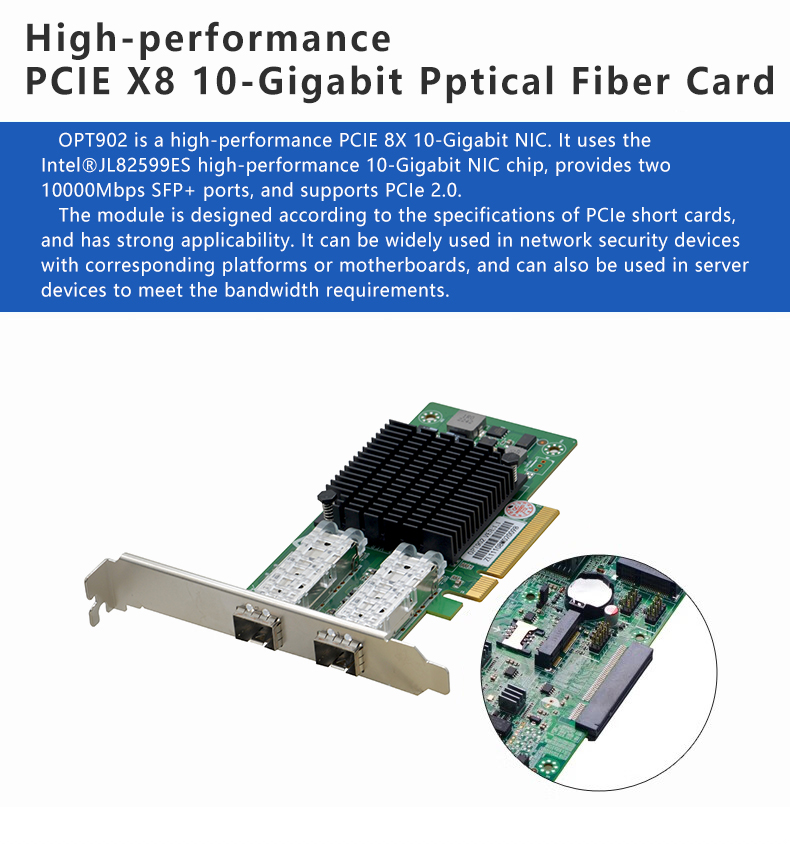

OPT902 is a high-performance PCIE 8X 10-Gigabit NIC. It uses the Intel® JL82599ES high-performance 10-Gigabit NIC chip, provides two 10000Mbps SFP+ ports, and supports PCIe 2.0.
The module is designed according to the specifications of PCIe short cards, and has strong applicability. It can be widely used in network security devices with corresponding platforms or motherboards, and can also be used in server devices to meet the bandwidth requirements.

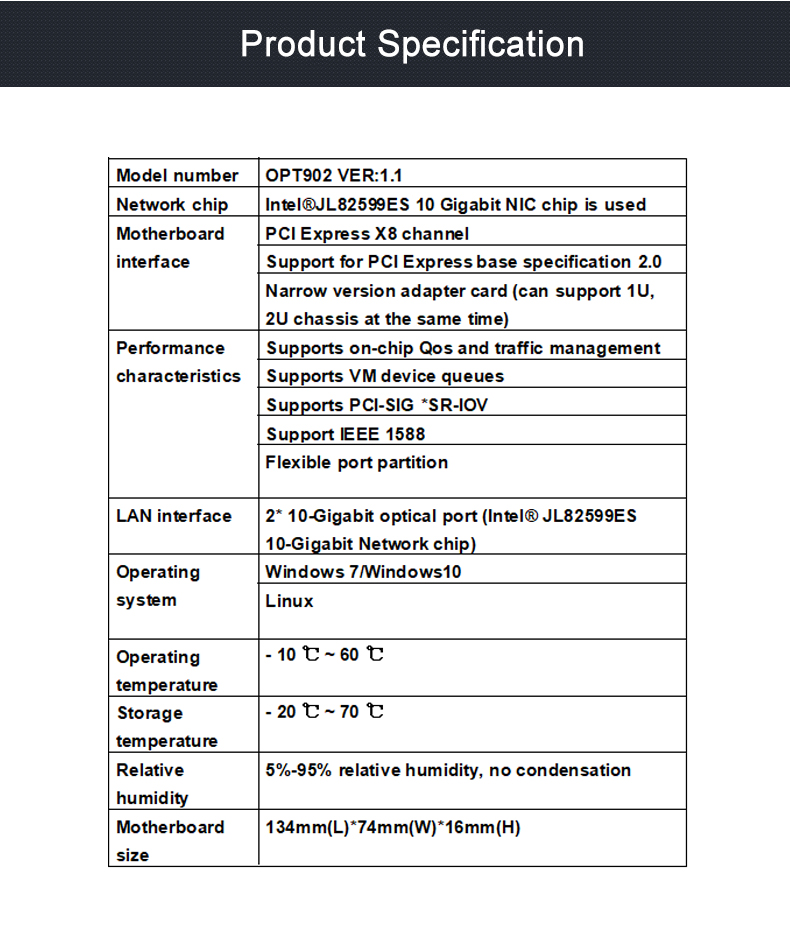

Product model | OPT902 VER:1.1 |
Processor | Intel®JL82599ES 10 Gigabit NIC chip is used |
Motherboard interface | PCI Express X8 channel |
Support for PCI Express base specification 2.0 | |
Narrow version adapter card (can support 1U, 2U chassis at the same time) | |
Performance characteristics | Supports on-chip Qos and traffic management |
Supports VM device queues | |
Supports PCI-SIG *SR-IOV | |
Support IEEE 1588 | |
Flexible port partition | |
LAN interface | 2* 10-Gigabit optical port (Intel® JL82599ES 10-Gigabit Network chip) |
Operating system | Windows 7/Windows10 |
Linux | |
Operating temperature | -10℃ to 60℃ |
Storage temperature | -20℃ to 70℃ |
Working humidity | 5%-95% relative humidity, no condensation |
Motherboard size | 134mm(L)x74mm(W)x16mm(H) |
