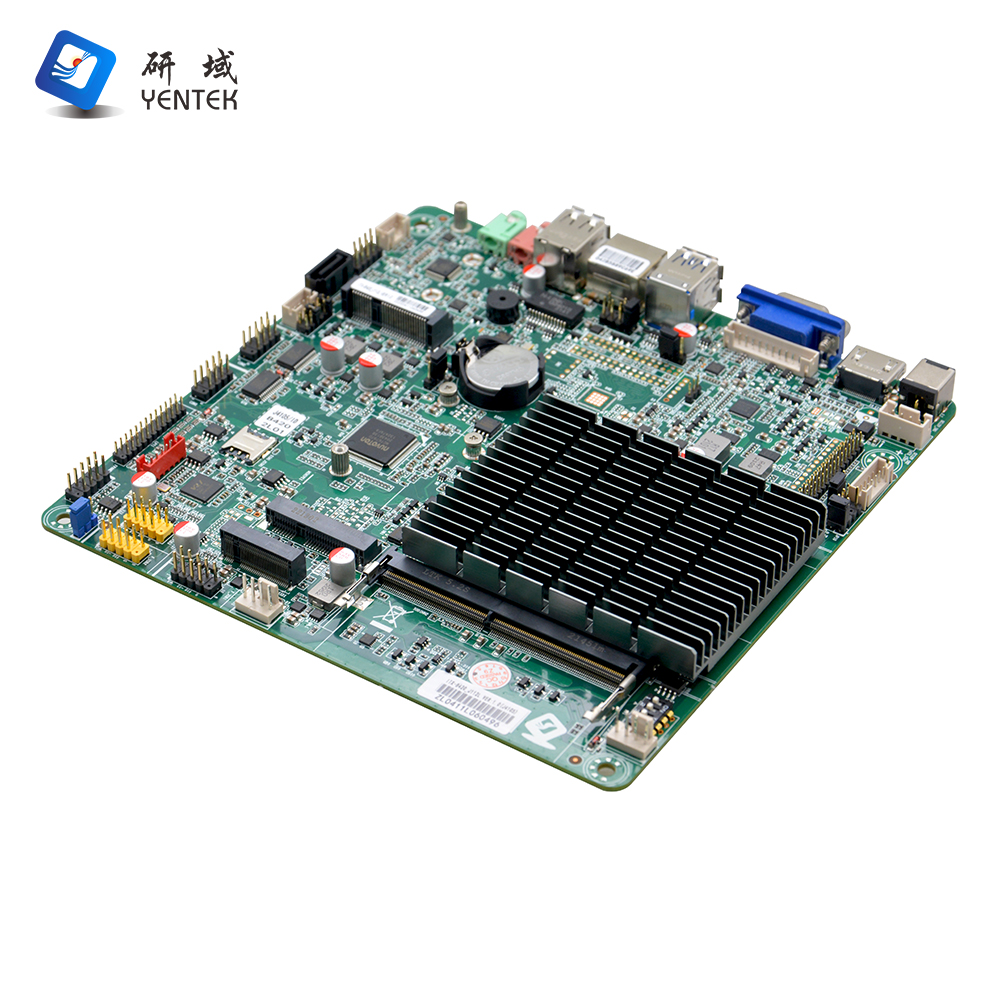

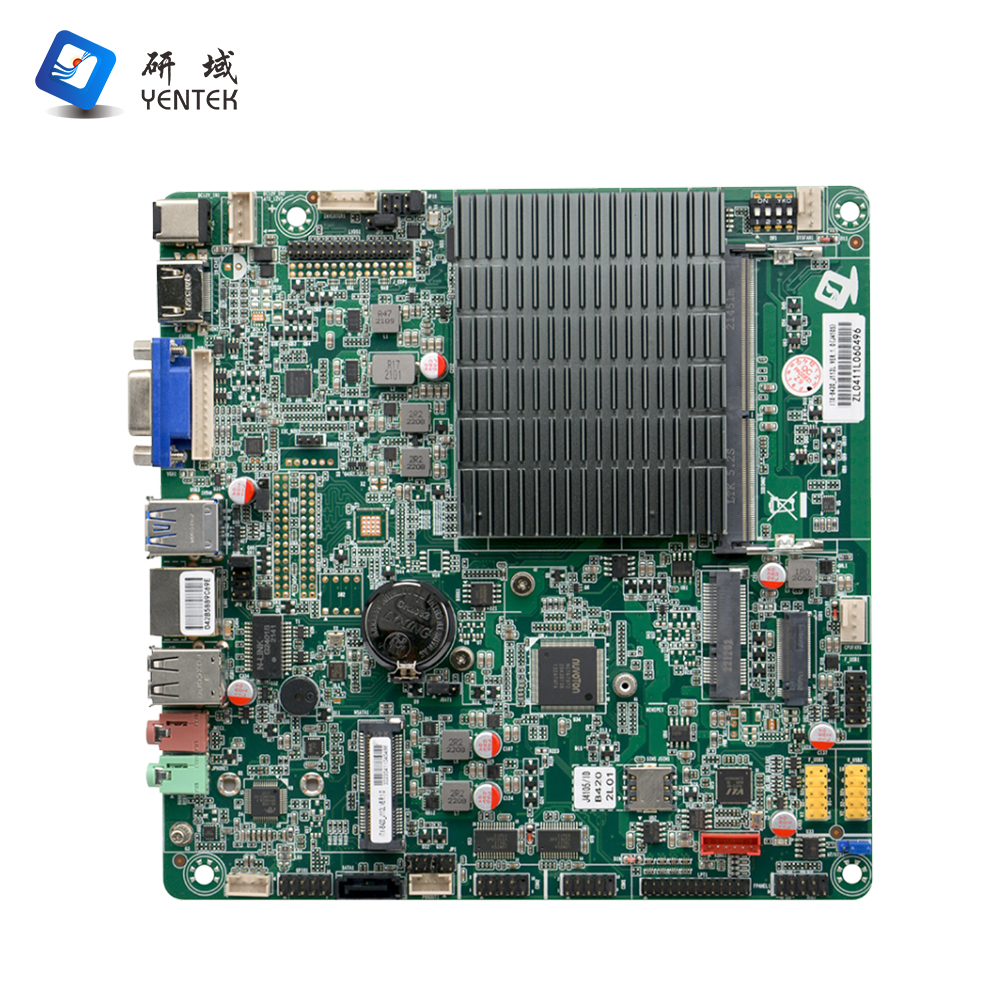

| Product model | ITX-B420_J112L VER:1.0（J4105） |
| Processor | Integrated Intel®Celeron J4125 1.5GHz quad-core quad-thread processor,TDP 10W |
| Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB) |
| Display | Integrated Intel® UHD Graphics 600 core graphics card |
1* VGA,1*HD OUTPUT interface,1* LVDS interface, support dual channel 24BIT,
Note: Can support dual EDP display or dual LVDS display HD OUTPUT interface and RJ11 cash box interface are optional |
| Network | 1* Realtek RTL8111H Gigabit network adapter, supporting wake up /PXE |
Deposit
| 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* MSATA slot supports SSDS with transfer speeds up to 6Gbps, and 7pinSATA is the default MSATA |
1* M.2 slot, supporting M.2 2260/2280 SATA SSDS |
| Tone frequency | Onboard USB HS-100B audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 2Ω5W speaker |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |

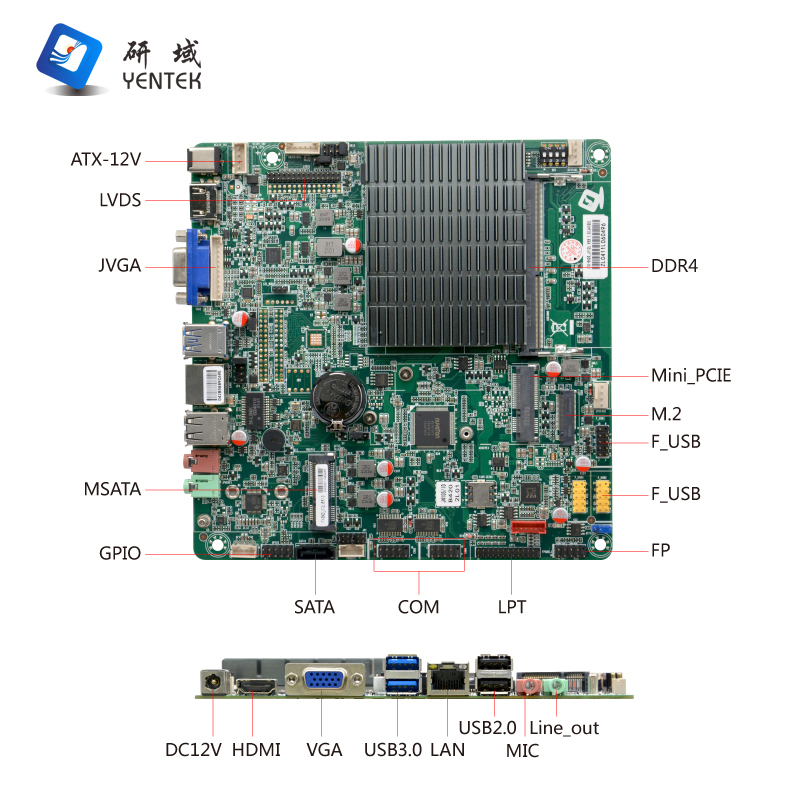

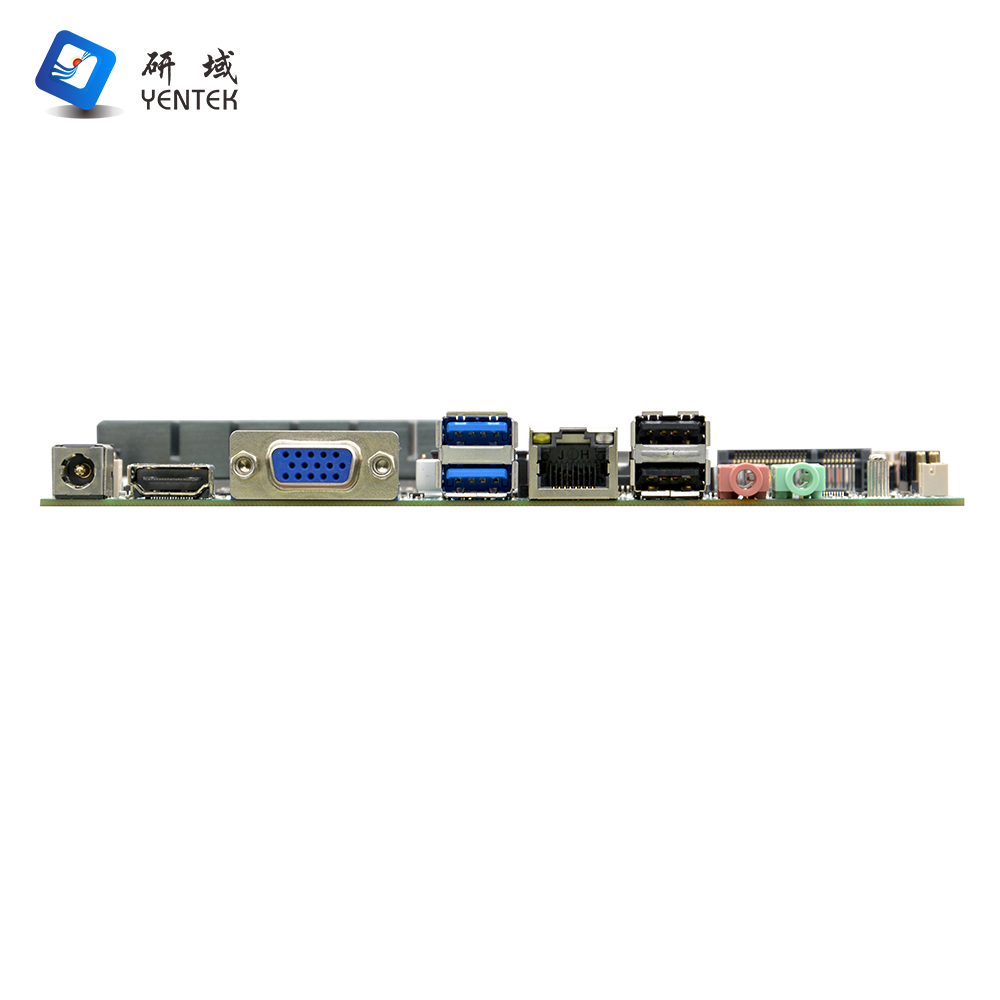

Backplane I/O Interface
| 1* HD OUTPUT interface (one of two options with RJ11 cash box interface) |
| 1 x VGA display port |
| 2 x USB3.0 port,2 x USB2.0 port |
| 1* RJ-45 Gigabit network interface |
| 1* Line out interface (green), 1* MIC interface (red) |
| 1* 12V DC power input interface |
Built-in I/O interface
| 1* DC power interface 1*4pin (12V input/output power interface) |
| 1* LVDS interface 2*15pin, support dual channel 24BIT |
| 1* screen backlight power supply interface 1*6pin |
| 6 x USB 2.0 port 2 x 5Pin, where F_USB2 and F_USB3 are PCI outgoing signals |
1* JVGA interface 1*12Pin(same signal as DB15) |
| 2* RS232 serial interface, COM1/2 support 9pin live function |
1* LPT parallel interface 2*13Pin |
| 1* PS/2 keyboard and mouse interface 1*6pin |
| 1* Front panel switch button and indicator port 2*5Pin |
| 1* hard drive power port 1*4pin |
| 1* power amplifier interface 1*4pin |
| 1* SIM card seat |
| Fan interface | Fan less cooling design, reserved 1*4pin CPU fan port,1* 4pin system fan port |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

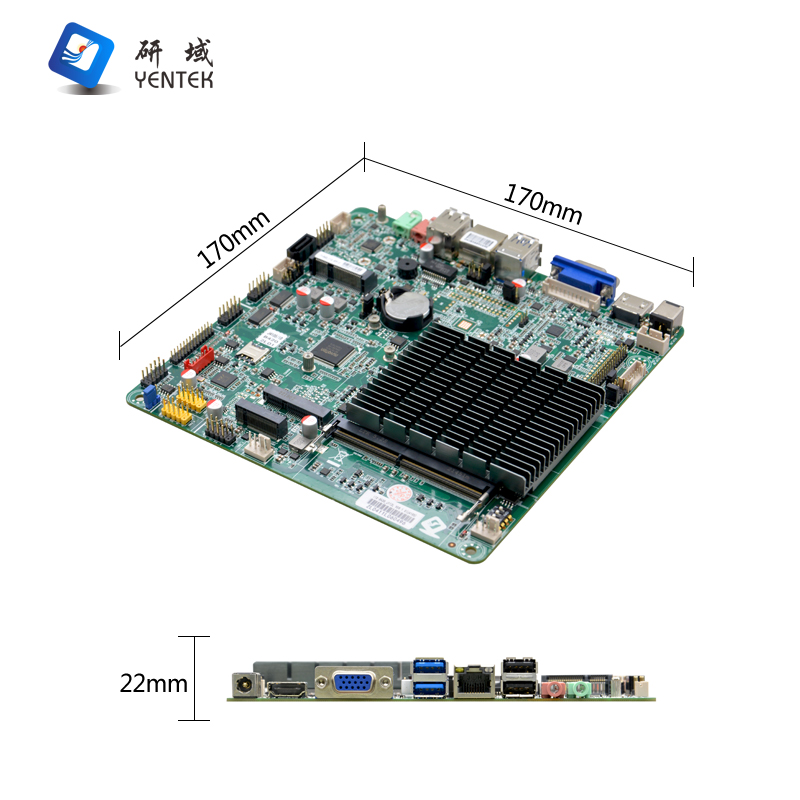

| Dimension | 170mm x 170mm |
