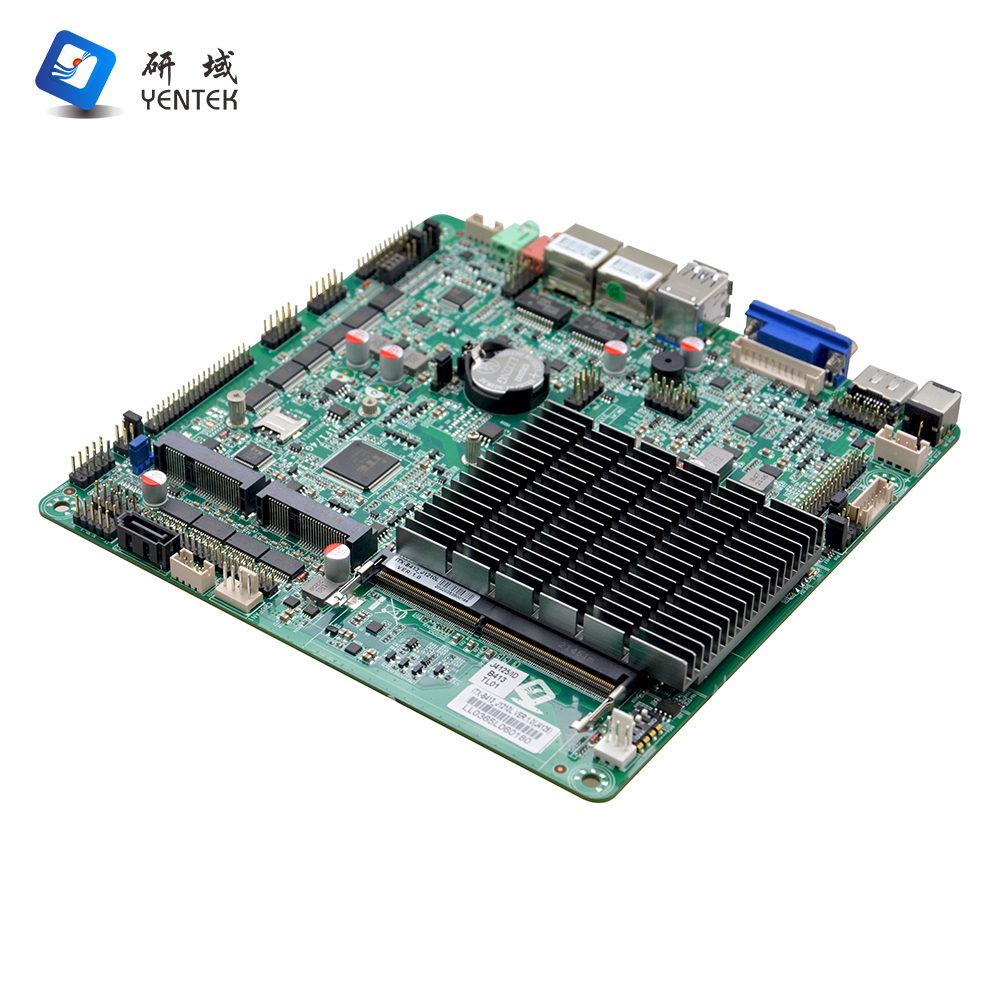

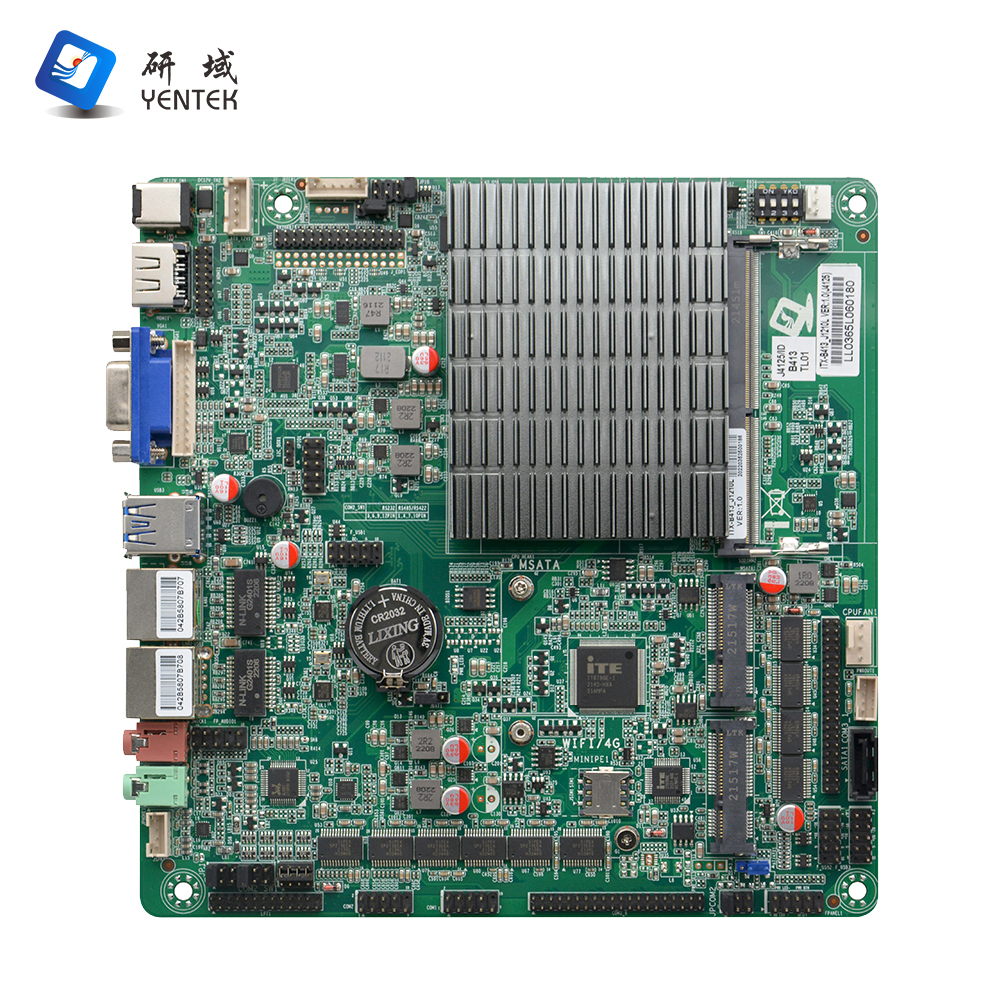

| Product model | ITX-B413_J1210L VER:1.0（J4125） |

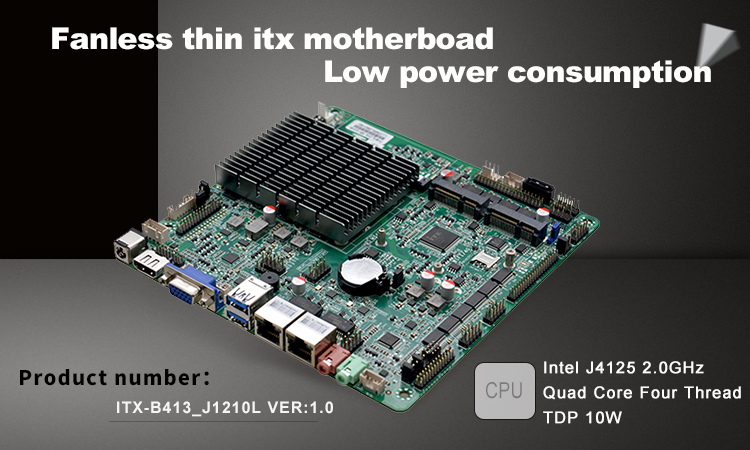

| Processor | Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W |
| Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly | |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB) |
| Display | Integrated Intel® UHD Graphics 600 core graphics card |
| 1* VGA,1*HD OUTPUT,1* LVDS interface, support dual channel 24BIT | |
| Network | 2* Realtek RTL8111H Gigabit network adapter, supporting wake up /PXE |
| Deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| The 1* MSATA slot supports SSDS with transfer speeds up to 6Gbps | |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 2Ω5W speaker | |
| Expansion | Note: If MINIPE1 needs to support 4G modules, you need to adjust related hardware Settings, and F_USB2 will only support one USB |

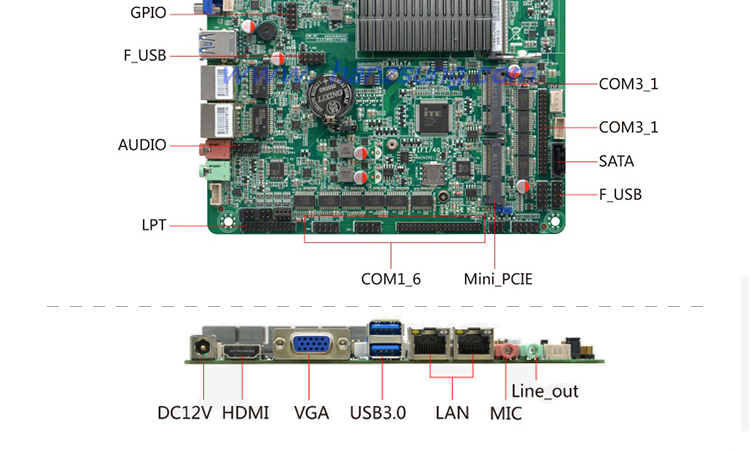

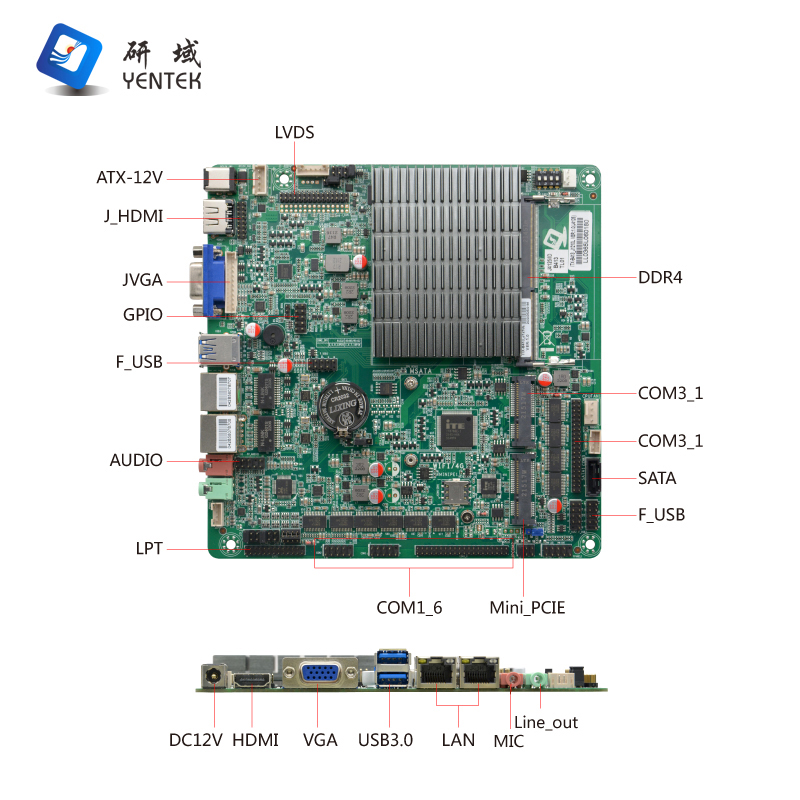

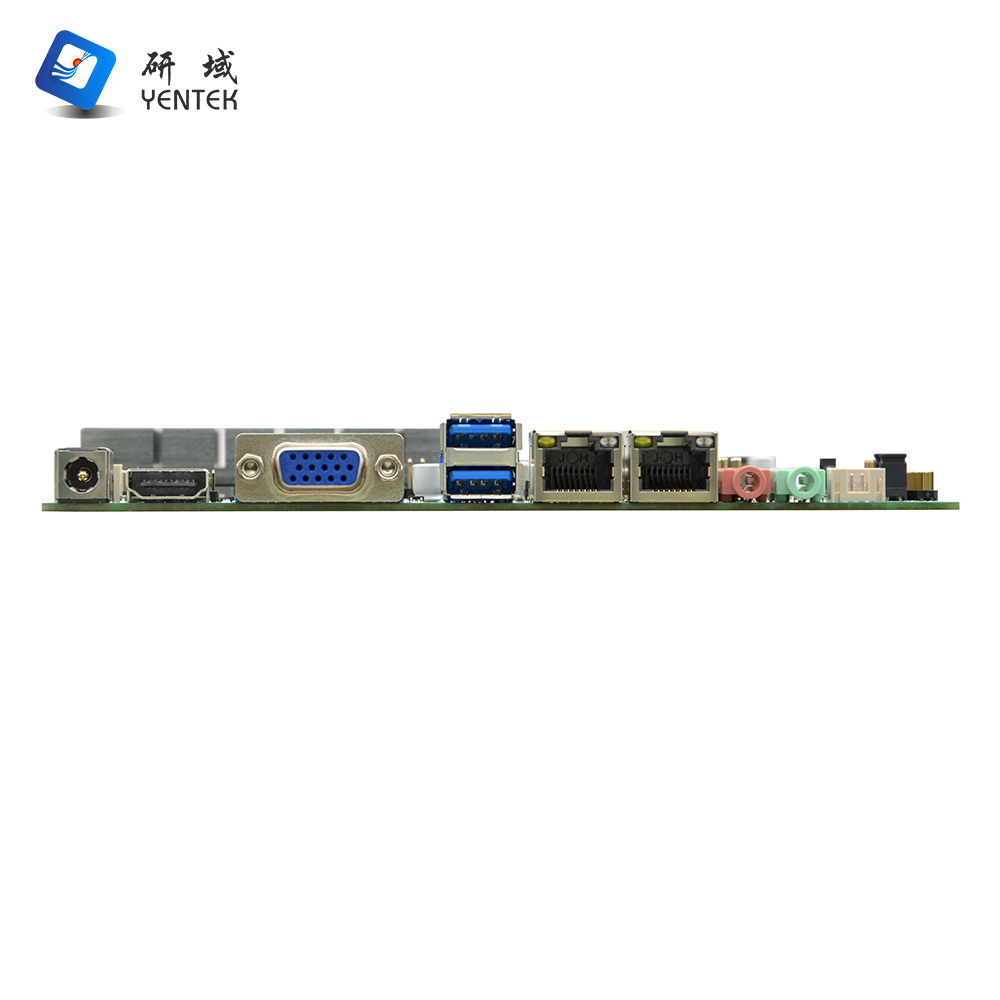

| Backplane I/O Interface | 1* HD OUTPUT display interface |
| 1 x VGA display port | |
| 2* USB3.0 interface, | |
| 2* RJ-45 Gigabit network interface | |
| 1* Line out interface (green), 1* MIC interface (red) | |
| 1* 12V DC power input interface | |

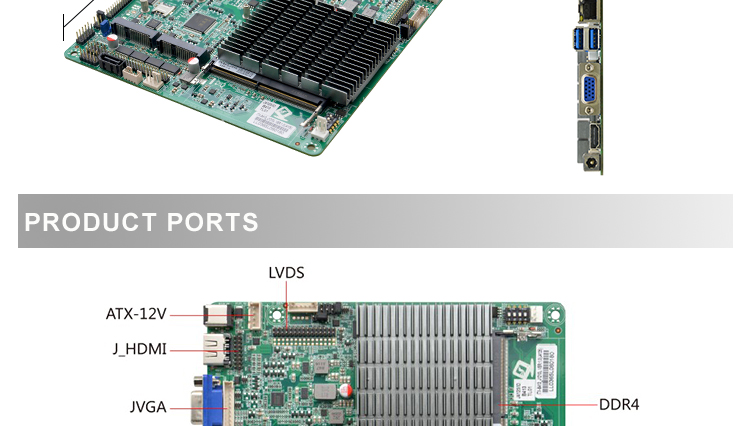

| Built-in I/O interface | 1* 4pin DC power interface (12V input/output power interface) |
| 1* LVDS interface 2*15pin, support dual channel 24BIT | |
| 1* screen backlight power supply interface 1*6pin | |
| 6* USB 2.0 interface 2*5Pin | |
1* J_HD OUTPUT interface 2*8Pin(same signal as HD OUTPUT1 of the backplane IO interface) | |
| 1* JVGA interface 1*12Pin(same signal as DB15) | |
10* RS232 serial interface, COM1/2 support 9pin live function,COM2 support RS485/422 | |
| 2* RS232 serial interface, COM1 supports the 9th pin live function, COM2 supports RS485/422 function | |
| 1* LPT parallel interface 2*13Pin | |
| 1* front audio interface 2*5pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* SIM card seat | |
| Fan interface | Fan free design, reserved 1*4pin CPU fan port,1* 3pin system fan port |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |

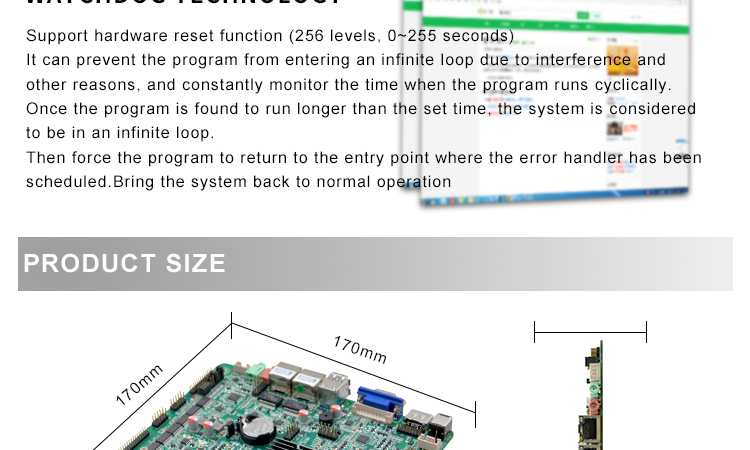

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

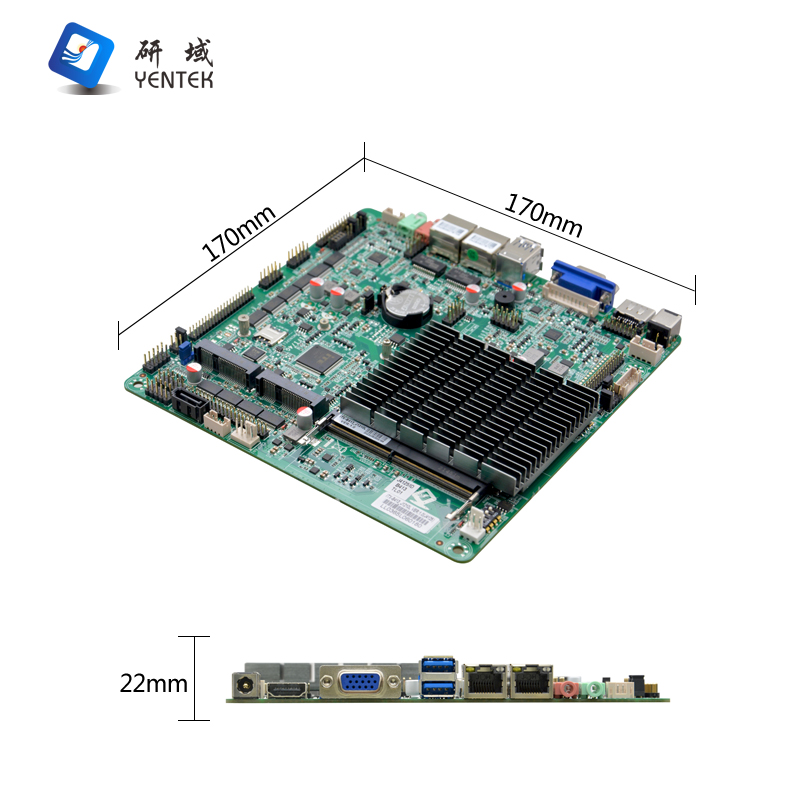

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B413_J1210L VER:1.0(J4125) | J4125 | 2.0G | 1*SODDR4 | 1 | 1 | 2ch*24BIT | / | 1*8111H | 8 | 10 | COM2 | DV12V |
