| Model number | C5760Z-R6 V2.0(7500U) | |
| Case | Material/Structure | All aluminum fanless |
| Colour | Gloss Black | |
Dimension(L*W*H) | 174*148*78MM | |
| Installation | Desktop / Embedded | |
| Weight (Net ) | 1.65KG | |
| Main board | CPU | Integrated Intel® i7-7500U/2.7GHz dual-core quad-thread processor, TDP 15W |
| Display | Integrated Intel® HD Graphics 620, 4K support | |
| RAM | 2*DDR4 SODIMM memory slots, support 2133MHz memory, support up to 32GB | |

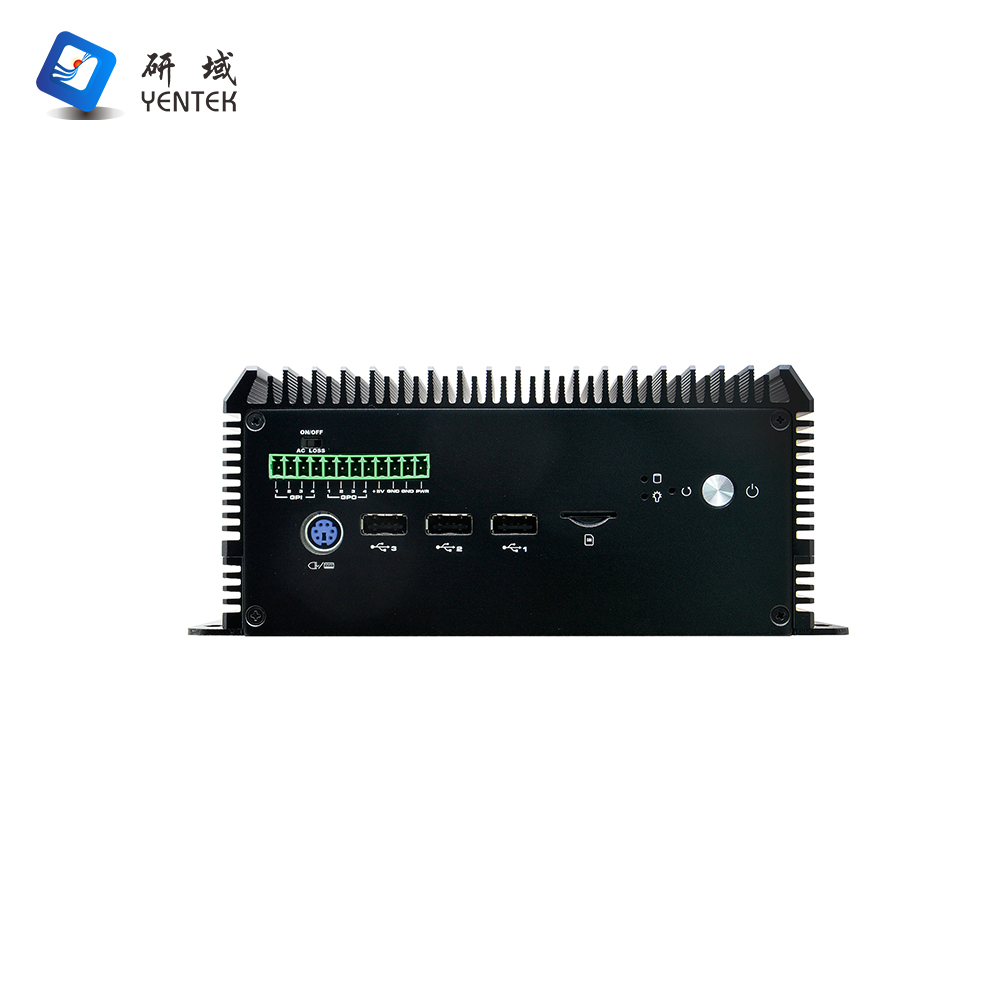

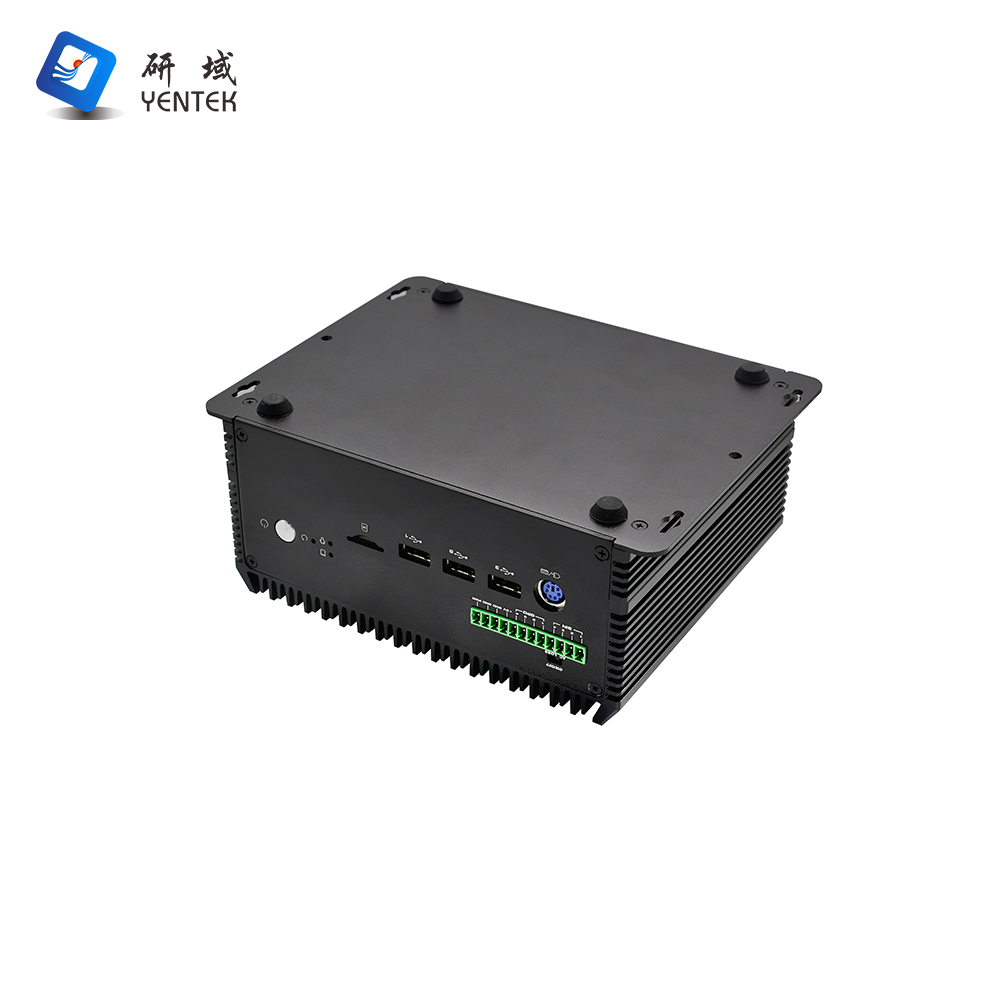

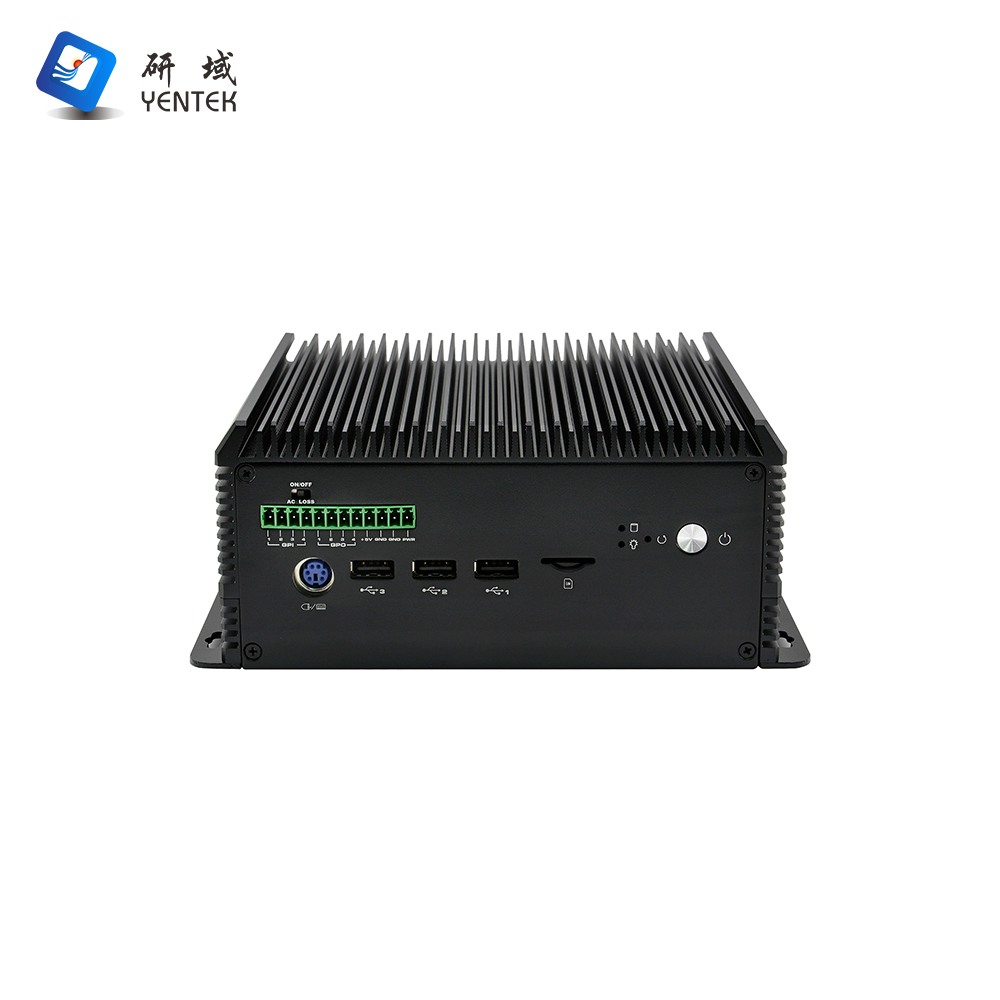

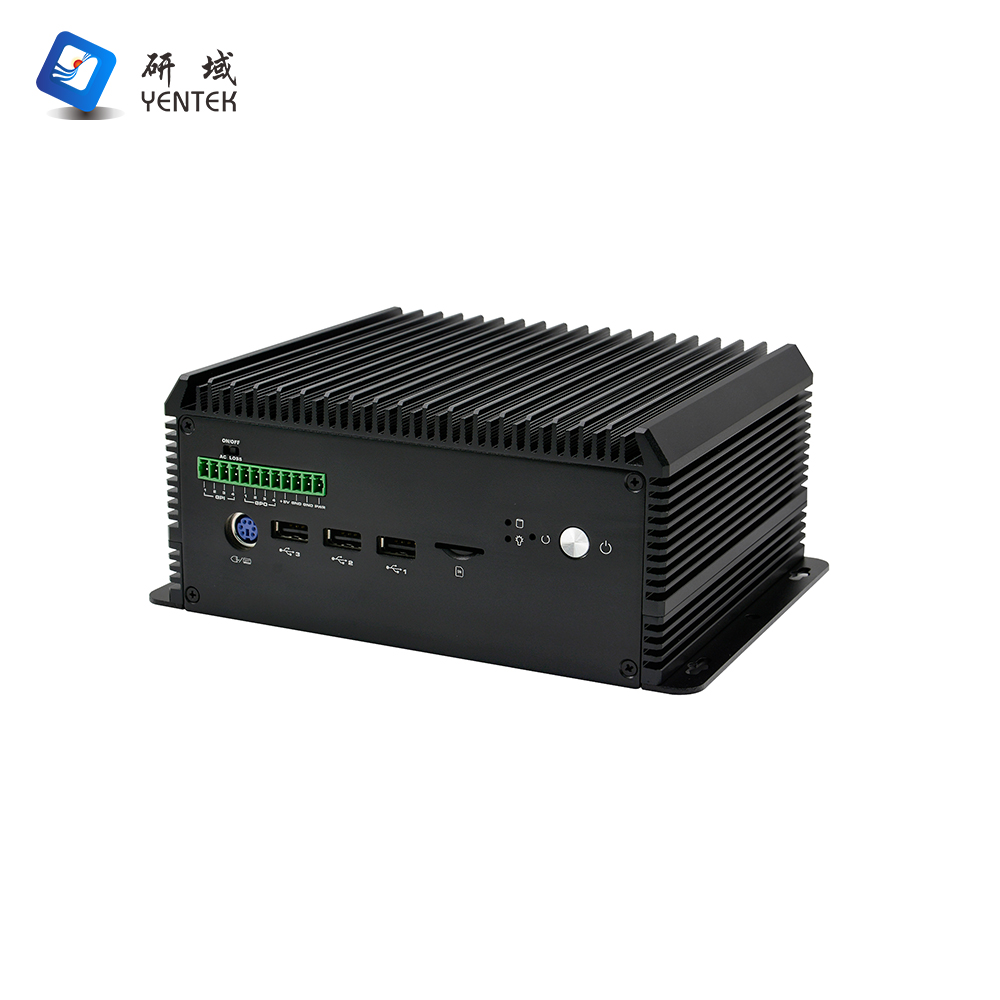

| Front Panel Connectors | POWER | 1*Boot button, 1*One-Key Restore, 1*ACLOSS (power on/off toggle switch) |
| AC LOSS | 1* AC LOSS（auto power on switch) | |
| LED | 1*Power Indicator, 1*Hard Drive Indicator | |
| USB | 3*USB2.0, 1*USB2.0 built-in | |
| Phoenix Terminal | 1*12pin (including four in four out GPIO, switch, 5V) | |
PS2 | 1*PS/2 | |
| SIM | 1*SIM card slot | |

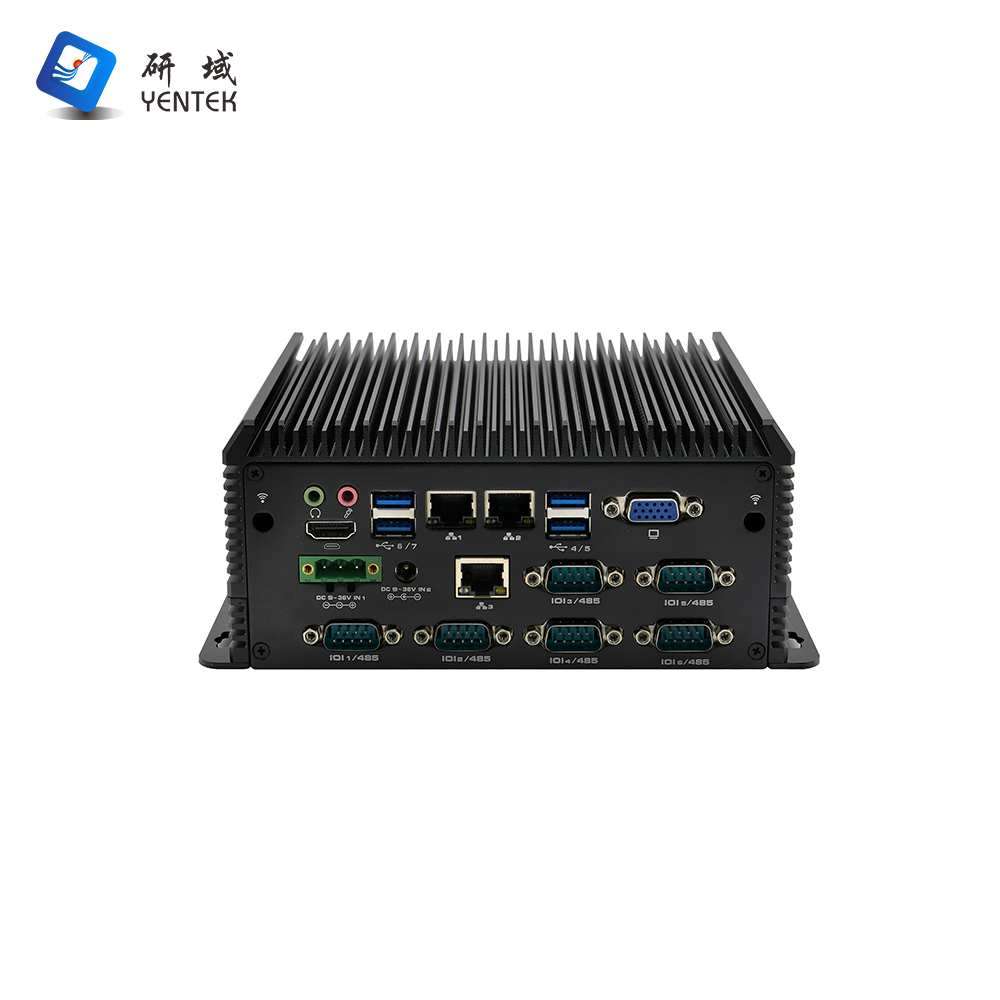

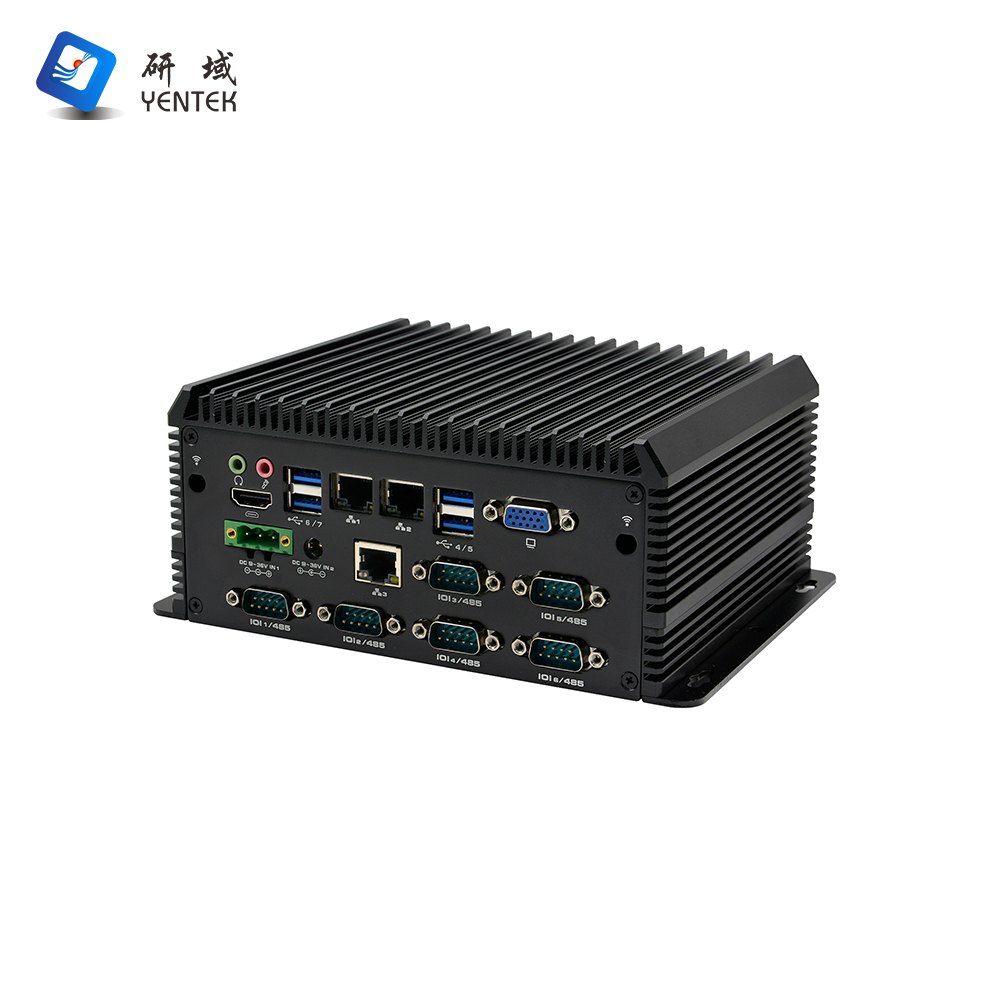

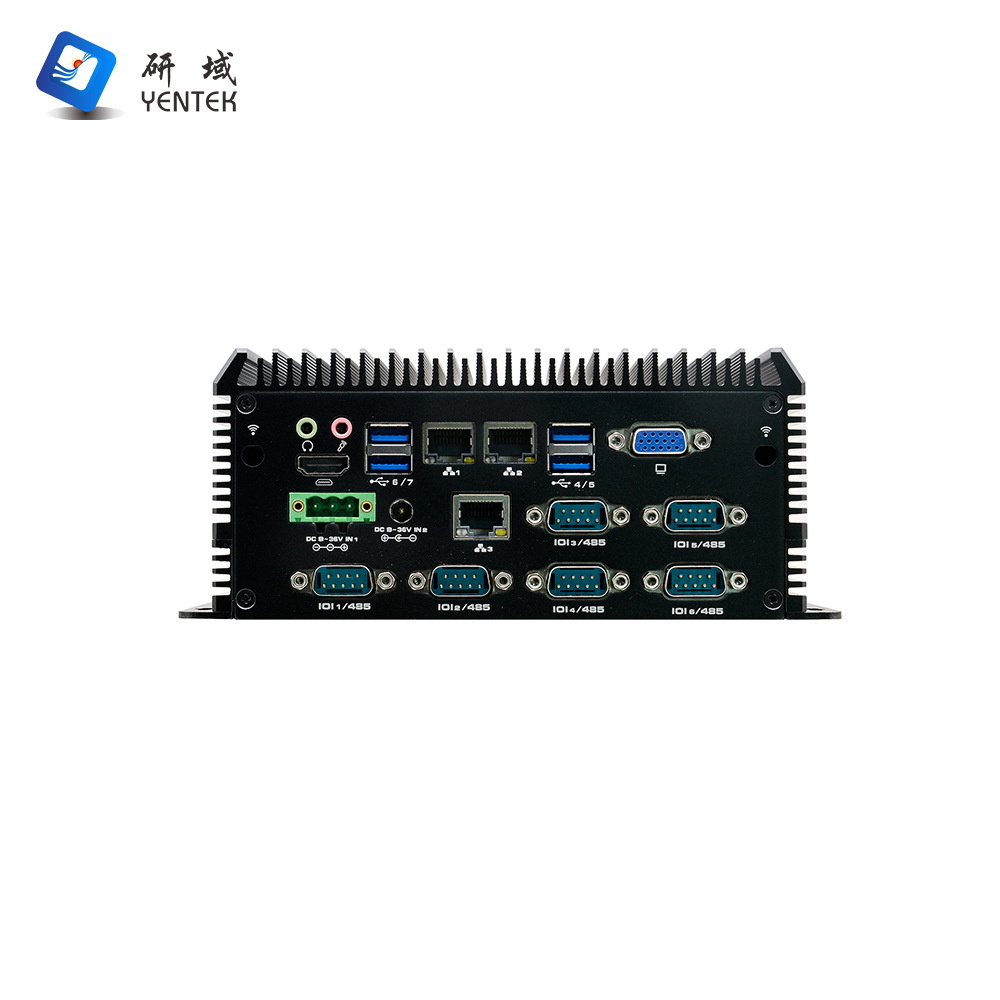

| Rear Panel Interface | Display Interface | 1*VGA (1920X1200@60Hz), 1*HDMI1.4 (4096*2304@24Hz) |
| Audio | 1*Line out, 1*MIC | |
| LAN | 2*Intel®I211AT+I*Intel I210 Gigabit LAN card, support Wake on LAN, PXE function | |
| USB | 4*USB3.0 | |
| COM | 6*RS232/485 DB9 serial port, COM5-6 Can support CAN signal output (need to load CAN module) | |
| AUDIO | 1*Line out, 1*MIC | |
| Power Supply | 1*DC power connector or 1* 3pin Phoenix terminal power connector, support 9~36V power input | |
| Storage | SATA | 1*2.5-inch hard drive bay |
| MSATA | 1* MSATA | |
| Expansion | Mini PCIE | 1*MiniPCIE, support 4G module |
| M.2 | 1*M.2/WiFi, support Key-E, 2230, WiFi module | |
| OS support | Microsoft Windows | Windows 7 |
| Linux | Ubuntu | |
| Watch Dog | Support hardware reset function (L256，0~255 seconds) | |
| Power Supply | Power Type | External power adaptor |
| Voltage Input | 9V~36V wide voltage | |
| Power output | 60W~180W | |
| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | Processor | Motherboard | Memory | IO Board | GPIO | LAN | COM | HDMI | VGA | USB | Power |
| 1 | C5760Z-R6 V2.0(5020U) | I3-5020U/2.0GHz | C43_I326D | 1*SODDR3L | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 7 | 9V~36V |
| 2 | C5760Z-R6 V2.0(3685U） | 3865U/1.8GHz | C58_C326D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 3 | C5760Z-R6 V2.0(6300U) | I5-6300U/2.5GHz | C58_I526D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 4 | C5760Z-R6 V2.0(6650U) | I7-6650U/2.2GHz | C58_I726D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 5 | C5760Z-R6 V2.0(7200U) | I5-7200U/2.5GHz | C58_I526D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 6 | C5760Z-R6 V2.0 (7500U) | I7-7500U/2.8GHz | C58_I726D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 7 | C5760Z-R6 V2.0(8145U) | I3-8145U/2.1GHz | C81-I326D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 8 | C5760Z-R6 V2.0(8265U) | I5-8265U/1.6GHz | C81-I526D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
| 9 | C5760Z-R6 V2.0(8565U) | I7-8565U/1.8GHz | C81-I726D | 2*SODDR4 | C58-R6/C68-G12/C68-HM | 4in4out | 3 | 6 | 1 | 1 | 8 | 9V~36V |
