| Product model | EPIC-W81P4 VER:1.1(8260U) |
| Processor | Integrated Intel® 8-generation I5-8260U 1.6GHz quad-core eight-thread processor, TDP15W |
| Compatible with Intel®WhiskeyLake-U/CometLake-U/CoffeeLake-U 8th/10th Celeron/Pentium/ I3/I5/I7 low power processors |
| Chipset | SOC |
| Internal memory | 1 * DDR4 SODIMM slot, supporting 2400MHz memory and a maximum of 32GB memory |
Display
| Integrated Intel® UHD Graphics, support DirectX 12 OpenGL 4.5, support 4K |
| 1* HD OUTPUT interface, |
| 1* LVDS interface, support dual channel 24BIT, 1*EDP interface, and LVDS through the jump to choose one of two |
| Network | 5 * Intel WGI210AT Gigabit network adapter supports wake up and PXE. Lan2-5 supports POE |
| Deposit | 1* 7pin SATA3.0 slot, transmission rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps |
| Tone frequency | Integrated ALC897 7.1+2 channel high fidelity audio controller, support Line_out, power amplifier |
| The amplifier supports 4Ω/3W dual channels |
| Expansion | 1* Mini-PCIE slot, supporting WIFI/4G module |
I/O ports on the backplane
| 1* DC 9~36V aviation plug input interface |
| 1* 2pin Phoenix terminal, support 9~36V power supply |
| 1* HD OUTPUT port |
| 2* USB3.0 port |
| 5* RJ45 Gigabit network port, LAN2 to 5 support POE |
Built-in I/O interface
| 1* 4pin power interface, support 9~36V power input and output |
| 1* EDP interface (yellow), 2*15pin, and LVDS interface by jumping either, the default LVDS |
| 1* LVDS interface, 2*15pin support dual channel 24BIT, |
| 1* screen backlight power supply interface 1*6pin |
| 2* RS232 serial interface, can support RS485/422 function |
| 4* USB2.0 interface 2*5pin |
1* front audio interface 2*5pin |
| 1* power amplifier interface 1*4pin |
| 1* hard drive power port 1*4pin |
| 1* Front panel function button and indicator port 2*5pin |
| Fan interface | 1*4pin CPU intelligent fan interface,1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power supply type | It uses DC 9~36V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

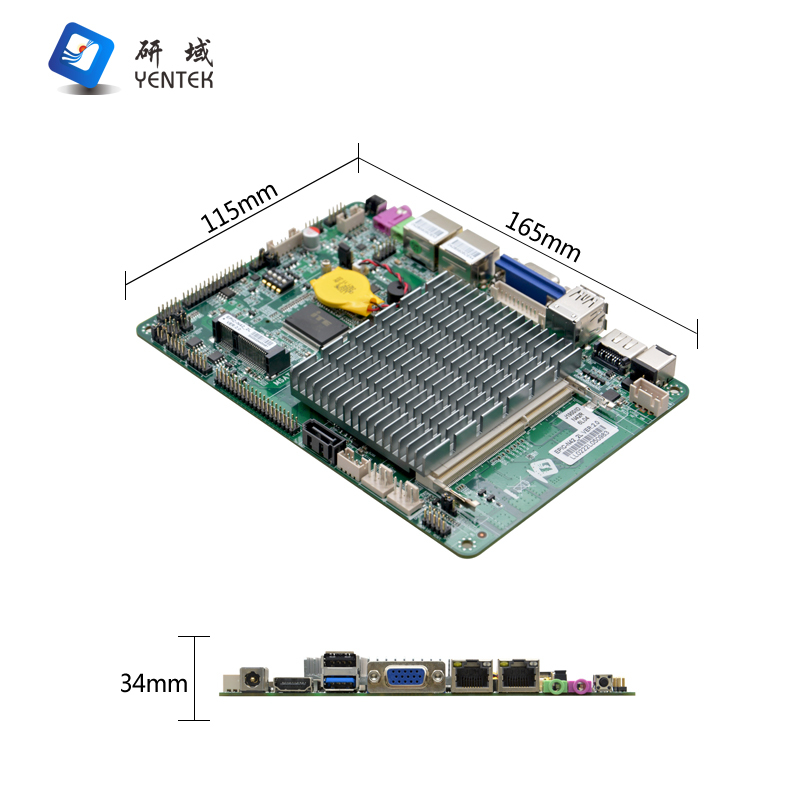

| Dimension | 165mm x 115mm |
