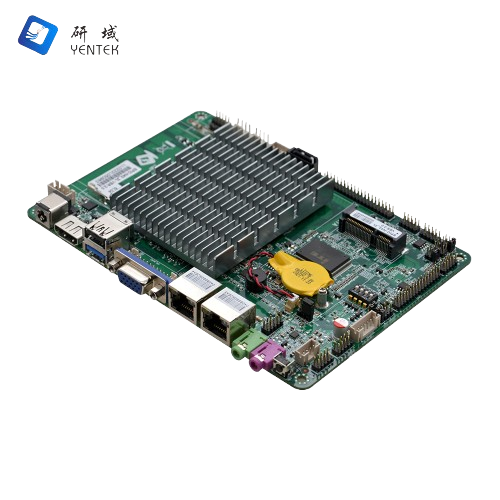

EPIC-N42_2L
Options: 2 sizes
$
86.00
Add to cart
+852 9458 7694
Product description

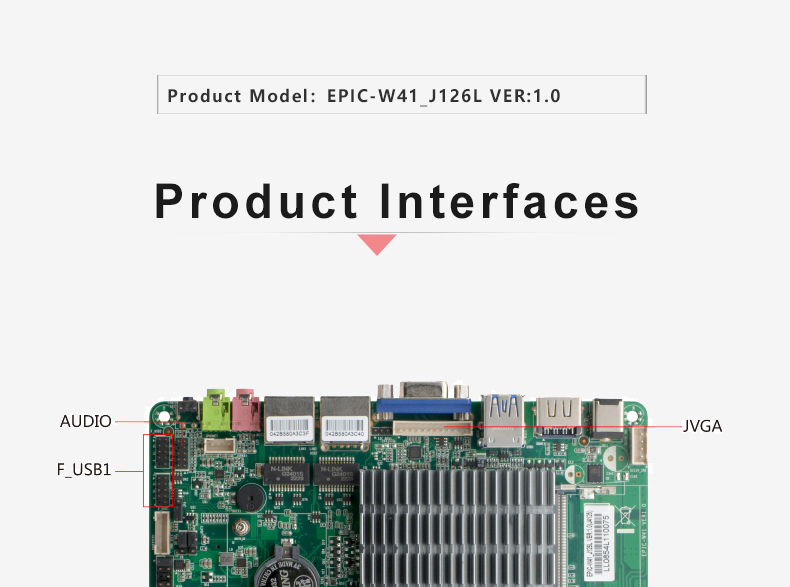

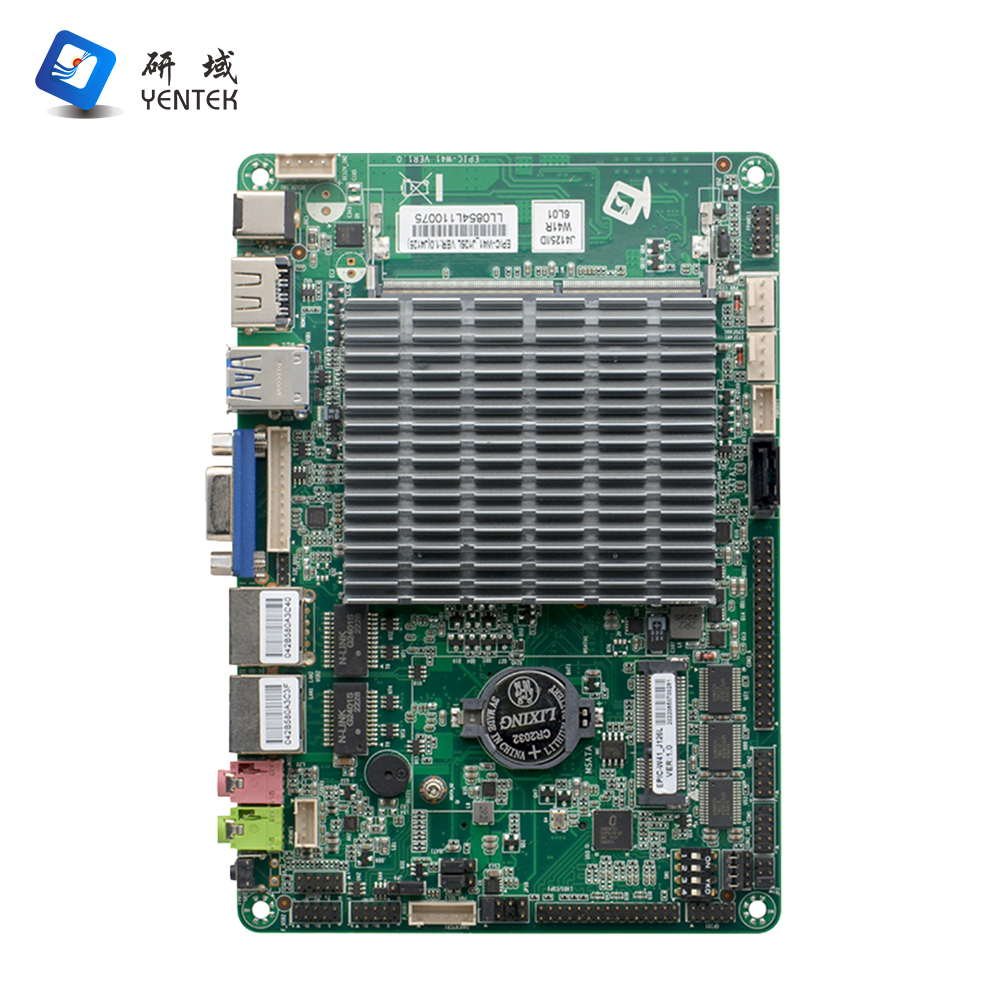

| Product model | EPIC-W41_J126L VER:1.0 |

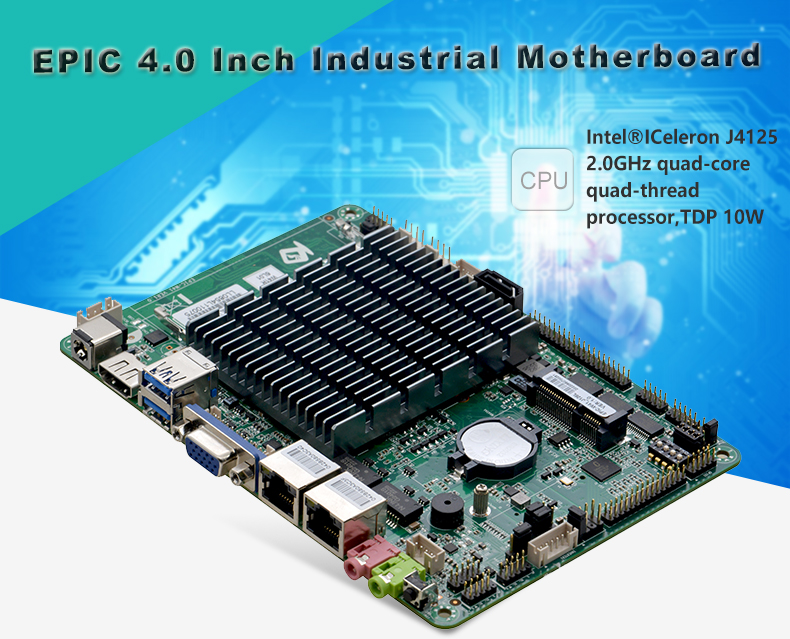

| Processor | Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W, Compatible with the full range of Intel® Gemini Lake cpus, customers can choose flexibly |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB) |
| Display | Integrated Intel®HD Graphics core graphics card |
| 1* VGA port,1* HD OUTPUT port,1*LVDS port, supporting dual-channel 24BIT | |
| The 1* EDP interface shares pins with the LVDS interface. The default port is the LVDS interface | |
| Network | 2* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| Store | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps | |
| Tone frequency | Onboard ALC892 7.1+2 channel hi-Fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 2Ω3W speaker | |
| Expansion | 1*Mini-PCIE slot, supporting WIFI and 4G modules |

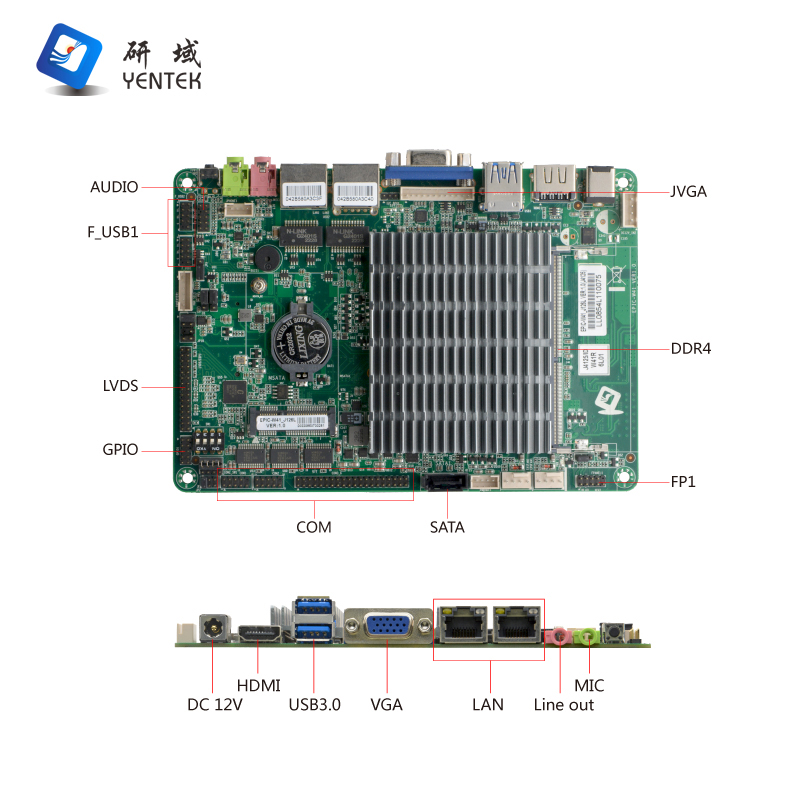

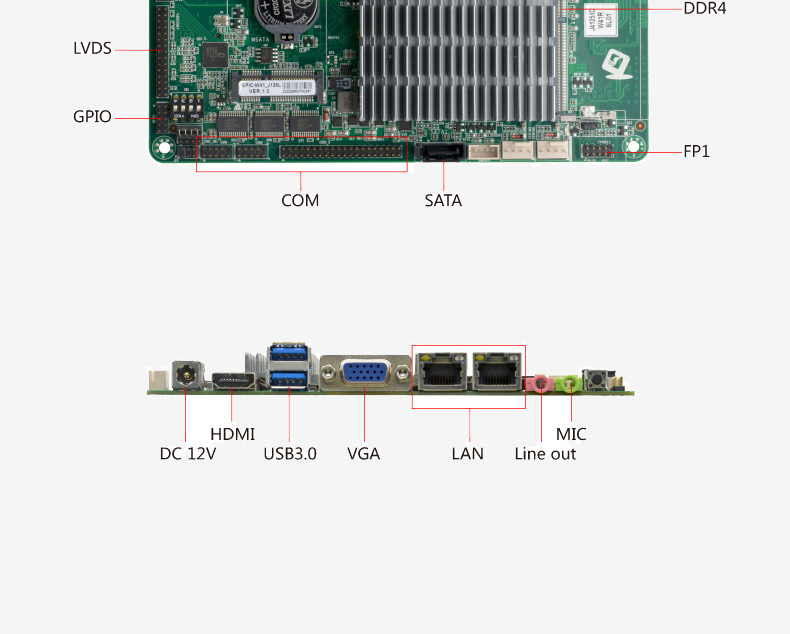

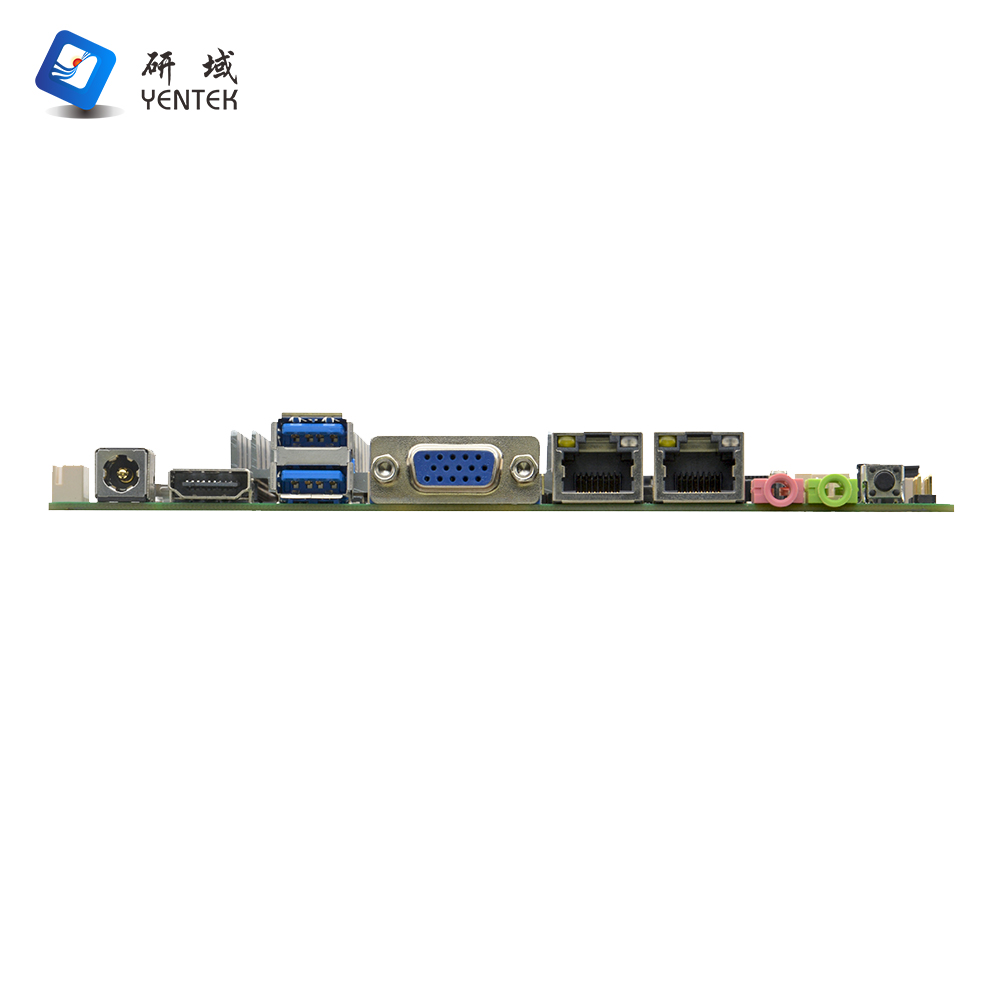

| I/O ports on the backplane | The 1* DC power input port supports 12V power input and output, and supports DC9 to 36V power supplies. The default value is 12V |
| 1* HD OUTPUT display interface | |
| 1 x VGA display port | |
| 2* RJ-45 Gigabit network interface | |
| 2* USB3.0 port | |
| 1* Line out interface (green) | |
| 1* MIC interface (red) | |
| 1* Power switch | |
| Built-in I/O interface | 1* DC12V power interface 1*4pin |
| 4* USB 2.0 interface 2*5Pin | |
| 1* JVGA port 1*12Pin, same signal as DB15 | |
| 6* RS232 serial port, COM2 supports RS485/RS422 functions. | |
| 1* front audio interface 2*5pin | |
| 1* front amplifier interface 1*4Pin | |
1* LVDS interface 2*15pin, support dual channel 24BIT, LVDS and EDP are shared pins, optional EDP interface | |
| 1* LVDS backlight power supply interface 1*6pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* SIM card seat | |
| Fan interface | Support fan-less heat dissipation, reserved 1*4pin CPU intelligent fan port, 1*4pin system fan port |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

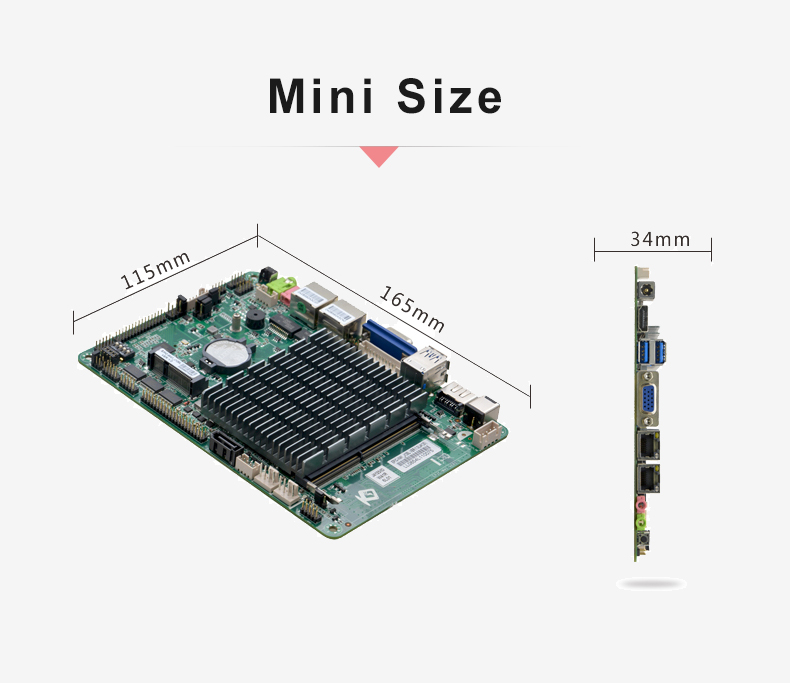

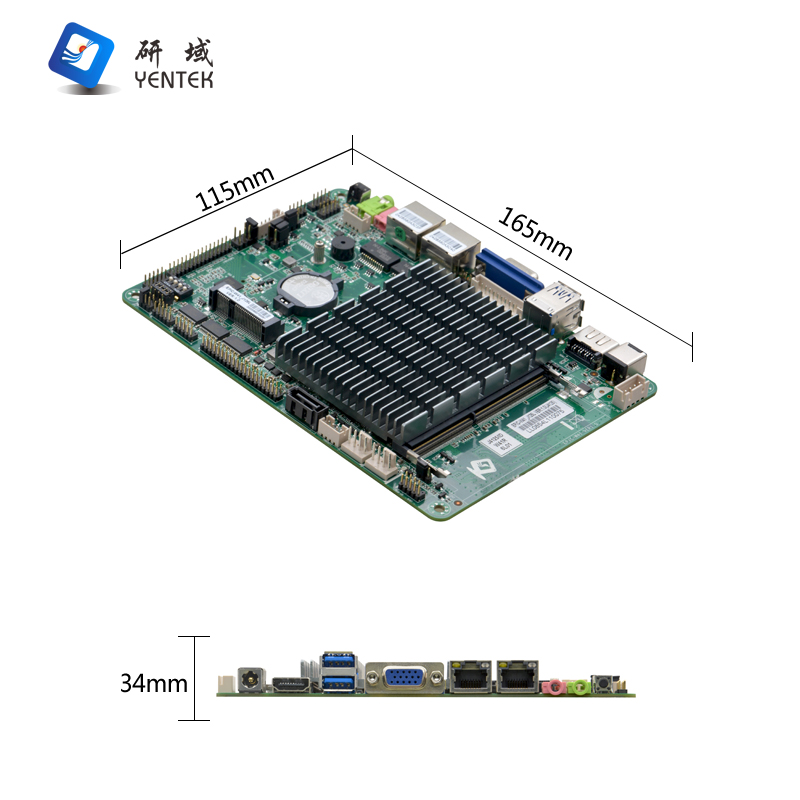

| Dimension | 165mm x 115mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | LAN | USB | COM | Power |
| 1 | EPIC-W41_J126L VER:1.0 | J4125 | 2.0G | 1*SODDR4 | 1 | 1 | 2*24BIT | 2*8111H | 6 | 6 | DC/12V |
