| Model number | P1971Y-P4 V1.0 | |
| Case | Material/Structure | Aluminum alloy material, fanless cooling structure |
| Color | silver | |
| Dimension(L*W*H) | L437*W368*H65mm | |
| Weight | 6.1KG | |
| Install | Support VESA/ embedded panel installation | |
LCD scree | Type | 19 inch LCD, front screen |
| Resolution | 1280 * 1024 | |
| luminance | 250cd/m2 | |
Touch scree | Type | Capacitive screen, 10 touch (adjustable resistance screen) |
| Light transmittance | More than 86% | |
IO interface | POWER | 1* Power key, 1* one key restore (and reset key to choose one), 1*CMOS reset key, 1*ACLOSS (power on DIP switch) |
| USB | 2*USB3.0，2*USB2.0 | |
| LED | 1* Power indicator, 1* hard disk indicator | |
| LAN | 5*Intel I210AT Gigabit Ethernet,4 of them support POE/15W | |
| Display | 1 * HD OUTPUT1.4 | |
| COM | 4*RS232 serial port, COM1~2 RS232 DB9 serial port, in which COM2 supports RS485/422, COM3~4 RS232 on the 2*12pin Phoenix terminal, in which COM3 supports RS485, COM1-2 supports the 9pin live function | |
| Phoenix terminal | 2*12Pin(4 in 4 out GPIO, switching signal, COM3~COM4, 5V VCC and GND)) | |
| Dip switch | 10-bit dip switch, COM2 to 3 RS232/485 switch, COM2 RS422 through the COM2_SW1 jumper | |
| Audio frequency | 1*AUDIO, Line out and MIC in one | |
| Power source | 1*DC (5.5*2.5) air port or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input | |
| Storage | SATA | 1 x 2.5-inch hard disk |
| MSATA | 1*MSATA | |
| M.2 | 1*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD | |
| Expansion | M.2 | 1*M.2/WiFi, Key-E, 2230, supports the WiFi module |
| 1*M.2/5G, Key-B, 2242/52, supports the 5G module | ||
| Power | Power supply type | External power adaptor |
| Voltage input | DC 9V~36V | |
| Power output | 60W~180W | |

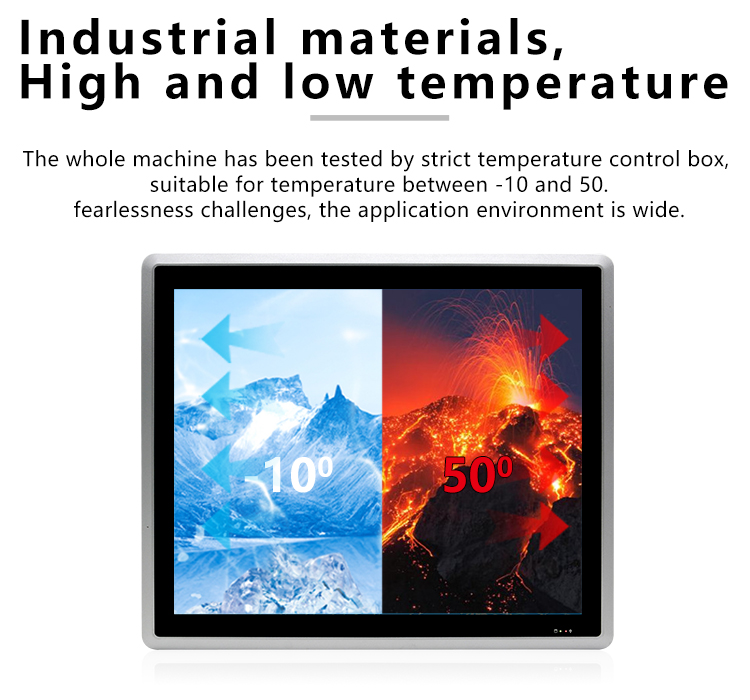

| Environment | Operating temperature | -10℃～50℃ |
| Storage temperature | -20℃～70℃ | |
| Relative humidity | 5%-95% relative humidity, no condensation | |
| Working vibration | 0.5g rms/5-500HZ/random/operating | |
Order Information
| No. | Model | CPU | Motherboard | Memory | IO Board | GPIO | LAN | COM | HDMI | USB2.0 | USB3.0 | Power-input |
| 1 | P1971Y-P4 V1.0(J6412) | J6412/2.00G | P642 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 5 | 4 | 1 | 2 | 2 | 9~36V |
| 2 | P1971Y-P4 V1.0(8260U) | I5-8260U/1.6G | P82 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 5 | 4 | 1 | 2 | 2 | 9~36V |
| 3 | P1971Y-P4 V1.0(7300U) | I5-7300U/2.6G | P68 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 5 | 4 | 1 | 2 | 2 | 9~36V |
| 4 | P1971Y-P4 V1.0(1021U） | I5-10210U/1.6G | P102 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 5 | 4 | 1 | 2 | 2 | 9~36V |
| 5 | P1971Y-P4 V1.0(1135G7） | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 5 | 4 | 1 | 2 | 4 | 9~36V |
| 6 | P1971Y-C6 V1.0(1235U） | I5-1235U/1.3G | P122 | 2*SODDR4 | P1082-P4/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 7 | P1971Y-C6 V1.0(J6412) | J6412/2.00G | P642 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 8 | P1971Y-C6 V1.0(8260U) | I5-8260U/1.6G | P82 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 9 | P1971Y-C6 V1.0(7300U) | I5-7300U/2.6G | P68 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 10 | P1971Y-C6 V1.0(1021U） | I5-10210U/1.6G | P102 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 11 | P1971Y-C6 V1.0(1135G7） | I5-1135G7/2.4G | P112 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
| 12 | P1971Y-C6 V1.0(1235U） | I5-1235U/1.3G | P122 | 2*SODDR4 | P1082-C6/P1071-LED | 4 in 4 out | 2 | 6 | 1 | 2 | 4 | 9~36V |
