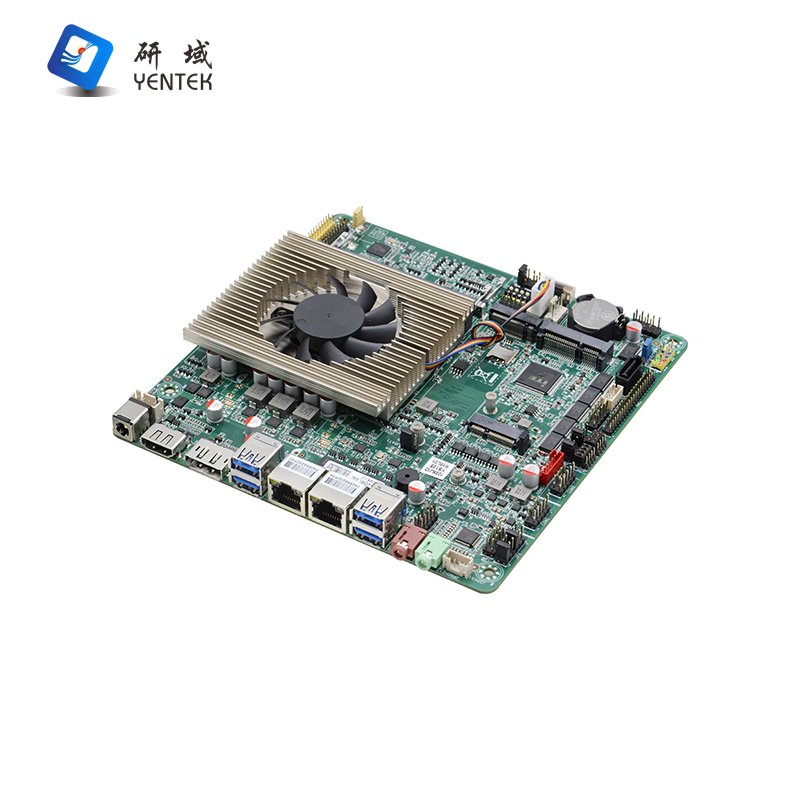

ITX-YS610R_6C

Processor

Support LGA1700 12th/13th/14th   Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processors.

Note: Supports CPUs below 65W,   with RWD turned off by default.

Chipset

Intel® H610 Chipset

Memory

2* DDR4 SODIMM memory slots, support dual-channel memory up to 3200MHz,   maximum support 128GB

Display

Integrated Intel® HD Graphics core graphics card support DirectX12.1,   OpenGL4.5, support for 4K/60Hz display

1* HDMI1.4 interface, support for the highest resolution: 4096x2106@24Hz

1* DP interface, support for the highest resolution: 4096x 2106 @ 60Hz

1* LVDS interface, support for dual-channel 24BIT

Network

2* RTL8111H Gigabit NIC chip, support Wake-on-LAN/PXE function

Storage

2* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 Key M 2280 NVME PCIE3.0 X4 SSD specification

Audio

Onboard ALC897 7.1+2-channel high-fidelity audio controller, support   MIC/Line-out, amplifier

Amplifier support 4Ω/3W dual-channel

Expansion Slots

1* M.2, support M.2   Key E 2230 WIFI/BT modules

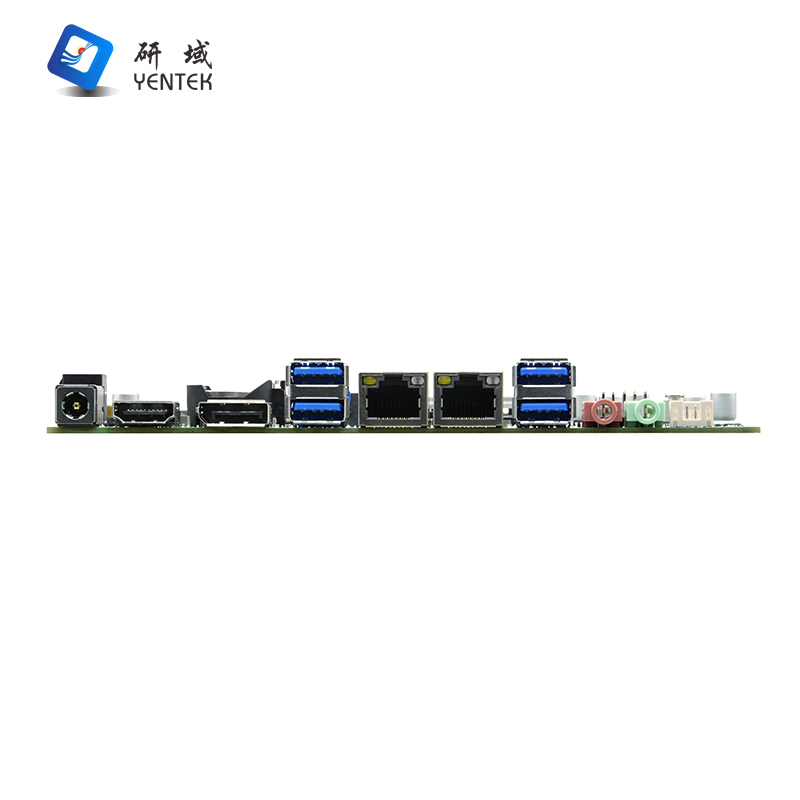

Backplane I/O Ports

1* DC power supply interface, support DC19V power supply

1* HDMI1.4 interface

1* DP interface

4* USB3.0 interface (5Gbps), of which USB2 and TYPE-C co-listed, optional   to do a TYPE-C interface

2* RJ45 Gigabit network interface

1* MICK (red), 1*Line-out (green)

Built-in I/O Ports

6* RS232 serial port, COM2 support RS485/422

4* USB2.0 interface 2*5pin

1* LVDS interface, support dual-channel 24BIT

2* HDD power supply interface 1*4pin

1* Screen backlight power supply interface 1*6pin

1* 2*2pin ATX power connector, support 19V power input/output

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

1* Front Panel Function Button and Indicator Interface 2*5pin

Fan Ports

1*4pin CPU fan connector; 1*4pin system fan connector

BIOS

128Mb Flash ROM

GPIO

Support four-in-four-out GPIO function

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Operating System

Windows 10/Windows 11/Linux

Power Supply Type

Adopt DC19V power supply

Operating Temperature

-20℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

Size

170mm x 170mm

1

ITX-YS610R1_6C   VER:1.0

LGA1700

H610

2*SODDR4

1

1

2ch/24BIT

/

2*8111H

8

6

COM2

DC/19V
