| Product model | ITX-B120V1_I526L VER:1.0(1235U) |

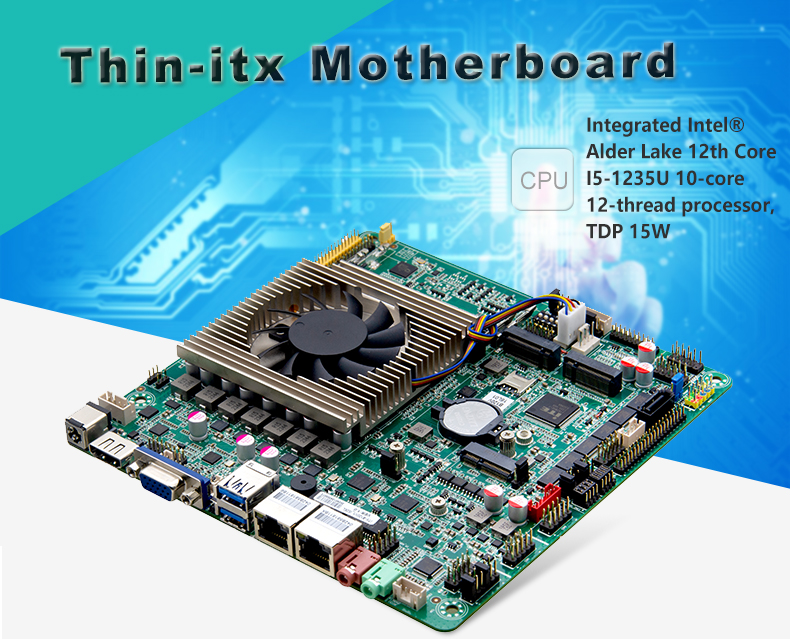

| Processor | Integrated Intel®Alder Lake 12th Core I5-1235U 10-core 12-thread processor, TDP 15W |
| Compatible with Intel®Alder Lake/Raptor Lake 12th/13th Celeron/I3/I5/I7 processors | |
| Chipset | SOC |
| Internal memory | 2* DDR4 SODIMM slots, supporting 3200MHz memory and a maximum of 64GB memory |
| Display | Integrated Intel® Iris® Xe Graphics core graphics card, support DirectX12.1,OpenGL4.6, support 4K/60Hz display |
| The maximum resolution supported by the 1 x VGA port is 1920x1080@60Hz | |
| 1* HD OUTPUT2.0 interface, the highest resolution supported: 4096x2304@60Hz | |
| 1* HD OUTPUT1.4 port, the highest resolution supported is 4096x2304@24Hz | |
| 1* LVDS port, supporting dual-channel 24BIT | |
| 1* EDP interface, and LVDS interface through the jump one | |
| Network | 2* Intel KTI226V Gigabit network adapter chip, supporting network wake up /PXE function |
| Deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* M.2 slot, supporting M.22280 NVME PCIE 3.0 X4 SSDS | |
| Tone frequency | Onboard ALC897 7.1+2 channel high fidelity audio controller, support MIC/Line-out, power amplifier,The amplifier supports 4Ω/3W dual channels |
| Expansion | 1* M.2 slot, supporting the M.2 2230 WIFI module |
| 1* M.2 slot, supporting the M.2 2242/2252 4G/5G module | |

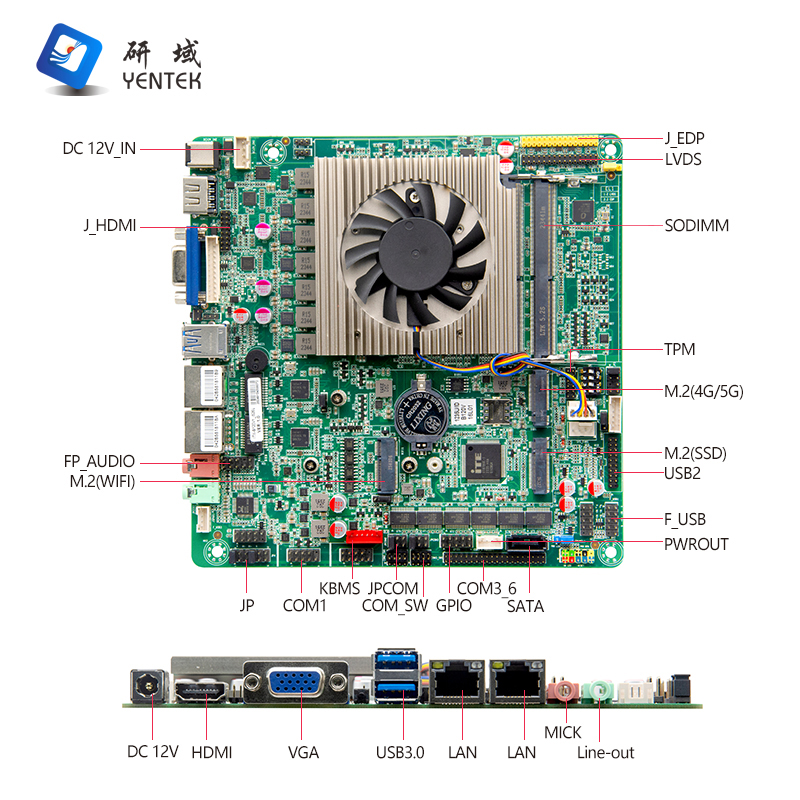

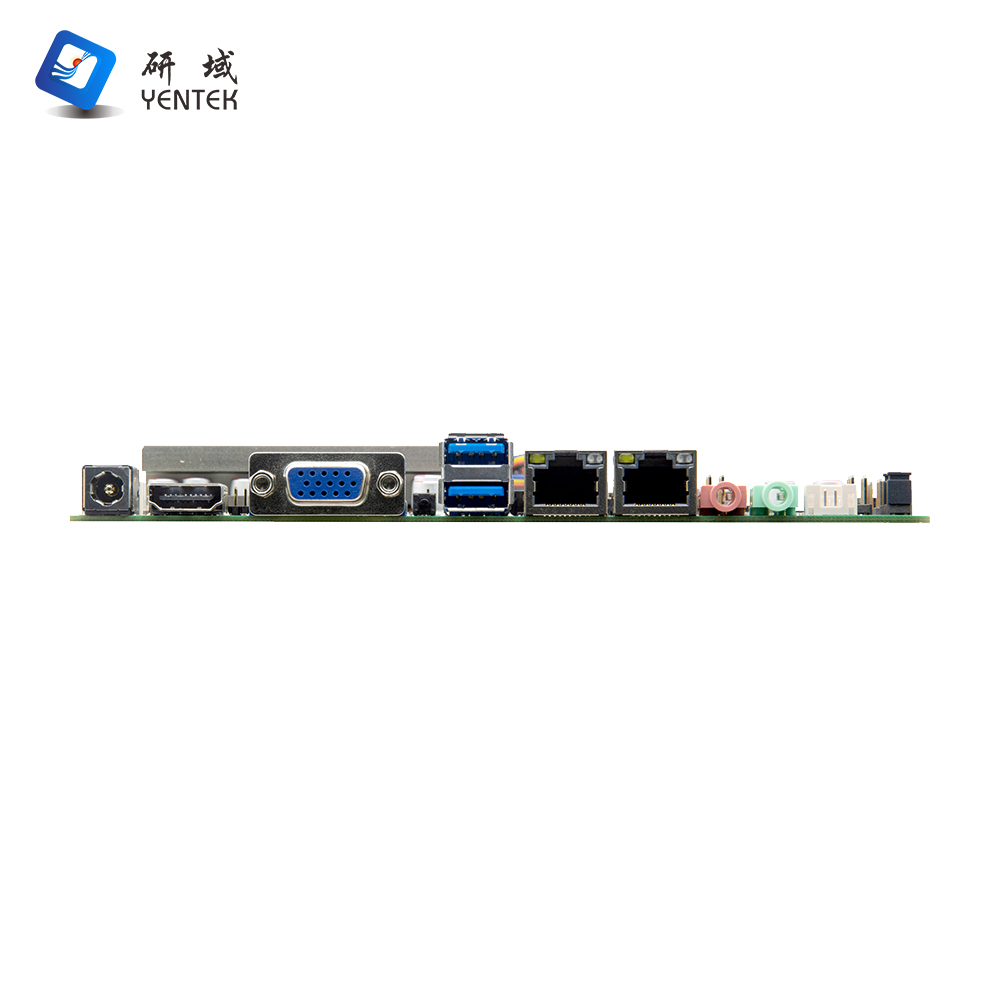

| Backplane I/O Interface | 1* DC12V power port supports 12V power input and output |
| 1* HD OUTPUT2.0 interface | |
| 1* VGA port | |
| 2* USB3.0 interface (5Gbps) | |
| 2* RJ45 Gigabit network interface (LAN2 and USB2.0 are listed together) | |
| 1* Line-out(green), 1*MICK(red) | |
| Built-in I/O interface | 1* JVGA pin port 1*12pin, same signal as DB15 |
| 1* JHD OUTPUT interface 2*8pin, can be used alone | |
| 1* LVDS interface, 2*15pin, | |
| 1* EDP interface, 2*15pin, with LVDS by jumping one of two | |
1* screen backlight power supply interface 1*6pin | |
| 6* RS232 serial port, of which COM1 supports 9pin live function, COM2/3 supports RS485/422 | |
1* front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* Front panel function button and indicator port 2*5pin | |
| 6* USB2.0 interface 2*5pin | |
| 2* USB3.0 interface 2*10pin | |
| 1* PS/2 keyboard and mouse interface 1*6pin | |
| 1* hard drive power port 1*4pin | |
| 1* TPM port 2*6pin | |
| 1* 4pin DC power interface, support 12V power input and output | |
| Fan interface | 1*4pin CPU intelligent fan interface; 1*4pin system fan port |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 256Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-90% relative humidity, no condensation |

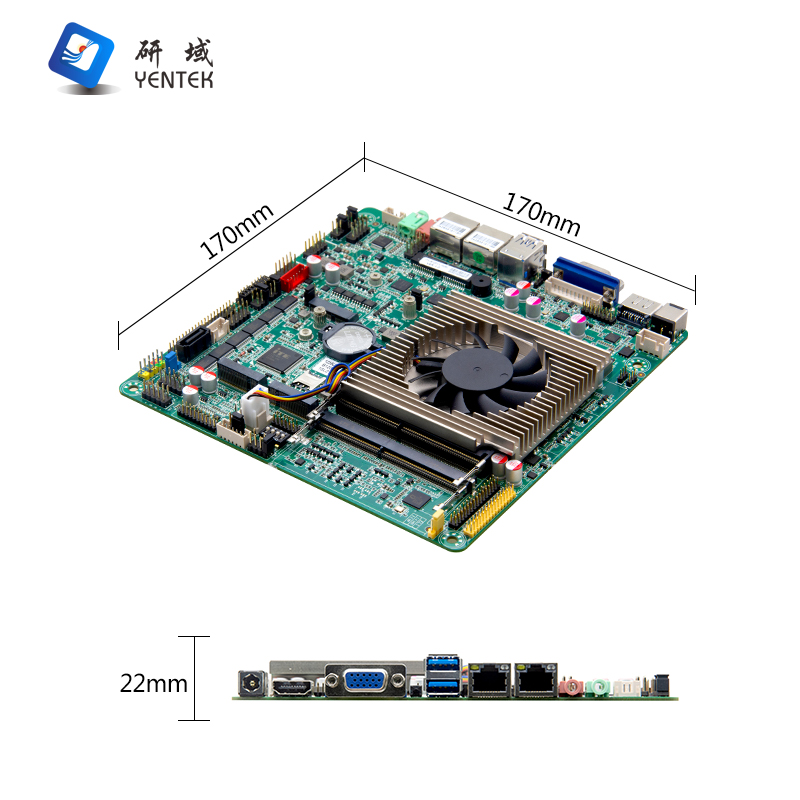

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Chipset | Memory | VGA | HD | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B120V1_I526L VER:1.0(1235U) | I5-1235U | 4.4GHz | / | 2*SODDR4 | 1 | 2 | 1 | 1 | 2*I226V | 10 | 6 | COM2/3 | DV12V |
