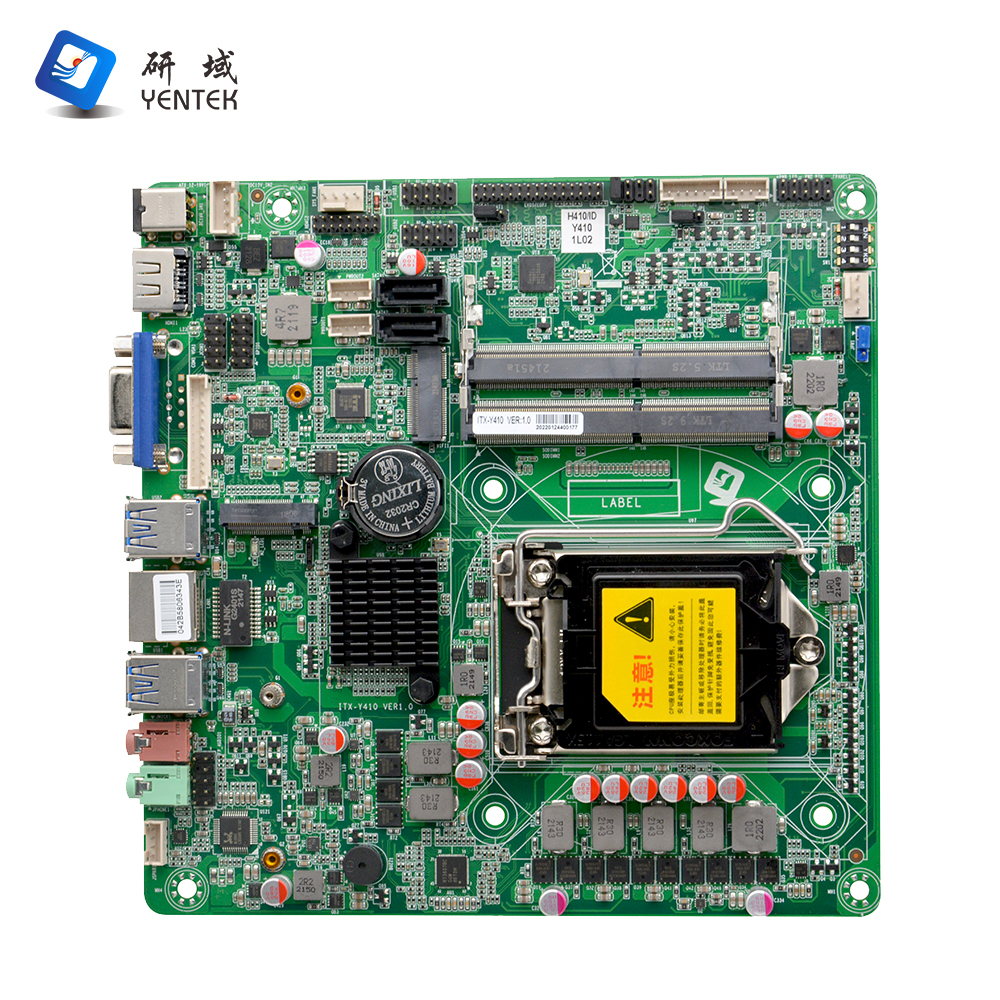

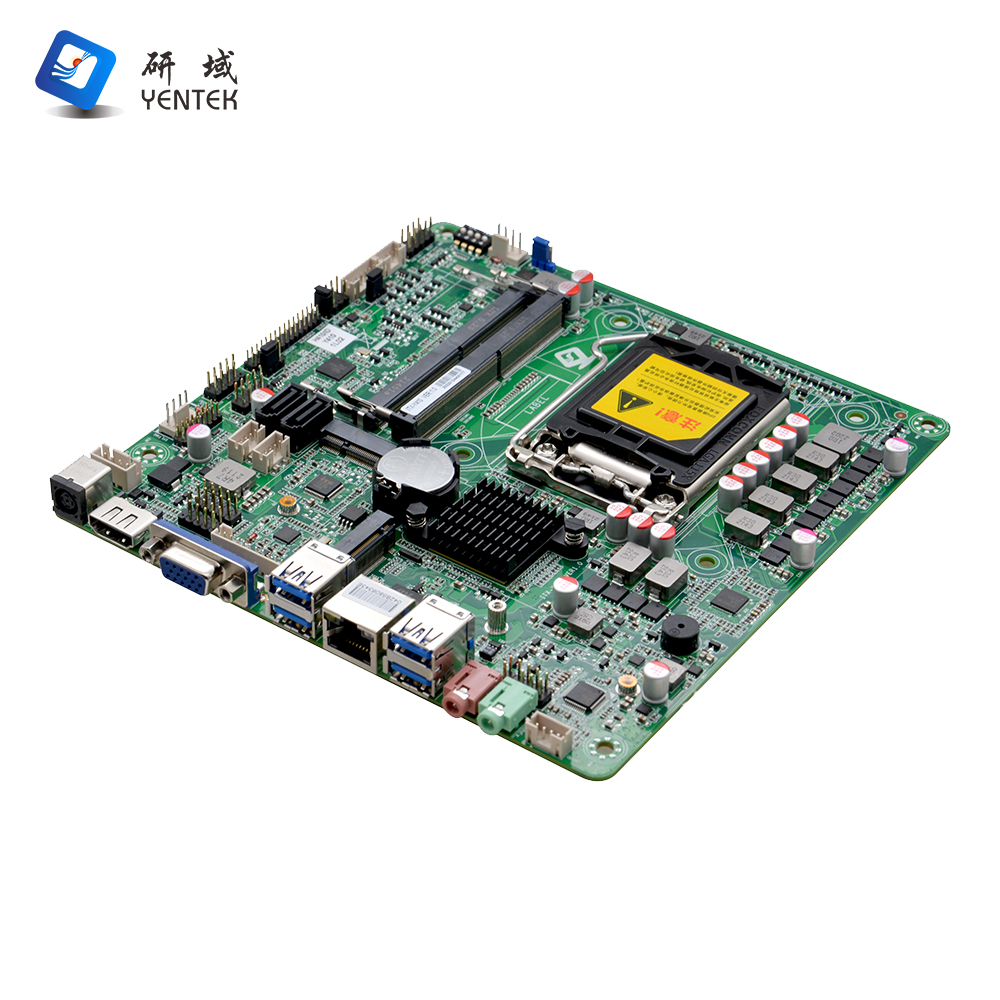

| Product model | ITX-Y410 VER:1.0 |
| Processor | Supports the LGA1200 10th Intel® Celeron/Pentium/Core™ i3/i5/i7/i9 processor |
| Note: Only 10gen cpus with 6 cores of 65W and below are supported | |

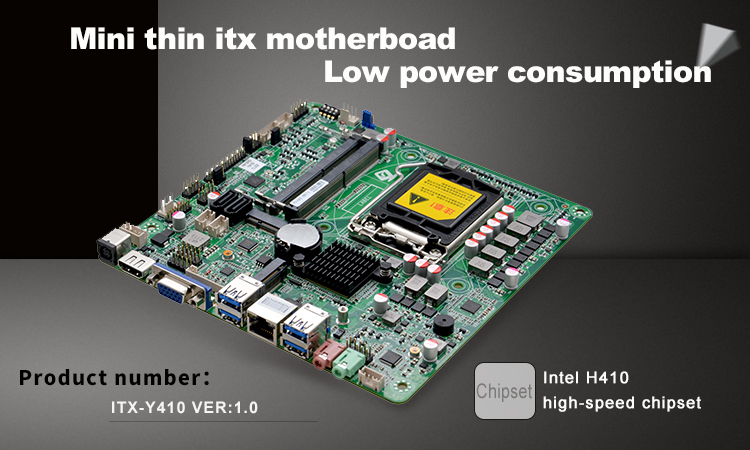

| Chipset | Using Intel® H410 high-speed chipset |
| Internal memory | 2* DDR4 SODIMM slots, supporting up to 2933 MHZ memory and up to 128GB memory |
| Display | Integrated Intel® HD Graphics core graphics card, support DirectX12,OpenGL4.5, support 4K/60Hz display |
| Network | 1* RTL8111H Gigabit NIC chip, supports network wake up /PXE function |
| Deposit | 2* SATA3.0 hard disk interface, transmission speed up to 6Gbps |
| 1* M.2 slot, supporting M.2 2260/2280 SATA SSDS | |
| Tone frequency | Onboard ALC892 7.1+2 channel high fidelity audio controller, support MIC/Line-out, power amplifier |
| Expansion | The amplifier supports 4Ω/3W dual channels |

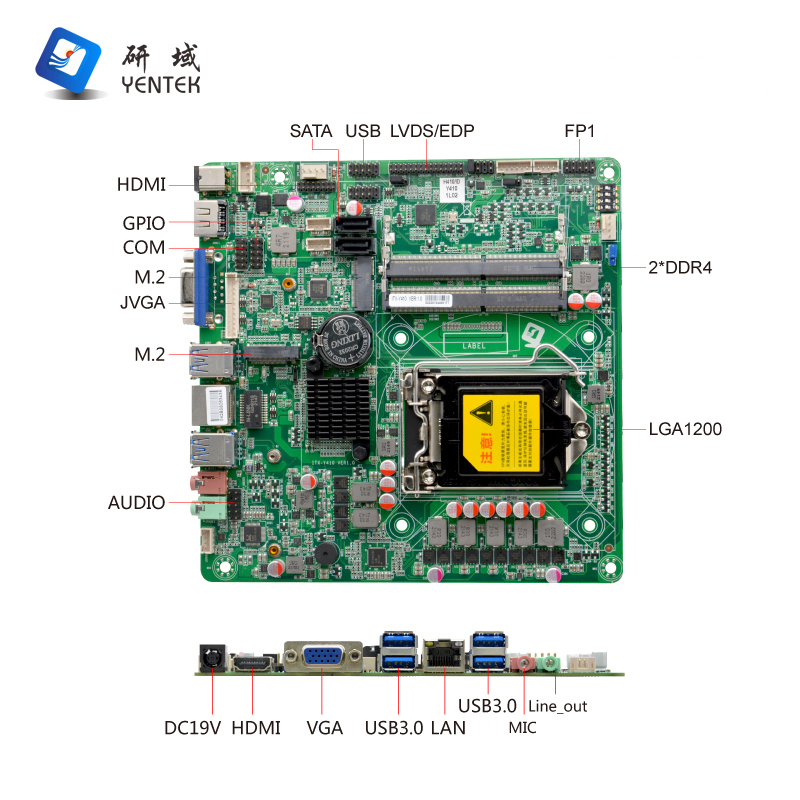

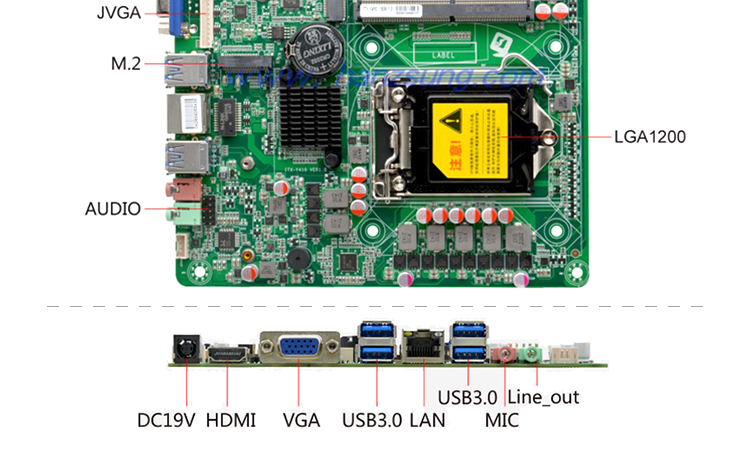

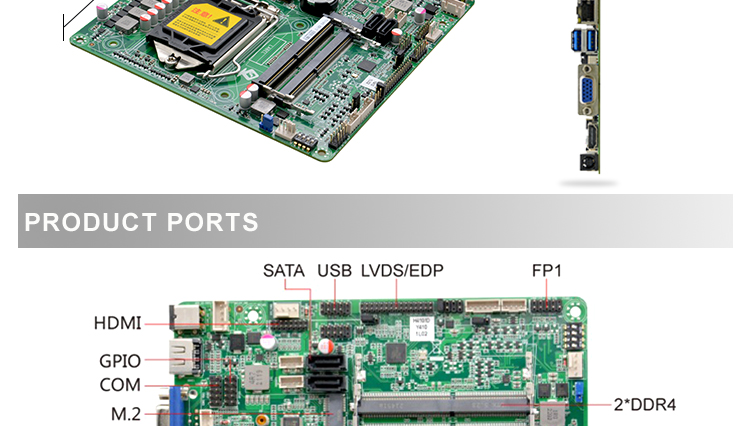

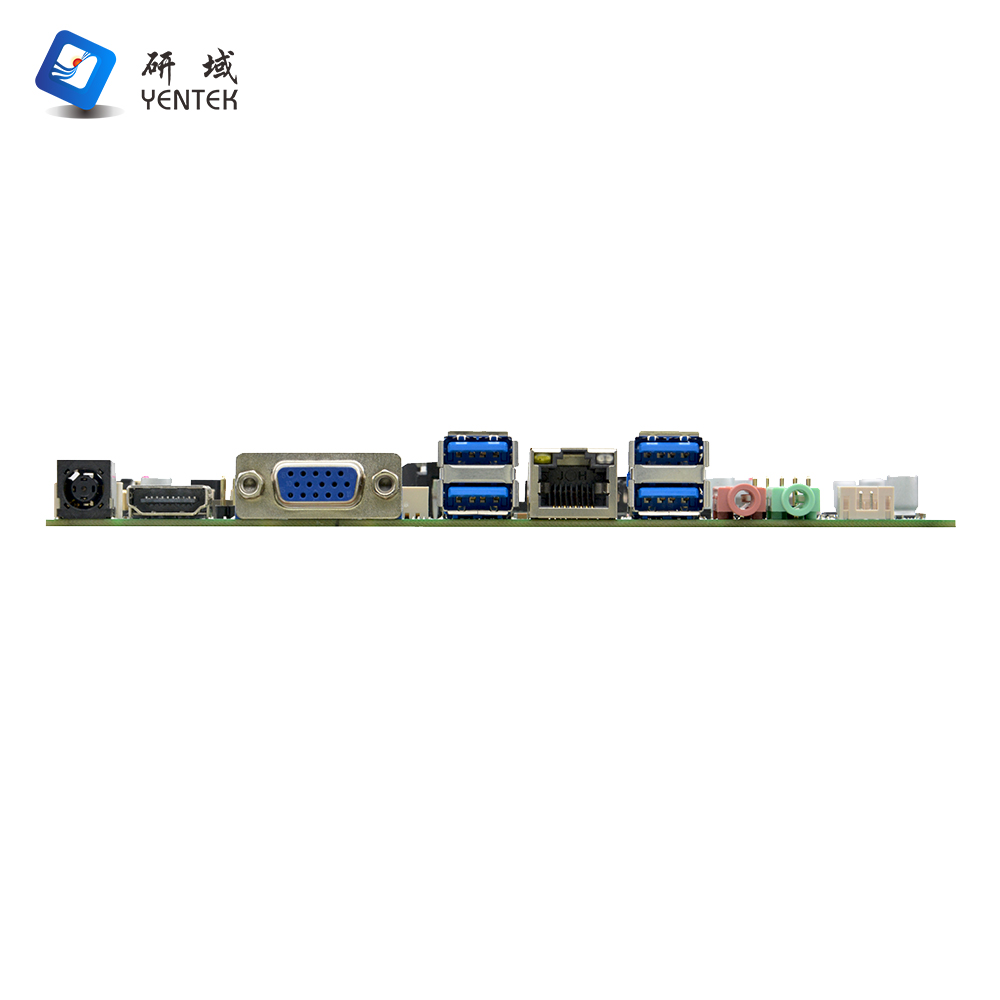

| Backplane I/O Interface | 1* M.2 slot, supporting the M.2 2230 WIFI module |
| 4* USB3.0 port | |
| 1* HD OUTPUT port | |
| 1 x VGA port | |
| 1* RJ45 Gigabit network port | |
| 1* Line-out(green),1*MIC(red) | |
| Built-in I/O interface | 1* DC12~19V power input interface |
| 1* JVGA port 1*12pin, same signal as VGA port | |
| 1* LVDS interface or EDP interface 2*15pin, support dual channel 24bit | |
| 1* backlight power supply interface 1*6pin | |
1* screen brightness adjustment interface 1*4pin | |
| 1* RS232 serial interface | |
4* USB2.0 interface 2*5pin | |
| 1* front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 2* hard disk power supply voltage port 1*4pin | |
| 1* Front panel function button and indicator port 2*5pin | |
| 1* DC power interface.1*4pin support DC12~19V power input and output | |
| Fan interface | 1*4pin CPU intelligent fan interface; 1*4pin system fan port |
| GPIO | Supports four input/output GPIO functions |
| BIOS | 128Mb Flash ROM |

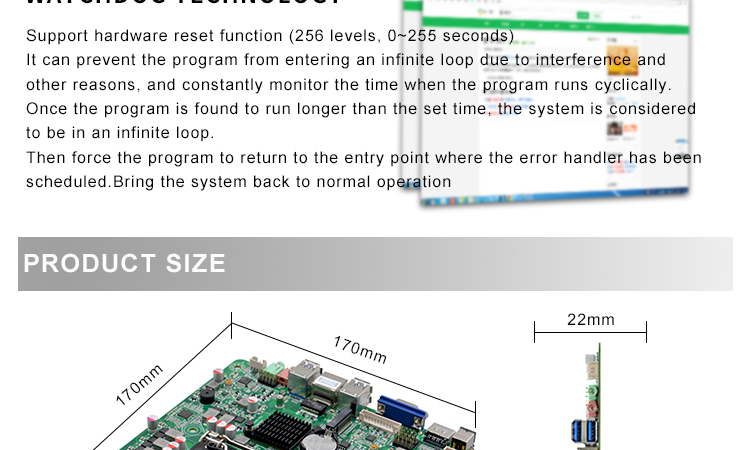

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Support DC12~19V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

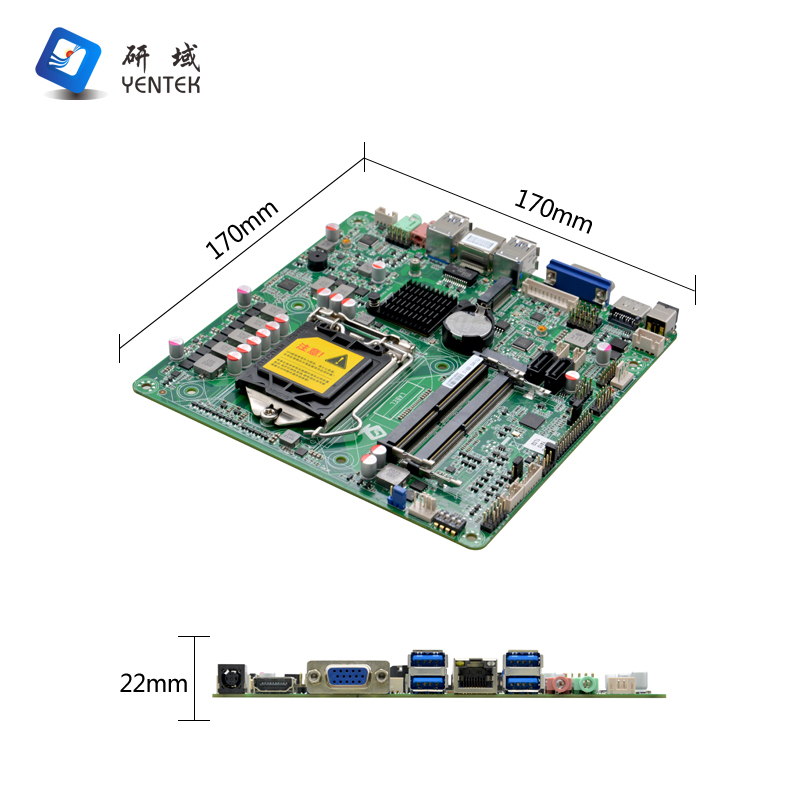

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Southbridge | Memory | VGA | HD | LVDS | DP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-Y410 VER:1.0 | LGA1200 | / | H410 | 2*SODDR4 | 1 | 2 | 2ch/24bit | / | 1*8111H | 8 | 1 | / | DV12-19V |
