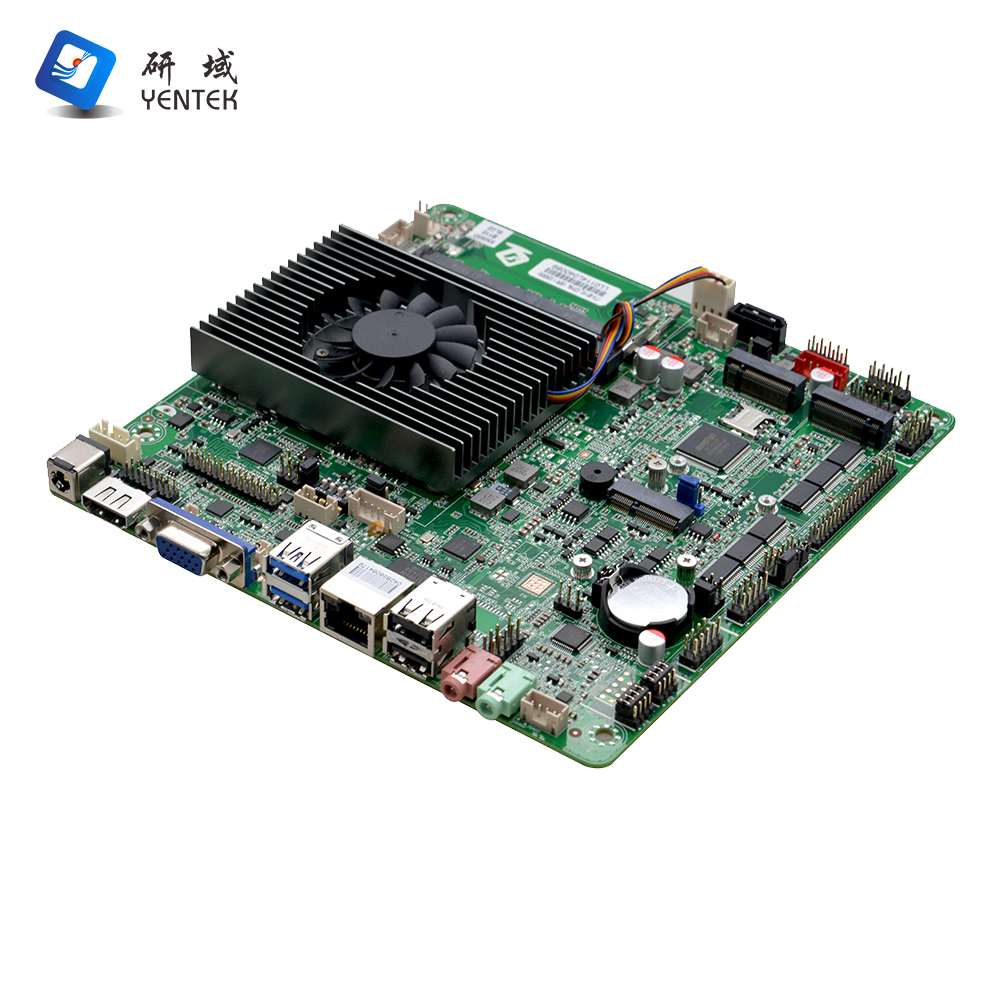

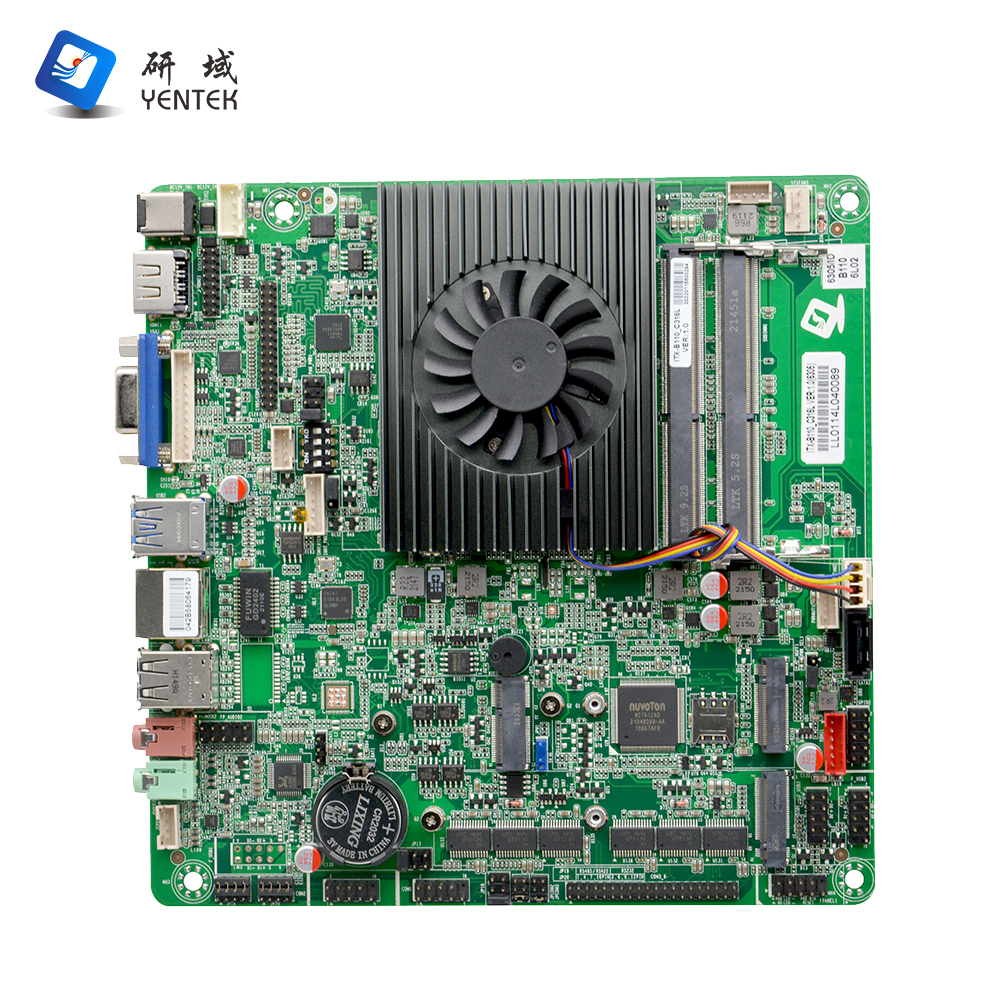

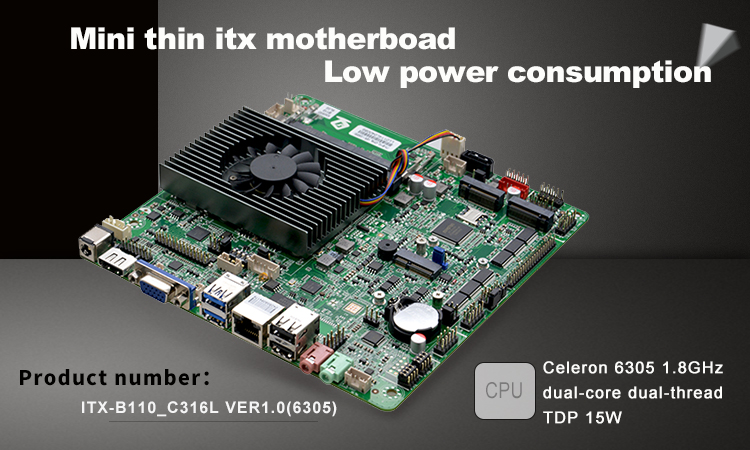

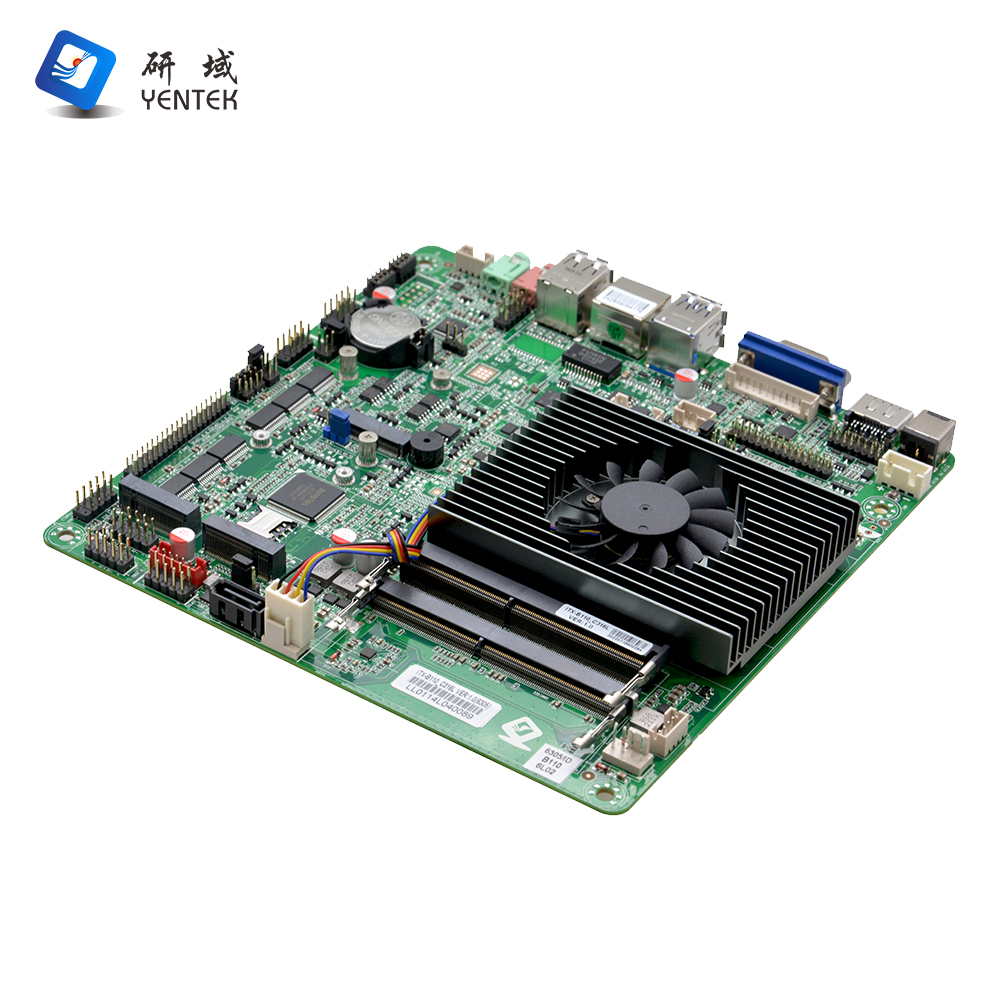

| Product model | ITX-B110_C316L VER:1.0(6305) |

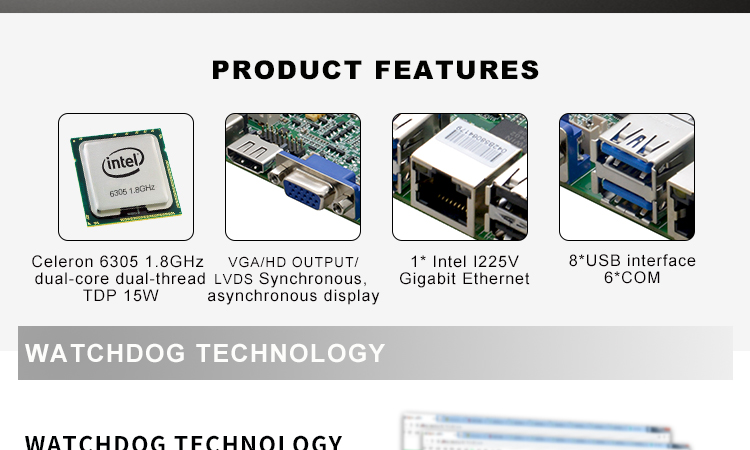

| Processor | Integrated Intel®Tiger Lake 11th Celeron 6305 1.8GHz dual-core dual-thread processor, TDP 15W |
| Compatible with Intel®Tiger Lake-U Celeron Penium Core I3/I5/I7 processors | |
| Chipset | SOC |
| Internal memory | 2 x DDR4 SODIMM slots, supporting 3200MHz memory and a maximum of 64GB memory |
| Display | Integrated Intel® UHD Graphics core graphics card, support DirectX12.1,OpenGL4.6, support 4K/60Hz display |
| 1* VGA,1*HD OUTPUT2.0,1* HD OUTPUT1.4,1* LVDS interface, support dual channel 24BIT | |
| Network | 1* Intel I225V Gigabit network adapter chip, supporting network wake up /PXE function |
| Deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* M.2 slot, support M.22260/2280 PCIE X1 /SATA SSD adaptive standard SSD | |
| Tone frequency | Onboard ALC888S 7.1+ 2-channel hi-Fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 2Ω3W speaker | |
| Expansion | 1* M.2 Supports the M.2 Key E WIFI6 module |
| The 1 x M.2 Supports the M.2 Key B 5G module | |

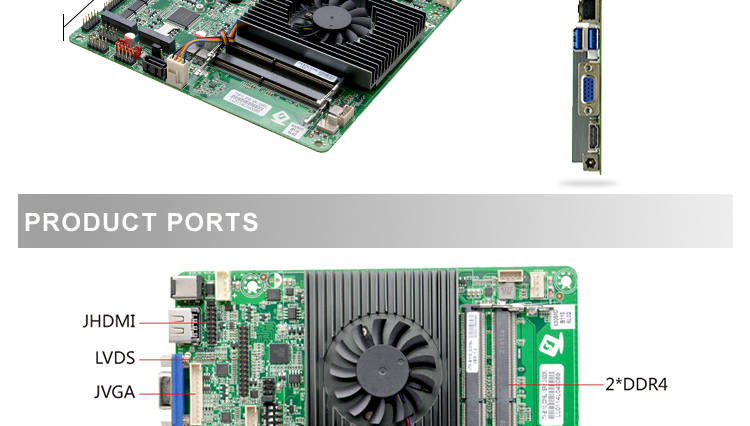

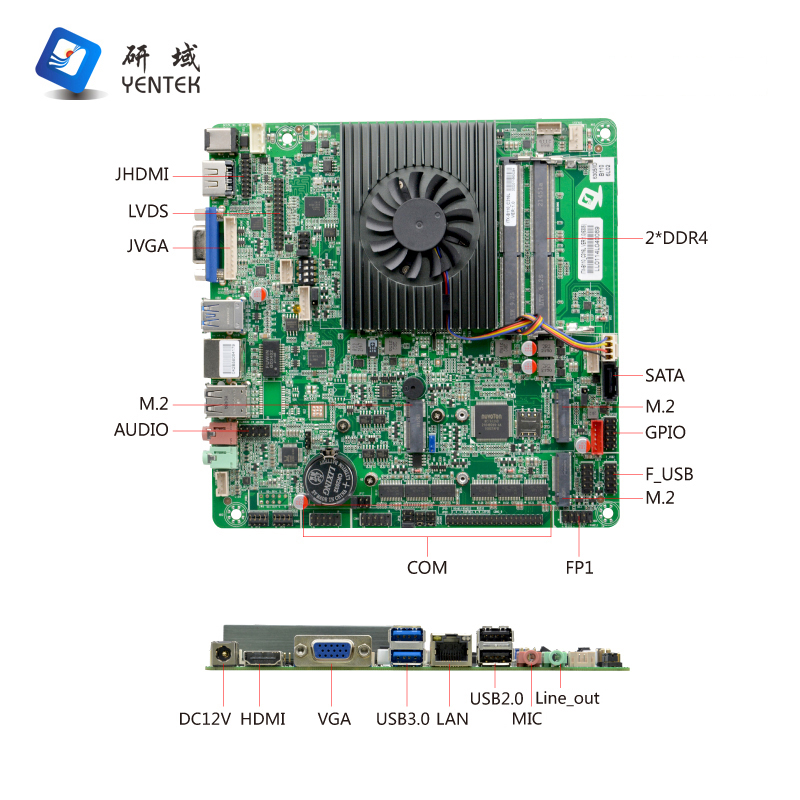

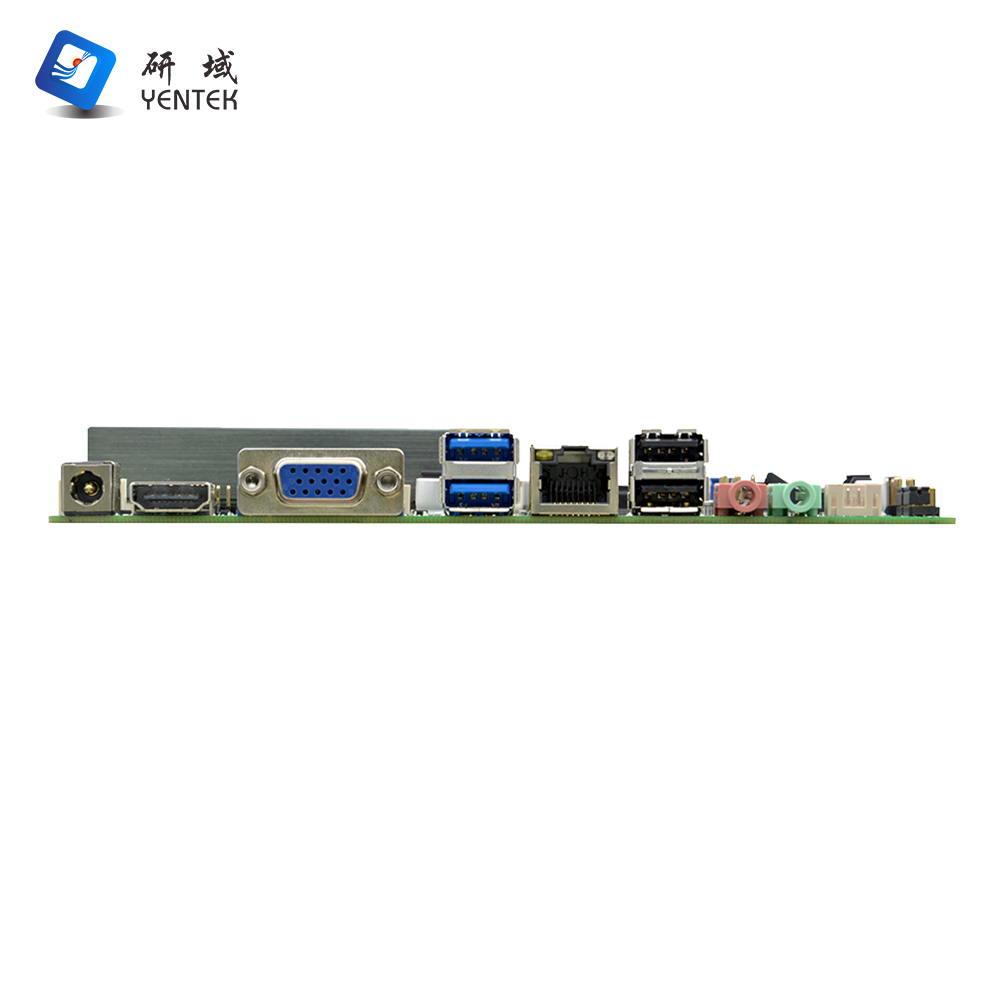

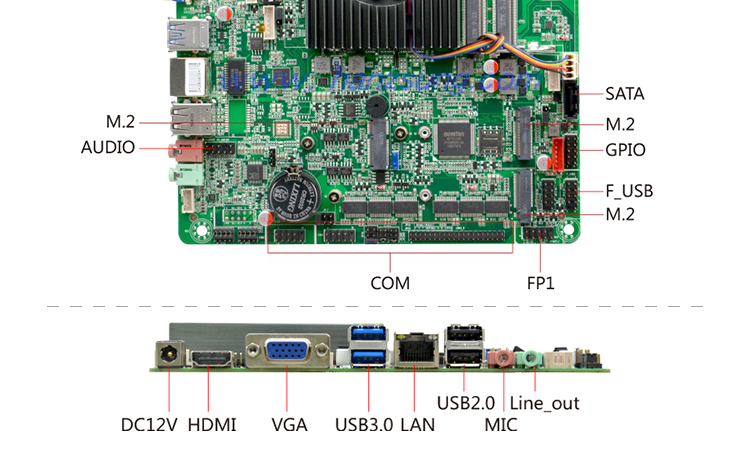

| Backplane I/O Interface | 1* HD OUTPUT2.0 display interface |
| 1 x VGA display port | |
| 2 x USB3.0 port,2 x USB2.0 port | |
| 1* RJ-45 Gigabit network interface | |
| 1* Line out interface (green), 1* MIC interface (red) | |
| 1 x 12V DC power input port | |
| Built-in I/O interface | 1* 4pin power interface (12V input/output power interface) |
| 1* LVDS interface 2*15pin, support dual channel 24BIT, can support EDP, and LVDS for the common pin | |
| 1* screen backlight power supply interface 1*6pin | |
| 1* screen brightness adjustment interface 1*4pin | |
4* USB 2.0 interface 2*5Pin | |
| 1* J_HD OUTPUT port 2*8Pin | |
1* JVGA interface 1*12Pin(same signal as DB15) | |
| 6* RS232 serial interface,COM1 support 9pin live,COM2/3 support RS485/422 function | |
| 1* PS/2 keyboard and mouse interface 1*6pin | |
| 1* front audio interface 2*5pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* SIM card seat | |
| Fan interface | 1*4pin CPU fan interface,1* 4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 128Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

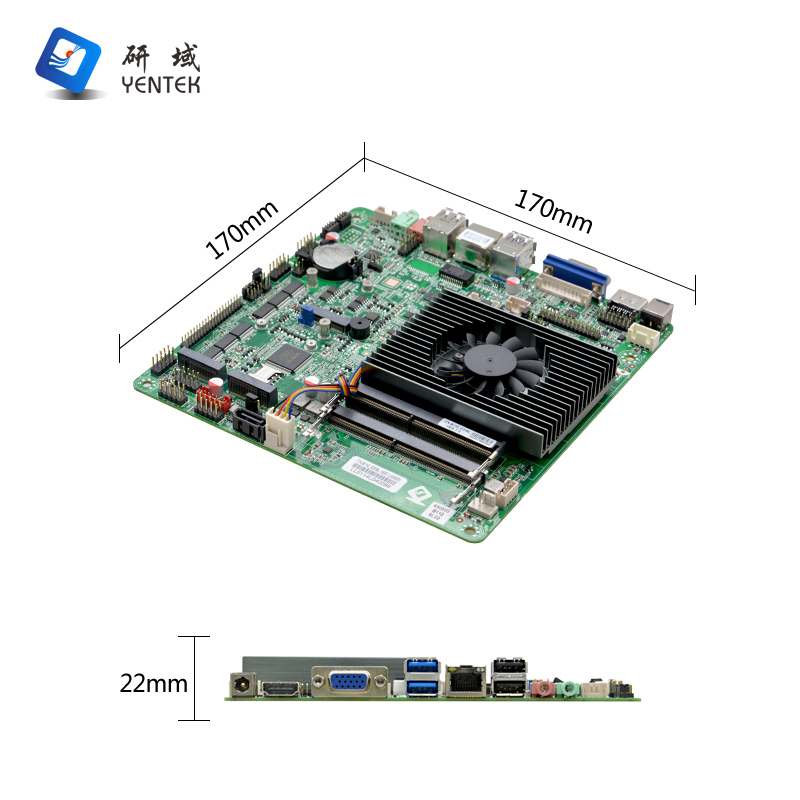

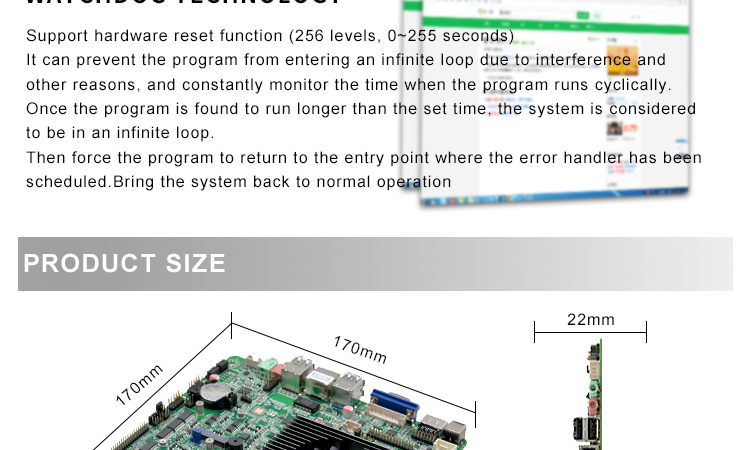

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B110_C316L VER:1.0(6305) | 6305 | 1.8G | 2*SODDR4 | 1 | 1 | 2ch/24bit | / | 1*I2 | 8 | 6 | COM2/3 | DV12V |
| 2 | ITX-B110_I526L VER:1.0(1135G7) | I5-1135G7 | 2.4G | 2*SODDR4 | 1 | 1 | 2ch/24bit | / | 2*I2 | 8 | 6 | COM2/3 | DV12V |
