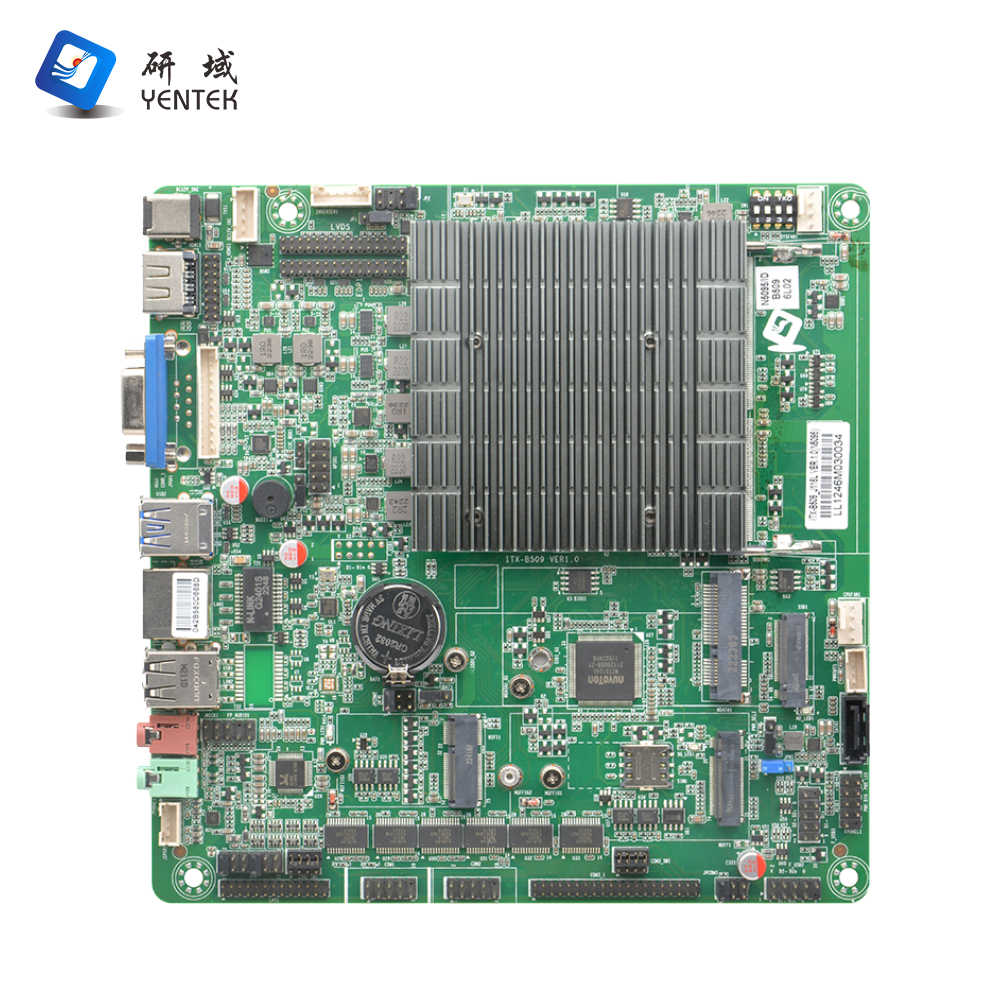

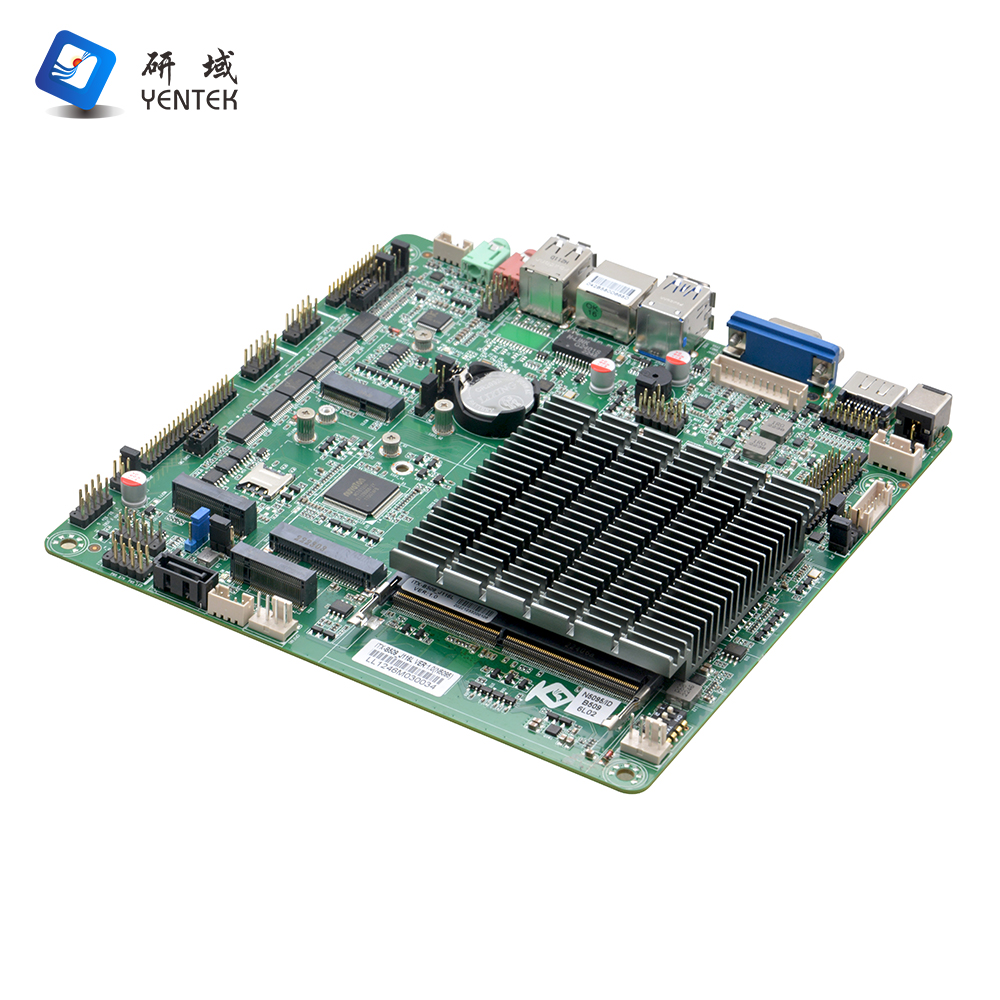

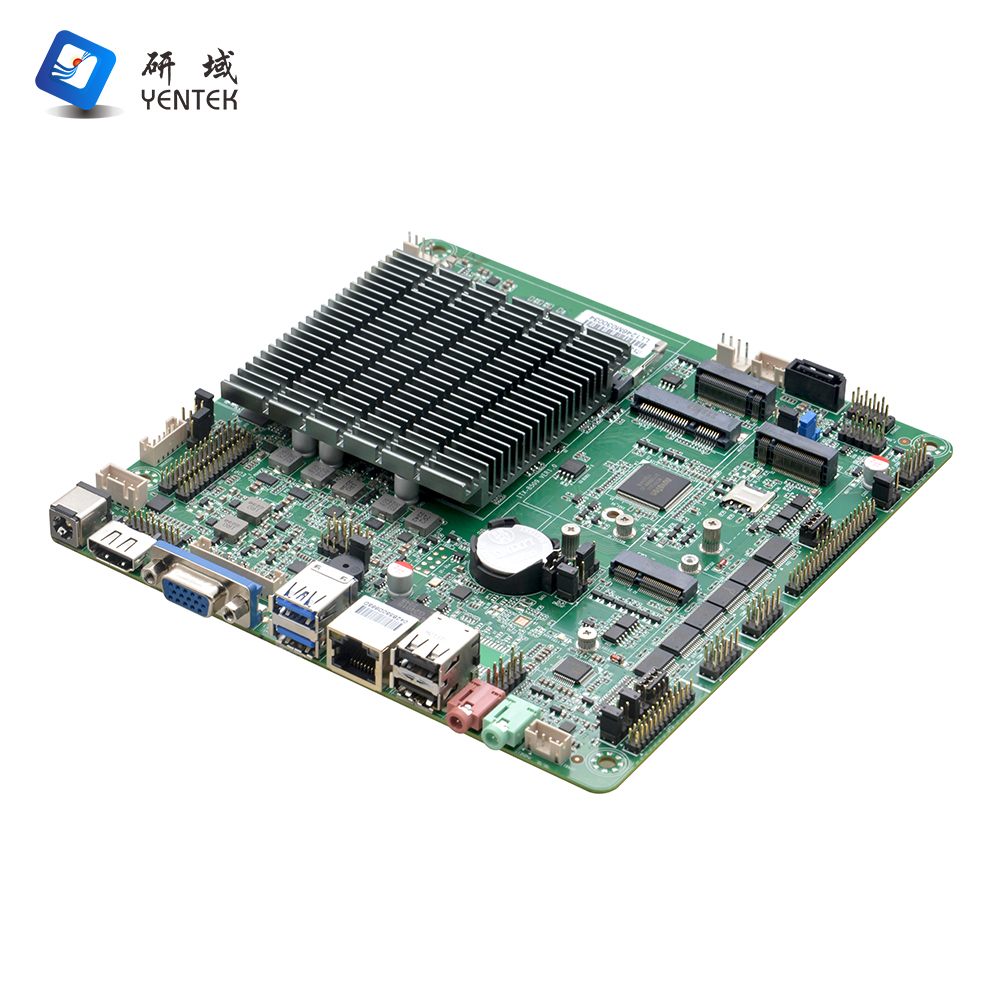

| Product model | ITX-B509_J116L VER:1.0(N5095) |
| Processor | Integrated Intel®Celeron N5095A 2.0GHz quad-core quad-thread processor,TDP 15W, Compatible with the full range of Intel® Jasper Lake cpus, can flexibly choose |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for supporting 2933MHz DDR4 memory (up to 16GB) |
| Display | Integrated Intel® UHD Graphics core graphics card |
| 1* VGA,1*HD OUTPUT,1* LVDS,1* EDP, Note:LVDS and EDP interfaces are optional | |
| Network | 1* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| Deposit | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1 x M.2 slot, supporting the M.2 Key M 2260/2280 PCIE X2 SSD | |
1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps | |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker | |
| Expansion | 1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module |
| 1* M.2 slot, supporting the M.2 Key E 2230 WIFI module | |
| NOTE: The Bluetooth function of M.2 is either F_USB2 or F_USB2. The default value is F_USB2 | |

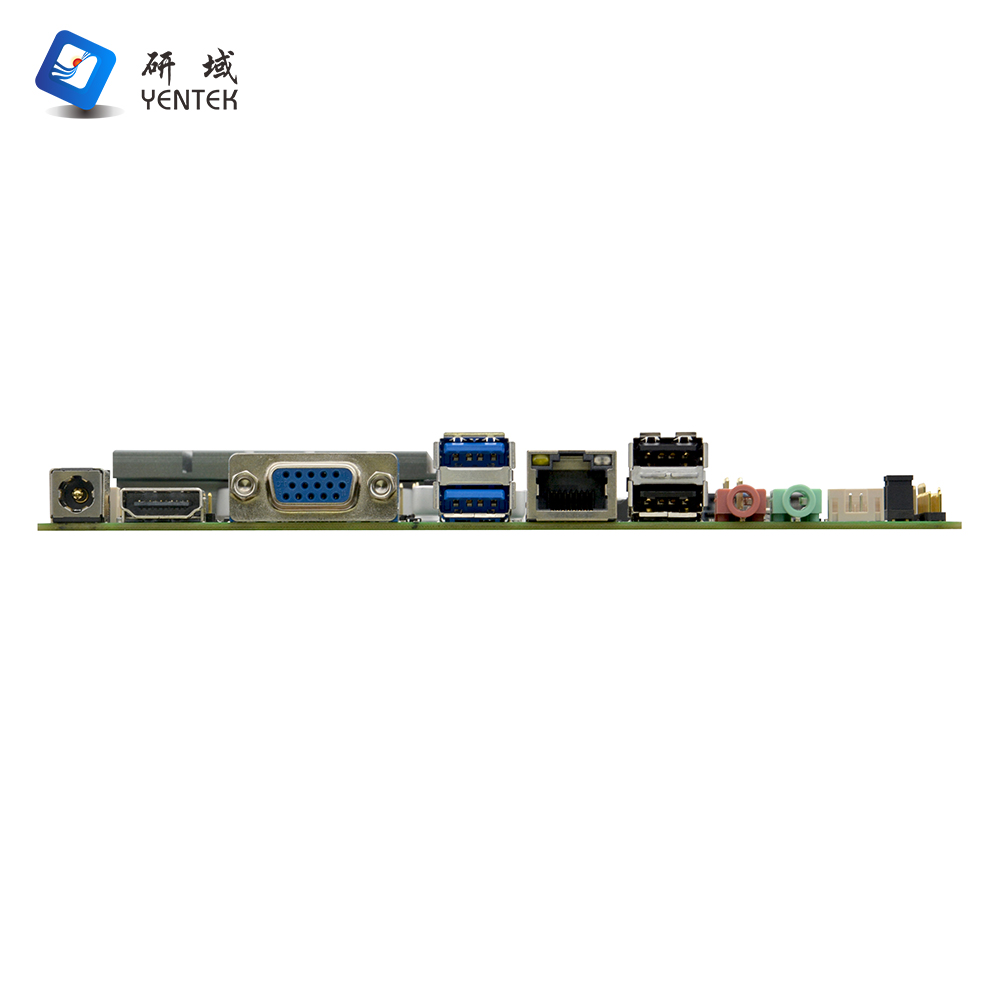

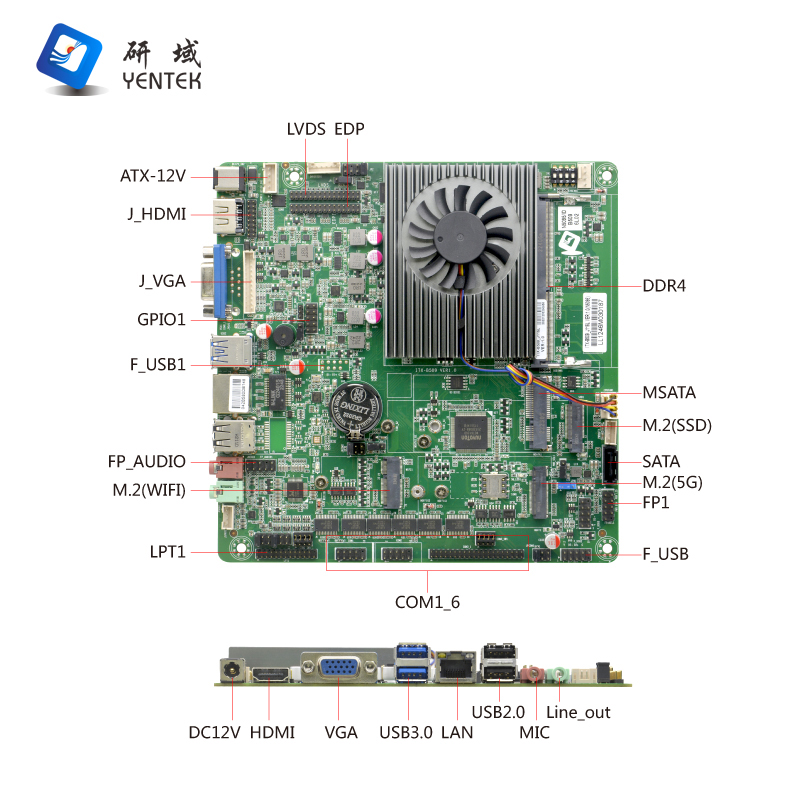

| Backplane I/O Interface | 1* DC 12V power input port |
| 1 x VGA display port | |
| 1* HD OUTPUT display interface | |
| 2 x USB3.0 port,2 x USB2.0 port | |
| 1* Line out (green), 1* MIC (red) | |
| 1* RJ45 Gigabit network port | |
| Built-in I/O interface | 1* DC power interface, 1*4pin support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 | |
| 1* J_HD OUTPUT interface, 2*8pin, the same signal as HD OUTPUT | |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT | |
1* EDP interface, 2*15pin, and LVDS is one of two options, default LVDS | |
| 1* screen backlight power supply interface 1*6pin | |
4* USB2.0 interface, 2*5pin | |
| 6* RS232 serial interface,COM2/COM3 support RS485/422 function | |
| 1* hard drive power port 1*4pin | |
| 1 Front audio interface 2*5pin | |
| 1* power amplifier interface 1*4pin | |
| 1* LPT interface 2*13pin | |
| 1* SIM card slot | |
| 1* Front panel function button and indicator port 2*5pin | |
| Fan interface | 1*4pin CPU intelligent fan interface,1*4pin system fan interface |
| GPIO | Support 4 input/output GPIO(optional with PS/2) |
| BIOS | 256Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Windows 11/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

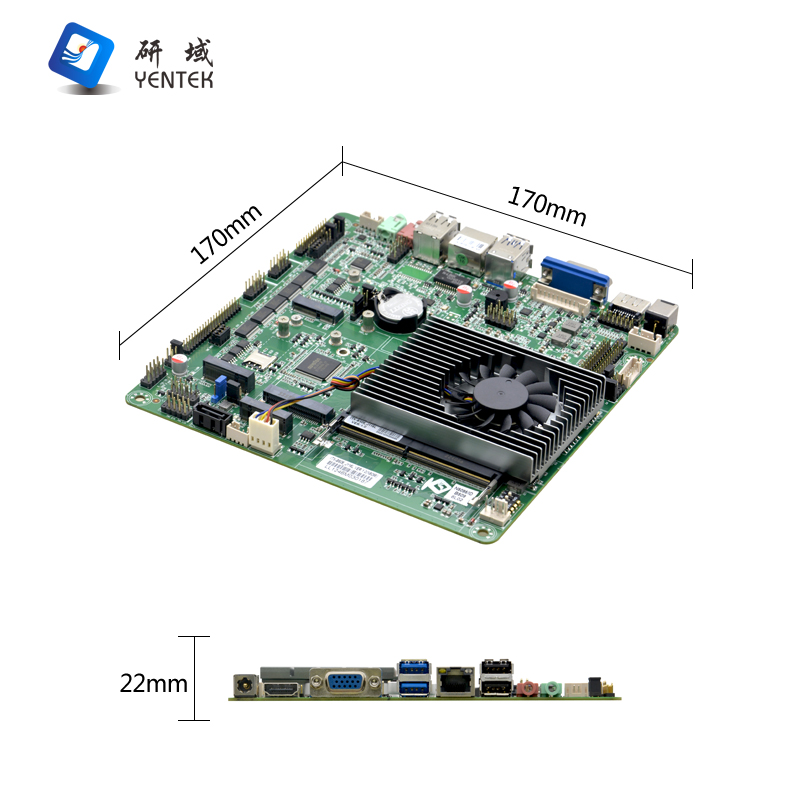

| Dimension | 170mm x 170mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B509_J116L VER:1.0(N5095) | N5095A | 2.0G | 1*SODDR4 | 1 | 1 | 2ch*24BIT | 1 | 1*8111H | 8 | 6 | COM2/3 | DV12V |
