Product description
| Product model | ITX-M51_D926L VER:1.5A |
| Processor | Integrated Intel® J1900/4Cores / 2.00GHz processor Compatible Intel® Bay Trail -I/M/D series CPU,Flexible choice for customers |
| Chipset | Based on Intel® Bay trail SOC platform |
| Memory | 1* SODIMM ,support single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB |
| Display | Integrated Intel® HD Graphics |
| 1*VGA,1*HDMI,1*LVDS(support dual channel 24BIT) | |
| Support VGA;HDMI;LVDS Synchronous/ Asynchronous display | |
| Network | 2* Realtek RTL8111F Gigabit Ethernet ,support wake on LAN/PXE |
| Storage | 1* SATA2.0 HDD port (with 2.5 inch HDD SATA5 optional) |
| 1* SATA2.0 2.5 2.5 inch laptop HDD slot SATA5, can be installed HDD directly | |
| 1* MSATA slot（support Intel protocol SSD, the transfer rate up to 3Gbps） | |
| Audio | Onboard ALC662 6 channel high fidelity audio controller,support MIC/Line-out/amplifier. |
| Support amplifer 2Ω5W trumpet | |
| Expansion | 1*Mini-PCIE slot, support WIFI、3G module |
| Rear I/O | 1* 12V DC power input port |
| 1* double deck KB/MS port | |
| 1* RS232 serial port | |
| 1* LPT print port | |
| 1* VGA | |
| 4* USB 2.0 | |
| 2* RJ-45 Gigabit Ethernet connectors | |
| 1* Line out (Green)、1* MIC(Red) | |
| Internal I/O | 1* LVDS 2*15pin, support dual channel 24bit(double 8) |
| 1* LVDS backlight power supply port | |
| 1* J_HDMI 2*8Pin | |
| 1* JVGA1 1*12Pin, same signal with DB15 | |
1* PS/2 KB/MS port 1*6Pin | |
| 4* RS232 serial ports 2*20Pin,COM3 support RS485/422 | |
1* RS232 port 2*5Pin | |
| 4* USB 2.0 2*5Pin | |
| 1* front audio port 2*5pin | |
| 1* power amplifier 1*4pin | |
| 1* Front panel switching button and LED indicator port 2*5Pin | |
| 1* HDD power supply port 1*4pin | |
| 1* SIM card socket | |
| 1* 4pin ATX power port（can do 12V input/output port） | |
| Fan interface | Fanless cooling design, reserve 1*4pin CPU smart fan connector, |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Power supply type | DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-90% relative humidity, no condensation |

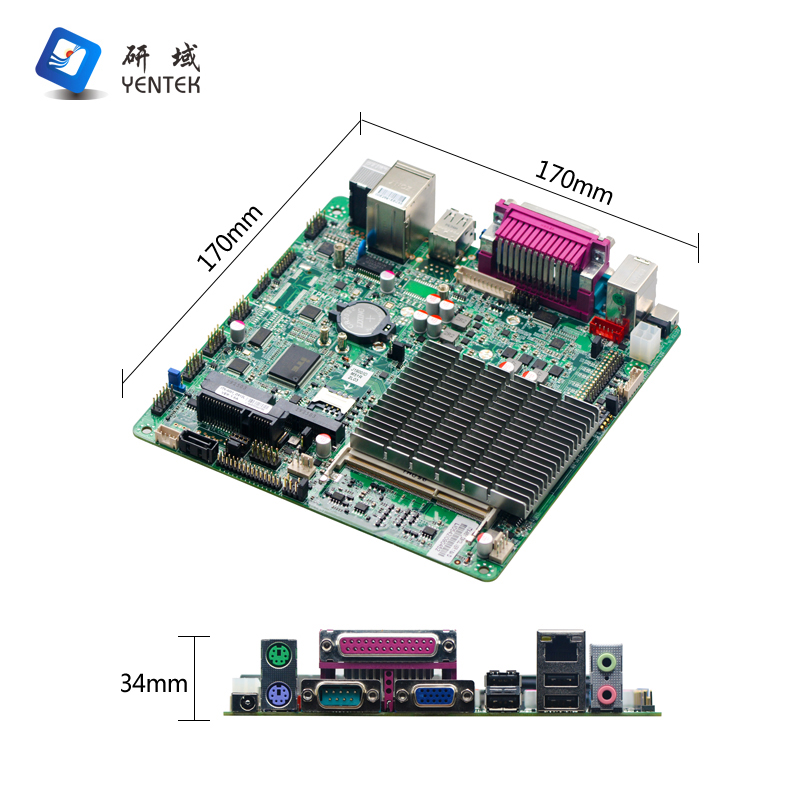

| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HDMI | LVDS | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-M51_D926L VER:1.5A | J1900 | 2.00G | 1*SODDR3L | 1 | 1 | 2ch*24BIT | 2*8111F | 8 | 6 | COM3 | DV12V |
| 2 | ITX-M51_D826L VER:1.5A | J1800 | 2.41G | 1*SODDR3L | 1 | 1 | 2ch*24BIT | 2*8111F | 8 | 6 | COM3 | DV12V |
