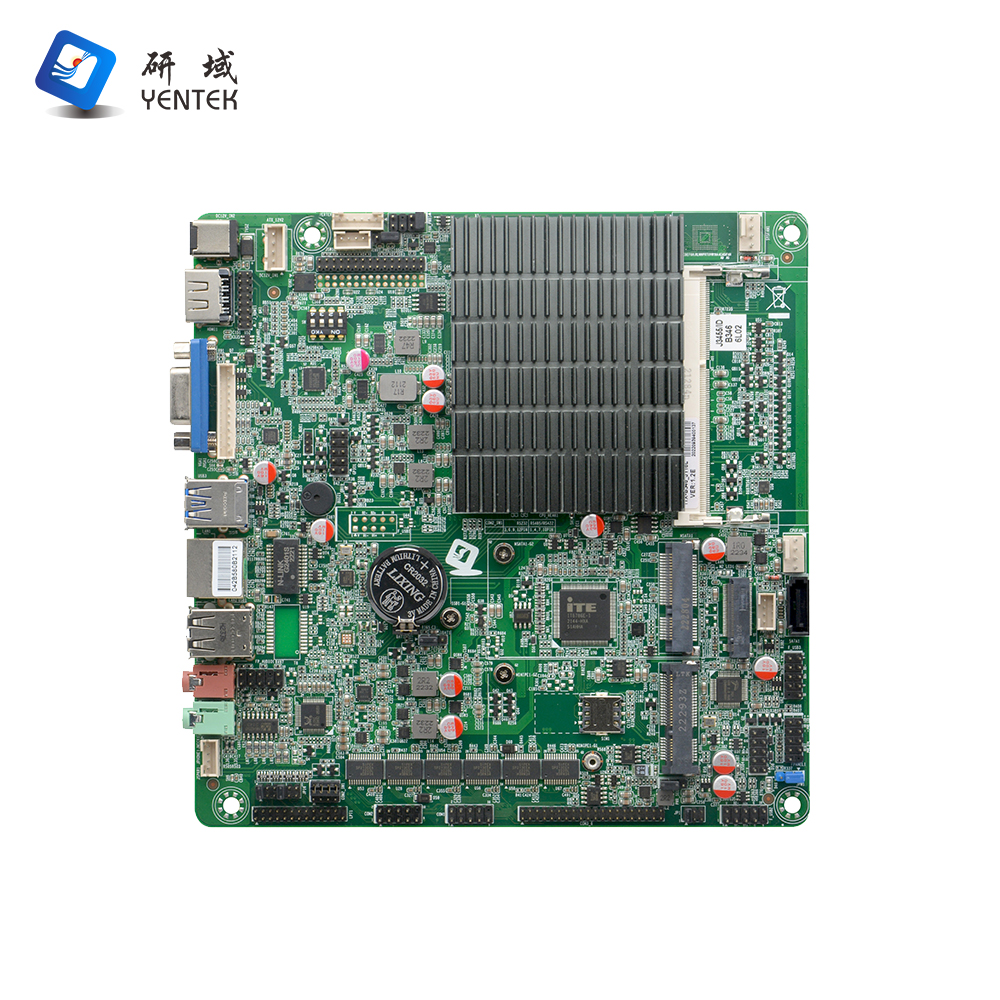

| Product model | ITX-B346_J116L VER:1.1(J3455) |
| Processor | Integrated Intel® Celeron J3455 1.5GHz quad-core processor, TDP power consumption 10W
Compatible with Intel® Apollo Lake Celeron/Pentium low-power processor |
| Chipset | SOC |
| RAM | 1*DDR3L SODIMM, support single channel 1600/1866MHz 1.35V memory, maximum support 8GB |
| Display | Integrated Intel®HD Graphics 500 core graphics card |
| 1*VGA, 1*HDMI, 1*LVDS interface (support dual channel 24Bit) or 1*EDP interface |
| Support VGA, HDMI, LVDS synchronous/asynchronous display |
| The internet | 1* RTL8111HS gigabit network card chip, support Wake-on-LAN/PXE function |
| Store | 1* 7pin SATA3.0 hard disk interface, transfer rate up to 6Gbps |
| 1* MSATA slot, support SSD transfer speed up to 6Gbps |
| 1* M.2 slot, support M.2 2280 NVME PCIE standard SSD |
| Audio | Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out. |
| It is recommended to use 2Ω5W speakers for the power amplifier |
| Expansion | 1* Mini-PCIE slot supports WIFI/3G module |
Backplane I/O Interface
| 2* USB3.0 interface, 2*USB2.0 interface |
| 1* HDMI1.4 interface |
| 1* VGA DB15 interface |
| 1* RJ-45 Gigabit network interface |
| 1* Line out (green) |
| 1* Mic (red) |
| 1* 12V DC power input interface |
| Built-in I/O interface | 1* LVDS interface 2*15pin, support dual channel 24Bit LCD display |
| 1* screen backlight power supply interface (1*6pin) |
| 1* Screen brightness adjustment interface 1*4pin |
| 1* HDMI interface 2*8Pin, the same signal as the HDMI interface on the back panel |
1* JVGA interface 1*12pin, the same signal as DB15 |
| 6* RS232 serial port, COM2 can support RS485, COM1/COM2 supports the 9th pin charged function |
1* LPT interface 2*13pin |
| 6* USB2.0 interface, 2*5pin |
| 1* Front panel audio interface 2*5pin |
| 1* SIM card holder |
| 1* Hard disk power supply interface, 1*4pin |
| 1* Front panel function button and indicator port 2*5pin |
| 2* 2pin ATX power interface, can be used as +12V input and output |
| 1* power amplifier interface 1*4pin |
| Fan interface | Fanless cooling, reserved 1* 4pin CPU smart fan interface, 1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Power supply type | DC 12V single power input |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-90% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
