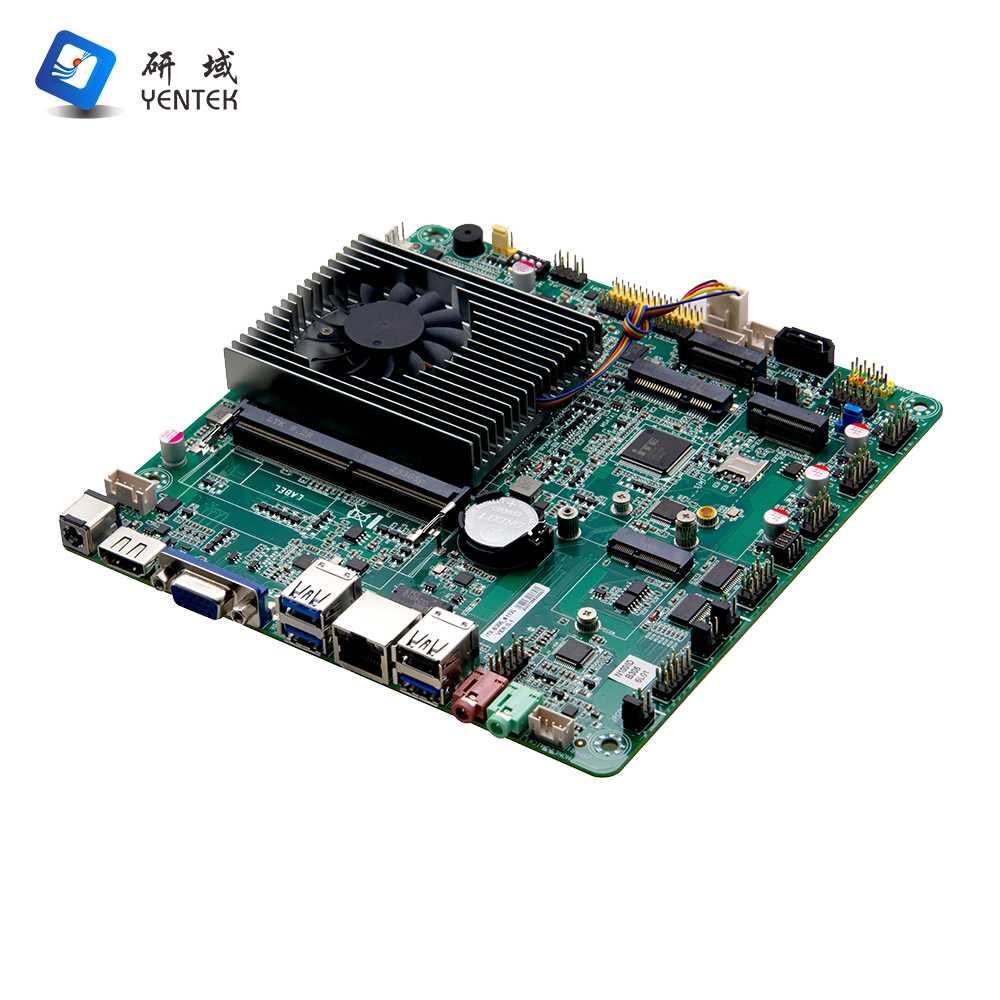

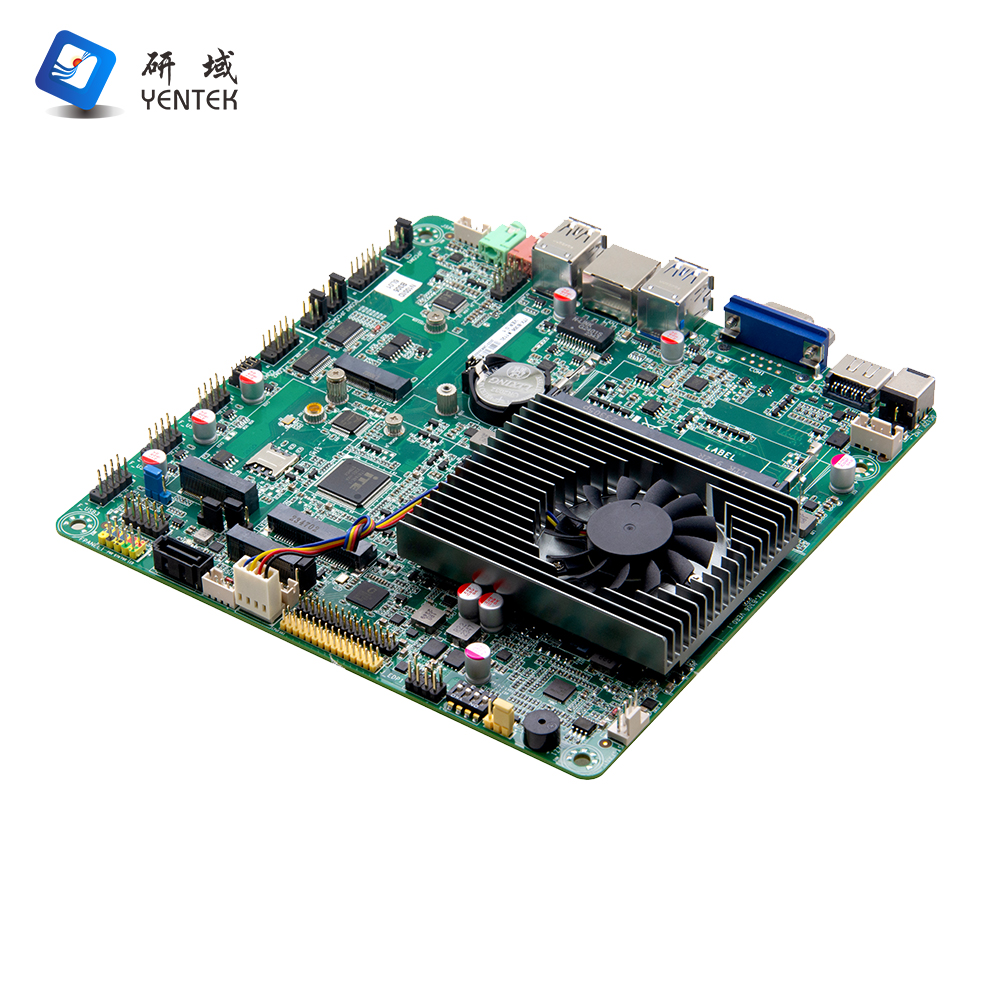

| Product model | ITX-B306_N112L VER:1.0(N100) |
| Processor | Integrated Intel®Alder Lake-N N100 3.4GHz quad-core quad-thread processor, TDP 6W, Compatible with the full range of Intel® Alder Lake-N cpus, customers can flexibly choose |
| Chipset | SOC |
| Internal memory | 1* SODIMM slot for a single channel of 3200MHz DDR4 memory (up to 16GB) |
| Display | Integrated Intel® UHD Graphics core graphics card, support DirectX 12.1, OpenGL4.6 |
| 1*VGA,1*HDMI1.4 interface,1* LVDS interface,1* EDP interface |
| Note:LVDS and EDP interfaces are either via jump |
| Network | 1* RTL8111H Gigabit NIC, supports network wake up and PXE functions |
| Store | 1* 7pin SATA3.0 hard disk interface, transmission rate up to 6Gbps |
| 1* MSATA slot, support SSD SSD,SSD transfer speed up to 6Gbps |
| 1 x M.2 slot, supporting the M.2 Key M 2280 PCIE X1 SSD |
| Tone frequency | Onboard ALC897 7.1+2 channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker |
| Expansion | 1 x M.2 slot, supporting the M.2 Key B 2242/2252 5G module |
| 1* M.2 slot, supporting the M.2 Key E 2230 WIFI module |

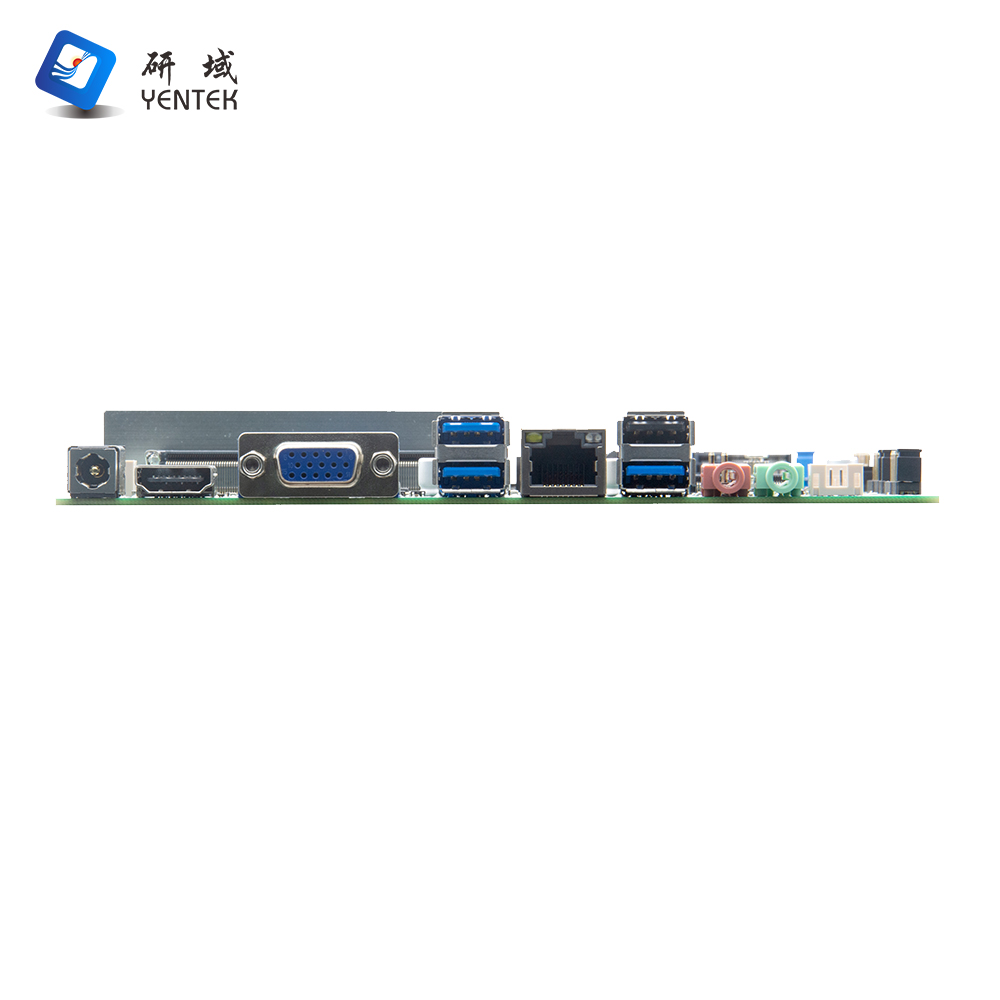

Backplane I/O Interface
| 1* DC 12V power input port |
| The 1* VGA display port is optional from the DB9 serial port |
| 1* HDMI2.0 display interface |
| 3* USB3.0 ports,1* USB2.0 ports |
| 1* RJ45 Gigabit network port |
| 1* Line-out (green), 1*MICK(red) |
| Built-in I/O interface | 1* DC power interface, 1*4pin support 12V power input and output |
| 1* JVGA port 1*12pin, same signal as DB15 |
| 1* LVDS interface, 2*15pin, support dual channel 24BIT |
| 1* EDP interface (yellow), 2*15pin, with LVDS for one of two via jump |
1* screen backlight power supply interface 1*6pin |
| 6* USB2.0 interface, 2*5pin |
2* RS232 serial interface,COM1/2 support 9pin live function,COM2 support RS485/422 function, COM1 and external DB9 for one of two options |
| 1* hard drive power port 1*4pin |
| 1* front audio interface 2*5pin |
| 1* power amplifier interface 1*4pin |
| 1* LPT interface 2*13pin |
| 1* SIM card slot |
| 1* Front panel function button and indicator port 2*5pin |
| Fan interface | 1*4pin CPU intelligent fan interface,1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 256Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Windows 11/Linux |
| Power supply type | Adopts DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-90% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
