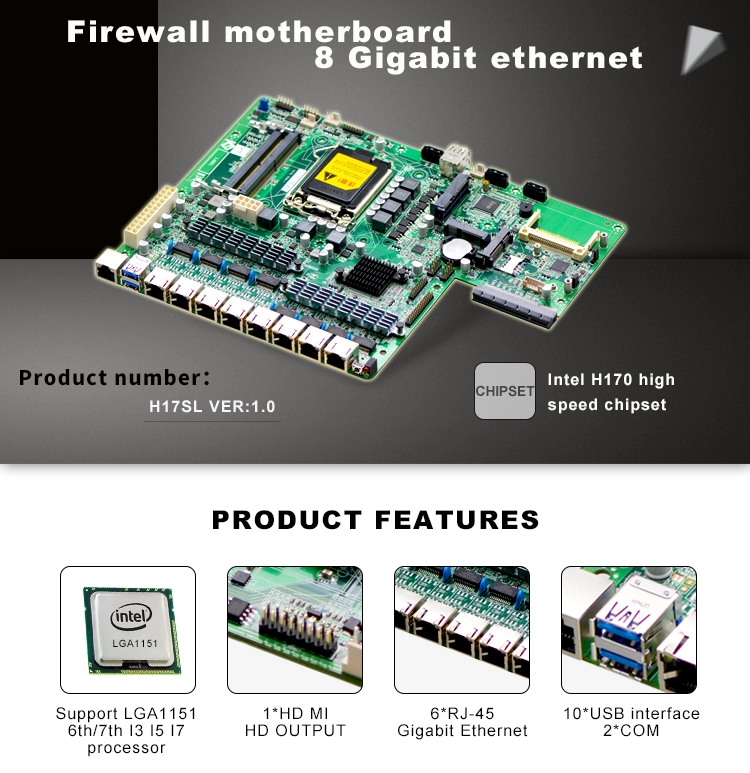

| Product model | H17SL VER:1.0 |
| Processor | Support LGA1151 6th/7th/8th/9th Intel Celeron/Pentium Core™ i3/i5/i7 processors. |
| Chipset | Adopts Intel® H170 high-speed chipset, compatible with Z170 chipset. |
| Memory | 2* SODDR4 memory slots, support 2400MHz memory, maximum support 32GB |
| Display | Integrated Intel® HD Graphics core graphics card, 1 * HDMI display output |
| Internet | 8*Intel WGI211ATI210AT Gigabit LAN card, support Wake-on-LAN and PXE function |
| Storage | 1*SATA 2.5-inch notebook hard drive bay, can be installed directly on the hard drive, transfer speed up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transfer speed up to 6Gbps | |
| 3* SATA3.0 hard drive interface, transfer rate up to 6Gbps | |
| 1* CF card slot | |
| Note: When using, CF card slot and MSATA choose one | |
| Extension Slot | 1* 8X PCIE expansion slot, can expand optical or electrical ports |
| 1* Mini-PCIE slot, support WIFI, 4G module | |

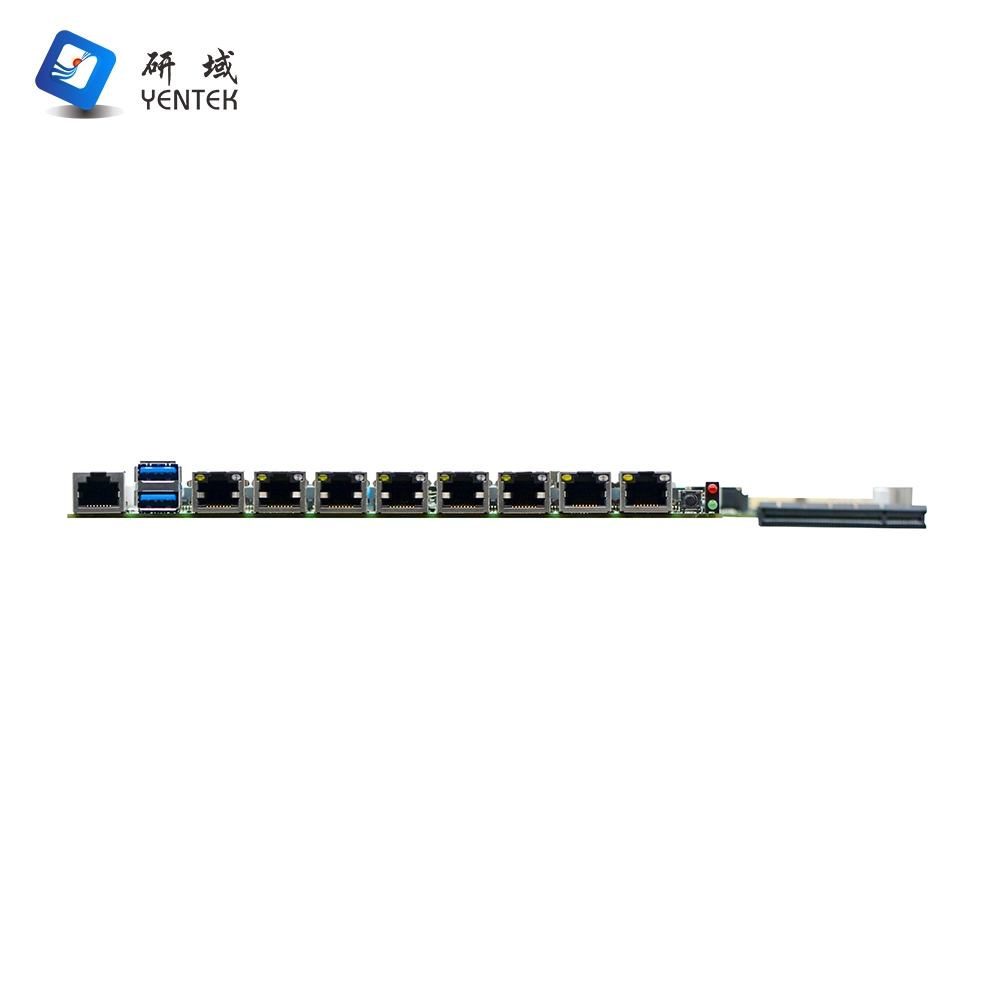

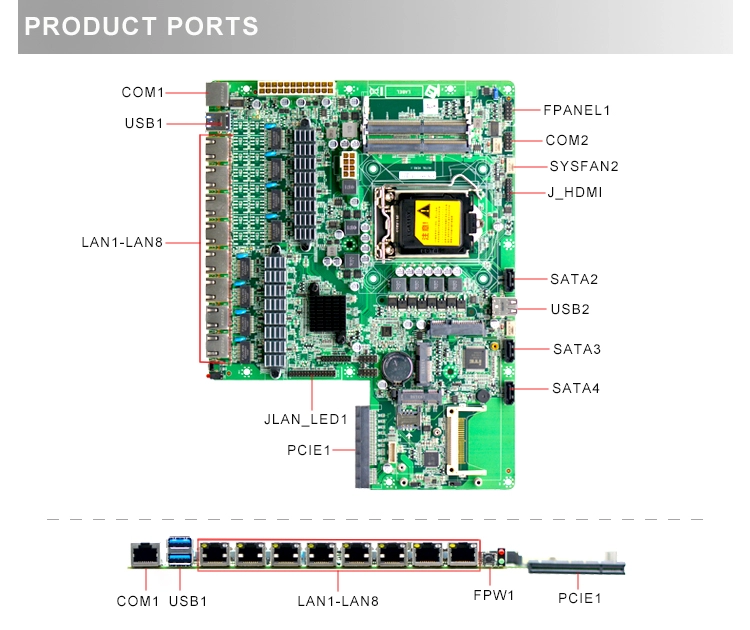

| Backplane I/O Interface | 8* RJ-45 Gigabit network interface |
| 2* USB3.0 interface, 2*USB2.0 interface | |
| 1* CISCO standard defined serial port | |
| 1* Tap to switch on button | |
| 1* Power/Hard Disk Indicator | |
| Built-in I/O interface | 1* JHDMI port 2*8pin |
| 1* RS232 serial port 2*5Pin | |
| 1* Network indicator interface 2*16Pin | |
| 1* PS/2 keyboard and mouse interface 1*6Pin | |
| 4* USB2.0 interface 2*5Pin | |
| 2* USB3.0 interface 2*10Pin | |
| 1* Front Panel Switch Button and Indicator Interface 2*5Pin | |
| 1* 24pin ATX power input | |
| 1* 8pin ATX power input | |
| 1* SIM card holder | |
| Fan interface | 1*4pin CPU fan connector, 2*4pin system fan connector |
| GPIO | N/A |
| BIOS | AMI 64Mb Flash ROM |

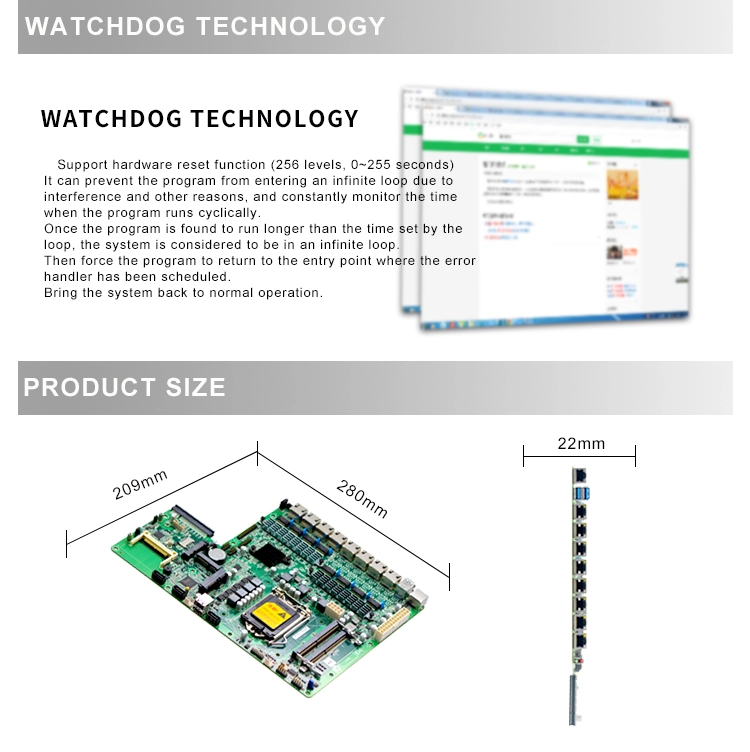

| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Power supply type | ATX Power Input |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 280mm x 209mm |
| NO. | Model | Processor | Frequency | Southbridge | Memory | HDMI | LAN | USB | COM | BYPASS | Power |
| 1 | H17SL VER:1.0 | LGA1151 | / | H170 | 1*SODDR4 | 1 | 8*211AT | 10 | 2 | / | ATX |
