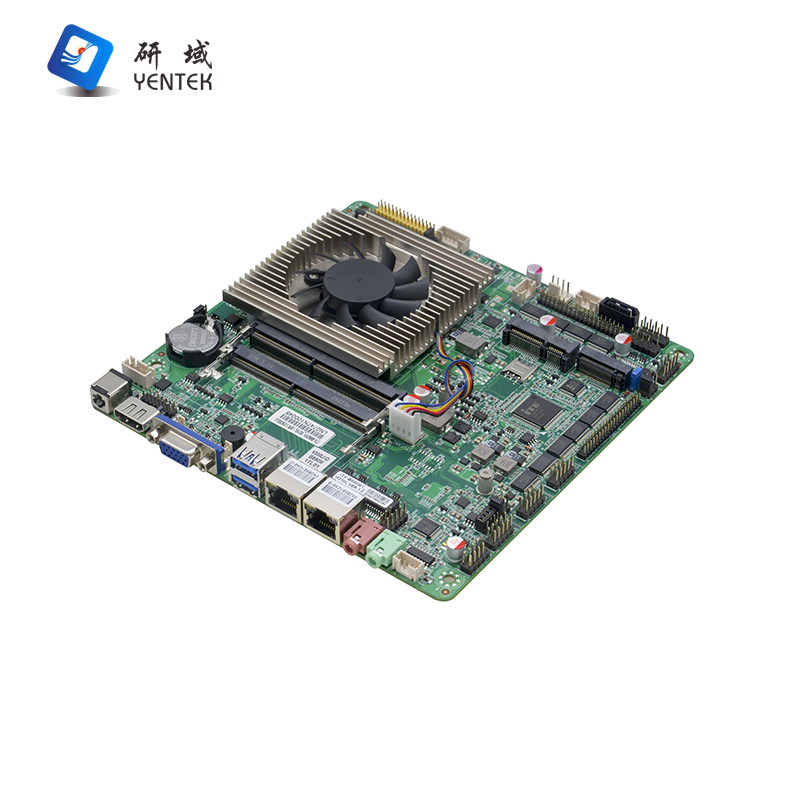

ITX-B310C_2L

CPU

Supports   LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processors

Chipsets

Adopts Intel® H310C high-speed chipset

Memory

2* DDR4 SODIMM memory slots, support 2400/2133MHz memory,   maximum support 64GB

Display

Integrated Intel® HD Graphics core graphics card, support   DirectX12, OpenGL4.4, support for 4K display

1* VGA interface, support for the highest resolution of   1920X1200@60Hz

2* HDMI1.4 interface, support for the highest resolution of   4096X2304@24H

1* Support dual-channel 24bit LVDS interface

Network

2* RTL8111H Gigabit NIC chip, support   Wake-on-LAN/PXE function

Storage

2* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, supports M.2 2260/2280 PCIE   x2/SATA standard SSDs with transfer speed up to 32Gbps

Audio

On-board ALC662 6-channel hi-fi audio   controller, support MIC / Line-out, amplifier

Amplifier support 2Ω/5W dual-channel

Expansion Slots

1*   MiniPCIE slot to support WIFI module

Backplane I/O Interface

2* USB3.0 interface

1* HDMI interface

1* VGA interface

2* RJ45 Gigabit network interface

1*Line-out (green), 1*MIC (red)

1*   DC12~19V Power Input Connector

Built-in I/O interface

1* JVGA connector 1*12pin , same signal   as VGA connector

1* JHDMI connector 2*8pin

1*   LVDS interface 2*15pin ,support dual channel 24bit

1* Backlight power connector 1*6pin

1* Screen Brightness Adjustment   Connector 1*4pin

6* RS232 serial interface, COM2 support   RS485

6* USB2.0 port 2*5pin

1* Front Audio Interface 2*5pin

1* Amplifier connector 1*4pin

2* HDD power supply voltage interface 1*4pin

1* Front panel function button and   indicator connector 2*5pin

1*4pin ATX power connector.   Support 12V~19V power input and output.

Fan Interface

1*4pin CPU smart fan connector; 1*3pin   system fan connector

GPIO

Support 4 input/output GPIO function

BIOS

64Mb Flash ROM

OS

Windows 10/Linux

Watchdog

Support hardware reset function (256 levels,   0~255 seconds)

Power supply type

Supports DC19V power   supply

operating temperature

-10℃～60℃

Storage temperature

-20℃～70℃

Operating humidity

5 to 95 per cent relative humidity, non-condensing

Size

170mm x 170mm

1

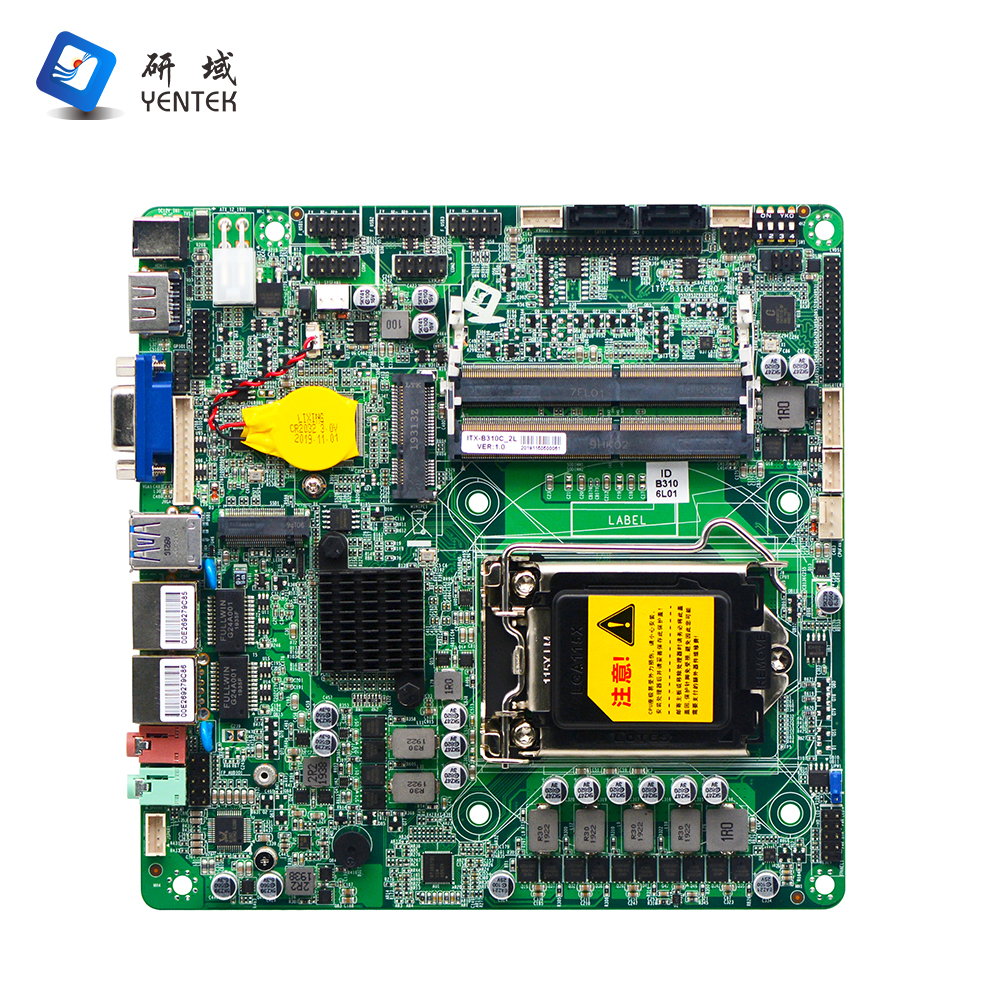

ITX-B310C_2L VER:1.2

LGA1151

/

H310C

2*SODDR4

1

2

/

2ch/24bit

2*8111H

8

6

COM2

DC19V
