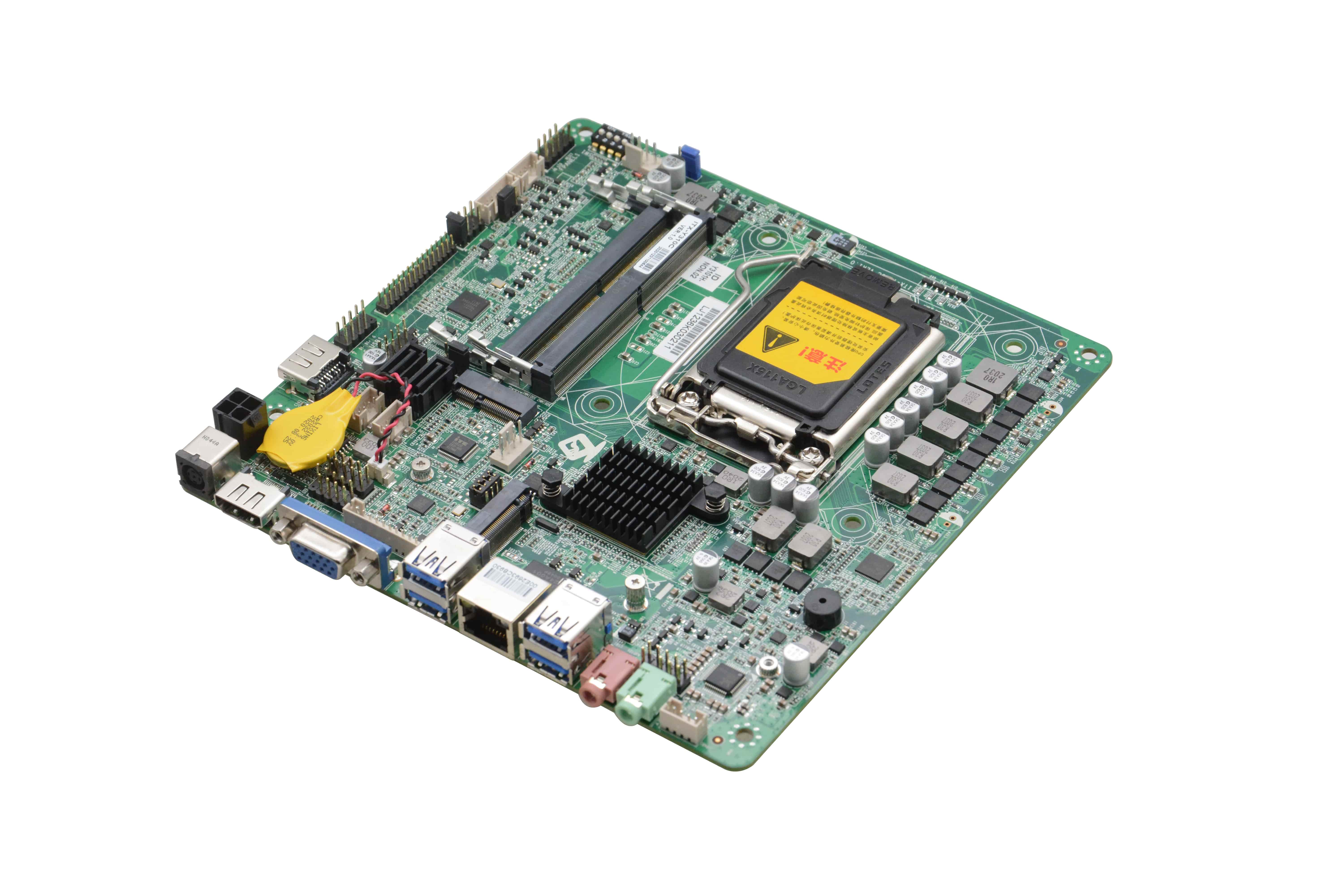

| Product model | ITX-Y310C VER: 1.0 |
| Processor | Support LGA1151 6th/7th/8th/9th Intel® Celeron/Pentium/Core™ i3/i5/i7 processor |
| Chipset | Using Intel® H310C Express Chipset, |
| RAM | 2* DDR4 SODIMM memory slot, support 2400/2133MHz memory, maximum support 64GB |
Show
| Integrated Intel® HD Graphics core graphics card, support DirectX12, OpenGL4.4, support 4K display 1* VGA interface, support the highest resolution 1920X1200@60Hz, 2* HDMI1.4 interface, support the highest resolution 4096X2304@24H, 1* Support dual channel 24bit LVDS interface |
| The internet | 1* RTL8111H Gigabit Ethernet chip, support Wake-on-LAN/PXE function |
| Store | 2* SATA3.0 hard disk interface, the transmission speed can reach 6Gbps |
1* M.2 slot, support M.2 2260/2280 PCIE x2/SATA standard SSD, choose one of the two through the jumper |
| Audio | Onboard ALC662 6-channel high-fidelity audio controller, support MIC/Line-out, power amplifier supports 2Ω/5W dual-channel |
| Expansion slot | 1* M.2 slot, support M.2 2242 standard WIFI module |
Backplane I/O Interface
| 4* USB3.0 interface |
| 2* HDMI interface (choose one of HDMI2 and DP interface, optional DP interface) |
| 1* VGA port (choose one from DB9 serial port, DB9 serial port is optional) |
| 1* RJ45 Gigabit network interface |
| 1*Line-out(green），1*MIC(red） |
| 1* DC12~19V power input interface |
| Built-in I/O interface | 1* JVGA interface 1*12pin, same signal as VGA interface |
| 1* LVDS interface 2*15pin, support dual channel 24bit |
| 1* Backlight power supply interface 1*6pin |
| 1* Screen brightness adjustment interface 1*4pin |
1* RS232 serial interface, 2*5pin |
| 4* USB2.0 interface 2*5pin |
1* Front audio interface 2*5pin |
| 1* power amplifier interface 1*4pin |
| 2* Hard disk power supply voltage interface 1*4pin |
| 1* Front panel function button and indicator port 2*5pin |
| 1*4pin ATX power interface. Support 12V~19V power input and output |
| Fan interface | 1*4pin CPU smart fan interface; 1*3pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10 , Linux |
| Power supply type | Support DC19V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm x 170mm |
