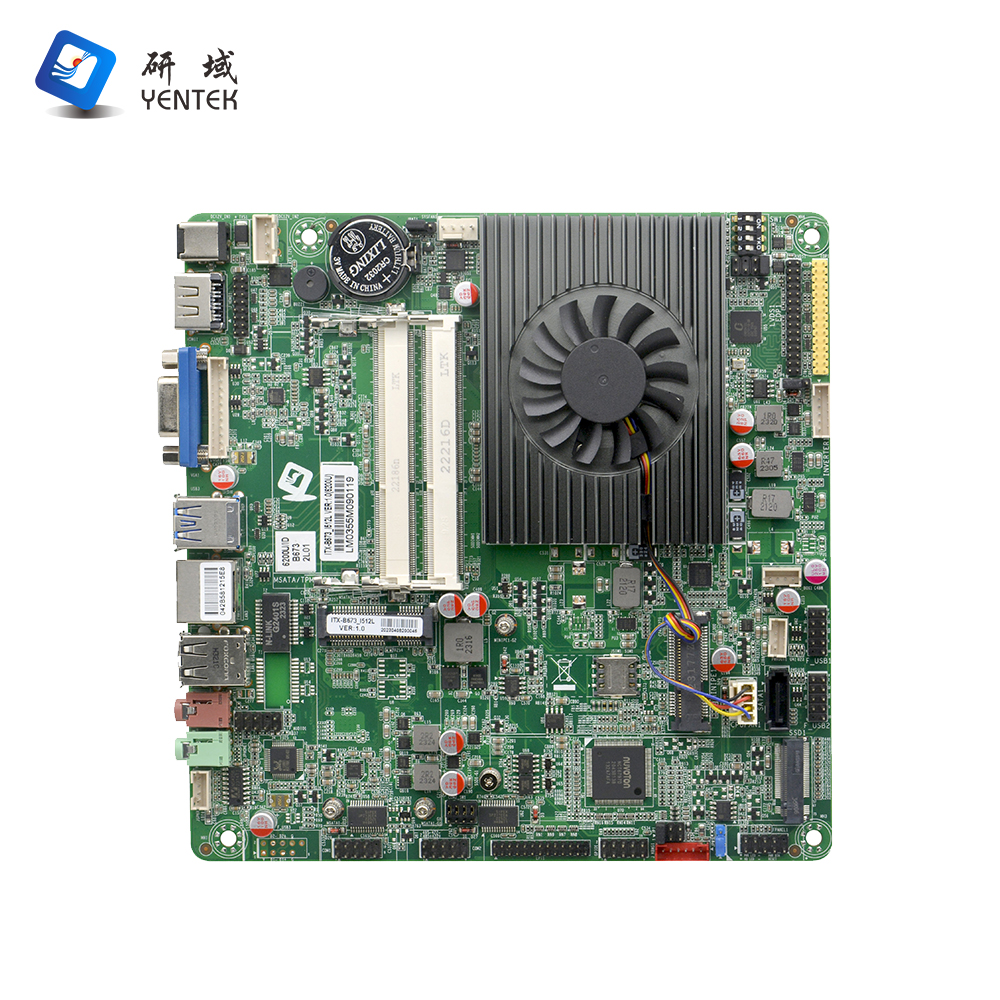

ITX-B670_I526L
Options: 6 sizes
$
67.00
Add to cart
+852 9458 7694
Product description
| Product model | ITX-B673_I512L VER:1.0（6200U） |

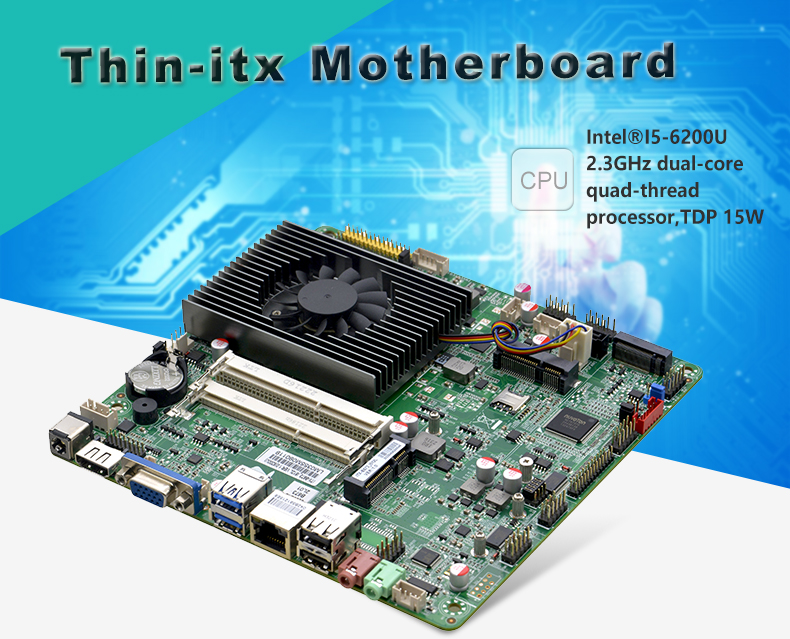

| Processor | Integrated Intel® I5-6200U 2.3GHz dual-core quad-thread processor, TDP 15W |
| Compatible with Intel® Skylake-U/Kabylake-U Pentium/Celeron/I3/I5/I7 low power processors | |
| Chipset | SOC |
| Internal memory | 2*DDR3L SODIMM memory slots, support 1600MHz memory, up to 16GB |
| Display | Integrated Intel®HD Graphics S520, support DirectX 12, OpenGL 4.5, support 4K |
| 1*VGA interface, the highest resolution supported is: 1920X1200@60Hz | |
| 1*HDMI1.4 port, the highest resolution supported is: 4096X2304@24Hz | |
1*Support dual channel 24bit LVDS interface | |
| 1*EDP interface, and LVDS interface is one of two options, the default LVDS | |
| Network | 1* Intel WGI210AT Gigabit network adapter, supporting network wake up and PXE functions |
| Deposit | 1* SATA3.0 hard disk interface, transmission speed up to 6Gbps |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps | |
| 1* M.2 slot, supporting M.22280 NVMEPCIE X4 or SATA SSDS | |
Note:MSATA and TPM-4COM are optional. Four serial ports can be extended by TPM-4COM. The default port is MSATA | |
| Tone frequency | Integrated ALC888S 7.1+2 channel high fidelity audio controller, support MIC, Line_out, power amplifier |
| Support power amplifier 2Ω5W speaker | |
| Expansion | 1* Mini-PCIE slot, support WIFI/4G module |

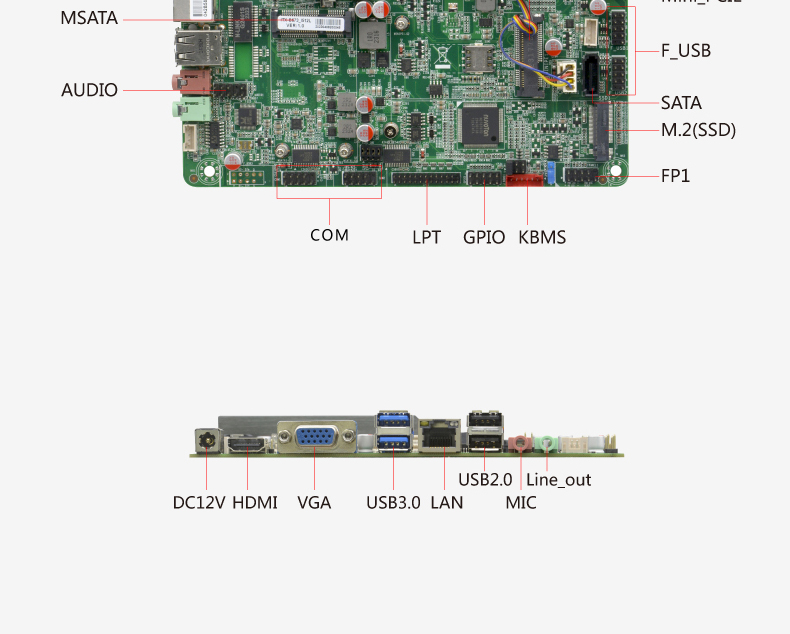

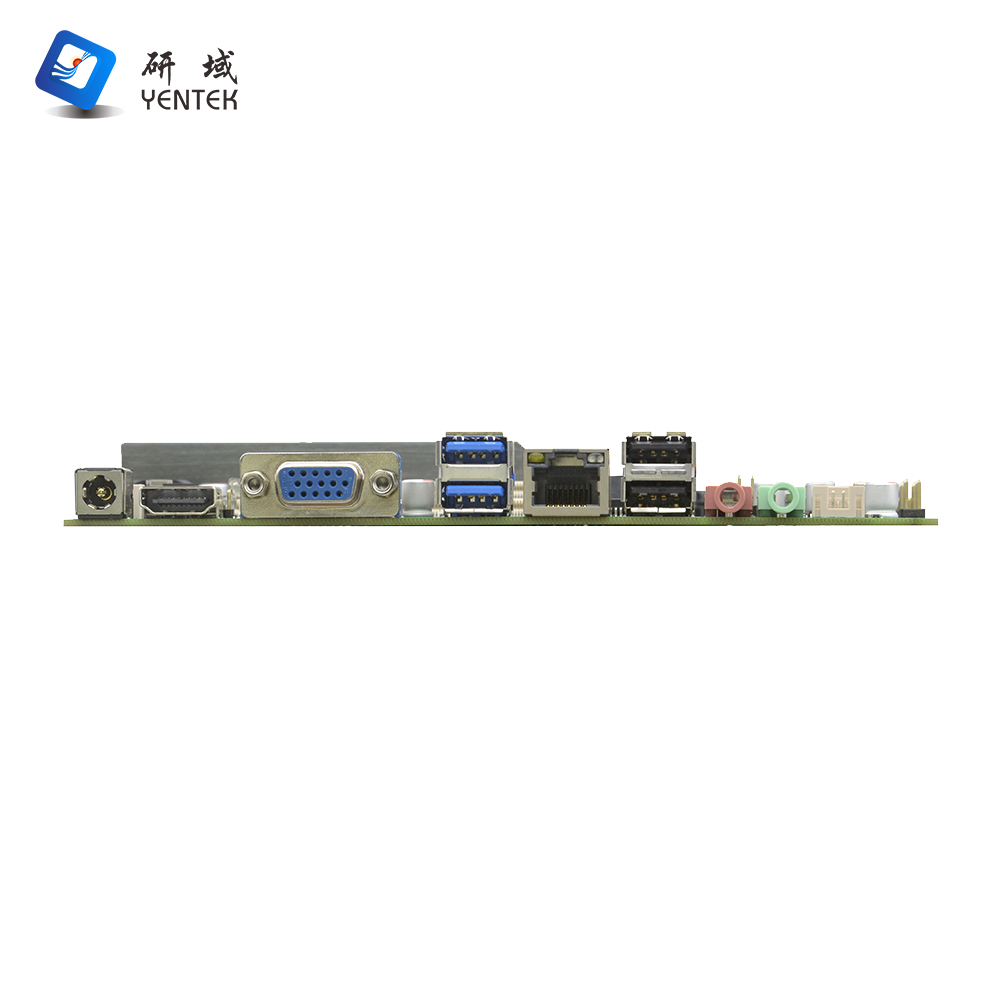

| I/O ports on the backplane | 2* USB3.0 port, 2* USB2.0 port |
| 1* HD OUTPUT port | |
| 1* DB15 VGA port | |
| 1* RJ45 Gigabit network interface | |
| 1*Line-out(green），1*MIC(red） | |
| 1*DC12V power supply, support 12V power input/output | |

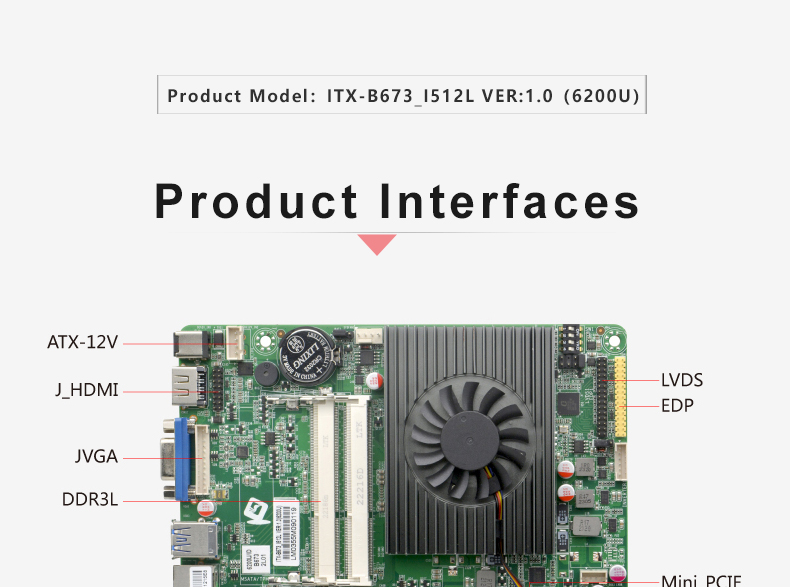

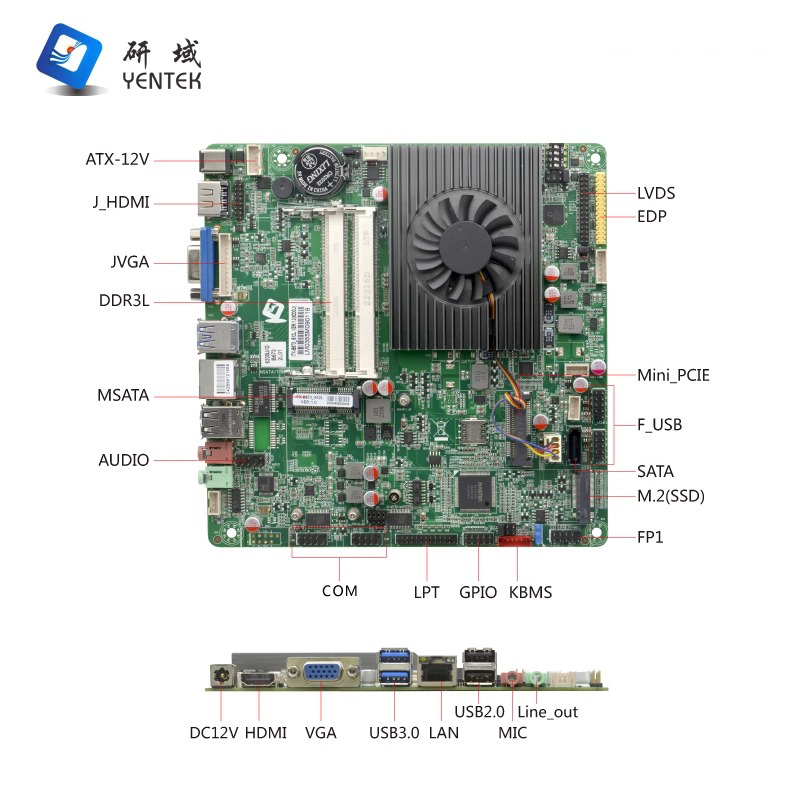

| Built-in I/O interface | 1* JVGA1 port, 1*12pin (same signal as DB15 port) |
| 1* JHD OUTPUT interface 2*8pin(same signal as HD OUTPUT interface) | |
| 1* LVDS interface 2*15pin, support dual channel 24bit | |
| 1* EDP interface 2*15pin, and LVDS is one of two options, the default LVDS, requires EDP to change the hardware | |
1* LVDS backlight power supply interface 1*6pin | |
| 2* RS232 serial interface, where COM1 supports 9pin live, COM2 supports RS485/422 function | |
4* USB2.0 interface 2*5pin | |
| 1* front audio interface 2*5pin | |
| 1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* power amplifier interface 1*4pin | |
| 1* LPT print interface 2*13pin | |
| 1* PS/2 keyboard and mouse interface | |
| 1* 4pin DC power interface (12V input/output power interface) | |
| 1* SIM card slot | |
| Fan interface | 1* 4pin CPU smart fan connector, 1* 4pin system fan connector |
| GPIO | Supports four input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7, Windows 8, Windows 10 , Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

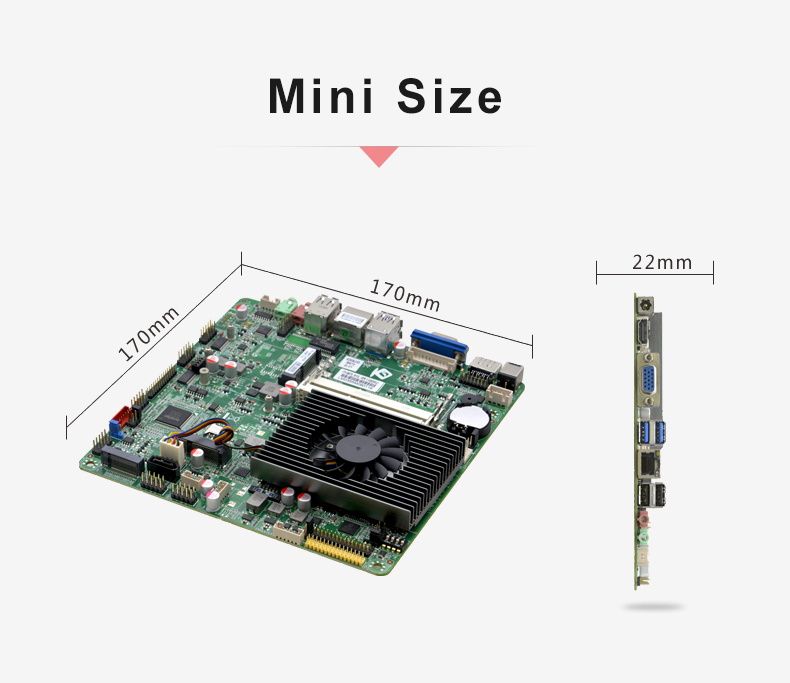

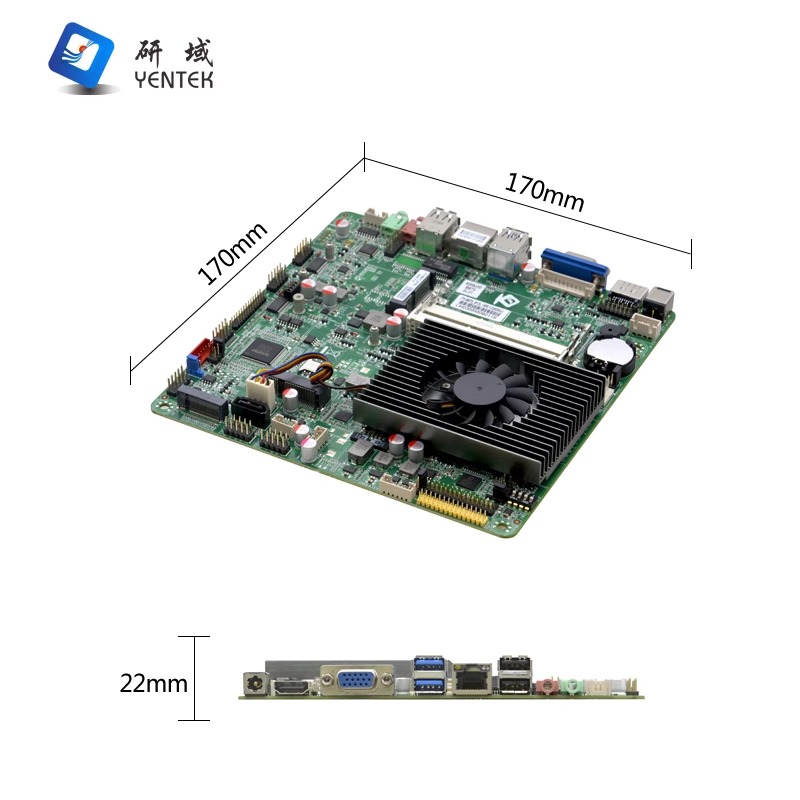

| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | HDMI | LVDS | EDP | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B673_I722L VER:1.0(6500U) | I7-6500U | 2.5G | 2*SODDR3L | 1 | 1 | 2ch/24bit | 1 | 2*210AT | 8 | 2 | COM2 | DV12V |
| 2 | ITX-B673_I512L VER:1.0(6200U) | I5-6200U | 2.3G | 2*SODDR3L | 1 | 1 | 2ch/24bit | 1 | 1*210AT | 8 | 2 | COM2 | DV12V |
