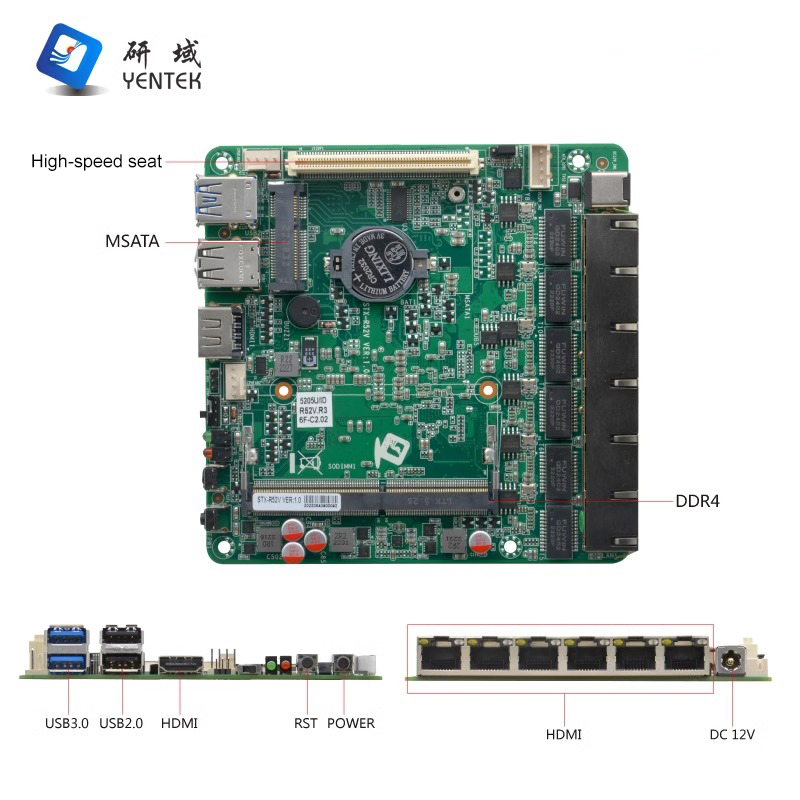

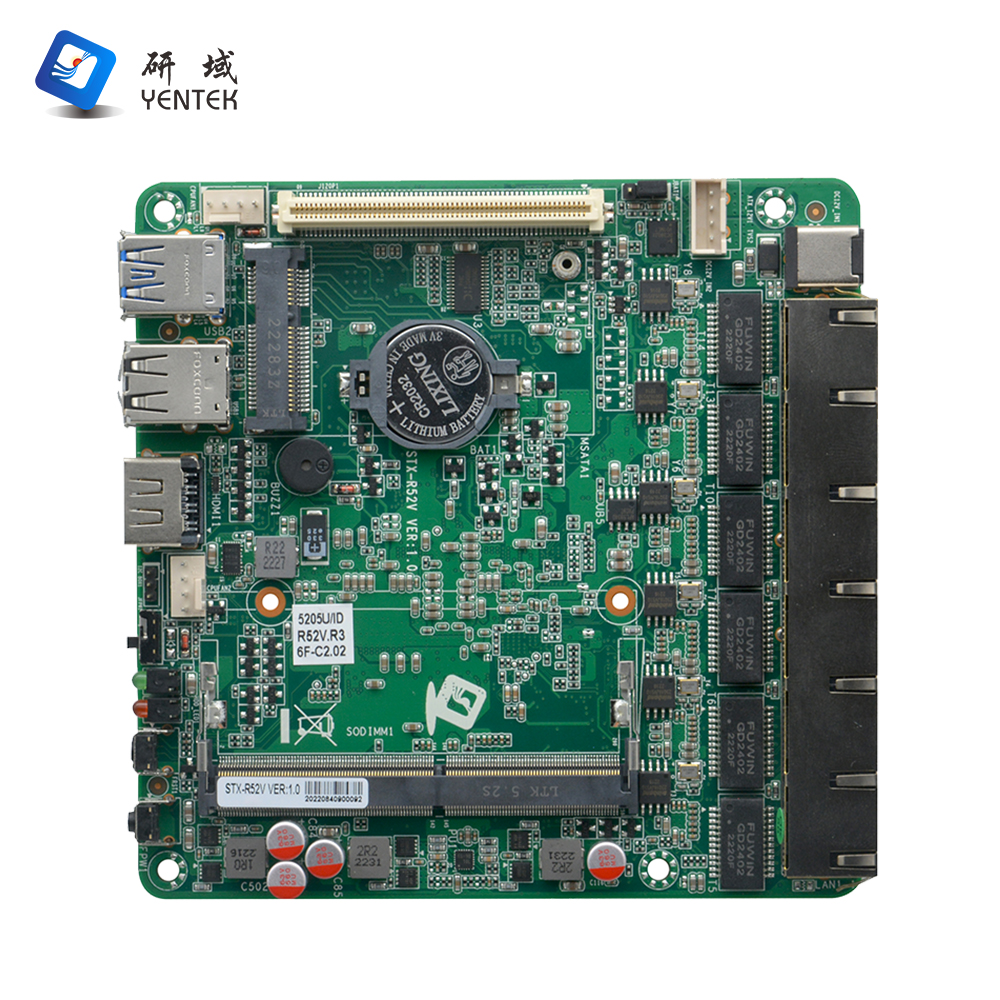

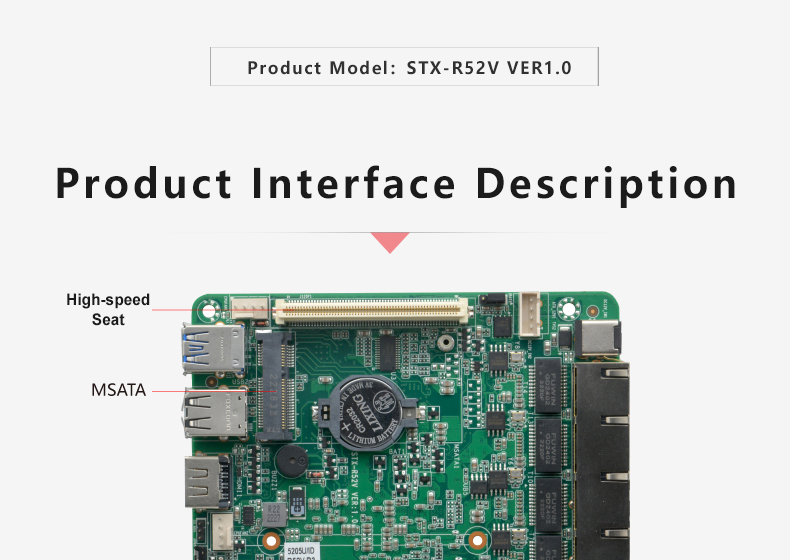

| Product model | STX-R52V VER:1.0 |

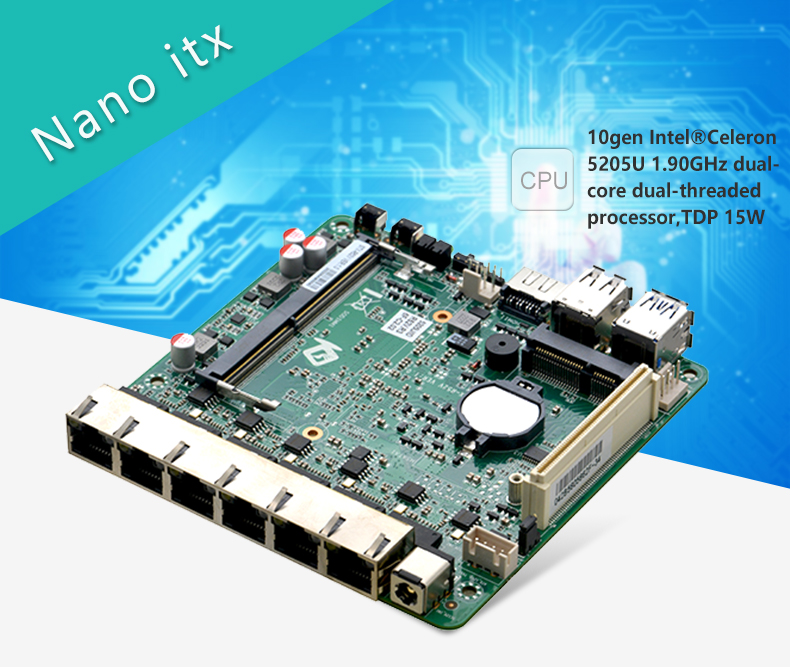

| Processor | Integrated 10gen Intel®Celeron 5205U 1.90GHz dual-core dual-threaded processor,TDP 15W |
| Compatible with Intel®Whiskey Lake-U/Comet Lake-U 8th/10th Celeron/Pentium/I3/I5/I7 low power processors | |
| Chipset | SOC |
| Memory | 1 * DDR4 SODIMM slot for dual-channel 2400MHz memory with a maximum capacity of 32GB |
| Display | Integrated Intel® UHD Graphics supports DirectX 12 OpenGL 4.5 and 4K |
| 1*HD OUTPUT1.4 port, the highest resolution supported is 4096X2304@24Hz | |
| Network | 6* Intel I225 2.5G Gigabit network adapter chip, supporting network wake up /PXE function |
| Deposit | 1* MSATA slot, support Intel protocol SSD, transfer rate up to 6Gbps |
| Store | N/A |
| Expansion | 1* 120pin high-speed terminal, including 2*COM,1*SATA,3*USB2.0,2*PCIE,1*DDI and other signals |

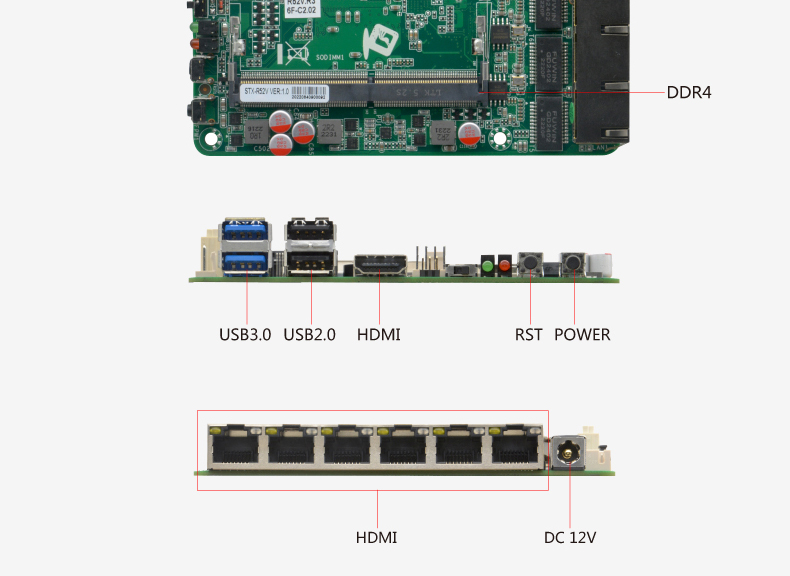

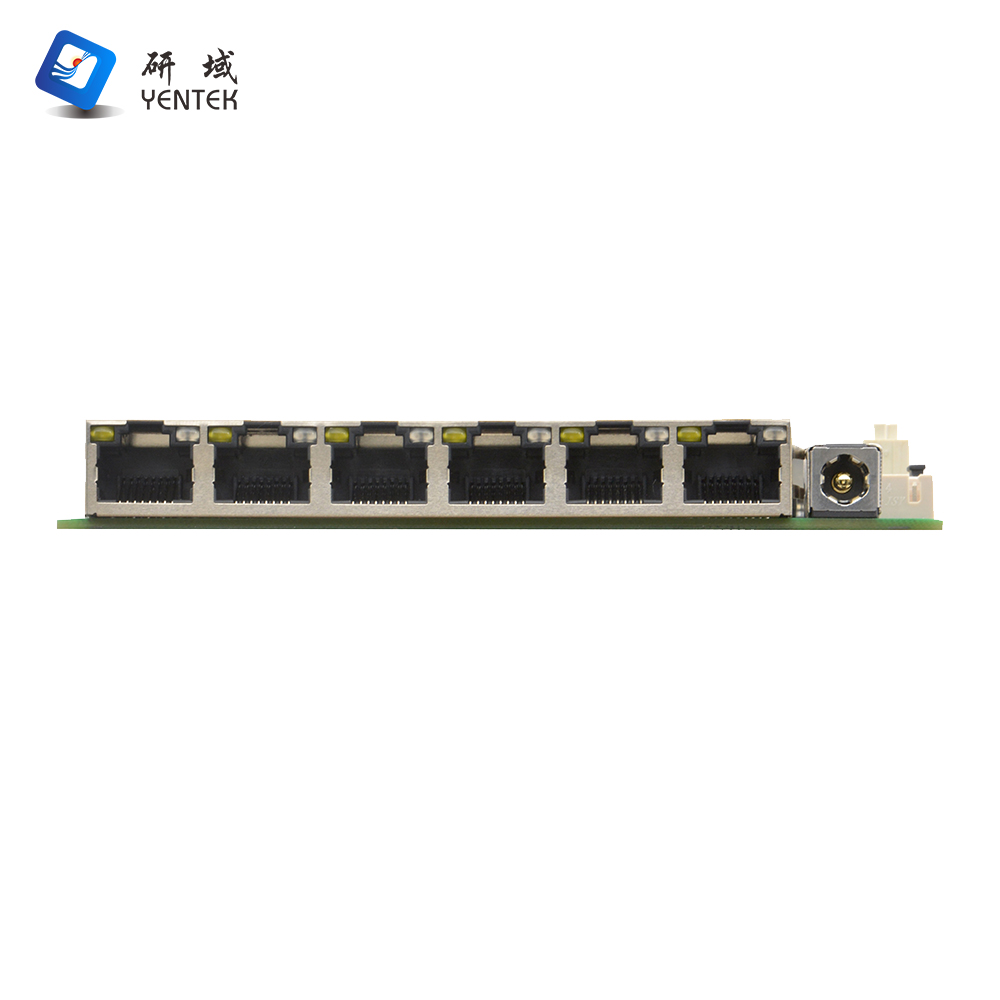

| Rear I/O port | 6* RJ45 Gigabit network interface |
| Front I/O interface | 1*DC12V power input port |
| 2 * USB3.0 port,2 x USB2.0 port | |
| 1* HD OUTPUT port | |
| 1* Power on the power-on control switch | |
| 1* Power indicator, 1* hard disk indicator | |
| Built-in I/O interface | 1* Power switch, 1* restart switch |
| 1* DC power port 1*4pin, support 12V power input and output | |
| Fan interface | 2*4pin CPU intelligent fan interface |
| GPIO | N/A |
| BIOS | 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | DC 12V single power input |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |

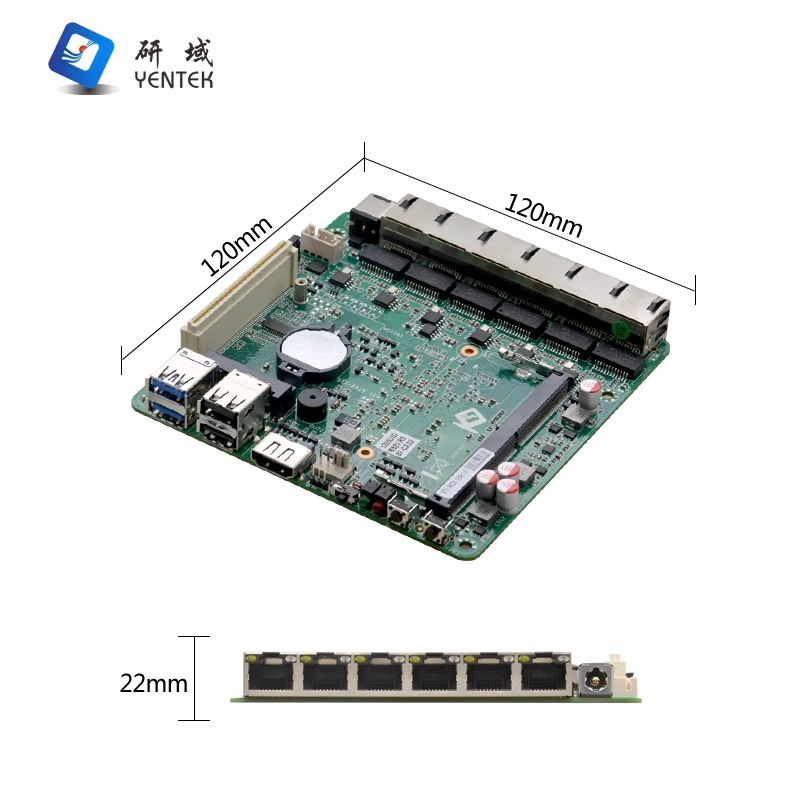

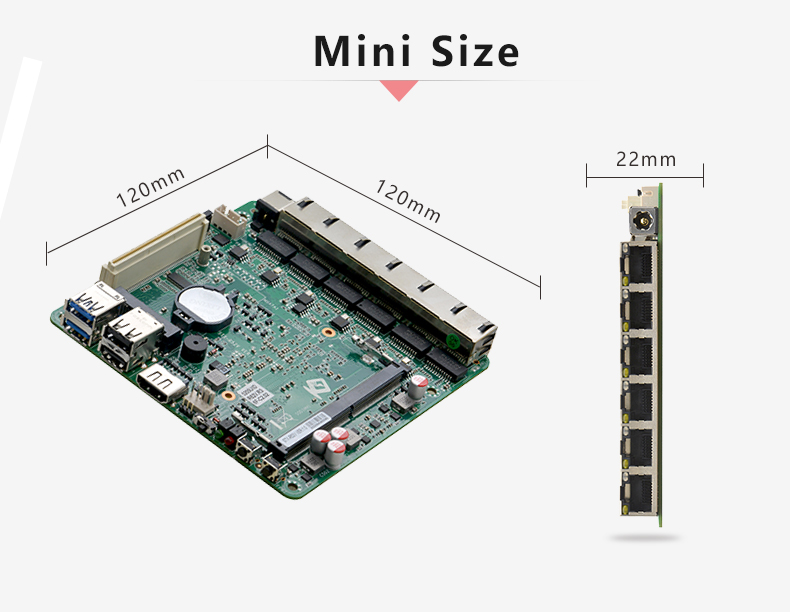

| Dimension | 120mm x 120mm |
| NO. | Model | Processor | Frequency | Memory | VGA | HD OUTPUT | EDP | LAN | USB | COM | RS485 | Power |
| 1 | STX-R52V VER:1.0 | 5205U | 1.90G | 1*SODDR4 | / | 1 | / | 6* I225V | 4 | / | / | DC12V |
