ITX-M9E
Options: 2 sizes
$
91.00
Add to cart
+852 9458 7694
Product description

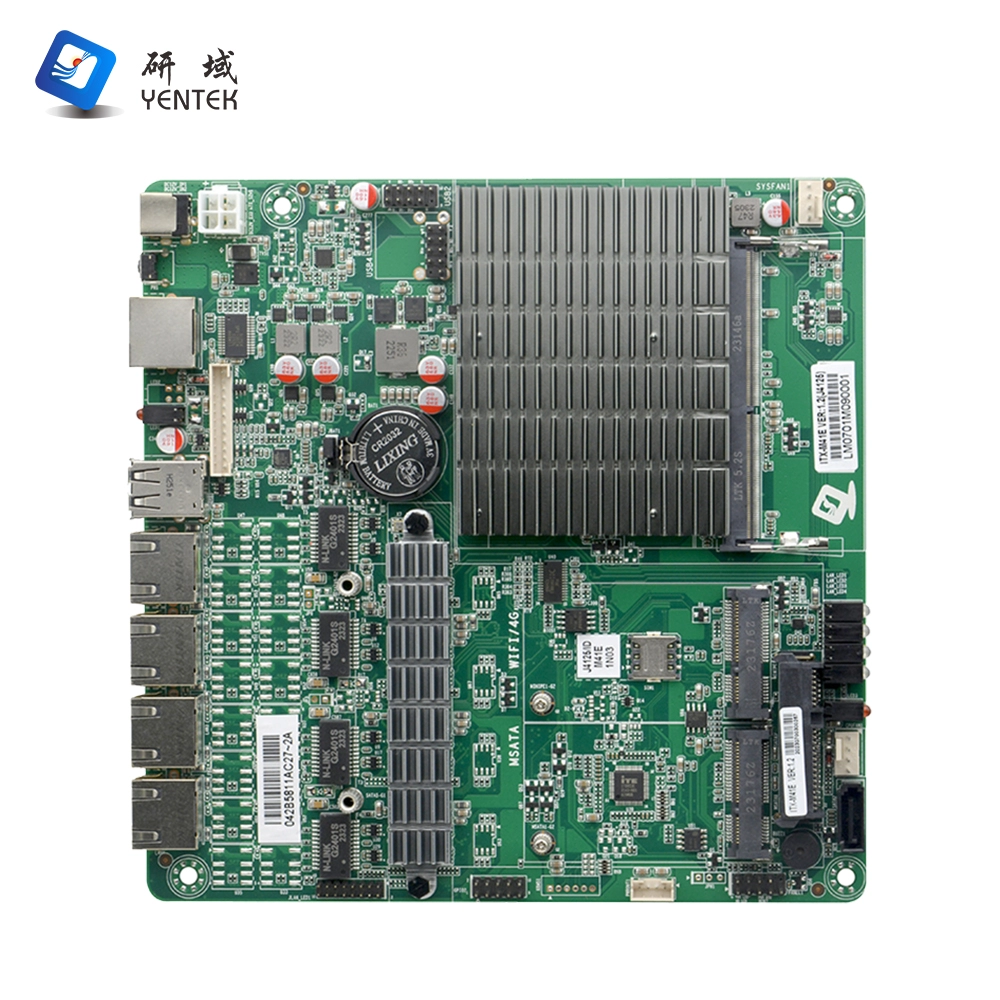

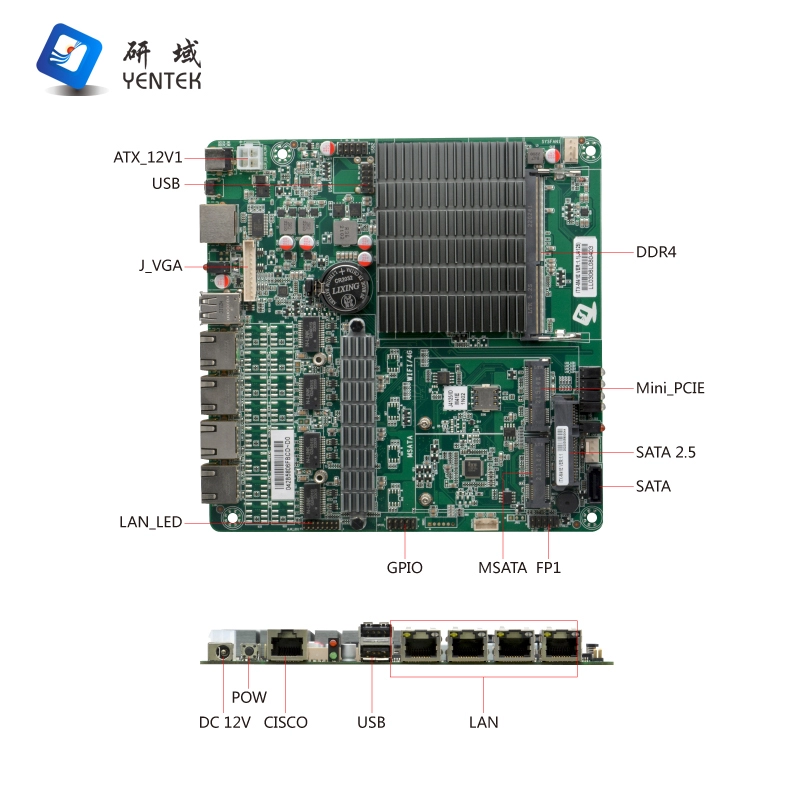

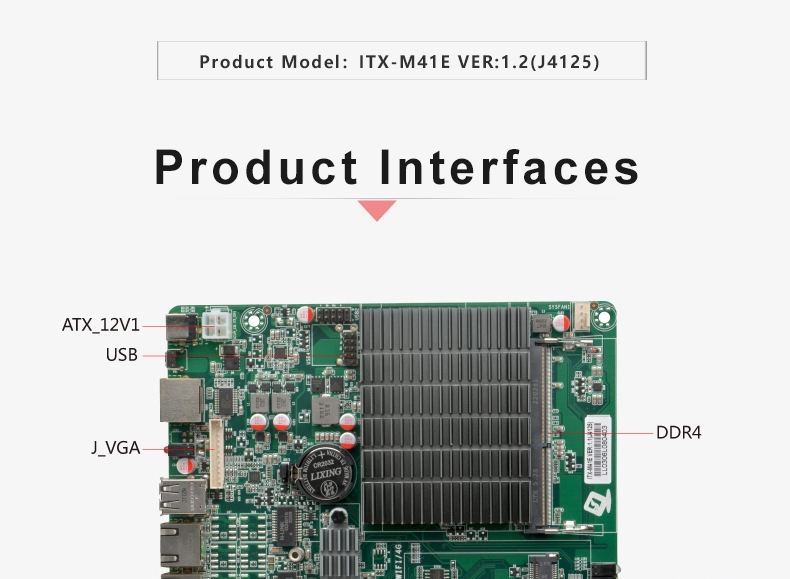

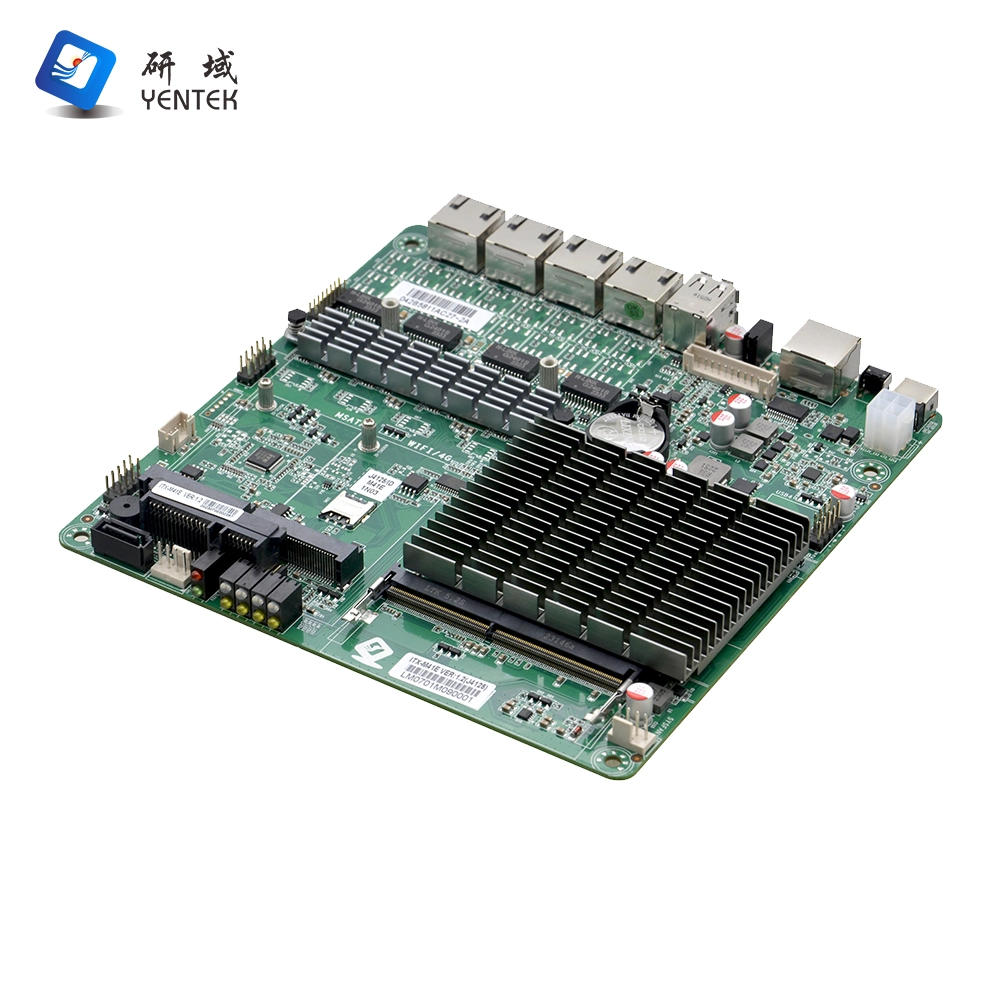

| Product model | ITX-M41E VER:1.2(J4125) |

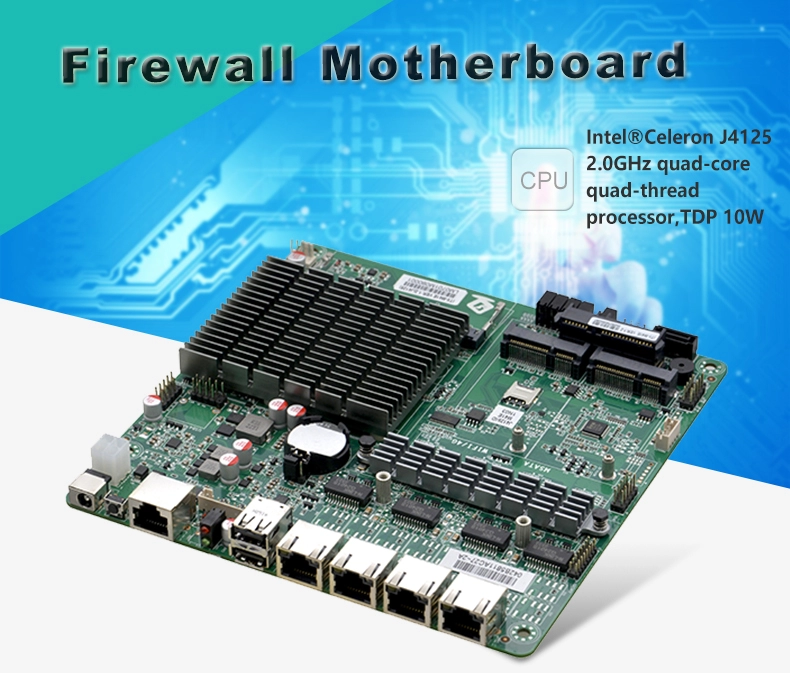

| Processor | Integrated Intel®Celeron J4125 2.0GHz quad-core quad-thread processor,TDP 10W |
| Chipset | SOC |
| Memory | 1* SODIMM slot for a single channel of 2400MHz DDR4 memory (up to 8GB) |
| Display | Integrated Intel® UHD Graphics 600 core graphics card,1* VGA display output |
| Network | 4* Intel I210 Gigabit network adapter, supporting network wake up, PXE functions |
| Store | 1* SATA 2.5-inch laptop hard disk, can be directly installed hard disk, transmission speed up to 6Gbps |
| 1* standard 7-pin SATA hard drive interface (optional with 2.5-inch hard drive) | |
| 1* MSATA slot, support Intel protocol SSD, transmission speed up to 6Gbps | |
| Extension Slot | 1* Mini-PCIE slot, support WIFI, 4G module, |

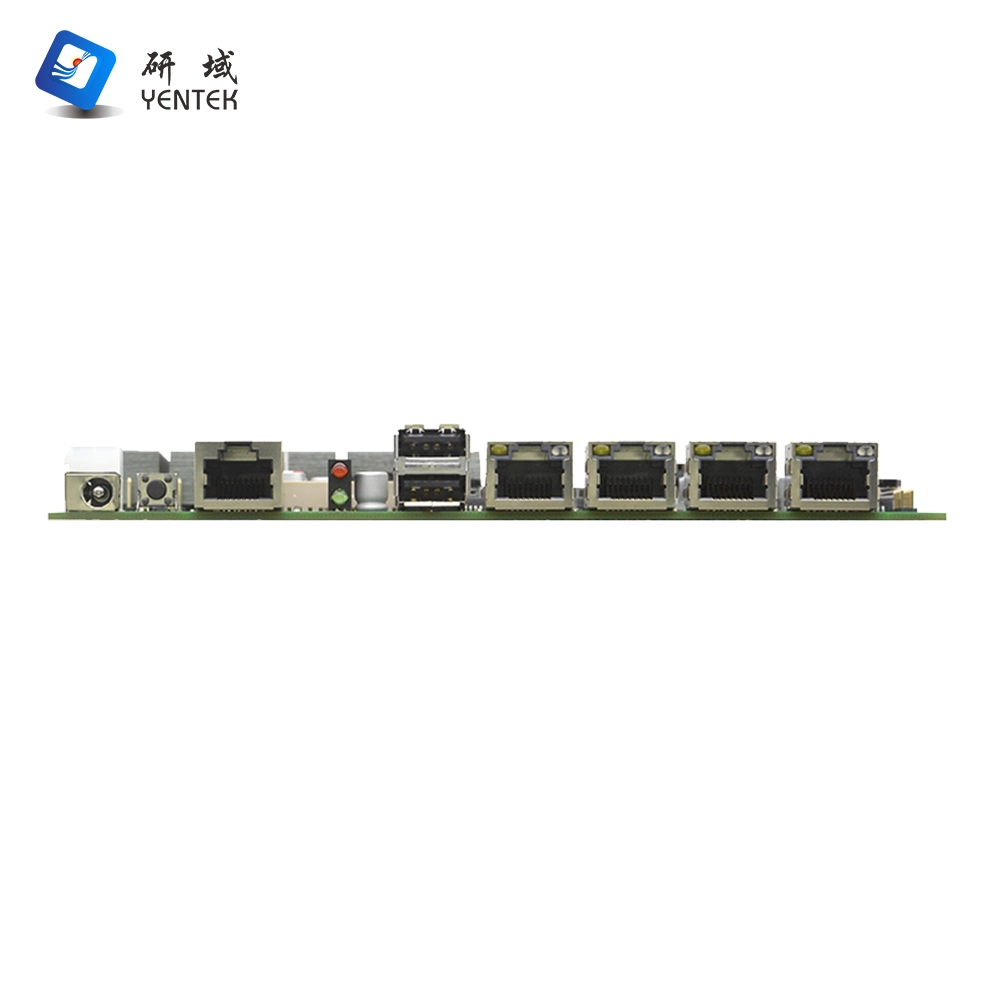

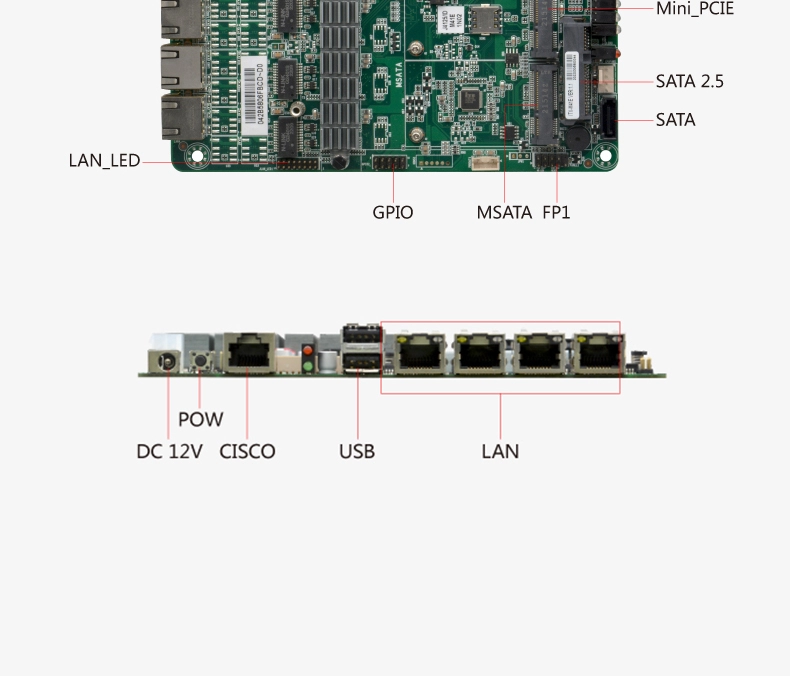

| Backplane I/O Interface | 1* 12V DC power input connector |
| 4* RJ-45 Gigabit network interface | |
| 1* standard RJ-45 serial port | |
| 2* USB 2.0 port | |
| 1* Power Switch | |
| 2* Hard Disk Indicator, 2* Power Indicator | |
| 4* Network Indicator, 4* Network Data Transfer Indicator | |
| Built-in I/O interface | 1* 4pin ATX power interface (12V input/output power interface) |
| 4* USB 2.0 interface 2*5Pin | |
| 1* JVGA connector 1*12Pin | |
| 1* Network Indicator 2*8Pin | |
1* Front panel switch button and indicator port 2*5Pin | |
| 1* hard drive power port 1*4pin | |
| 1* SIM card seat | |
| Fan interface | Fan less cooling design, reserved 1*4pin CPU fan port, 1*4pin system fan port |
| GPIO | Support 4 input/output GPIO |
| BIOS | AMI 64Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 10/Linux |
| Power supply type | Adopt DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |

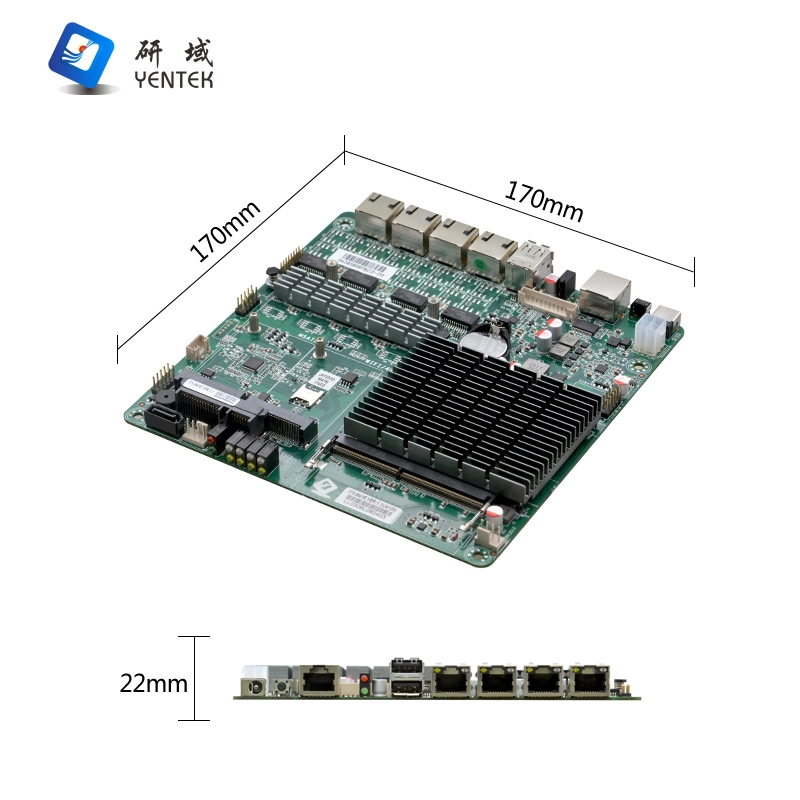

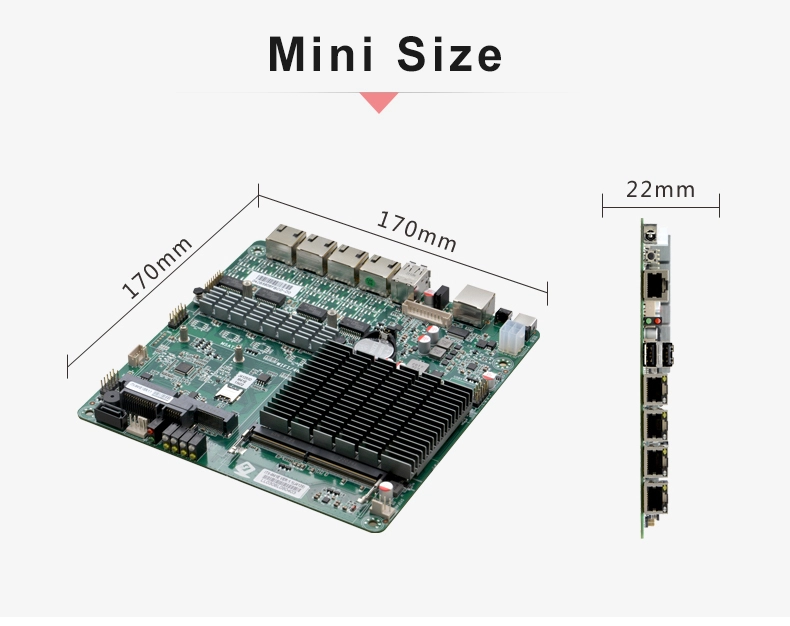

| Dimension | 170mm x 170mm |
Order Information
| NO. | Model | Processor | Frequency | Memory | VGA | LAN | USB | COM | BYPASS | Power |
| 1 | ITX-M41E VER:1.2 | J4125 | 2.0G/4C | 1*SODDR4 | 1 | 4*I210 | 6 | 1 | / | DC12V |
