ITX-B320_I512L
Options: 2 sizes
$
68.00
Add to cart
+852 9458 7694
Product description
| Product model | ITX-B330_I516L VER:1.0(3317U/3210M) |
| Processor | Integrated Intel®Core I5-3317U/3210M 1.7/2.5GHz dual-core quad-thread processor,TDP 18W |
| Compatible with Intel® Sandy /Ivy Bridge Celeron/Pentium/I3/I5/I7 BGA1023 low power processors | |
| Chipset | Intel® HM76 high-speed chipset |
| RAM | 1*SODDR3 memory slot, supporting single-channel DDR3 1600/1333 memory, supporting a maximum of 8GB |
| Display | Integrated Intel® HD Graphics4000 core graphics card, support single display, dual display mode, extended mode |
1*VGA, 2*HD OUTPUT, 1* LVDS interface, support dual channel 24bit, and EDP shared pin | |
| Network | 1* RTL8111H Gigabit NIC, supports network wake up and PXE functions. |
| Store | 2* SATA2.0 hard disk interface, transmission rate up to 3Gbps |
| 1*MSATA slot, support SSD SSD,SSD transmission speed up to 6Gbps | |
| Tone frequency | Onboard ALC262 6-channel hi-fi audio controller with MIC/Line-out support. Power amplifier |
| The power amplifier is recommended to use a 4Ω3W speaker | |
| Expansion | 1* Mini-PCIE slot, supporting WIFI, 3G/4G modules |

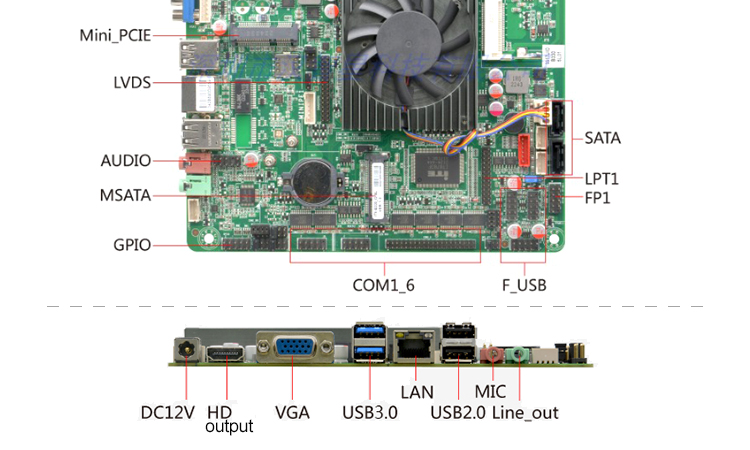

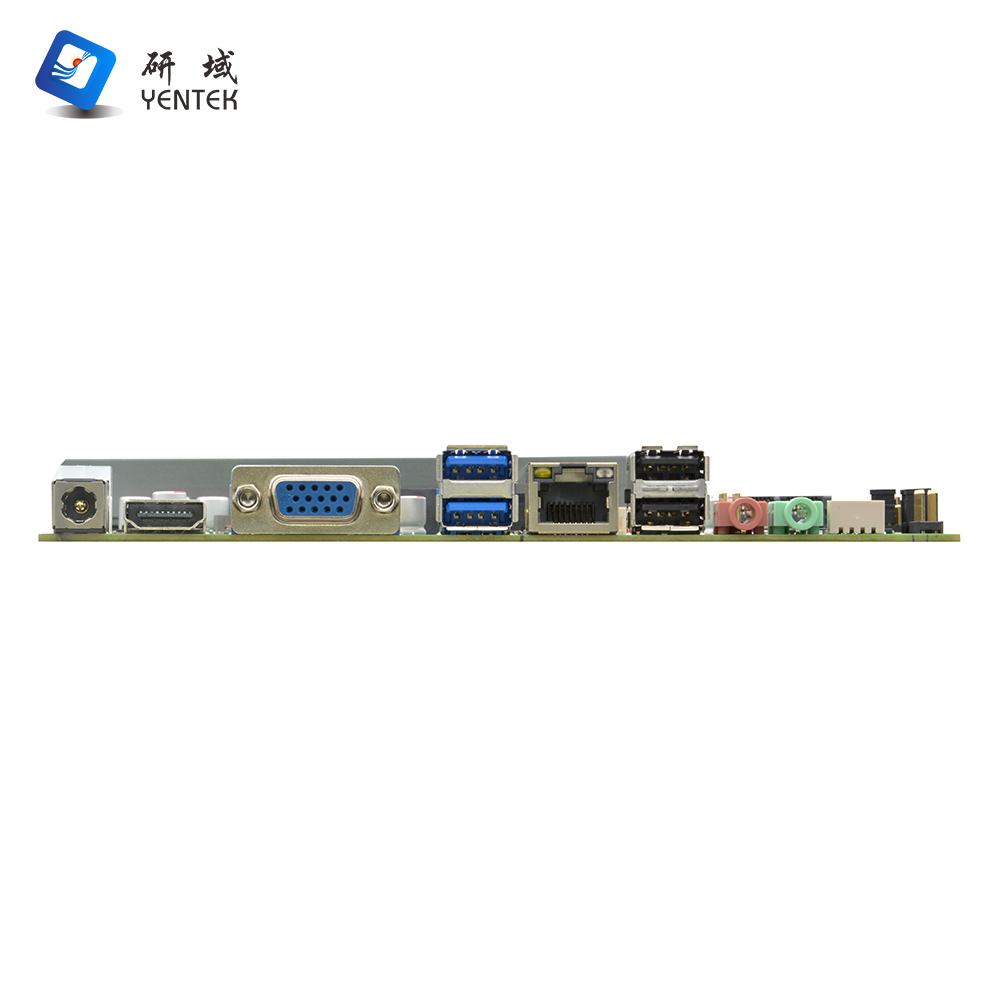

| Backplane I/O Interface | 2*USB3.0,2*USB2.0 |
| 1* HD OUTPUT port | |
| 1* VGA port | |
| 2* RJ-45 Gigabit network interface | |
| 1* Line out (green) | |
| 1* Mic (red) | |
| 1* 12V DC_JACK input | |
| Built-in I/O interface | 1* LVDS interface (2*15pin), support dual channel 24bit (dual 8) |
| 1* LVDS backlight Interface (1*6pin) | |
| 1* J_HD OUTPUT interface (2*8Pin) | |
1* JVGA1 interface (1*12pin), same signal as DB15 | |
| 6* RS232 serial port (COM2/3 supports RS422/485, COM1/COM2 9pin supports live function) | |
1* LPT print port (2*13pin) | |
| 6* USB 2.0 interface (2*5pin) | |
| 1* PS/2 Mouse and keyboard interface (1*6Pin) | |
| 1* Front panel function buttons and indicator ports (2*5pin) | |
| 1* Front panel audio interface (2*5pin) | |
| 1* Power amplifier interface (1*4pin) | |
| 1* SIM card seat | |
| 2* Hard disk power supply interface(1*4pin) | |
| 1* 4pin DC power interface, support 12V power input and output | |
| Fan interface | 1*4pin CPU intelligent fan interface,1*4pin system fan interface |
| GPIO | Supports four input/output GPIO |
| BIOS | 32Mb Flash ROM |
| Guard dog | Support hardware reset function (256 level, 0~255 seconds) |
| Operating system | Windows 7/Windows 10/Linux |
| Power supply type | Powered by DC 12V power supply |
| Operating temperature | -10℃ to 60℃ |
| Storage temperature | -20℃ to 70℃ |
| Working humidity | 5%-95% relative humidity, no condensation |
| Dimension | 170mm * 170mm * 22mm |
Order Information
| NO. | Model | CPU | PCH | Frequency | Memory | VGA | HD OUTPUT | LVDS | LAN | USB | COM | RS485/422 | Power |
| 1 | ITX-B330_I516L VER:1.0(3210M) | I5-3210M | HM76 | 2.5G | 1*SODDR3 | 1 | 2 | 2*24BIT | 1*8111H | 10 | 6 | COM2/3 | DV12V |
| 2 | ITX-B330_I516L VER:1.0(3317U) | I5-3317U | HM76 | 1.7G | 1*SODDR3 | 1 | 2 | 2*24BIT | 1*8111H | 10 | 6 | COM2/3 | DV12V |
