17 inch

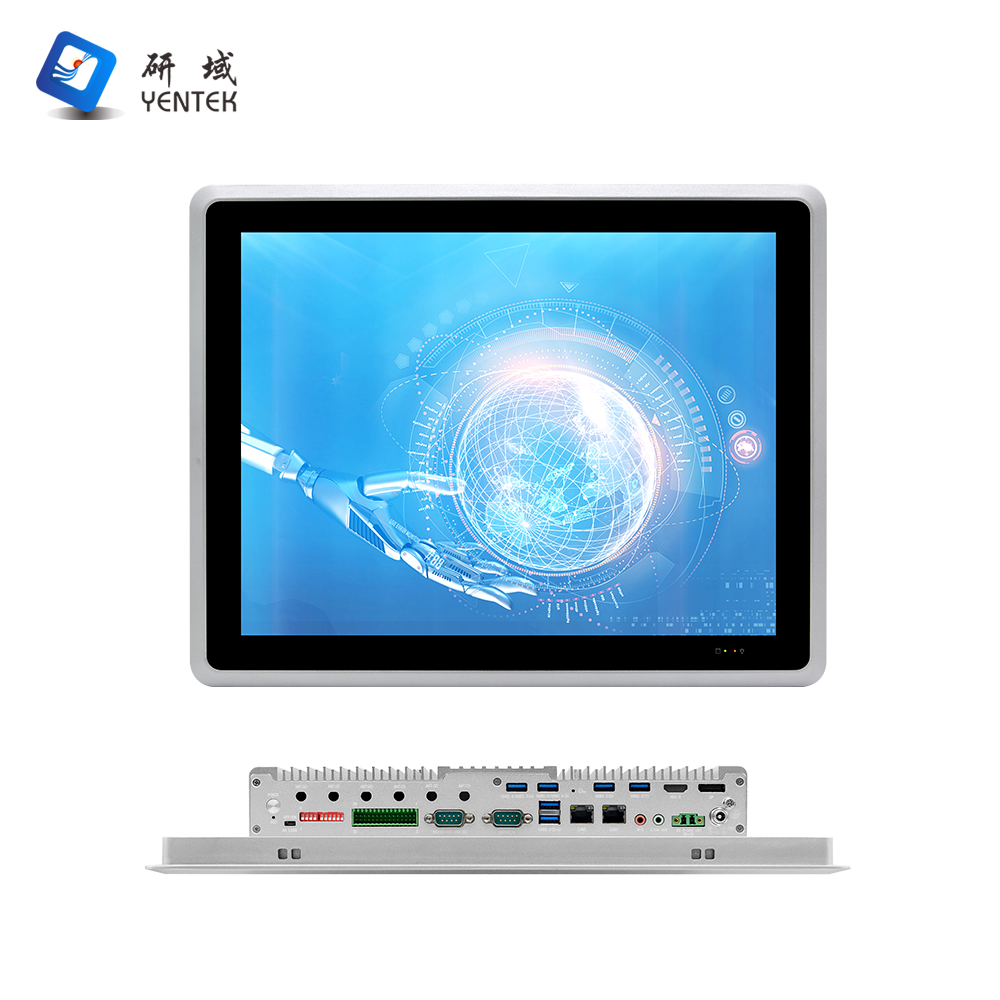

P1771Y-P4 (Embedded)

FEATURES

● 17-inch LCD, 1280*1024, capacitive touch screen

● 1*HD OUTPUT

● 5*Intel I210 Gigabit network cards, four of which support POE

● 4*RS232 serial port, COM1~2 RS232 DB9 serial port, COM2 support RS485/422, COM3~4 RS232 on the 2*12P Phoenix terminal, COM3 support RS485

● Four in four out GPIO,2*USB3.0,2* USB2.0

● 9~36V wide voltage input

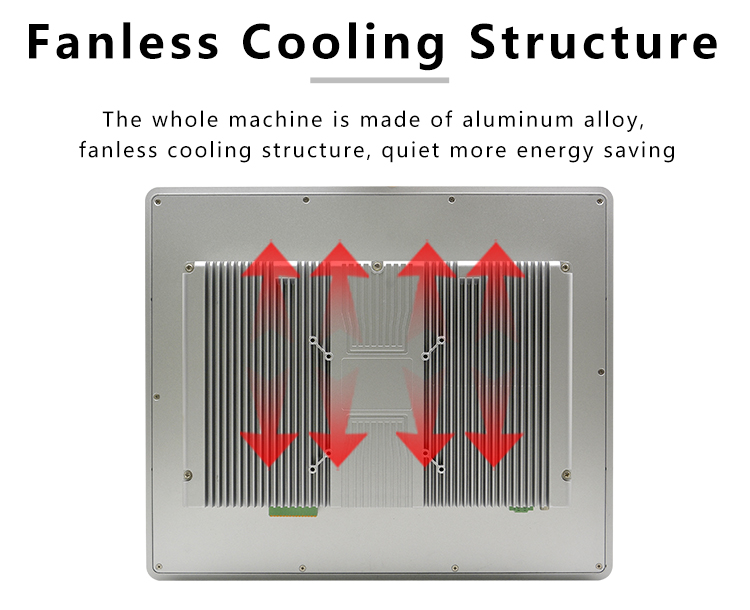

● Aluminum alloy material, fanless cooling structure

● support 1* SIM slot


Product description



Model number

P1771Y-P4 V1.0

Case

Material/Structure

Aluminum alloy material, fanless cooling structure
ColorSilver
Dimension(L*W*H)

L396*W333*H64mm

Weight5.2KG
InstallSupport VESA/ embedded panel installation

LCD scree

Type

17”inch LCD, front screen
Resolution1280 * 1024
luminance250 cd/m2

Touch scree

TypeCapacitive,10 touch (adjustable resistance screen)
Light transmittanceMore than 86%

IO interface

POWER1* Power key, 1* one key restore (and reset key to choose one), 1*COMS reset key, 1*ACLOSS (power on DIP switch)
USB2*USB3.0,2*USB2.0
LED1* Power indicator, 1* hard disk indicator
LAN5*Intel I210 Gigabit network cards, four of which support POE
Display1*HD OUTPUT
COM4*RS232 serial port, COM1~2 RS232 DB9 serial port, in which COM2 supports RS485/422, COM3~4 RS232 on the 2*12pin Phoenix terminal, in which COM3 supports RS485, COM1-2 supports the 9pin live function
Phoenix Connector2*12Pin(4 in 4 out GPIO, switching signal, COM3~COM4, 5V VCC and GND)
Dip switch

10-bit dip switch, COM2 to 3 RS232/485 switch, COM2 RS422 through the COM2_SW1 jumper

Audio1*Audio, Line out and MIC in one
Power source1*DC (5.5*2.5) air port or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input
StorageSATA1*2.5-inch hard disk
MSATA1*MSATA
M.21*M.2/SSD: Key-M, 2280, NVME PCIEx4 SSD
ExpansionM.2

1*M.2/WiFi, Key-E, 2230, supports the WiFi module

1*M.2/5G, Key-B, 2242/52, supports the 5G module
OS SupportWindowsWindows 7/10
LinuxUbuntu
Watch DogSupport hardware reset function (L256, 0~255 seconds)
PowerPower supply typeExternal power adaptor
Voltage input9V~36V
Rate ConsumptionAC TO DC more than 60W
EnvironmentOperating temperature-10℃~50℃
Storage temperature-20℃~70℃
Relative humidity5%-95% relative humidity, no condensation
Working vibration0.5g rms/5-500HZ/random/operating

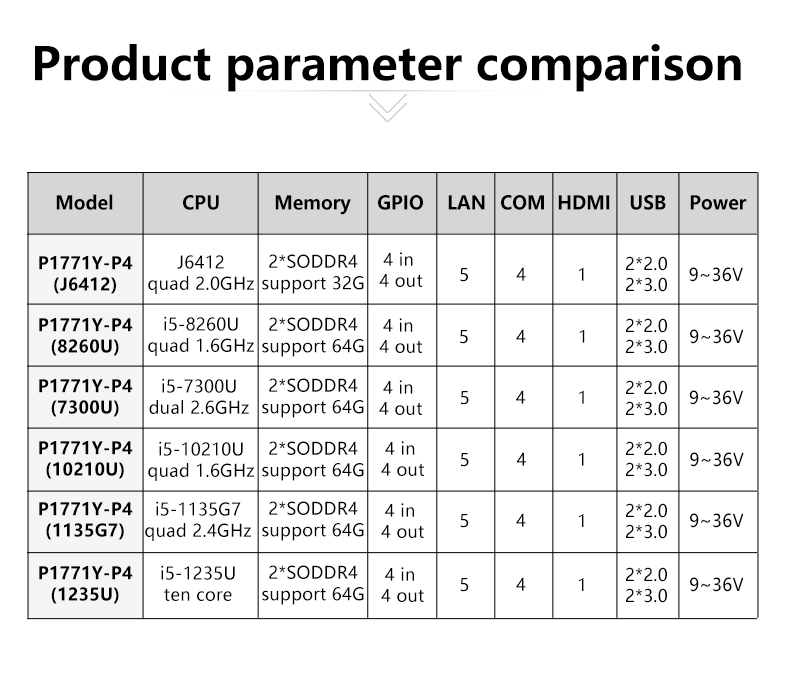

Order Information


No.

Model

CPU

Memory

Motherboard

IO Board

GPIO

LAN

COM

HD OUTPUT

USB2.0

USB3.0

power

1

P1771Y-P4 V1.0(J6412)

J6412/2.00G

2*SODDR4

P642

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

2

P1771Y-P4 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

3

P1771Y-P4 V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P68

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

4

P1771Y-P4 V1.0(10210U)

I5-1021U/1.6G

2*SODDR4

P102

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

5

P1771Y-P4 V1.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

P112

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

6

P1771Y-P4 V1.0(1235U)

I5-1235U/1.6G

2*SODDR4

P122

P1082-P4/P177-IO/P1071-LED

4in4out

5

1

2

9~36V

7

P1771Y-C6 V1.0(J6412)

J6412/2.00G

2*SODDR4

P642

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V

8

P1771Y-C6 V1.0(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V

9

P1771Y-C6V1.0(7300U)

I5-7300U/2.6G

2*SODDR4

P68

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V

10

P1771Y-C6 V1.0(10210U)

I5-1021U/1.6G

2*SODDR4

P102

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V

11

P1771Y-C6 V1.0(1135G7)

I5-1135G7/2.4G

2*SODDR4

P112

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V

12

P1771Y-C6 V1.0(1235U)

I5-1235U/1.6G

2*SODDR4

P122

P1082-C6/P177-IO/P1071-LED

4in4out

2

6

1

2

4

9~36V
