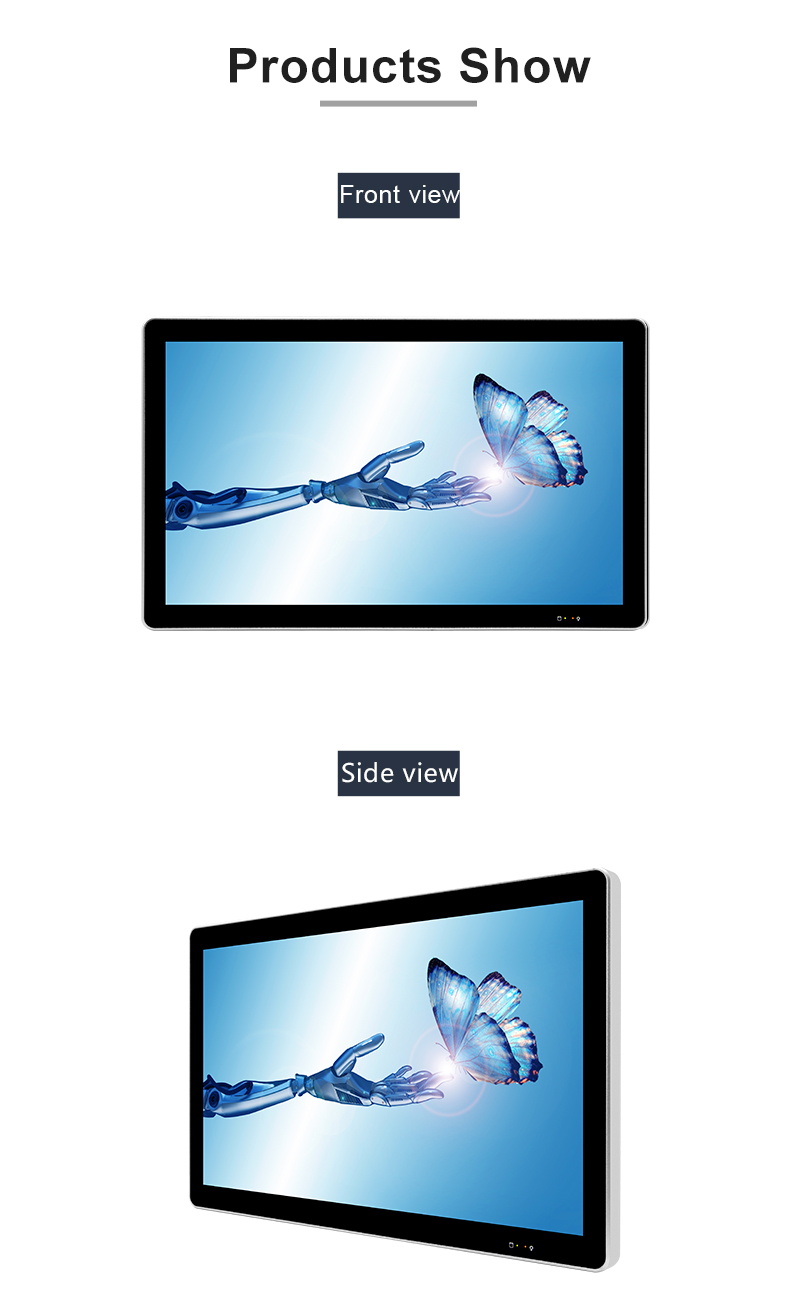

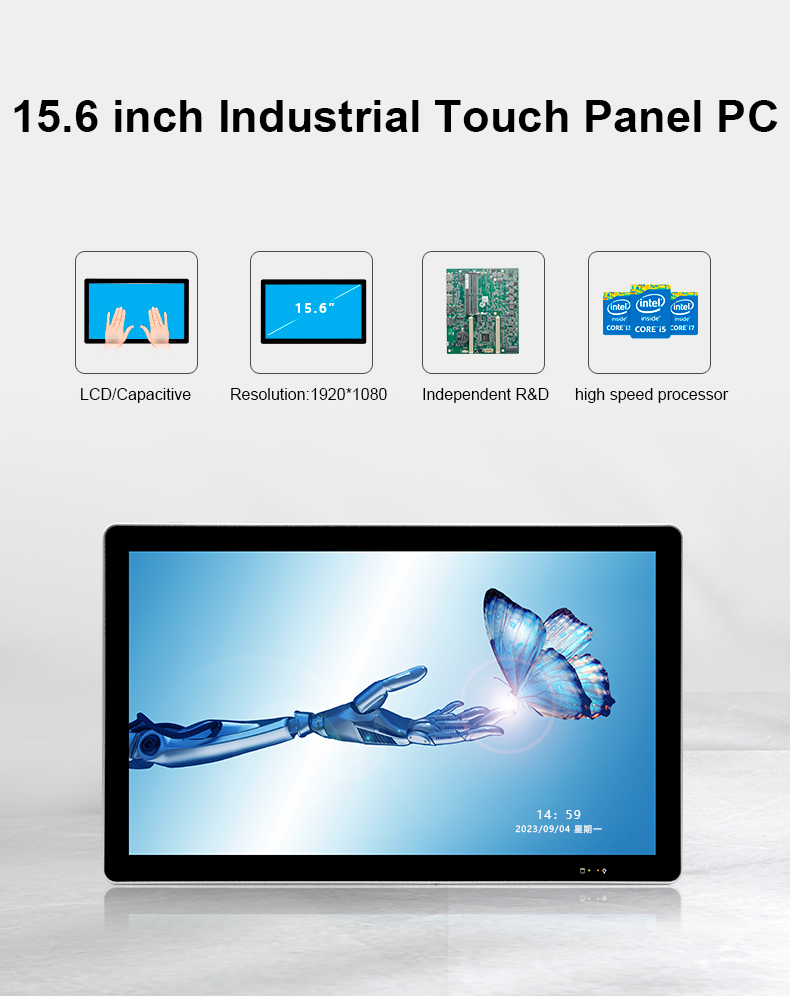

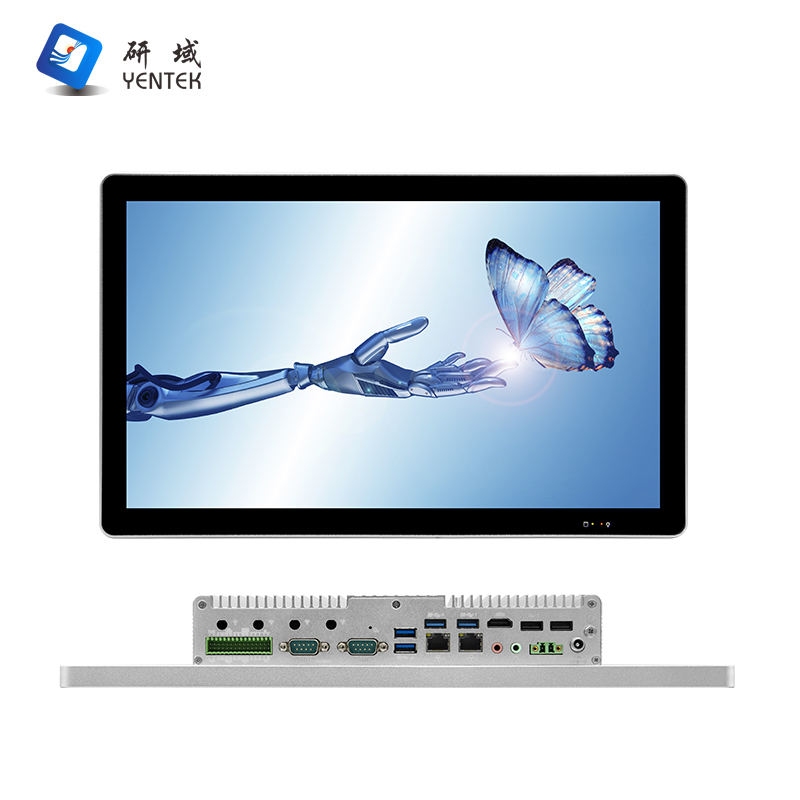

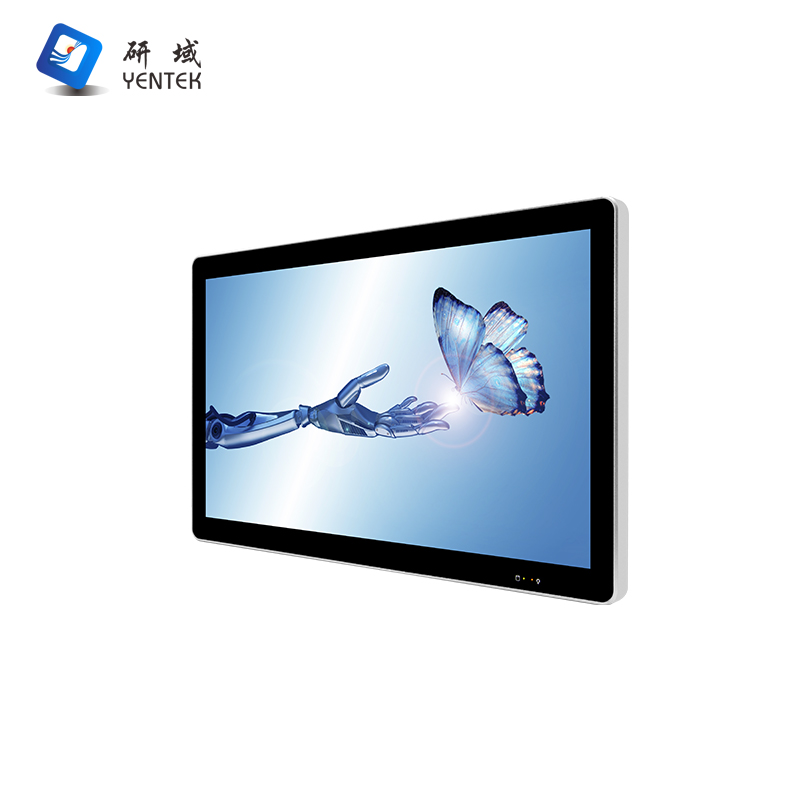

P1582X-C6 (VESA)

Chassis

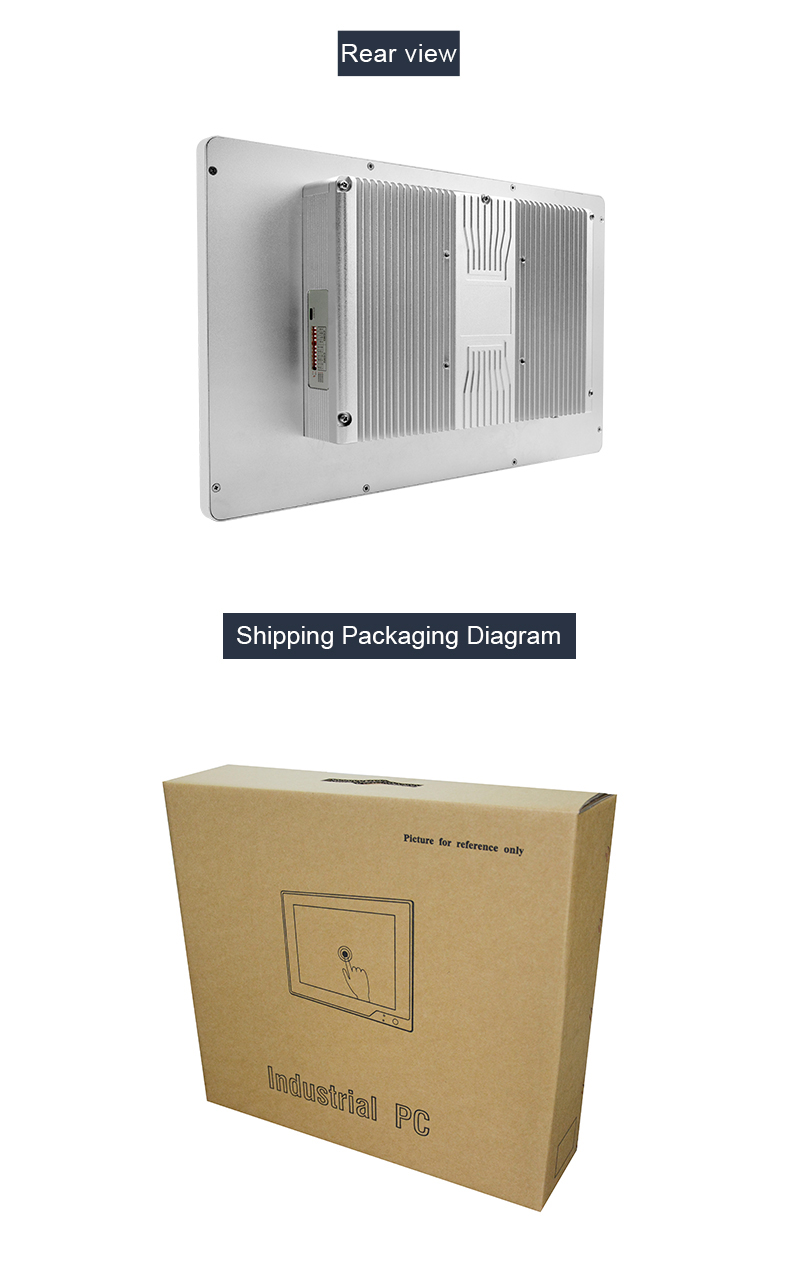

Material/structure

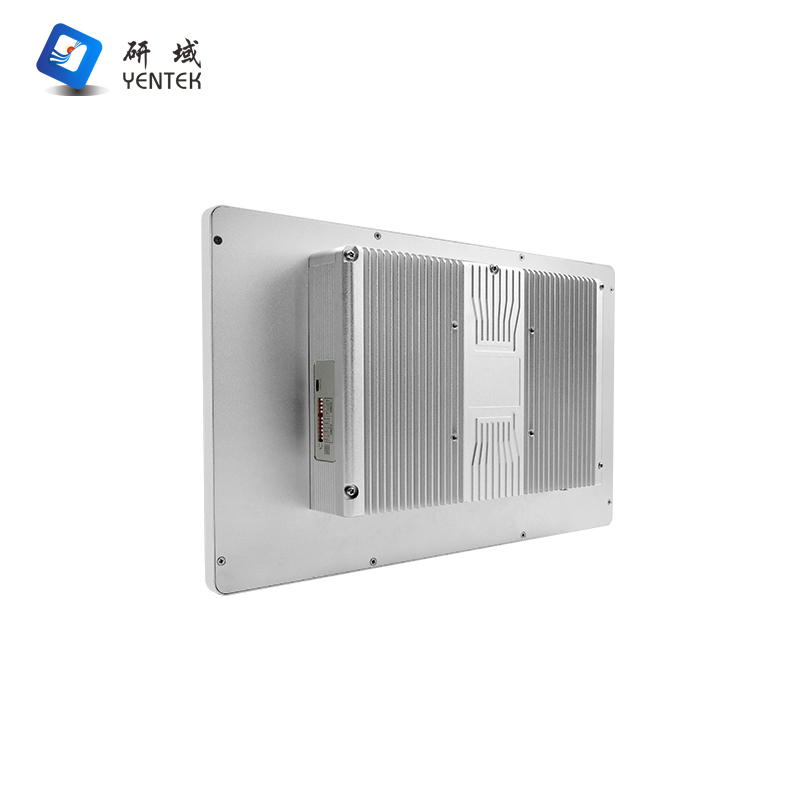

Aluminium alloy material,   fanless cooling structure

Colour

Silver colour

Size (LWH)

L380*W233*H56mm

Weight (bare net)

KG

Installation

Wall Mount/VESA

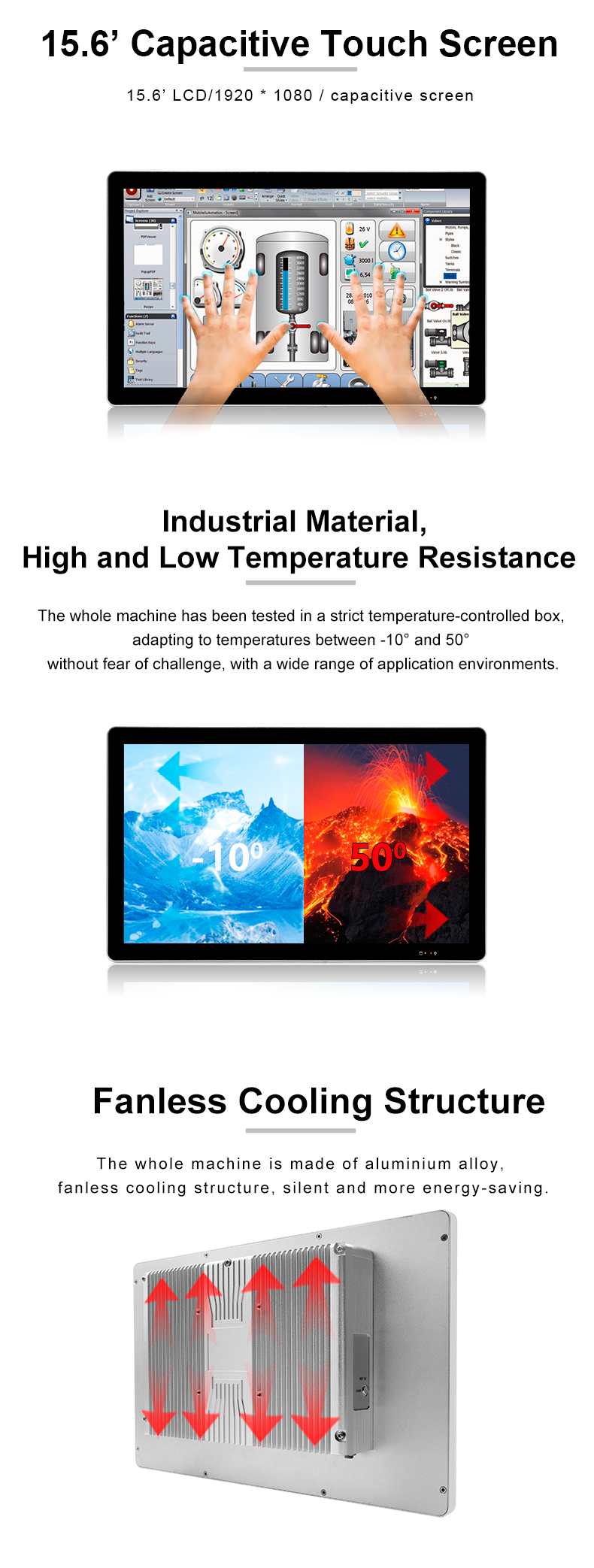

LCD Screen

Type

15.6’ LCD

Resolution

1920 * 1080

Brightness

250 cd/m2

Touch Screen

Type

Capacitive Screen

Transmittance

86% or more

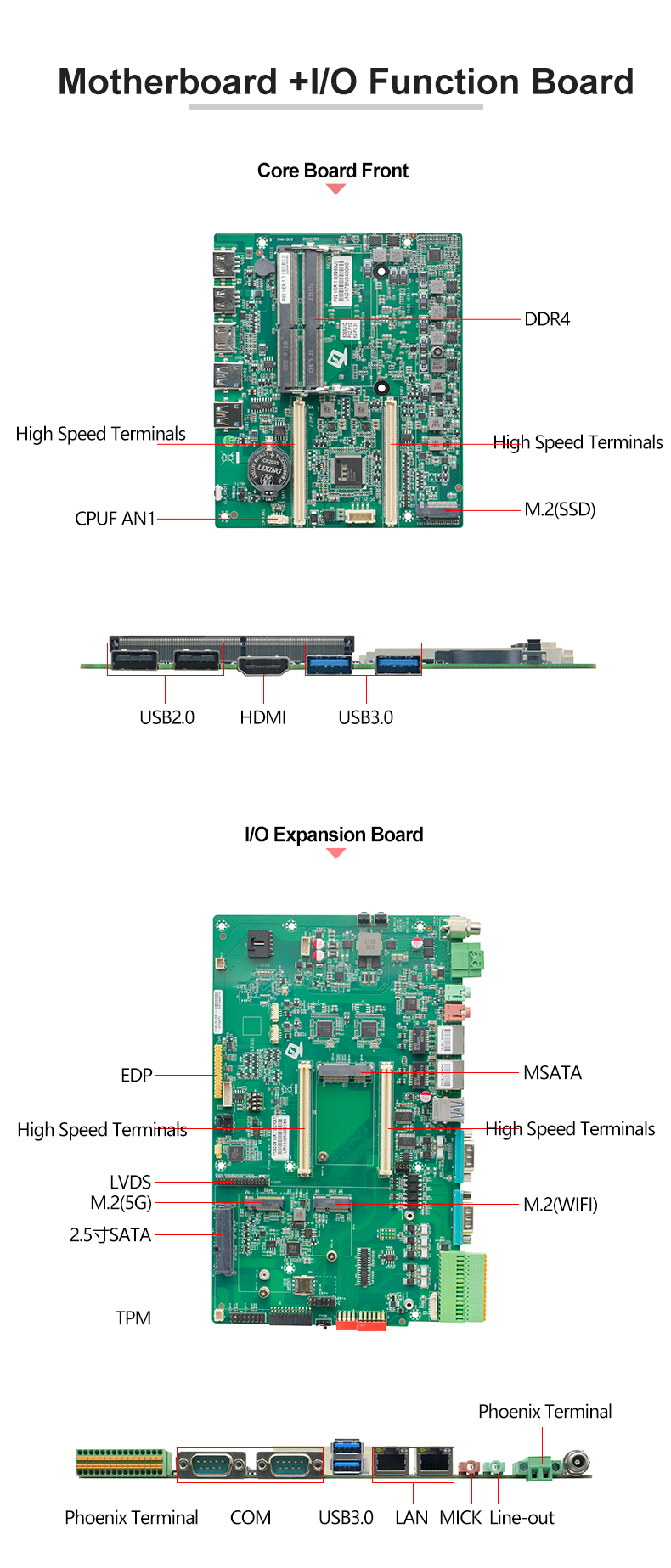

Motherboard

CPU

Integrated Intel®   i5-8260U/1.60GHz Quad-Core 8-Thread Processor, TDP 15W

RAM

2*DDR4 SODIMM 2400MHz memory,   support up to 64GB

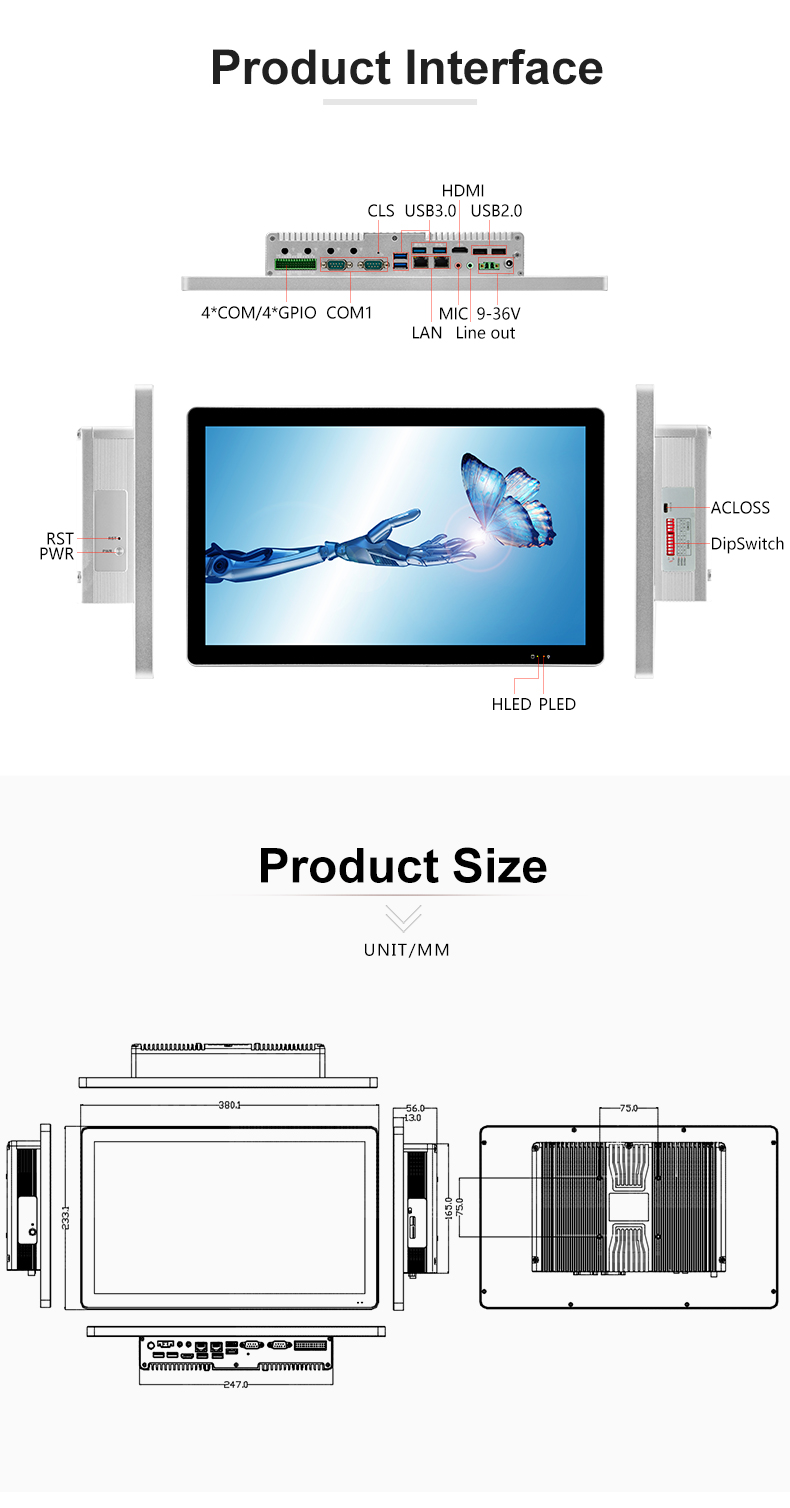

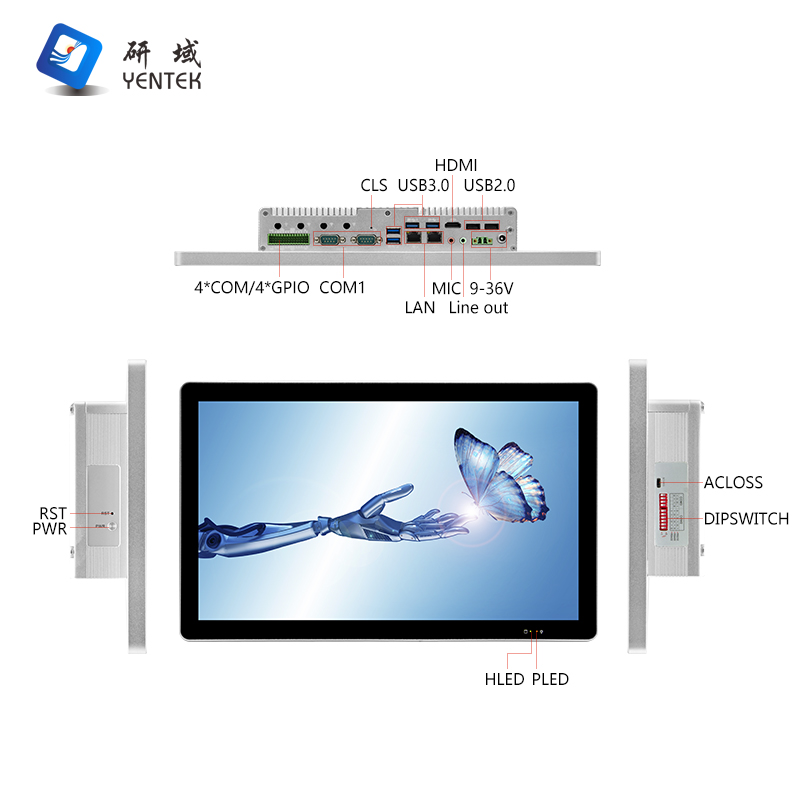

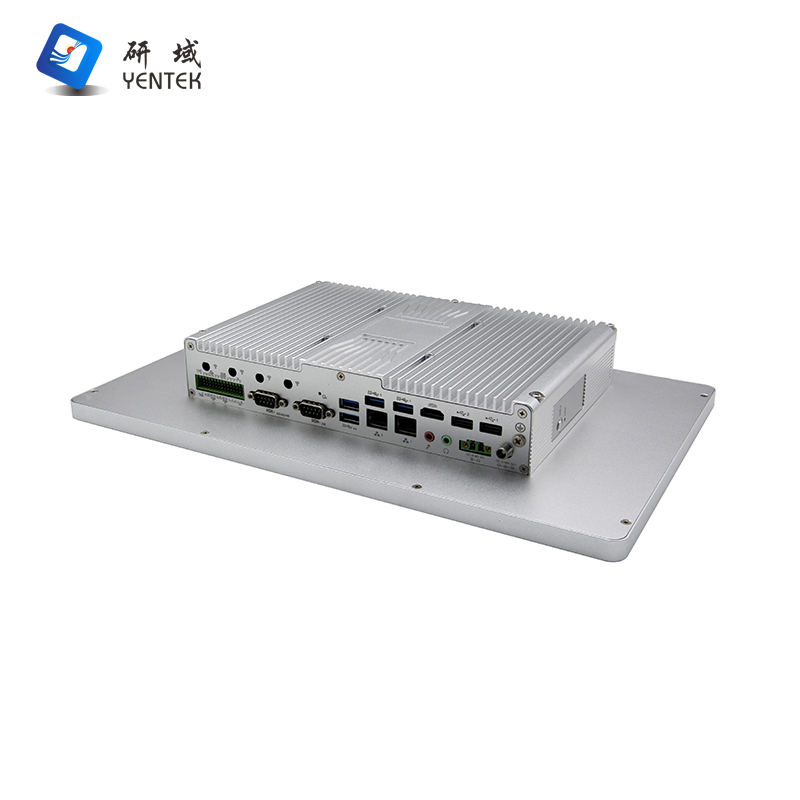

IO Interface

POWER

1*Boot Button, 1*Reset Switch,   1*ACLOSS (Power On Codec Switch), 1*CMOS Reset Switch

LED

1*Power Indicator, 1*Hard Drive   Indicator

Display Interface

1*HDMI1.4 (4096x2160@60Hz)

LAN

2*Intel I210AT Gigabit LAN card,   support Wake on LAN, PXE function

USB

4*USB3.0, 2*USB2.0

COM

6*RS232 serial port, COM1 ~2   RS232 DB9 serial port, of which COM2 supports RS485/422, COM3-6 RS232 on   2*15P Phoenix terminal, of which COM3 supports RS485, COM1-2 support for the   9th pin with power function

DIO

4 in 4 out DIO (on 2*15P Phoenix   terminals)

DIP Switch

10-position dipswitch, COM2~3   RS232/485 switching, COM2 RS422 via COM2_SW1 jumper cap

AUDIO

1*Line out, 1*MIC

Power Supply

1*DC air interface or 1*2P   Phoenix terminal, support 9V~36V wide voltage input

Storage

SATA

1*2.5-inch hard drive bay (IO   board side)

MSATA

1*MSATA (IO board side)

M.2

1*M.2/SSD, support Key-M, 2280,   NVME PCIEX4 SSD (motherboard side)

Expansion

M.2

1*M.2/WiFi, support Key-E, 2230,   WiFi module

1*M.2/5G, Key-B support,   3042/3052, 5G module

System Support

Windows

Windows 10

Linux

Ubuntu

Watch Dog

Support hardware reset function   (256 levels, 0~255 seconds)

Power Requirements

Power supply type

External Power Adapter

Voltage Input

DC 9V~36V wide voltage

Power Output

AC To DC 90W or more (depending   on specific equipment)

Environments

Operating Temperature

-10℃～50℃

Storage Temperature

-20℃～70℃

Relative Humidity

5%-95% relative humidity,   non-condensing

Operating Vibration

0.5g   rms/5-500HZ/random/operating

1

P1582X-C6 V0.1(7300U)

I5-7300U/2.6G

2*SODDR4

P67

P1081-C6/P1082-LED

msata+M.2(NVME)+2.5

4in4out

2*I210

6

1

2

4

9~36V

2

P1582X-C6 V0.1(8260U)

I5-8260U/1.6G

2*SODDR4

P82

P1082-C6/P1082-LED

msata+M.2(NVME)+2.5

4in4out

2*I210

6

1

2

4

9~36V
