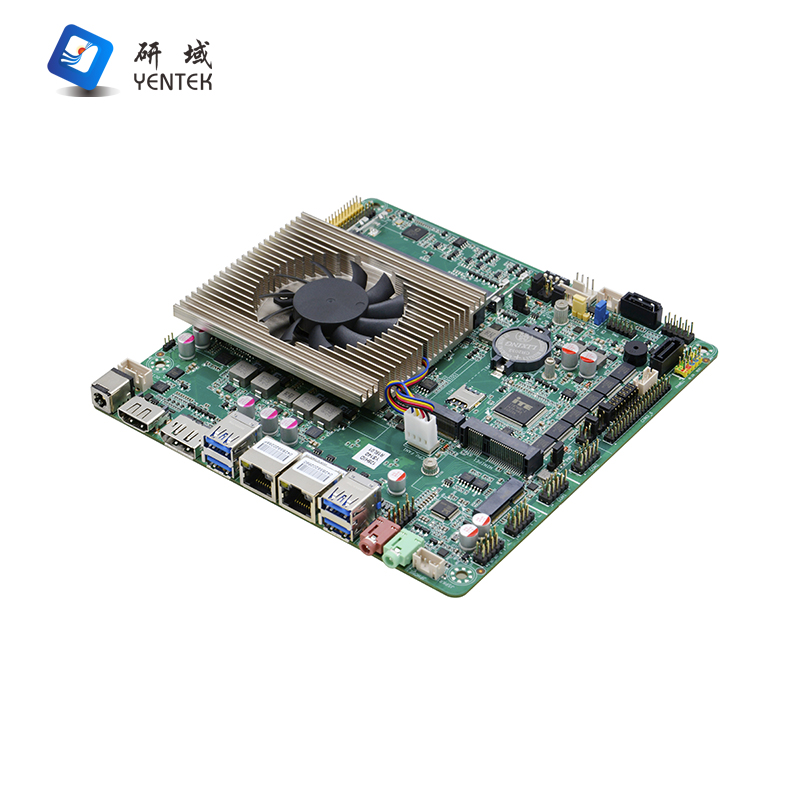

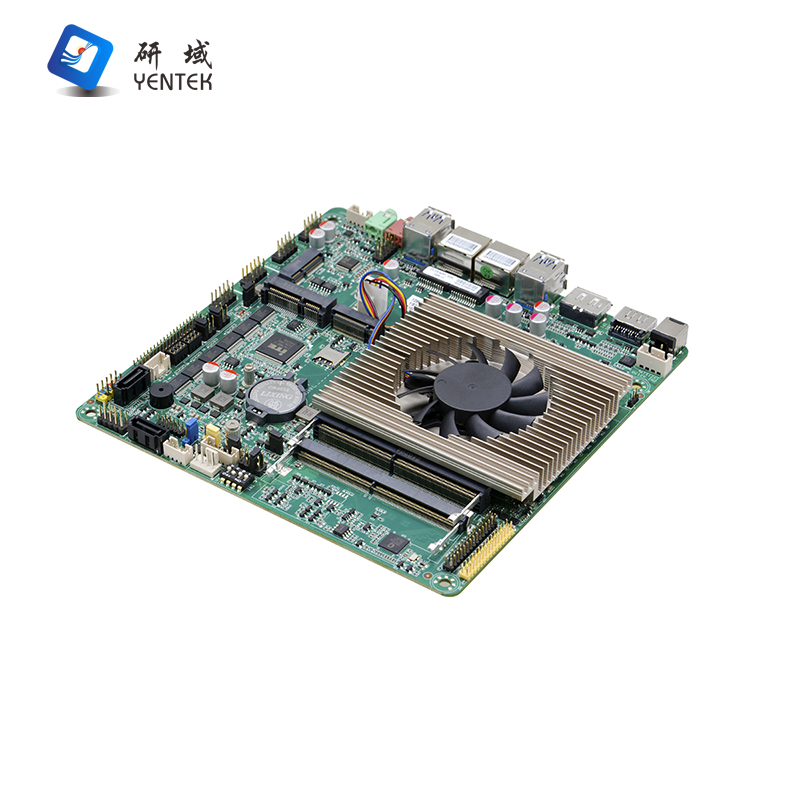

ITX-YS140R1_I526L

Processor

Integrated Intel® Meteor Lake Core™ Ultra 5 125H 4.5GHz, 14-core,   18-thread processor, TDP 28W

Compatible with Intel® Meteor Lake-U/H 14th processor

Chipset

SOC

Memory

2* DDR5 SODIMM memory slots, supports 5600MHz memory up to 64GB

Display

Integrated Intel® Arc™ graphics, support DirectX 12.1 OpenGL 4.6, support   4K.

1* HDMI1.4 interface, support for the highest resolution: 4096x2304@24Hz

1* DP interface

1* support dual-channel 24bit LVDS interface

1* EDP interface, and LVDS through the jumper one of the two options

Network

2* RTL8111H Gigabit LAN card, support Wake-on-LAN and PXE function.

Storage

2* SATA3.0 hard drive interface, transfer speed up to 6Gbps

1* M.2 slot, support M.2 2280 NVME PCIE x4 standard   SSDs

Audio

Integrated ALC897 7.1 + 2-channel hi-fi audio controller, support for   MIC, Line_out, amplifier

Supports 4Ω 3W speaker amplifier

Expansion Slots

1* M.2 slot, support M.2 Key E 2230 WIFI module

1* Mini-PCIE slot, support WIFI/4G module

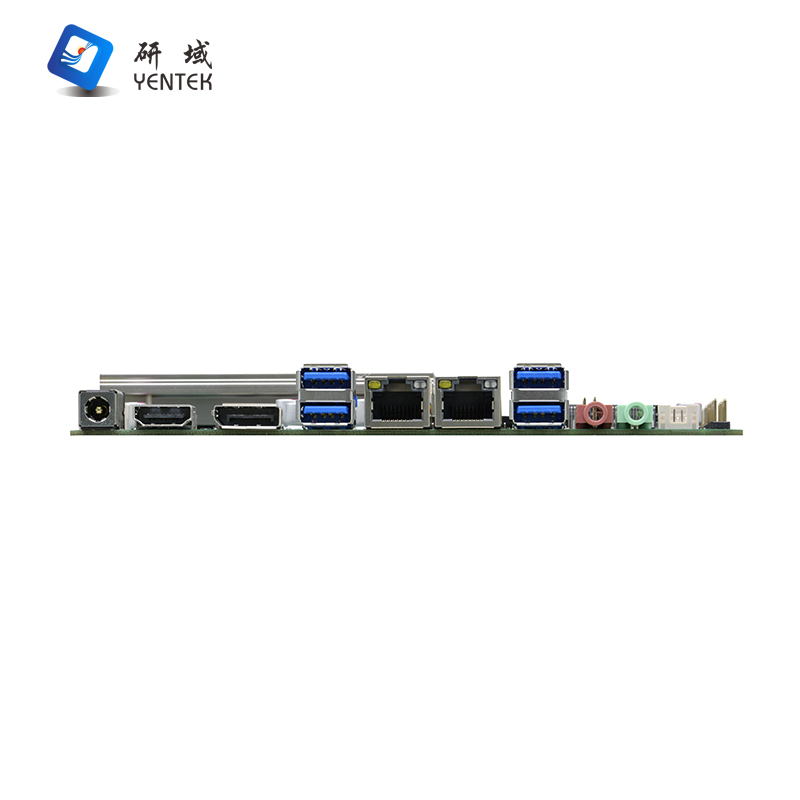

Backplane I/O Ports

4* USB3.0 interface

1* HDMI1.4

1* DP interface

2* RJ45 Gigabit Network Interface

1* Line-out (green), 1* MIC (red)

1* DC12V power interface, support 12V power input

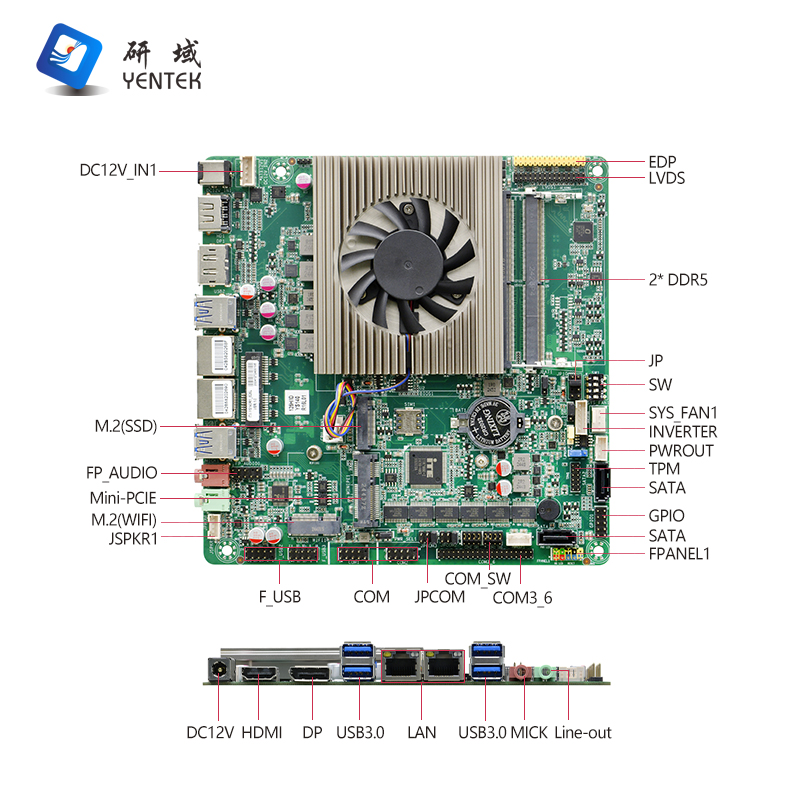

Built-in I/O Ports

1* LVDS interface 2*15pin, support dual-channel 24bit

1* LVDS backlight power supply interface 1*6pin

1* EDP interface 2*15pin, and LVDS through the jumper one of the two   choices

6* RS232 serial interface, COM2/3 support RS485/422 functions

4* USB2.0 interface 2*5pin

1* Front audio interface 2*5pin

1* Front panel switch button and indicator interface 2*5Pin

1 * Hard disc power supply interface 1*4pin

2* Amplifier connector 1*4pin

1* DC power connector 1*4pin (can be 12V input power connector)

1* SIM card slot

1* TPM interface ESPI specification, 2*6pin

Fan Interface

1*4pin CPU smart fan interface, 1* 4pin system fan interface

GPIO

Support 4 input/output GPIO function

BIOS

128Mb Flash ROM

Watchdog

Support hardware reset function (256 levels, 0~255 seconds)

Power Supply Type

DC 12V power supply

Operating System

Windows 10, /Linux

Operating Temperature

-10℃～60℃

Storage Temperature

-20℃～70℃

Working Humidity

5%-95% relative humidity, non-condensing

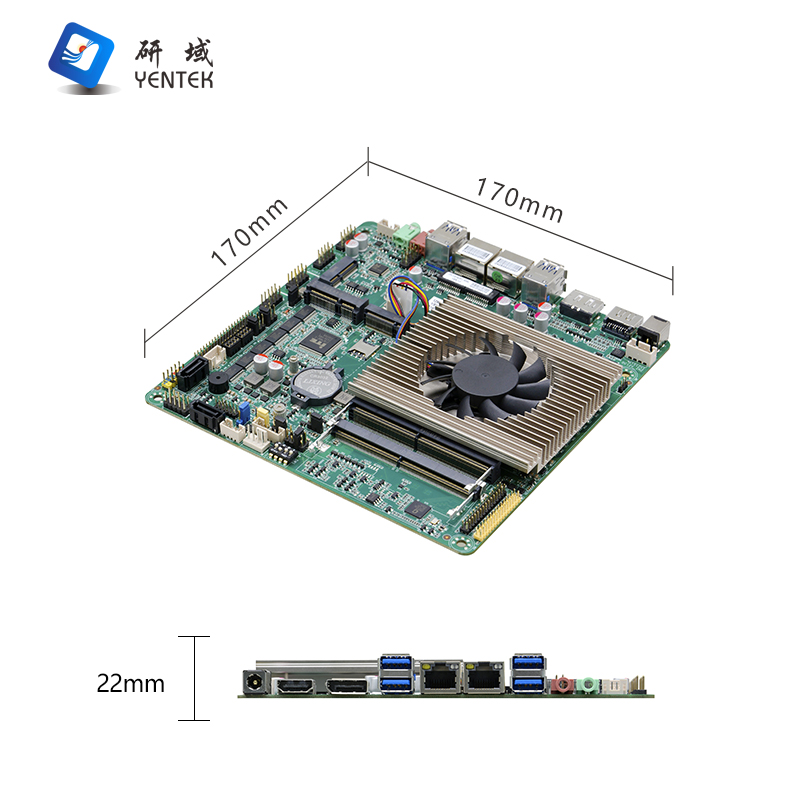

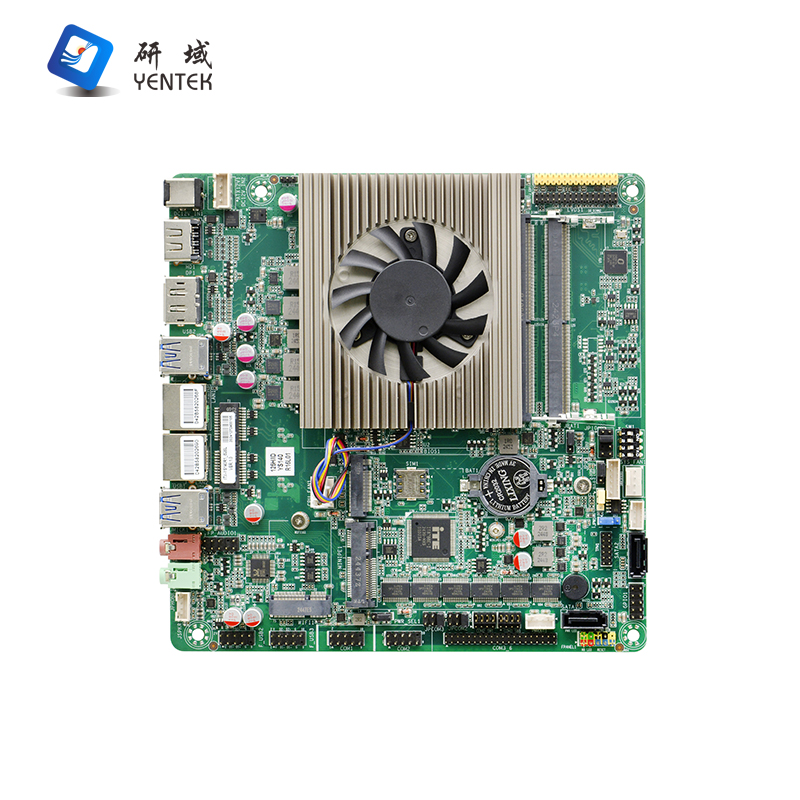

Dimension

170mm x 170mm

1

ITX-YS140R1_I526L   VER:1.0(125H)

125H

4.5G

2*SODDR5

1

1

1

1

2*8111H

8

6

COM2/3

DC12V
