P1271Y-P4 (Embedded)

chassis

Material/Structure

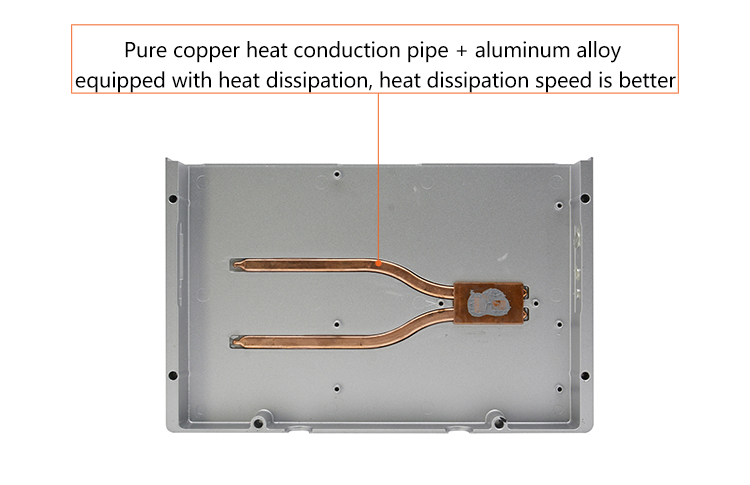

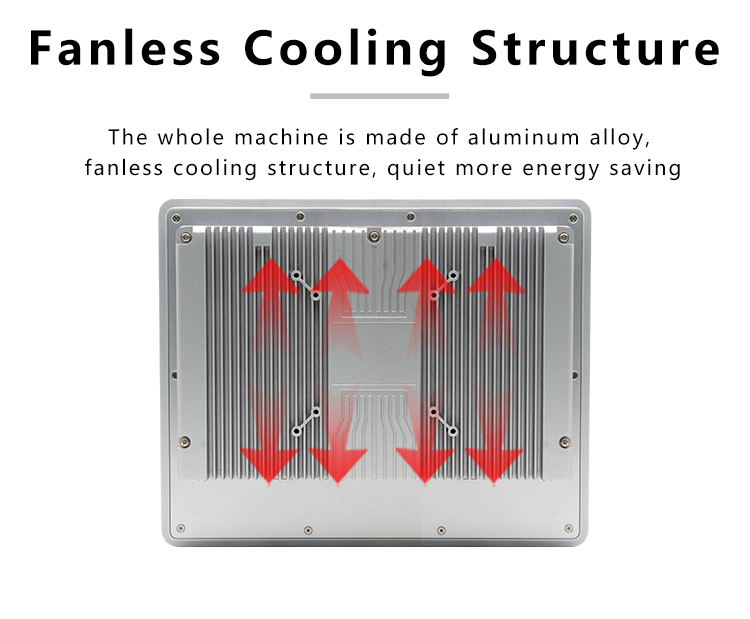

Aluminum alloy material, fanless cooling structure

colour

silver

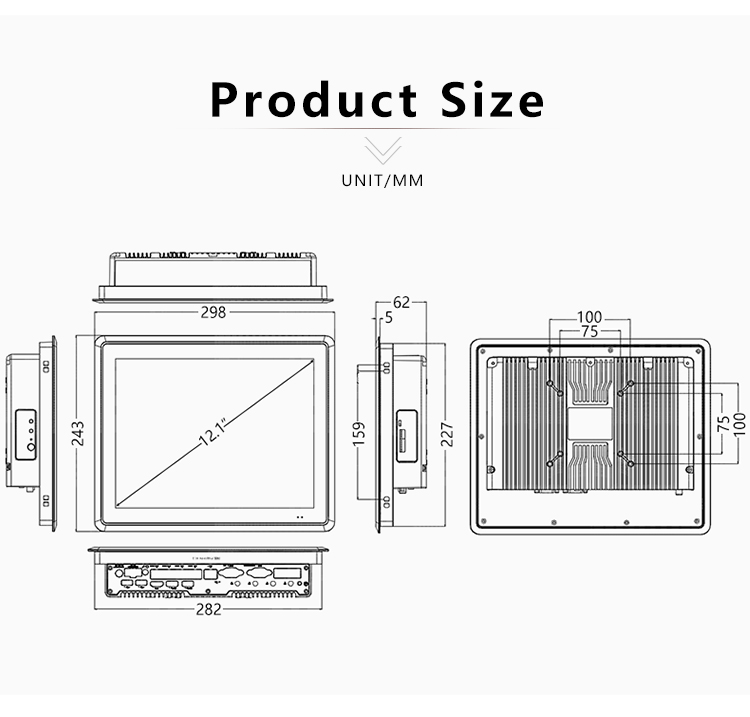

Dimensions (length, width and height)

L298*W243*H62mm

Weight (bare weight)

2.97 KG

Install

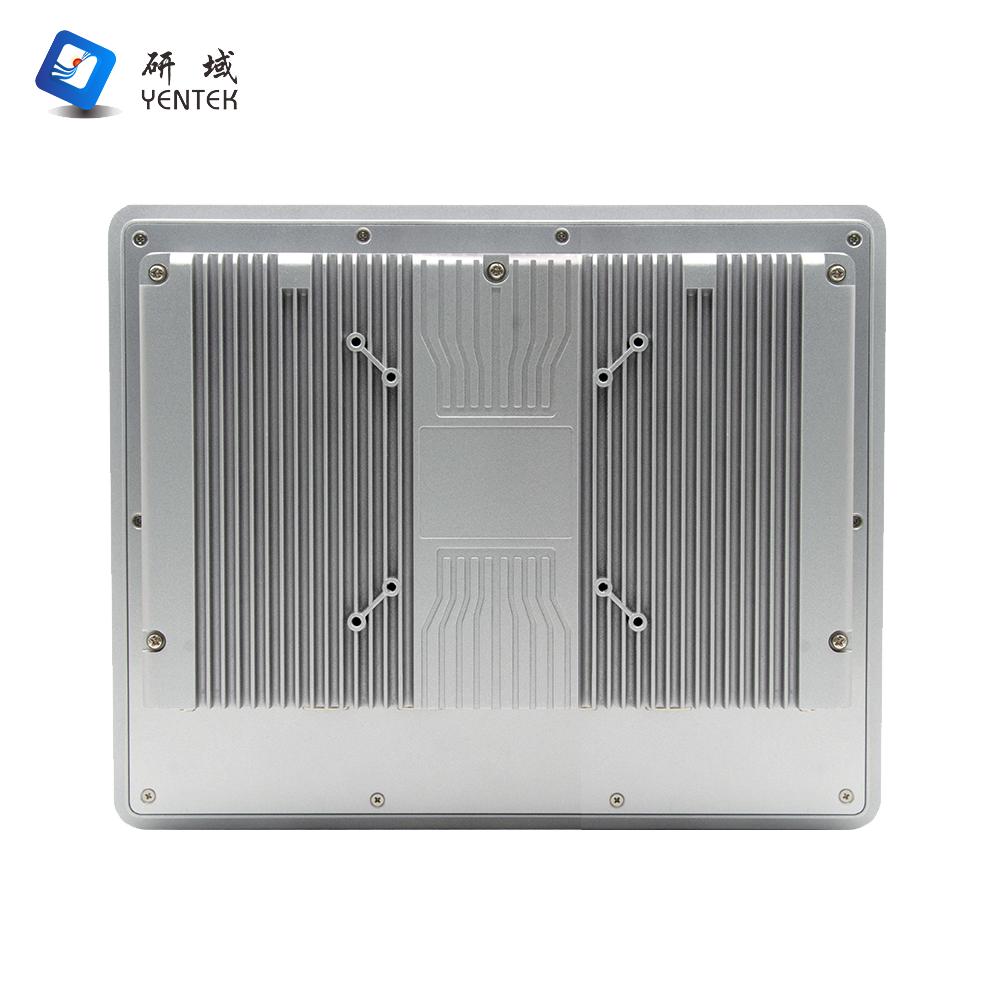

Support VESA/ embedded panel installation

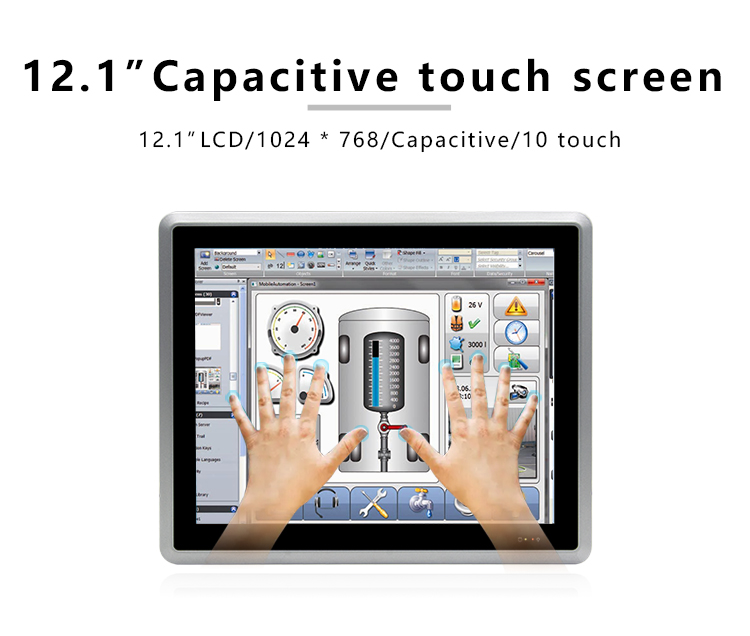

LCD screen

type

12.1 inch LCD, 4:3, front screen

Resolution

1024 * 768

luminance

500 cd/m2

Touch screen

type

Capacitive screen, 10 touch (adjustable resistance screen)

Light transmittance

More than 86%

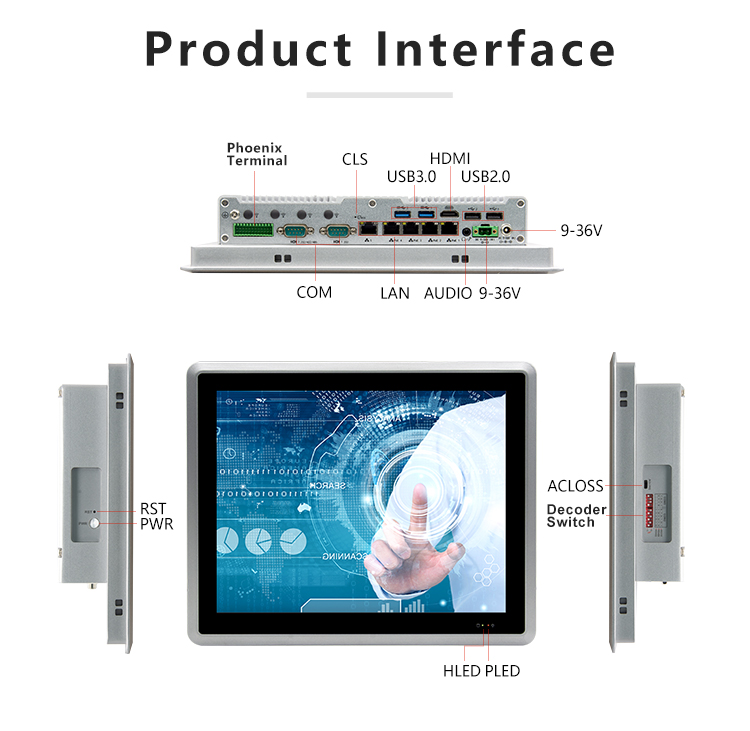

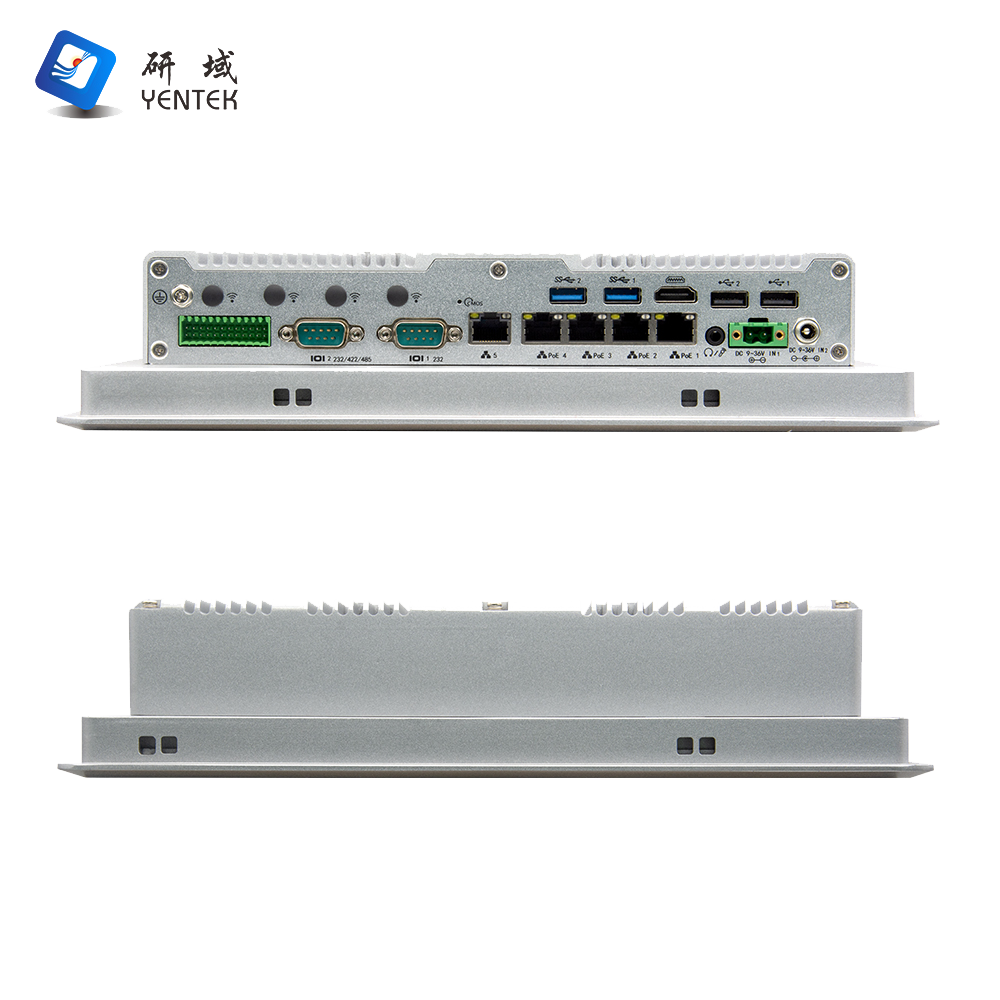

IO interface

POWER

1* Power button, 1* one key restore (and reset switch to choose one), 1*ACLOSS (power on DIP switch), 1*CMOS reset switch

Display interface

1*HD OUTPUT

LAN

5*Intel I210AT Gigabit network adapters, four of which support POE/15W

USB

2* USB3.0, 2* USB2.0

COM

4*RS232 serial port, COM1~2 RS232 DB9 serial port, in which COM2 supports RS485/422, COM3~4 RS232 on the 2*12pin Phoenix terminal, in which COM3 supports RS485, COM1-2 supports the 9pin live function

Phoenix terminal

2*12Pin(4 in 4 out GPIO, switching signal, COM3~COM4, 5V VCC and GND)

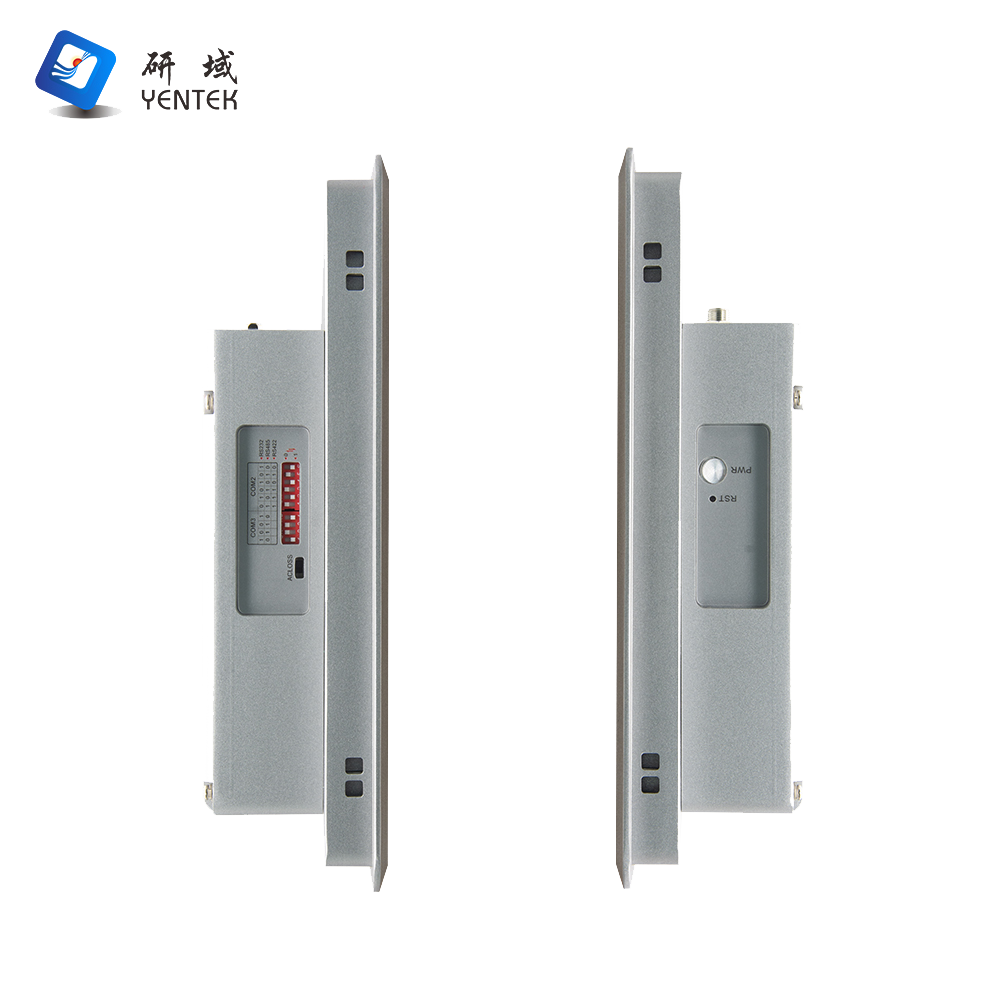

Dip switch

10-bit dip switch, COM2 to 3 RS232/485 switch, COM2 RS232/485/422 through the dip switch +COM2_SW1 jumper

Audio frequency

1*AUDIO, Line out and MIC in one

Power source

1*DC aviation interface or 1*2P P=5.08mm Phoenix terminal, support 9V~36V wide voltage input

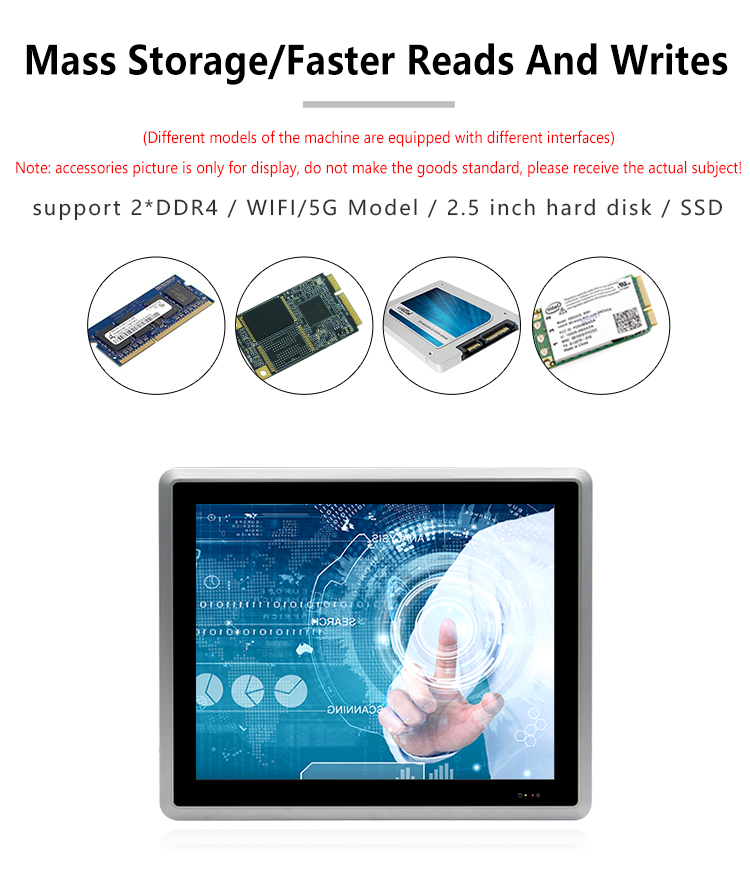

store

SATA

1*2.5-inch hard disk

MSATA

1*MSATA

M.2

1*M.2/SSD, Key-M, 2280, supports NVME PCIEX4

extend

M.2

1*M.2/WiFi, Key-E, 2230, supports the WiFi module

1*M.2/5G, Key-B, 2242/52, supports the 5G module

Power demand

Power supply type

External power adapter

Voltage input

9V~36V wide voltage

Power output

AC TO DC more than 60W (depending on the specific equipment)

environment

Operating temperature

-10℃ to 50℃

Storage temperature

-20℃ to 70℃

Relative humidity

5%-95% relative humidity, no condensation

Working vibration

0.5g rms/5-500HZ/random/operating
